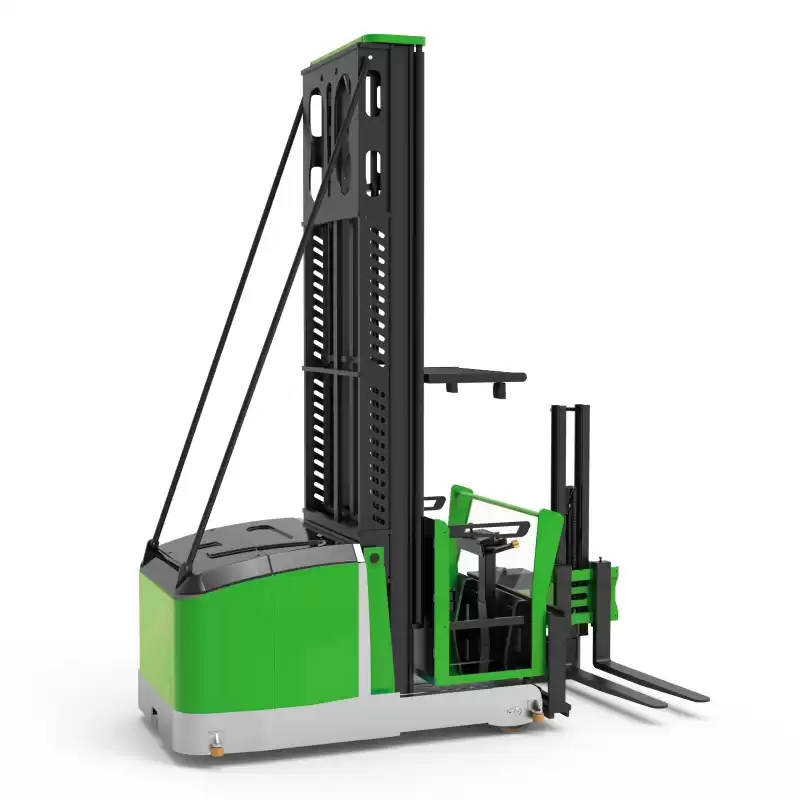

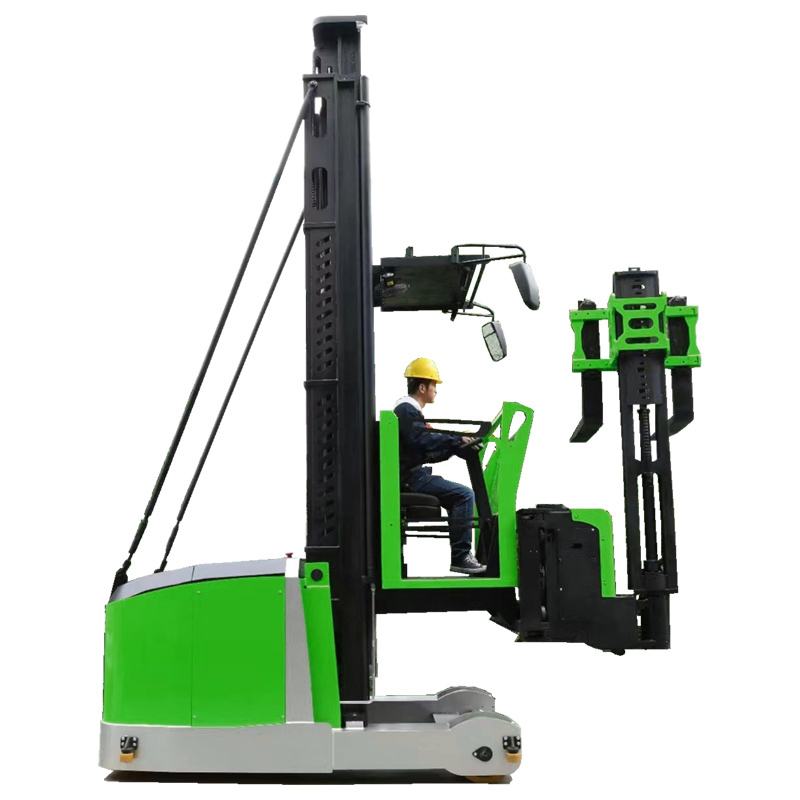

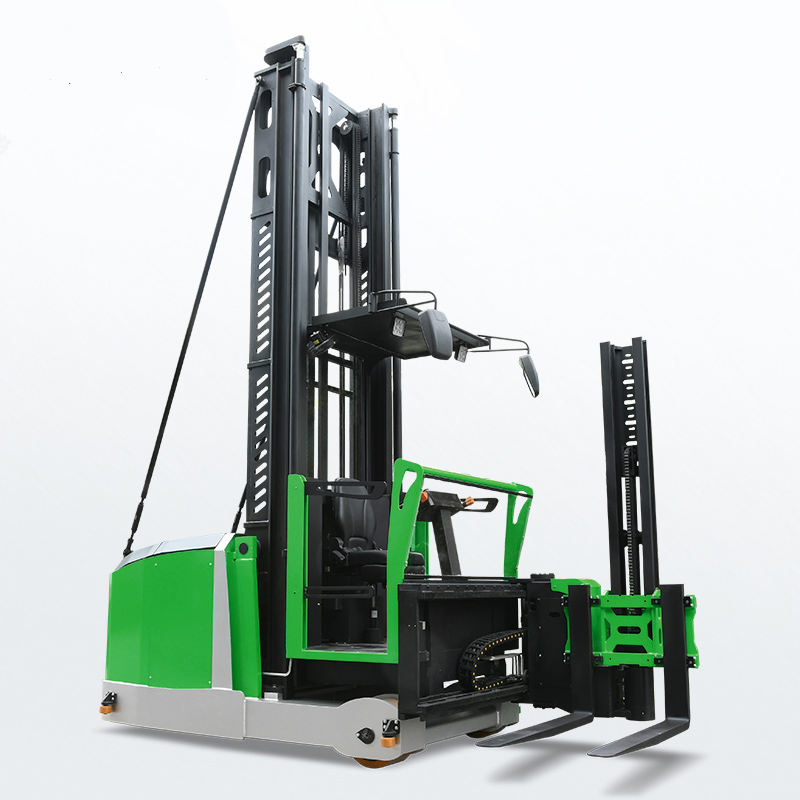

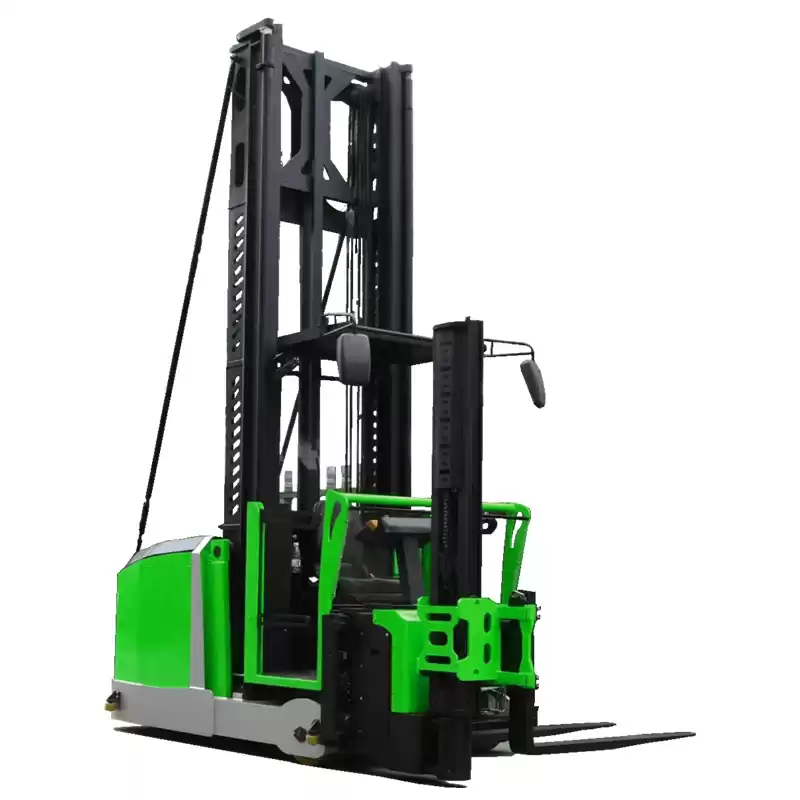

Man up type very narrow asile pallet stacker
The NVM Series 1.5 ton man up VNA turret forklift truck maximizes warehouse utilization. The innovative design enables this turret truck to load and unload pallets in very narrow aisles and reach greater heights.The man up very narrow asile pallet stacker forklift is the latest generation of electric high-level stacking and picking forklift. The maximum loading capacity is 1500kg and the maximum main lifting height is 9000mm,auxiliary lift height is 1500mm.
Features:
1.CURTIS controller
2.ALBRIGHT contactor
3.CURTIS control accelerator
4.Full AC control system
5.Brand instrument
6.Brand multi way valve and gear oil pump
7.Key components such as oil seal and oil pipe are imported
8.48V540Ah-750Ah battery
9.External 48V intelligent charger
10.Polyurethane solid tire with high wear resistance
11.Drive wheel position display
12.Full electromagnetic electro-hydraulic proportional hydraulic control
13.Electromagnetic brake system
14.Electronic power steering
15.Two modes: seated type, standing type
16.Mast lifting hierarchical control (with exclusive free lifting system)
17.Hydraulic swing cylinder rotation
18.Three fulcrum structure layout
19.Imported mast steel
Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NVM15 |
| Load capacity |
kg |
1500 |
| Free lift height |
mm |
2500 |
| Main lift height |
mm |
9500 |
| Auxiliary lift height |
mm |
1500 |
| Max.height when lifting |
mm |
10400 |
| Overall width |
mm |
1474 |
| Fork size |
mm |
45*125*1220 |
| Channel Shelf Width（1200*1200 Pallet） |
Ast(mm) |
1700 |
| Main Channel Width |
mm |
4410 |
| Battery type |
|
Lead Acid |
| Battery capacity |
V/Ah |
48V530Ah |
| Charger |
V/Ah |
48V/75A |
| Drive controlling type |
|
AC |
| |

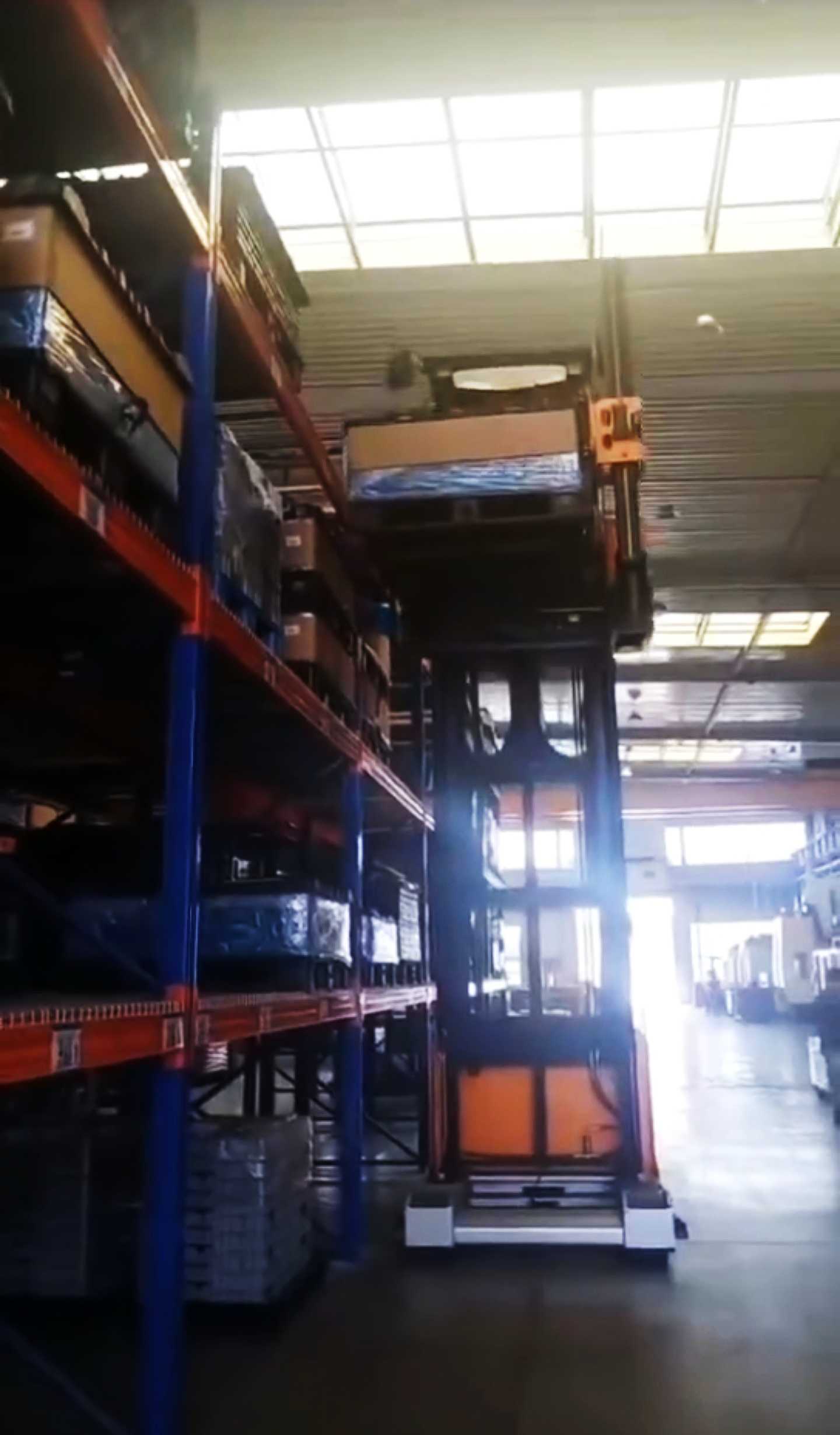

Application:
1.Cold warehouse
2.Food
3.Medical
4.Electronics
5.Hardware
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
