Product Name

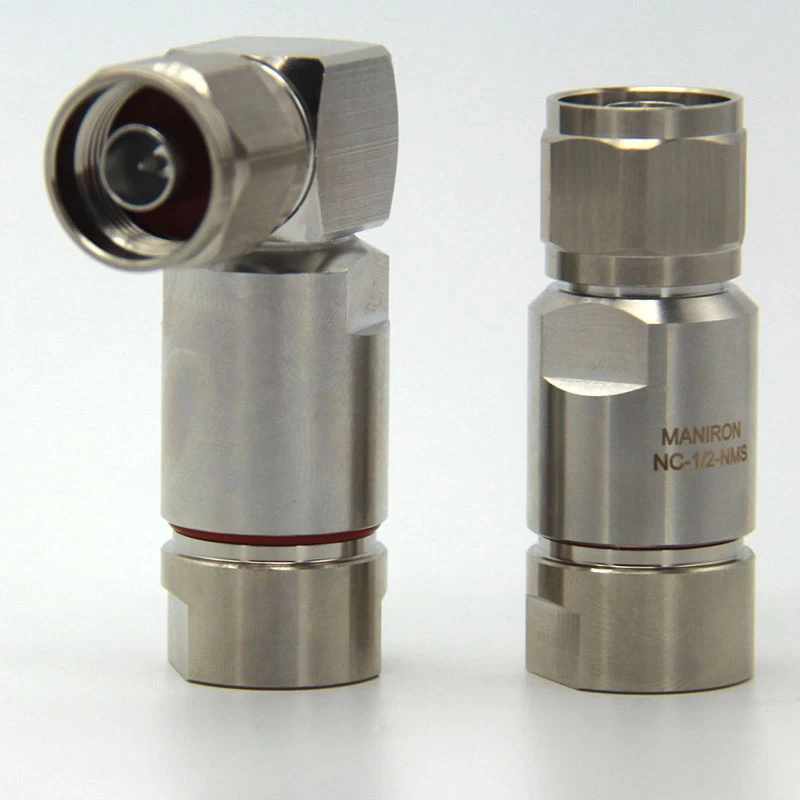

N male straight RF coaxial connector (DC-3GHz,N male , Low VSWR)
Product Features
N male straight RF coaxial connector Low VSWR and excellent impedance matching, supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects
N male straight RF coaxial connector are available with the impedance of 50ohm and 75ohm.The frequency range extends to 18GHz.depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection. Coaxia Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series.
Technical &Mechanical Specifications
|
Model No.
|
MPRC-1/2-NM
|
|
Interface
|
According to IEC 60169-16
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥2500V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥5000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.25M ohms
|
|
VSWR
|
≤1.15
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
