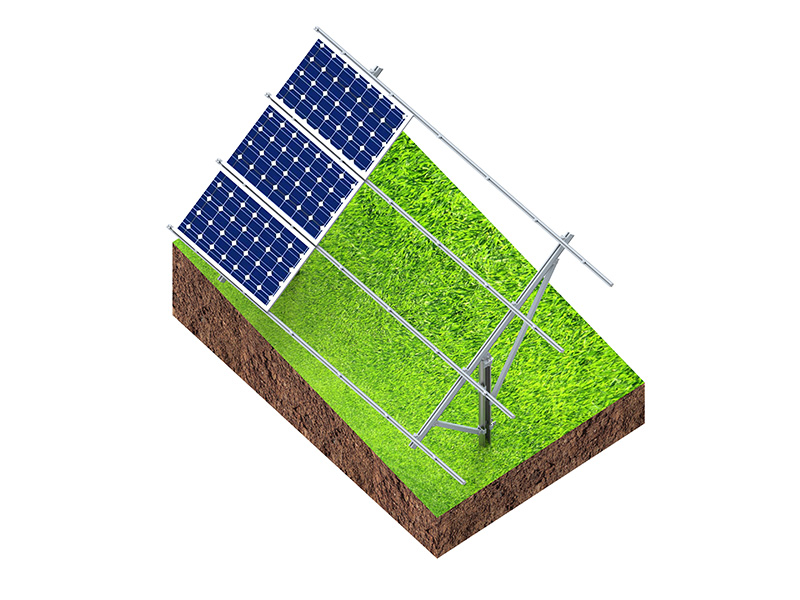

FOEN Manual Adjustable Ground Mount Solution
FOEN Manual Adjustable Ground Mount Solution is suitable for large scale
solar power station with galvanized steel post which has perfect
corrosion resistance ability as fixed foundation. Unique designed manual
adjustable joint in four directions delivers an easier installation and
maximizes the power generation.
Material
|
AL 6005-T5/SUS304/Q235B
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
Hot-galvanized Coating Thickness≥ 65μm
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|

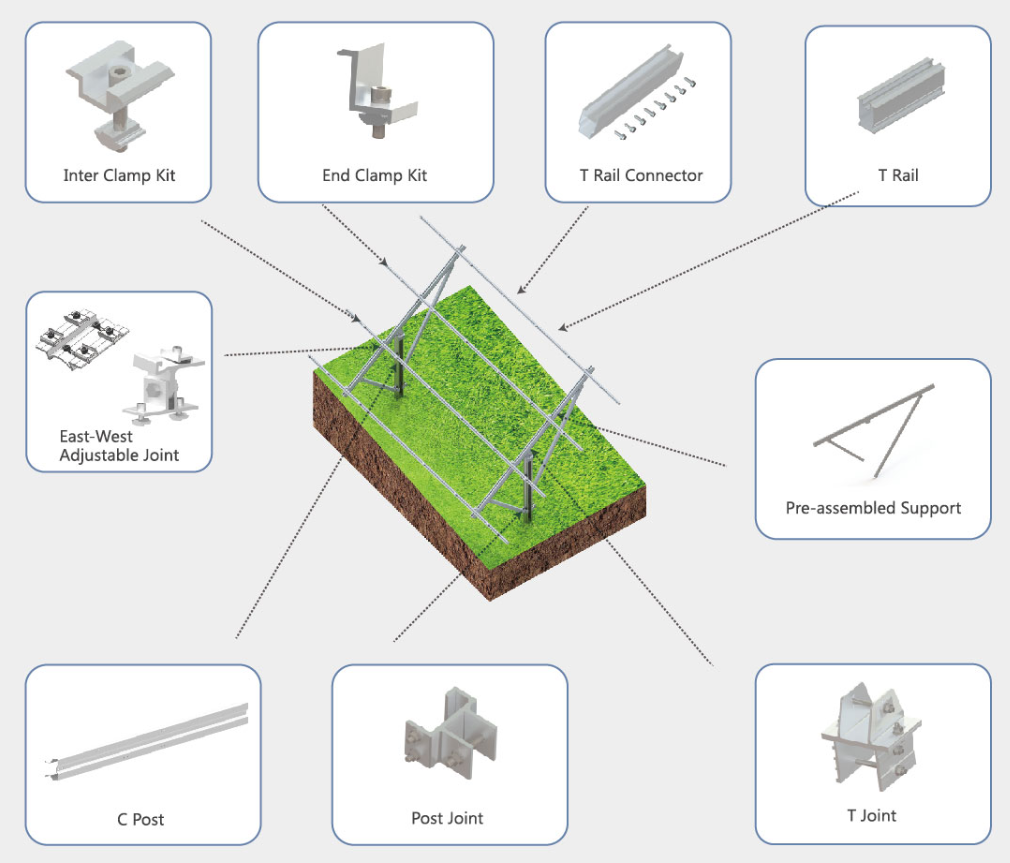

System Overview
Highly pre-assembled before shipment, save your onsite labor cost
Check and test Structure strictly for the use in extreme weather and geographical conditions.
With the use of east-west adjustable joint, the whole solution can be
adjusted in four directions to meet customer needs, making the solution
being compatible under certain construction tolerances.
15 years' warranty, 25 years' life span
