Manual Al-Laminated Film Punching Forming Machine for Pouch Cell Cup Forming
DESCRIPTION:
This pouch forming machine is mainly used for lithium battery production line, it's mold can be bespoked according to customers' requirements.

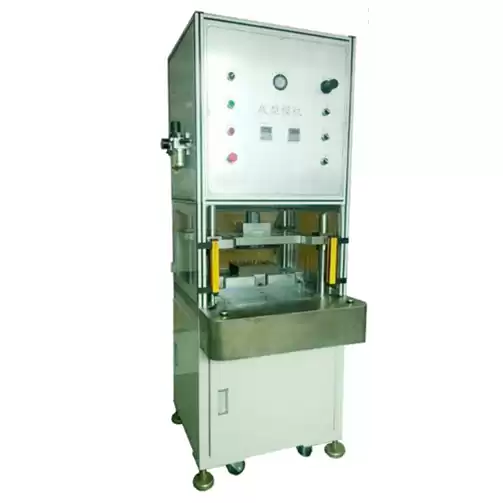

TMAX-SCX300 Manual Aluminium Punching Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.
The machine is used to prepare polymer cases made of Aluminum Laminated Films.
|
Main technical parameters
|
Manual Aluminium Punching Machine TMAX-SCX300
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
2500W
|
|
Suitable aluminum film
|
0.1-0.2mm
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Suitable aluminum film
|
320*200mm(L*W), customized, with punching depth ≤6mm
|
|
Output
|
200-500EA/H
|
|
Output pressure
|
0-5T, Adjustable
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
S136 Die steel
|
|
Dimension(L*W*H)
|
800*760*1900mm
|
|
Weight
|
About 1200kg
|
