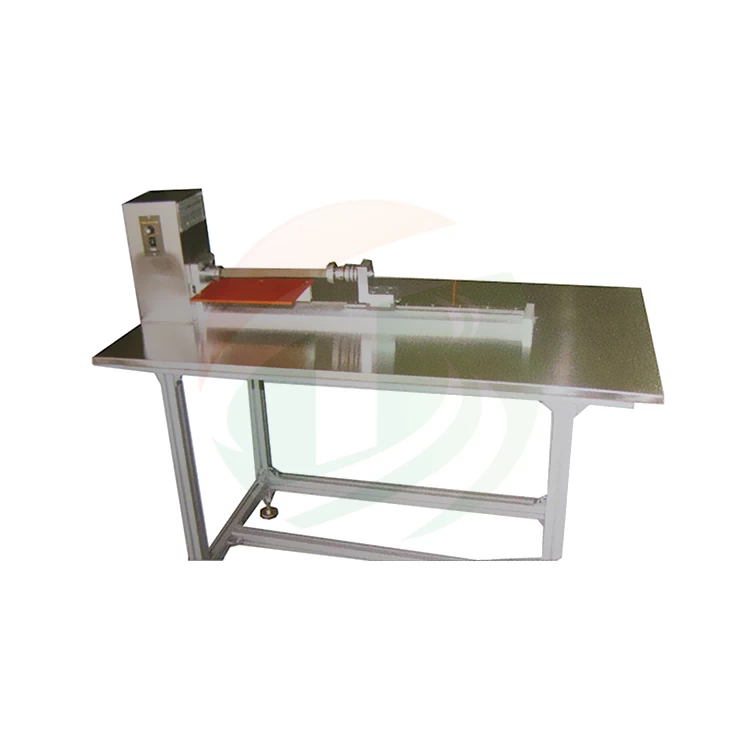

Manual Inserting Winding Machine For Lithium Battery With Operating Table
Specifications
1 TOB-JRJ-02 Manual Winding Machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion battery cells. It can be used for both cylinder battery or prismatic battery by changing winding blade.
2 This manual winding machine is supplied with stainless steel table for immediately use.
|
Model
|
Manual Winding Machine TOB-JRJ-02
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
25W
|
|
Warranty
|
·One Year limited warranty with lifetime support
|
|
Winding Speed
|
12 - 140 RPM Adjustable
|
|
Winding blade
|
The winding width depends on the width of the winding blade
Customized square winding blade according to battery model
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
1200*600*1000mm
|
|
Net weight
|
About 30kg
|
|
Application Notes
|
This machine can be used for prismatic battery with square winding shaft,
and you can also choose the round winding shaft for cylinder cell core winding,
We will supply with the suitable winding accessories according to your
battery model
|
PRODUCT DISPLAY
Pouch cell winding blade
