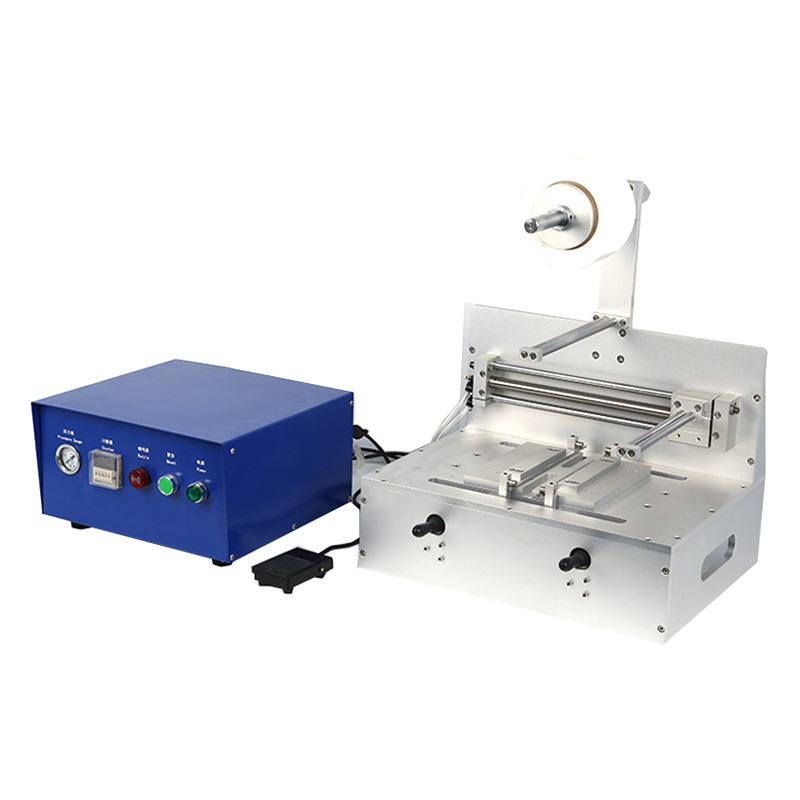

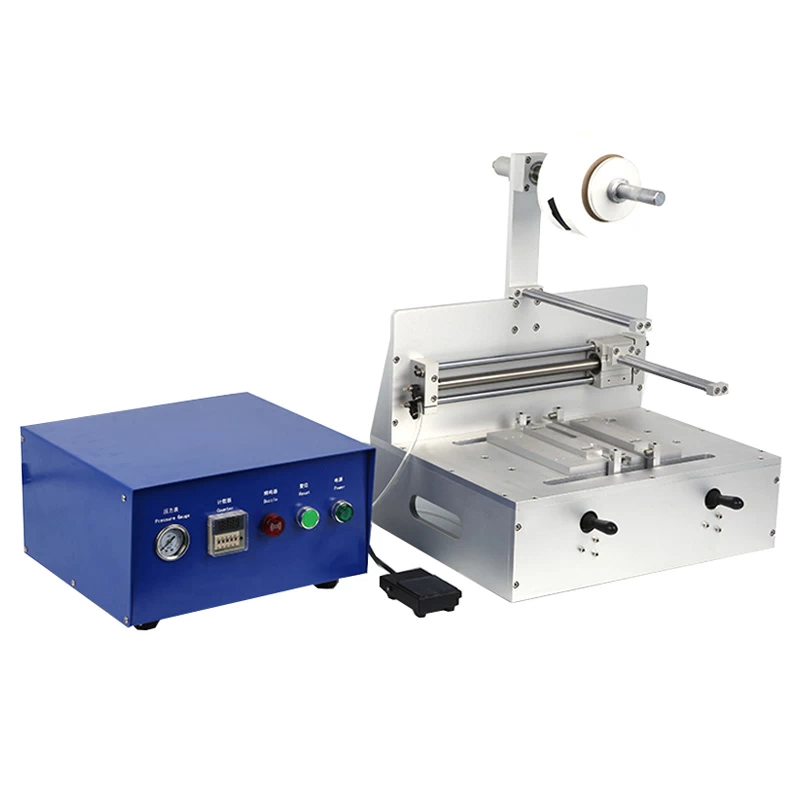

Manual Lithium Battery Stacking Machine for Pouch Cell Lab Research
Introduction:

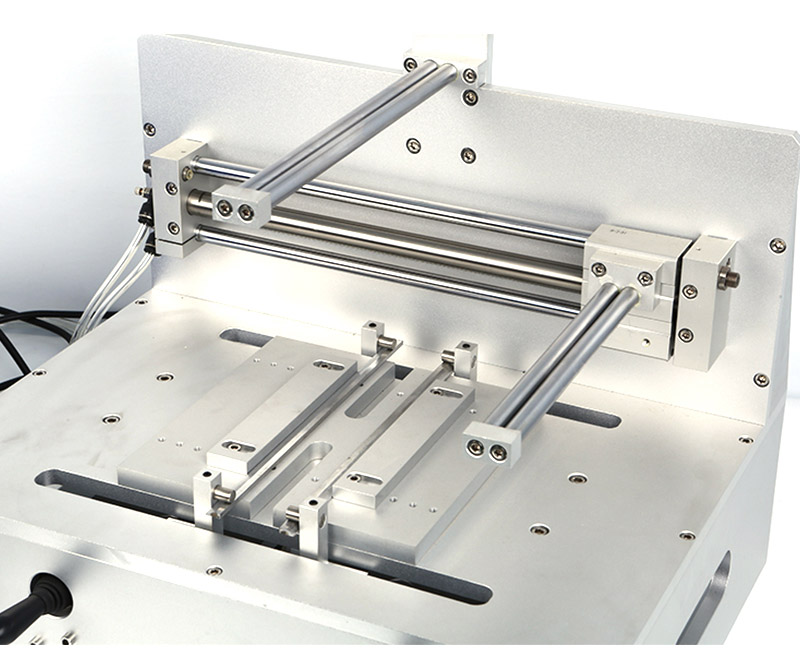

This equipment is used for stacking of battery cores that stacks the anode/cathode and separator in Z shape. Stacking machine and control box integration, save space, easy to set parameters, easy to operate.
Features :
1. Desktop, can be placed on normal table surface.
2. It is easy to maintain, operate and commission the machine.
3. The size range of applicable stacking sheets is big.
4. Work efficiency is high, with digital timer.
5. Use foot switch to control cylinder work.
6. Machine dimension is small, appearance shape is nice.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
Specification:
|
Model
|
Pouch Cell StackingMachine AOT-MST-200
|
|
Voltage supply
|
AC 110v-220V 50Hz/60Hz±10%, Customized
|
|
Power
|
100W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Stacking Layer Length
|
L(0-200)mm,W(0-200)mm
|
|

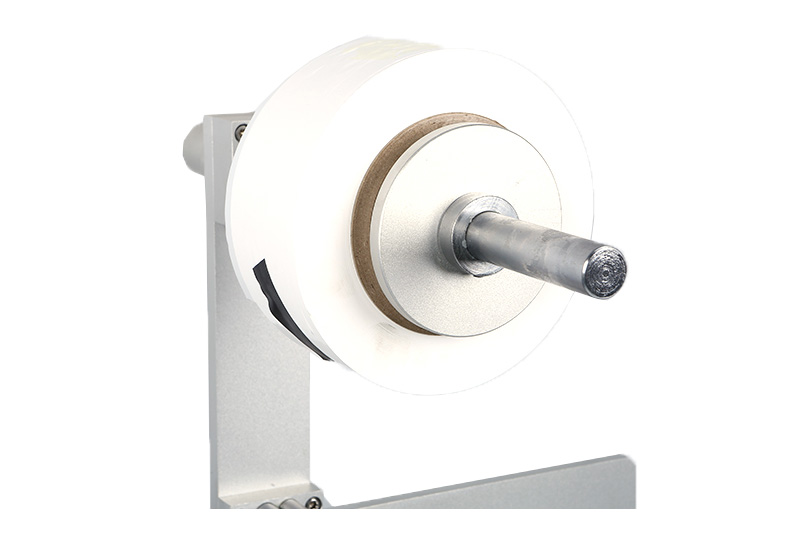

Max separator feeding diameter
|
Dia.250mm
|
|
Fixed travel distance
|
400mm
|
|
Travel cycle
|
1 - 9999 cycles
|
|
Air supply
|
0.25-0.55MPa
|
|
Machine dimension(L*W*H)
|
650*450*600mm
|
|
Weight
|
70kg
|
