Manual Pouch Cell Edge Hotting Machine
Product Specification
1 Battery edge hotting machine is mainly used for lithium polymer battery pouch edge ironing press after pouch folding in order to get good appearance for the battery and avoid damage by the sharp edge.
2 TOB-JD-TB System manual hotting machine has a constant temperature auto control function, It is mainly used for lithium polymer battery research and production line.
|
Model
|
TOB-JD-TB30
|
|
Voltage supply
|
AC110V/220V, 50/60HZ
|
|
Power
|
150W
|
300W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Edge hotting press length
|
200mm
|
300mm
|
|
Speed
|
600 times/H
|
|
Air supply
|
0.6-0.8MPa
|
|
Dimension (L*W*H)
|
300*300*460mm
|
400*350*460mm
|
|
Weight
|
30kg
|
45kg
|

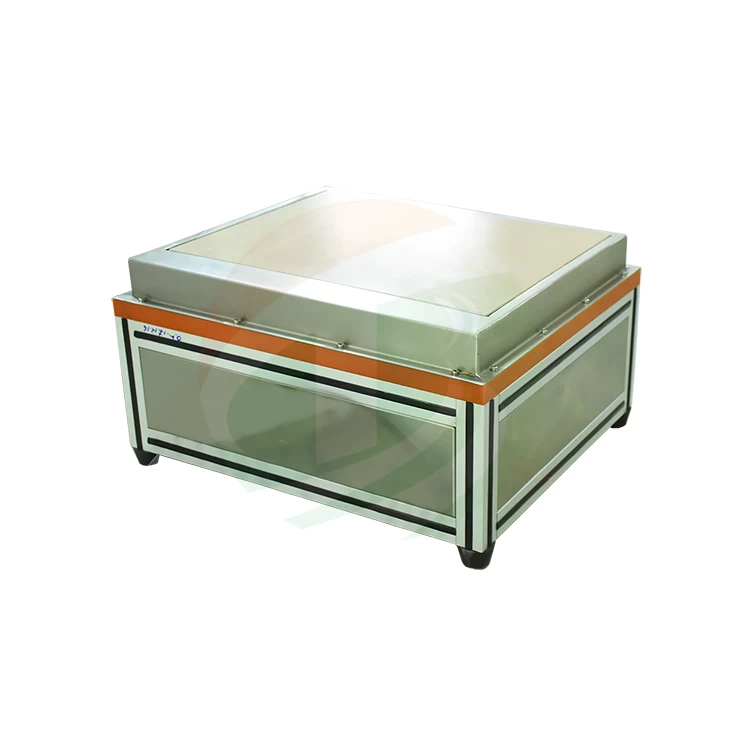

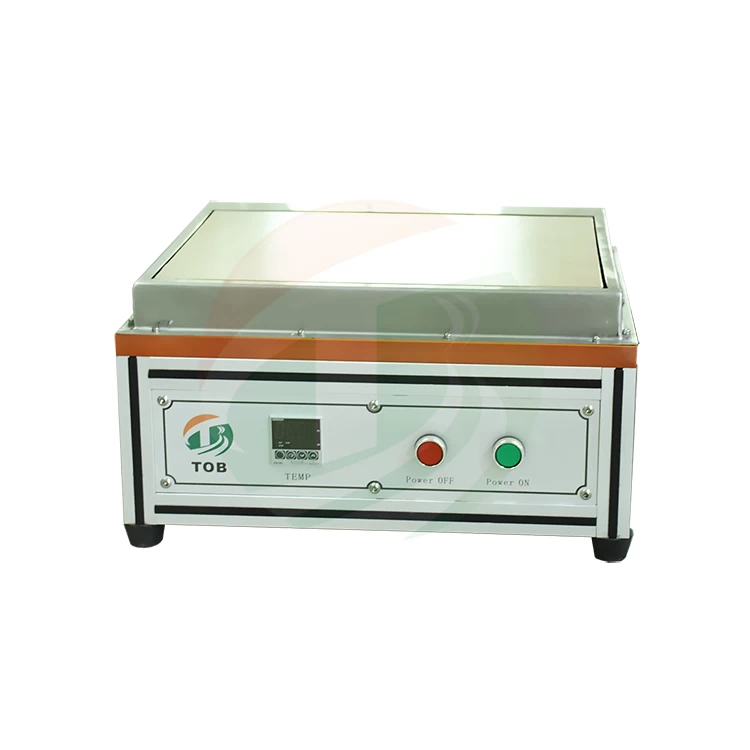

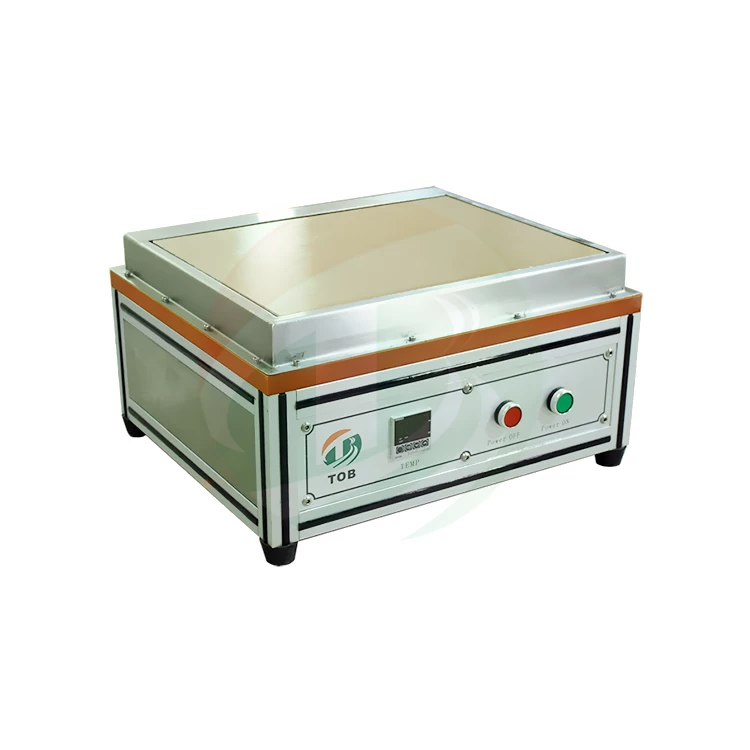

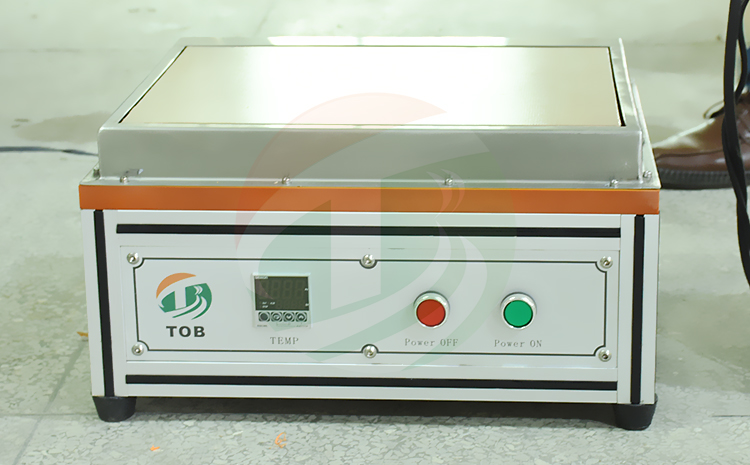

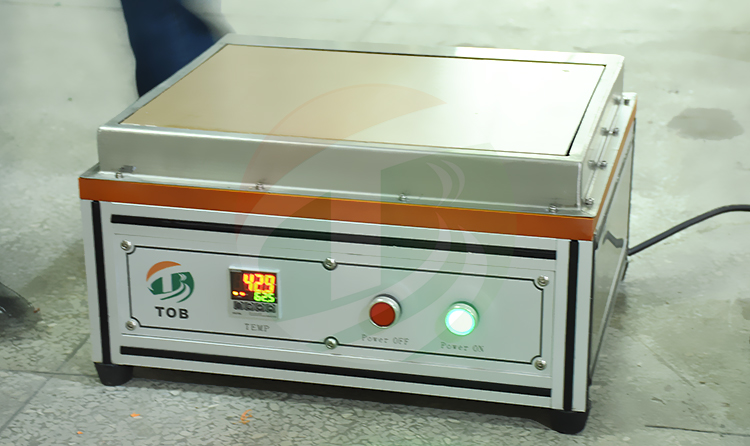

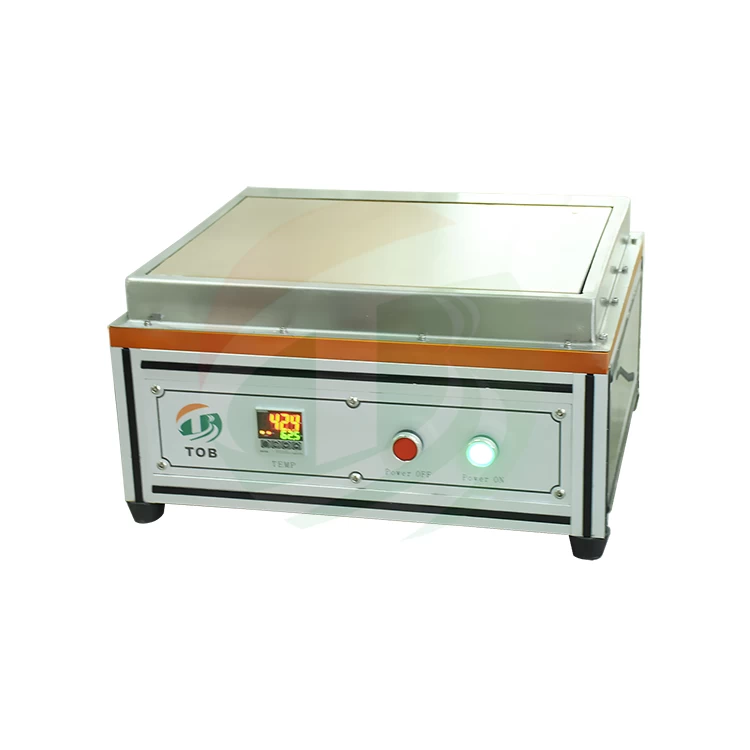

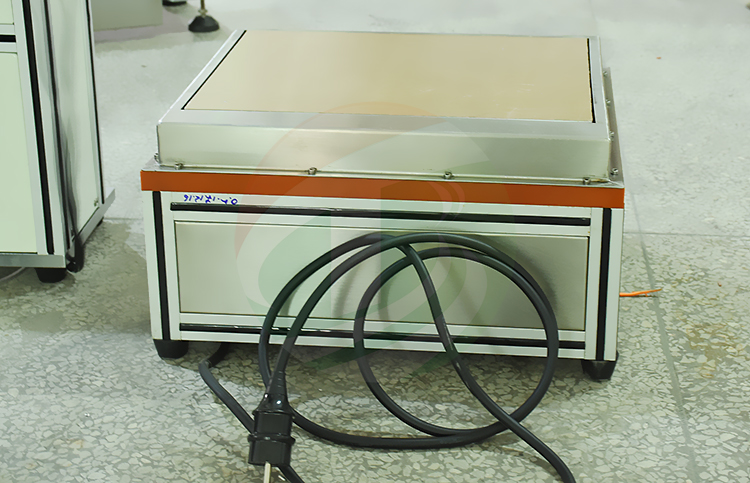

Product Image
