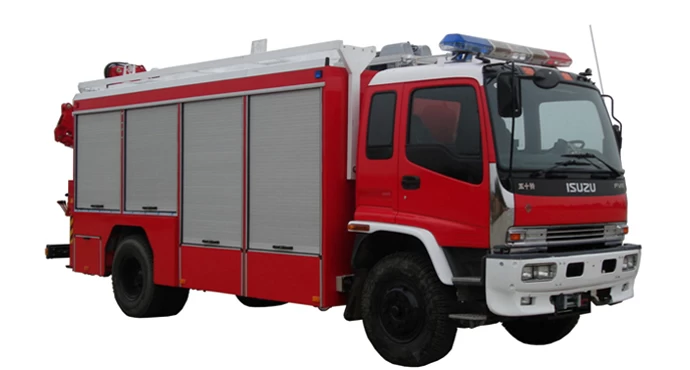

Japanese Isuzu Emergency Rescue Vehicle for sale
Tags: Best quality
Manufacturer Japanese Isuzu Emergency Rescue Vehicle for sale manufacturer,
Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam
type fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with
fire truck
Main
specifications:
|
Chassis
|
FVR
Heavy-duty chassis for Fire-fighting application
|
|
Model
|
PT5160GXF
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4500
mm
|
|
Overall Dimension
|
8210×2500×3250 mm
|
|
Truck crane
|
Max. lifting
weight:3.2T，rear-mounted，Outrigger span:4.2m，Max. amplitude:7.56m，Max. working height:10m，Rotation angle:410°
|
|
Light Mast System
|
Ground height≥8m，Work cycle time≤500S，Level rotary time≤180S，Level rotation angle:-150°to +150°，Elevation Angle≥+30°，Depression Angle≤-15°，Elevation and Depression Time≤120S
|
|
Traction winch
|
Max.
tension：49kN，10800
kg，Max. towing speed:3.57 m/min，Front-mounted，Wire
rope length:38m
|
|
Generator
|
HONDA
Generator Set，Power:5kW，Rated
voltage:220V
|
|
Fume extractor
|
Mechanic
Operating，delivery capacity:9000 m3/h，Power:1.5
kW
|
|
Cab
|
Double cab with Four
doors, 6 seats with safe belts.
|
|
Engine
|
Model:
|
6HK1-TCNG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 6 cylinder
|
|
Max.
Power:
|
177
KW (240HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
10.00-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|
Accessories List:
(With below equipment,
you can put into fire-fighting immediately)
