Manufactures Landa Mini Dc 12v 24v 40Kg Rectangular Electromagnet

Landa H803024 mini dc rectangular electromagnet, dc 12v/24v power supply, holding force can reach at least 400N at 100% duty cycle.



H803024 10kg dc mini rectangular 12v 24v electromagnet, 80mm length, 30mm wide, 24mm height, dc power supply holding electromagnet, good for safety lifting.

Product description

Specifications
Brand Landa Product Name H803024 square electromagnet
Model  H803024 Rated Voltage DC 12v 24v
Power  5-10w Force 300-400N
Waterproof Class  IP65 Duty Cycle 50-100%
Cable Length 200mm Material Metal, Electronic Parts
Action Form Holding type Weight(N.W.) 0.45kg

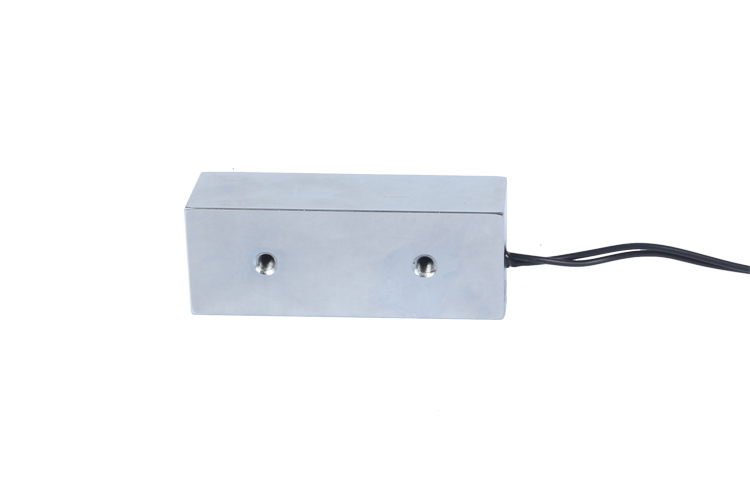

Install Style Screw Thread Size & Deepth(mm) M5,10
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details
Body Size  L80*W30*H24(mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom

Product Feature

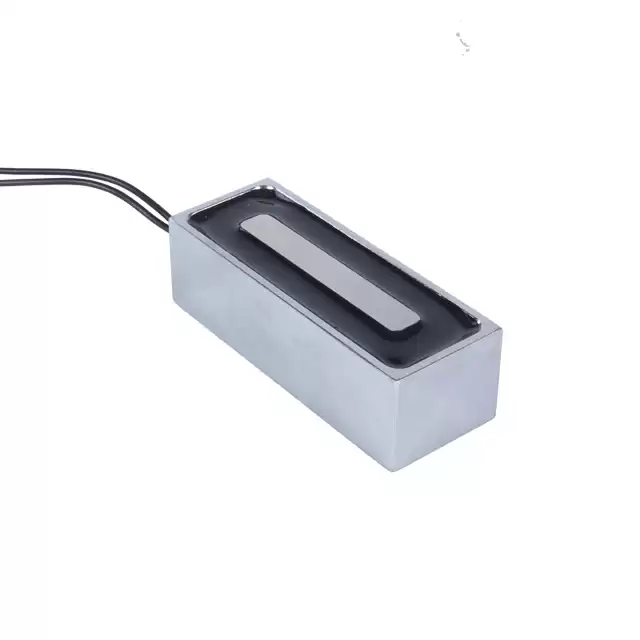

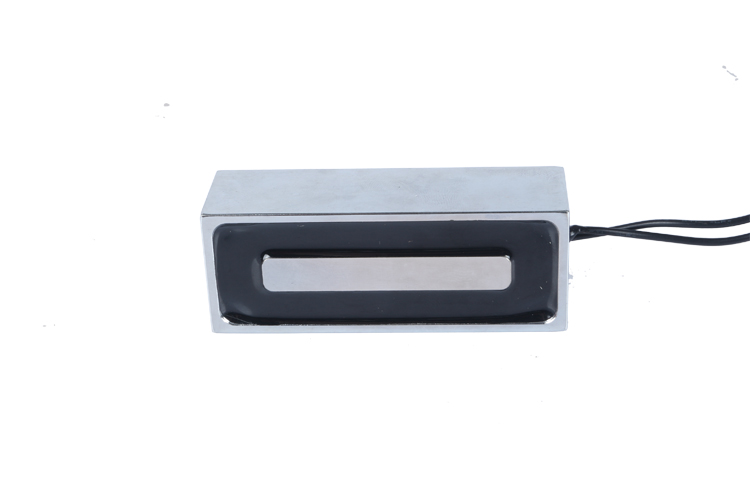

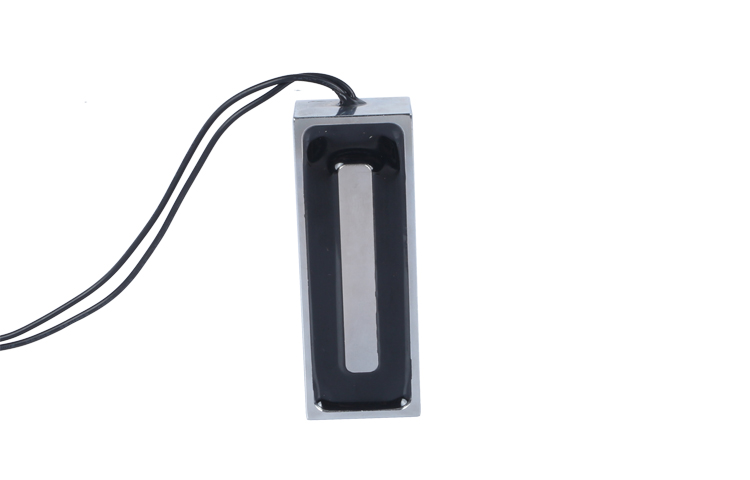

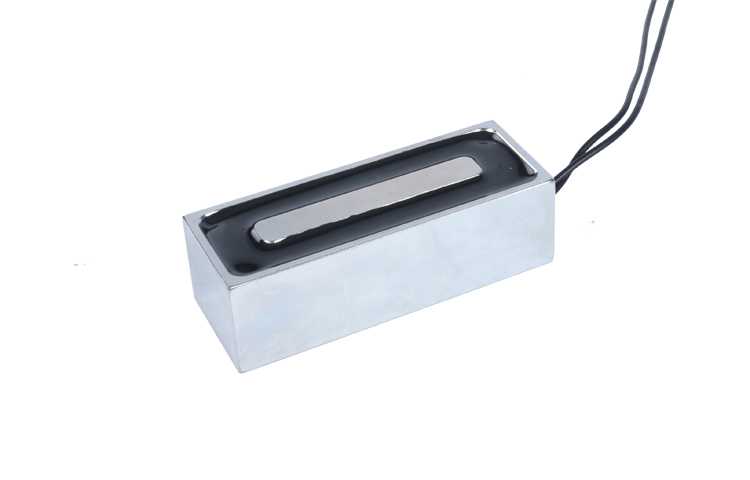

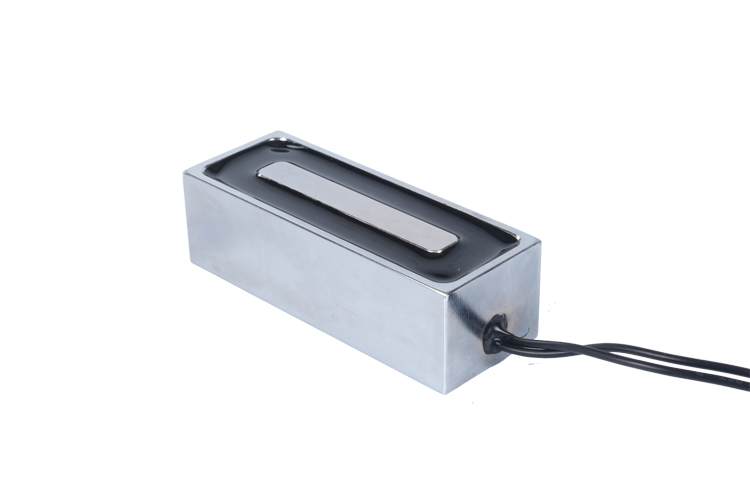

Square holding electromagnet


1.Holding type, square shape, mini size, IP65 waterproof, DC solenoid electromagnet.

2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release circular electromagnet

Product Details

40kg rectangular electromagnetmini dc rectangular electromagnetRectangular ElectromagnetMini Electromagnet12v Dc Electromagnet


Product Tags 40kg rectangular electromagnet          mini dc rectangular electromagnet          rectangular electromagnet          Mini Electromagnet          12v Dc Electromagnet          DC Solenoid Electromagnet
