Manufacturing Center
Xingyi Factory had developed for 19 years,Awarded 123 patents for inventions.Helping our clients finished many kinds of floor maintance grinding polishing projects.
Advantages

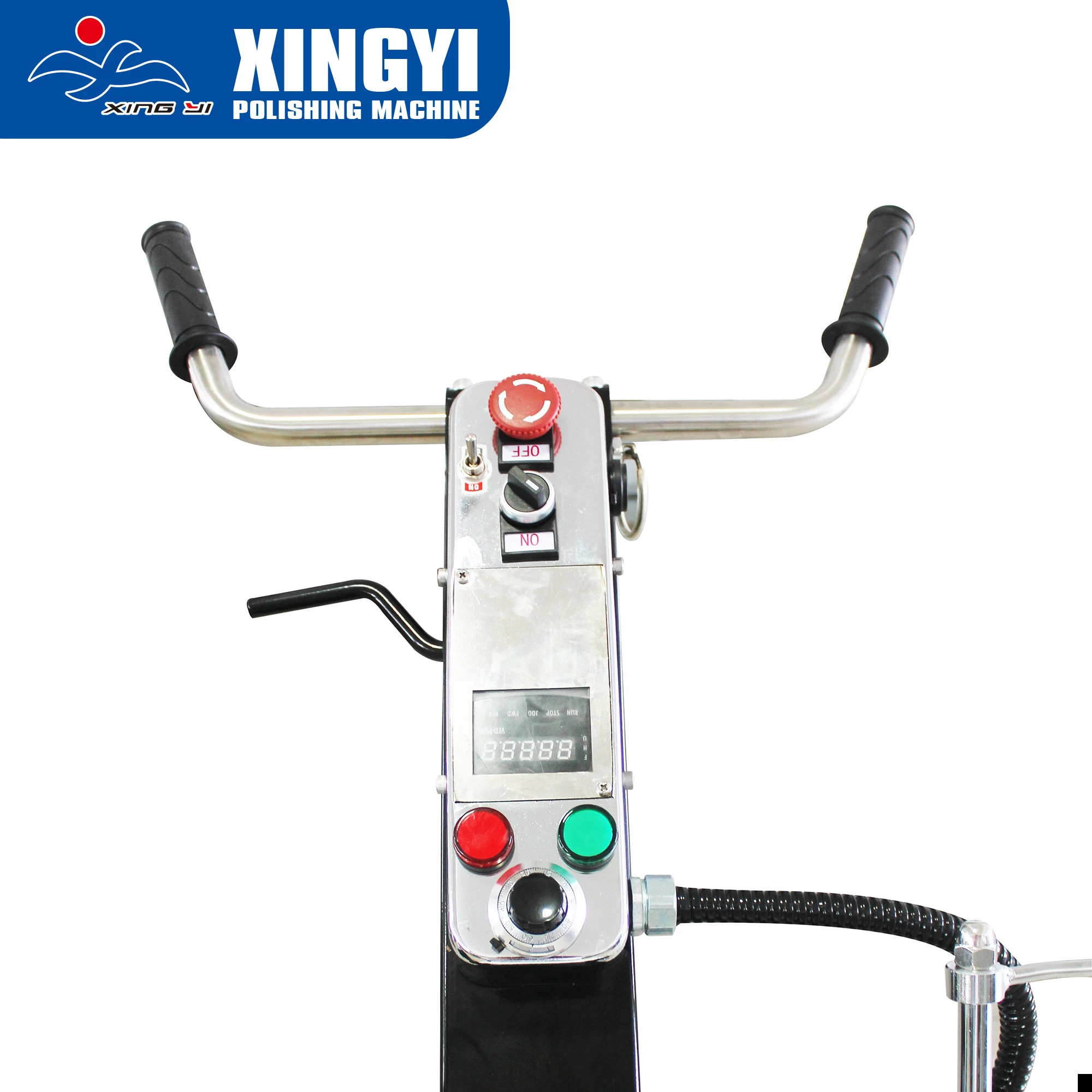

1 Adjustable bracket, one-touch switch for easy operation
2. The machine can perform both dry and wet grinding functions.
3. The machine can be used with different types of grinding discs.
Product Description
Mechanical description
Features
1.Adopt 220V Frequency-converting with strong power, single phase.
2.Water tank helps the machine to cool down the temperature of diamond pads.

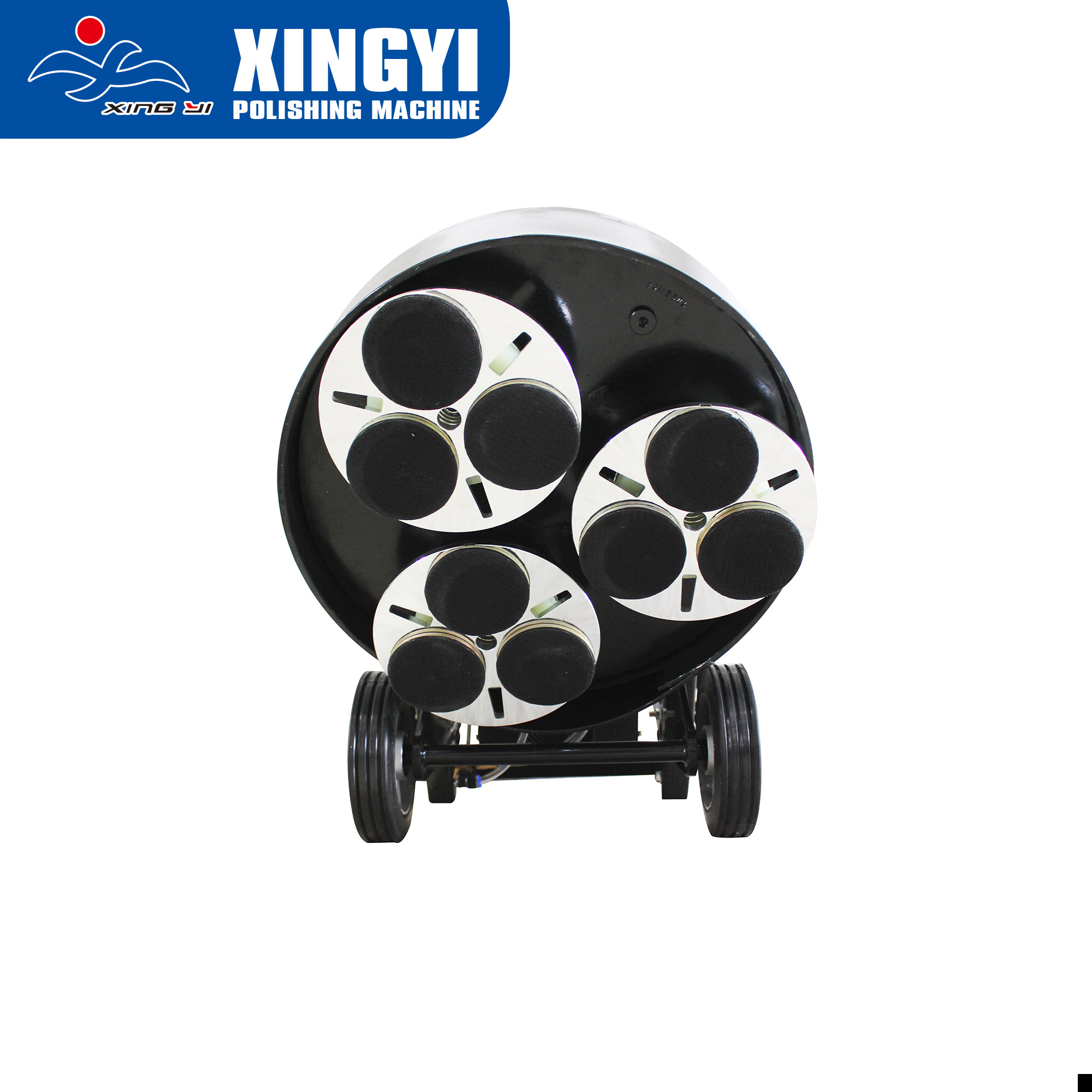

3.Planetary rotating and gear-driving system makes the machine high efficiency and precision
Technical Parameters
|

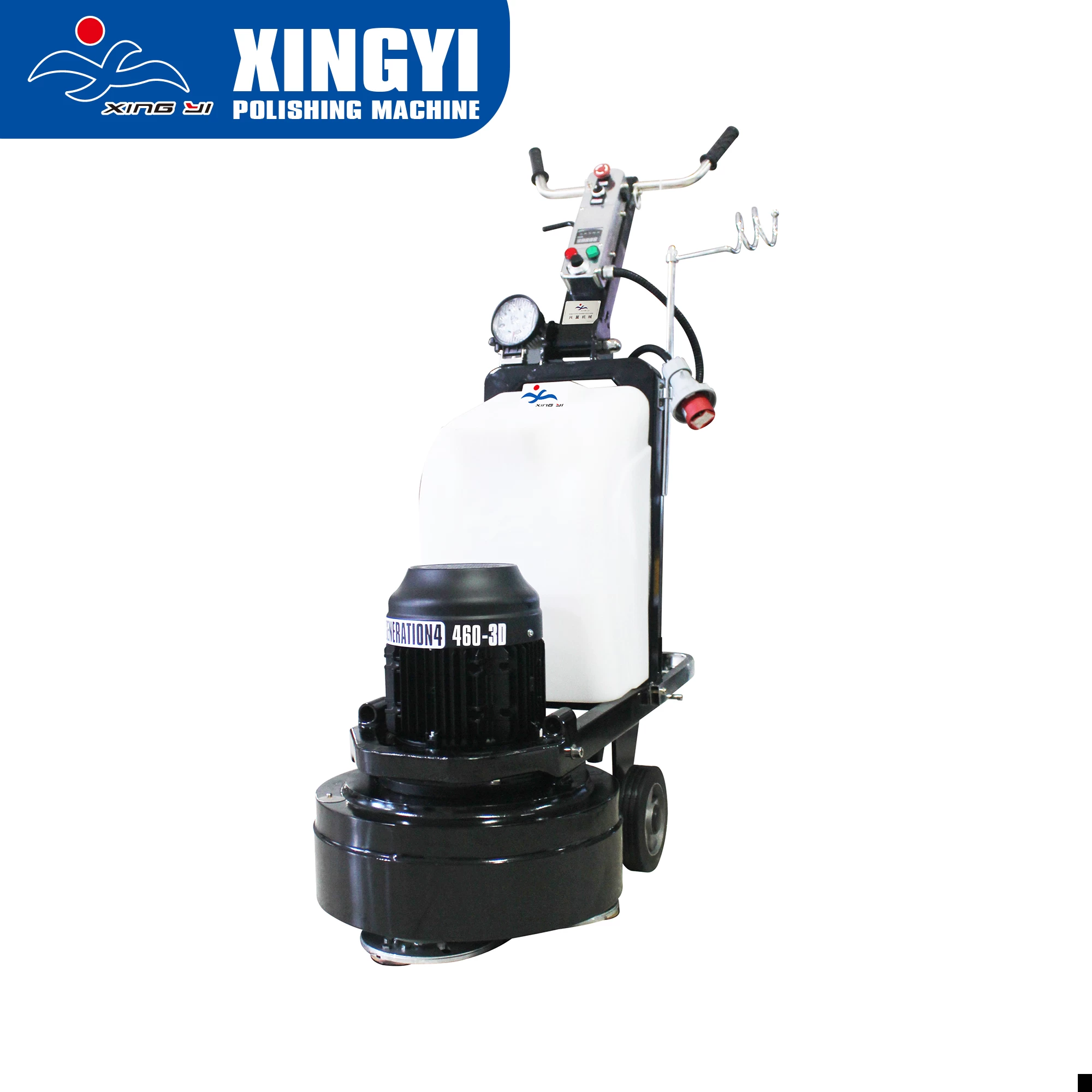

Model
|
460-3D
|
|
Voltage
|
220-240V, single Phase
|
|
Input Power
|
3KW(4HP)
|
|
Inverter
|
3.7KW(5HP)
|
|
Work Area
|
460mm
|
|
Disc Speed
|
350-1460RPM
|
|
Disc Diameter
|
20mm*4
|
|
Water Tank
|
18L
|
|
Extra Weight
|
30KG
|
|
Weight
|
150KG
|
|
L*W*H
|
104*63*120cm
|

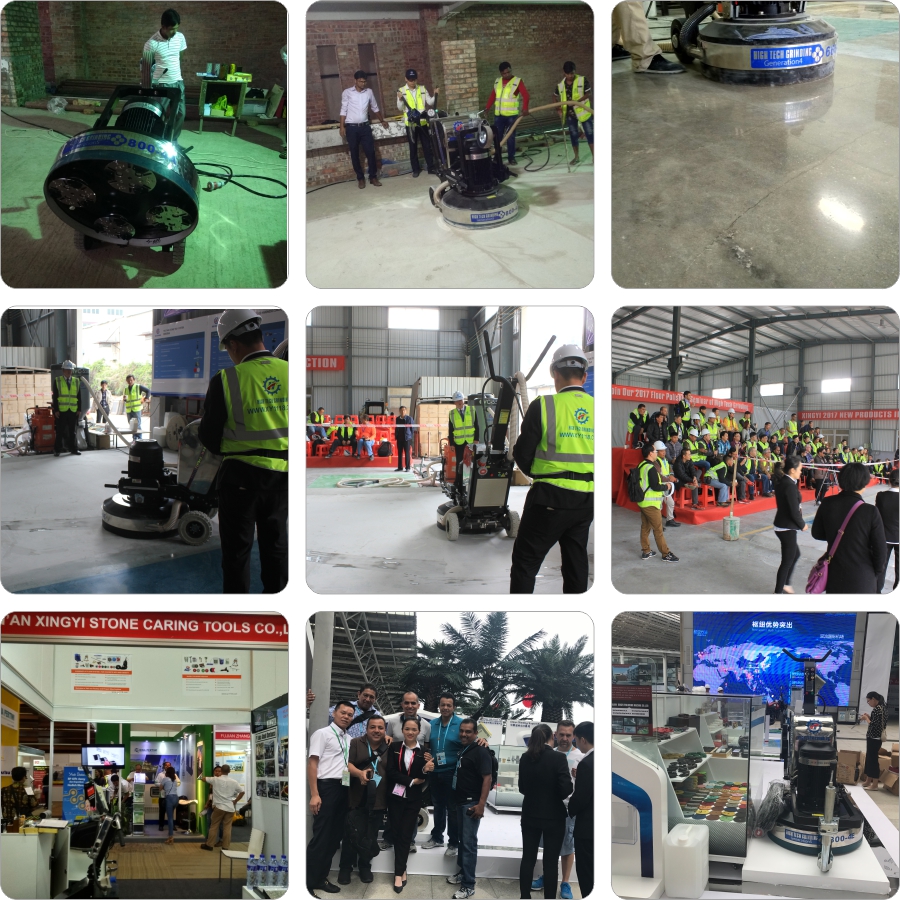

Customer Demo
Our Certifications
Our company
1.We are the one of the biggest system integrates which providing Full-floor polishing products and service in China.
2.Not only we are a factory,but also have our own engineering company.
Any questions about the machines or projects,we can give you a free technical guidence.
3.We have a 34 foreign offices across the global so that we can provide an extremely details and customer support.
4.Our annual international floor treatment seminar is more and more popular among famous connoisseurs.
