Alloy
|
AA1100. 3003. 3004. 3105. 5006. 5052. 3011. etc
|
|
Temper
|
H16, H18. H24. H26. H28.H46
|
|
Thickness
|
From 0.015mm to 1.2mm
|
|
Width
|
Standard width 1240mm
|
|
Special width 1000mm. 1200mm. 1240mm, 1270mm. 1520mm. 1620mm
|
|
Diameter
|
Standard dia: 1200mm
|
|
Interior dia: 150mm.405mm. 500mm. 505mm. 510mm
|
|
Outer diameter: 1200mm
|
|
Weight
|
1T/2.5 T/coil,3.0 T/coil
|
|
Coating thickness
|
PE:>=16 micron , PVDF:>=25 micron
|
|
Protective film
|
As per customer's request
|
|
Coating paint
|
PVDF, PE(Polyester), HDPE PU PA, FEVE, epoxy, polyamide, polyurethane
|
|
Color
|

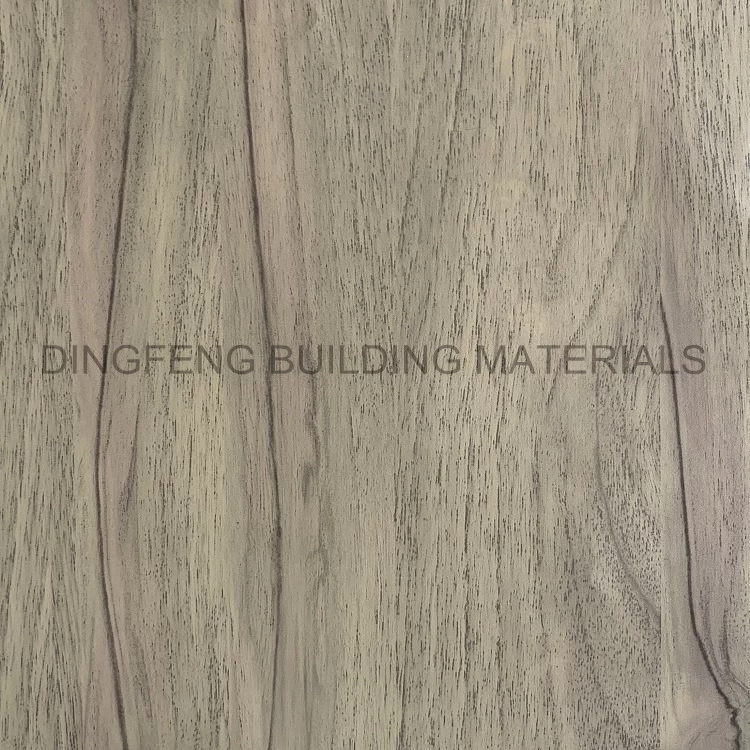

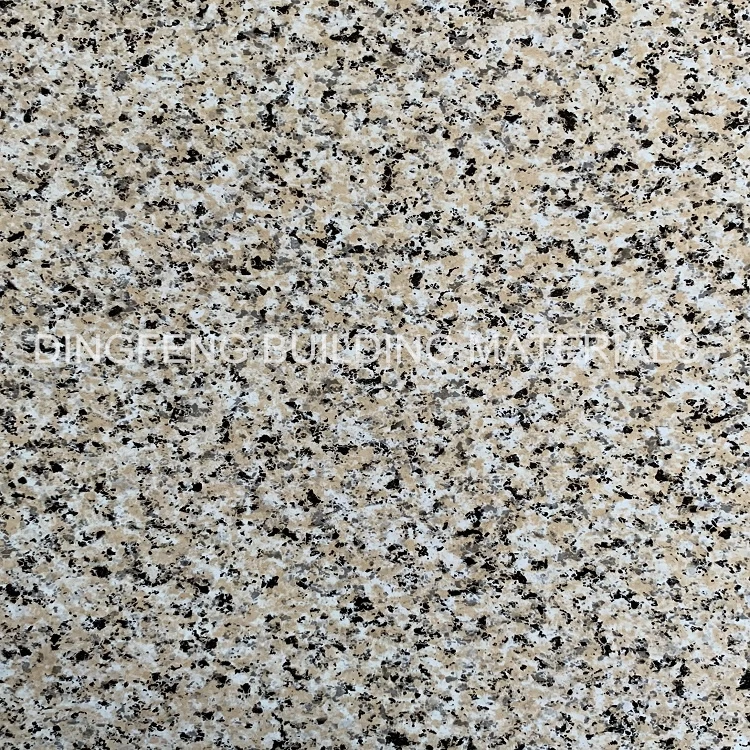

Soid.Wood. Metallic, Stone, High gross, Brush, Sparkling, embossed.
|
|
RAL or by customer requirements.
|
|
Weight
|
As per customer's request
|
|
Surface
|
Embossed, mill finish, coated
|
|
Gloss
|
10-100%
|
|
Coating Hardness
|
More than 2h
|
|
(pencil resistance)
|
|
Coating adhesion
|
1J
|
Certificate
|
IS0 9001/SGS/BV
|
|
Impact Resistance
|
No peeling or cracking(50 kg/cm)
|
|
Application
|
ACP.wall cladding.facades.roofs and canopies.ceilings.signboards.
|
|
blind window.display platforms.electrical panels.etc
|
|
Coating Thickness
|
PE coating:more than 16 micron
|
|
PVDF coating:more than 25micron
|
Product features:
1) Light weight, high strength, extreme rigidity, superior impact resistance
2) Excellent surface flatness and smoothness
3) Heat insulation, sound insulation, fire-resistance
4) Acid-resistance, alkali-resistance, good weather proofing and non-resonance
5) Various uniform colors ,can be easily processed and fabricated, quickly installed
6) Elegant and magnificent, good flexibility fits various designs
7) Easily maintenance, simply cleaning
8) ECO friendly
