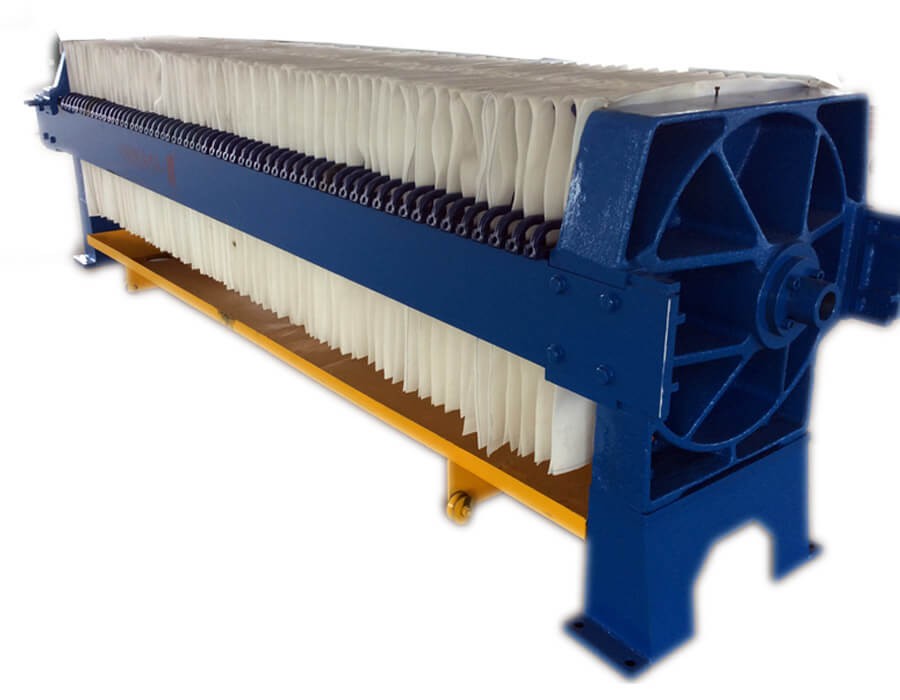

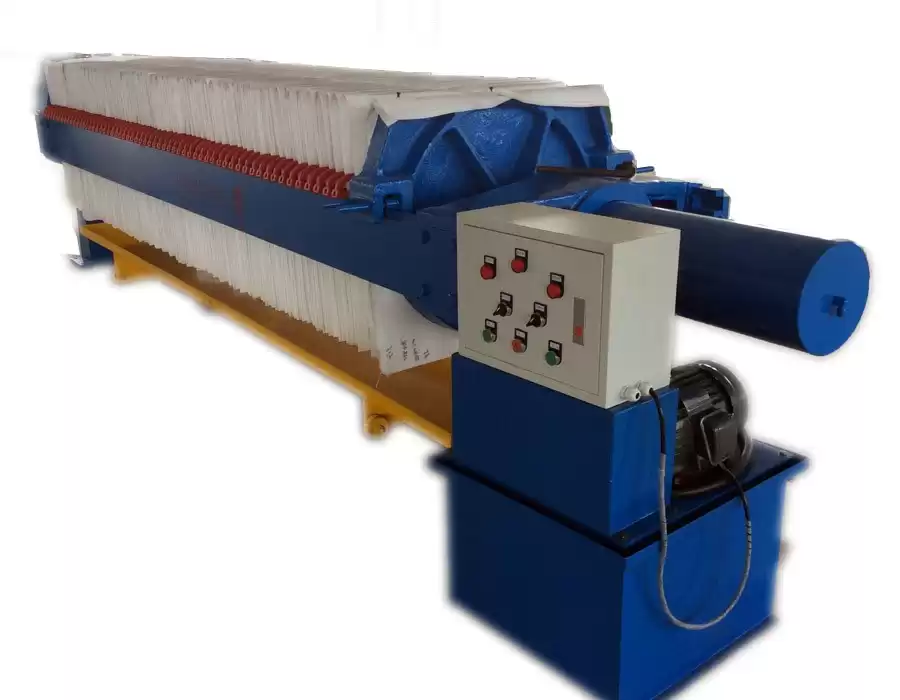

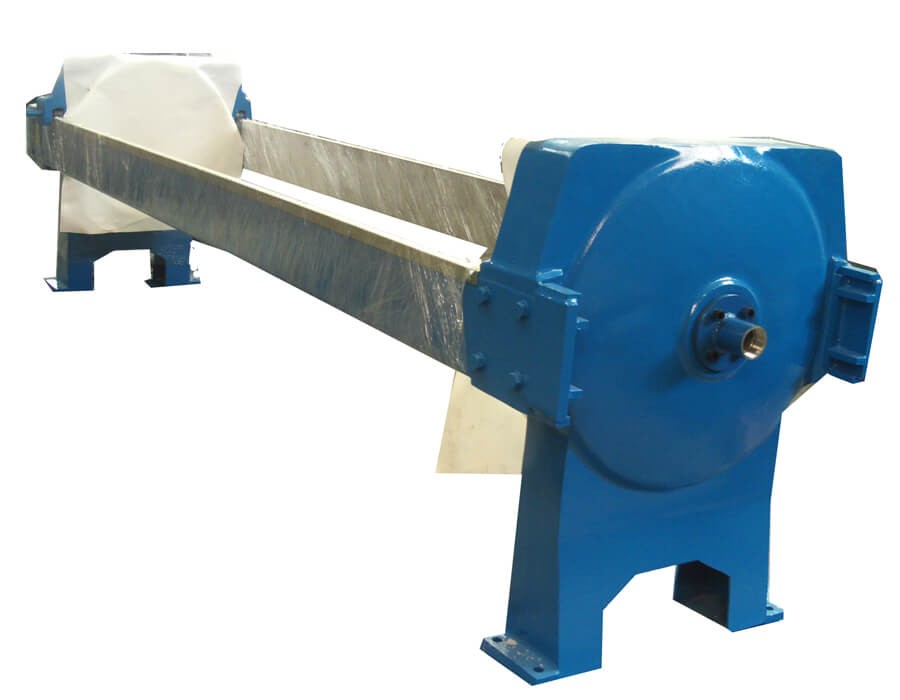

Marble Granite Wastewater Solid Liquid Separation Filter Press Machine
Filter Press Characteristic：

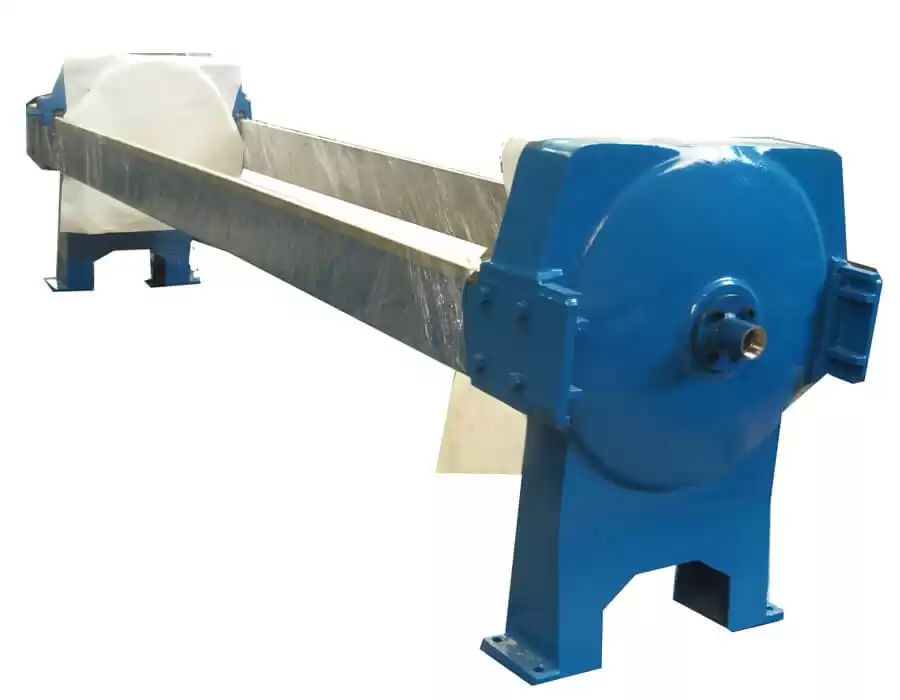

1. The main parts of filter press is made of cast steel, Stable Structure and long usage life.

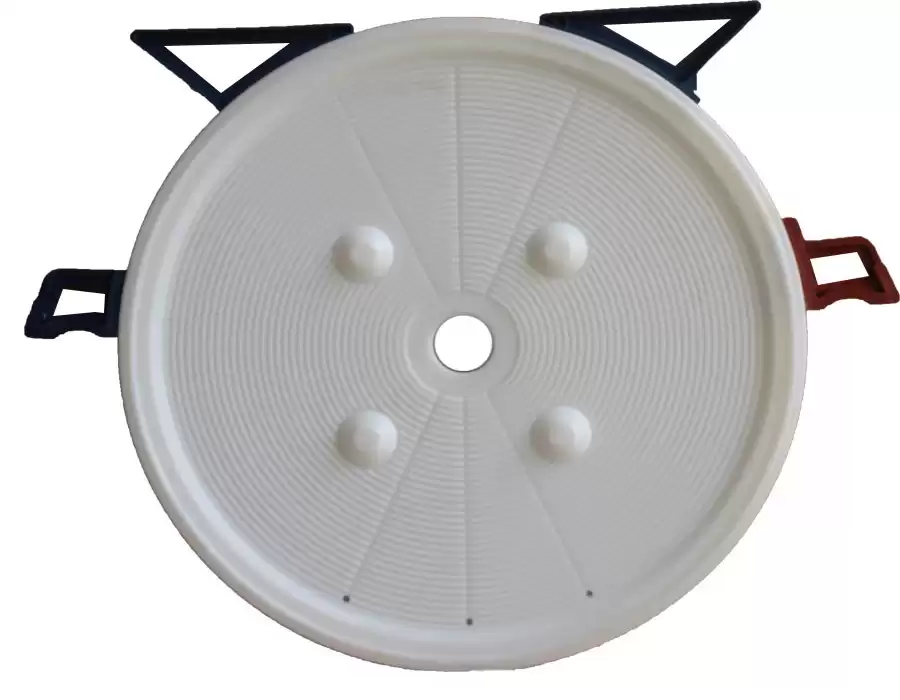

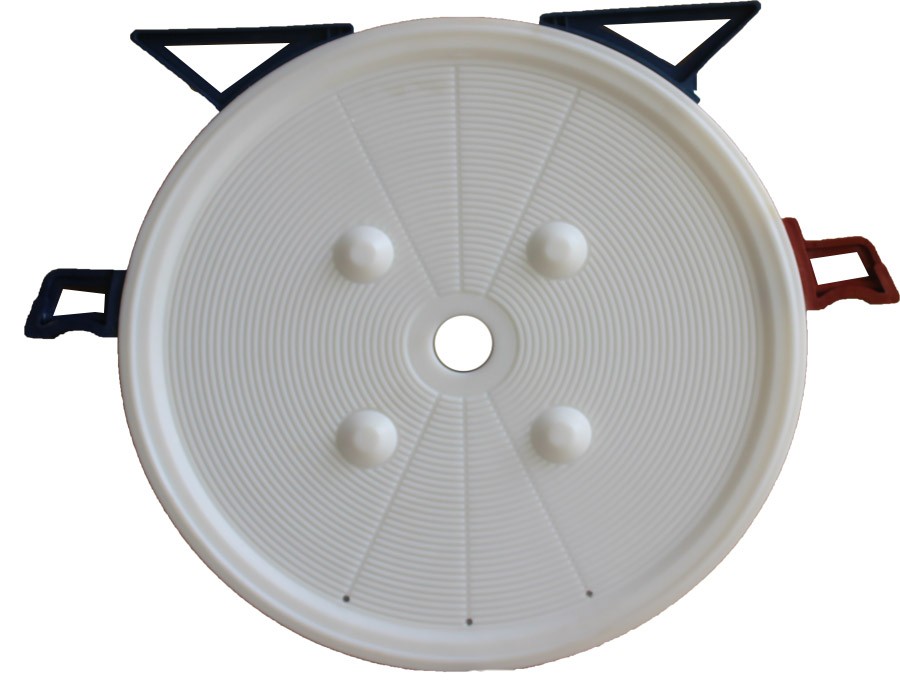

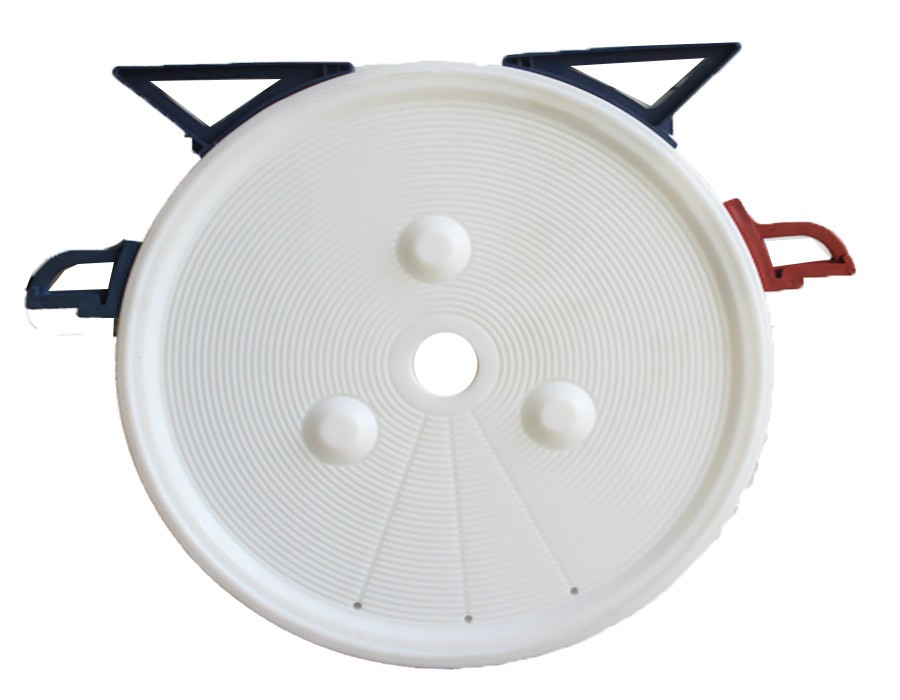

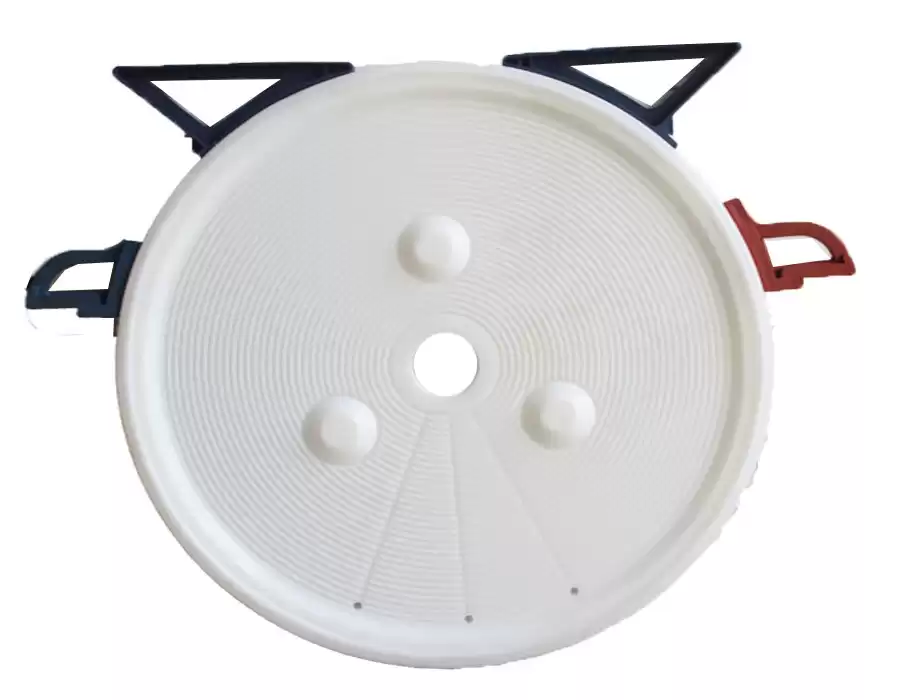

2. The filter plates are made of high intensity HDPE, the highest working pressure could be 2.5Mpa, long life span and acid and alkali resistance.
3. Filter plates has moutain and valley design, good for preventing slurry spout.
4. Adopting the contact meter to maintain the pressure automatically, saving the labor cost and improve the working efficiency.
Filter Press Application：
Widely applied in Mining, Waste water Treatment(Ceramic, marble, granite, glass and so on) , Kaolin, Clay, Sand Washing and other solid-liquid separation.
Filter Press Technical Parameters：
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
WYB-650 | 27 | Φ650 | 50 | 3 | 40 | 367 | ≤1.5 | 3950*1150*1170 4800*1150*1170 5800*1150*1170 | 2500 |
40 | 60 | 546 | 2700 |
54 | 80 | 725 | 3000 |
Plates quantity could be added or reduced according to customers' requirements. |
Pre-sale service:
1.Your inquiry will be replied within 8 hours.
2.Help you to select suitable model
3. Spare parts are in stock
After-sale service:
1.Provide 12 months warranty period and you will have our technology support forever
2.Engineering available to offer the service to your machinery overseas
