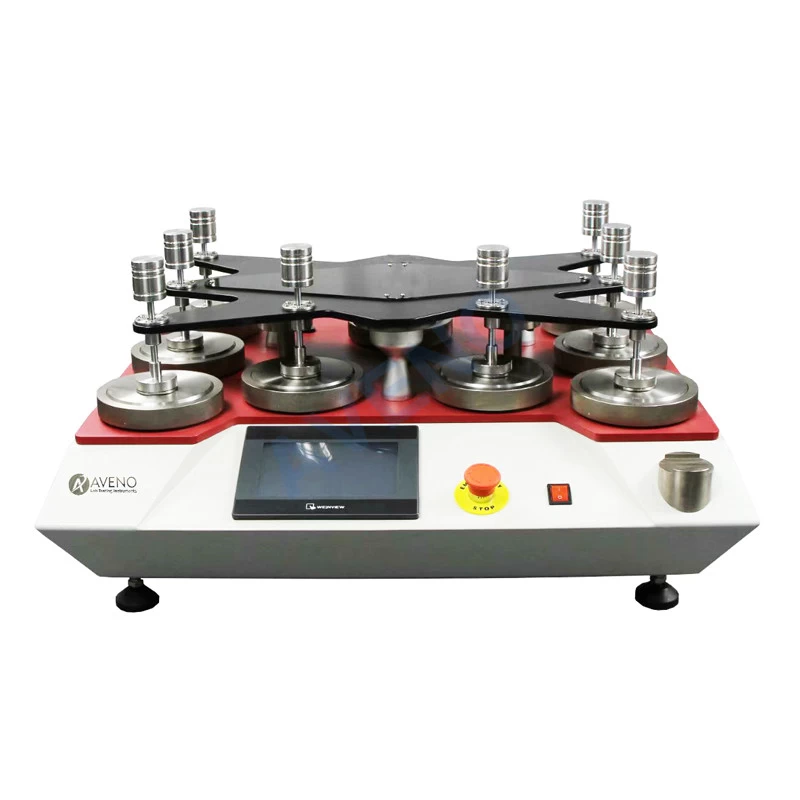

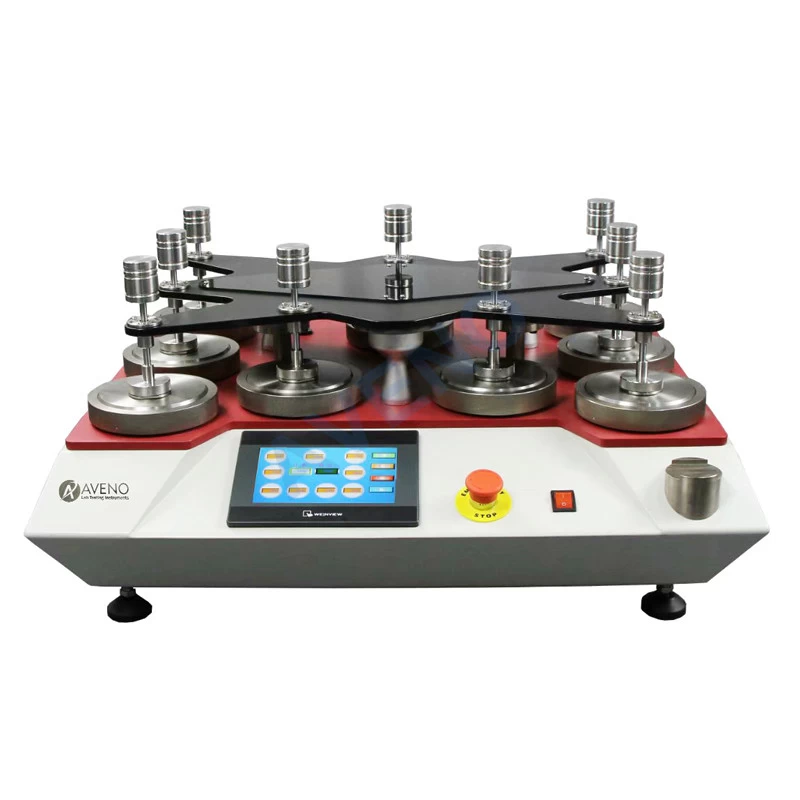

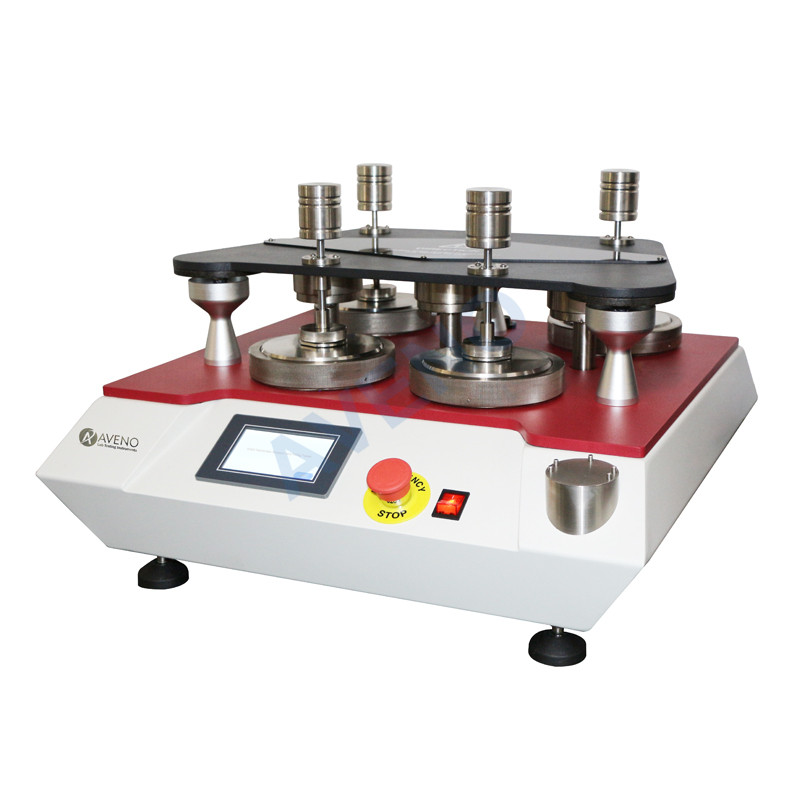

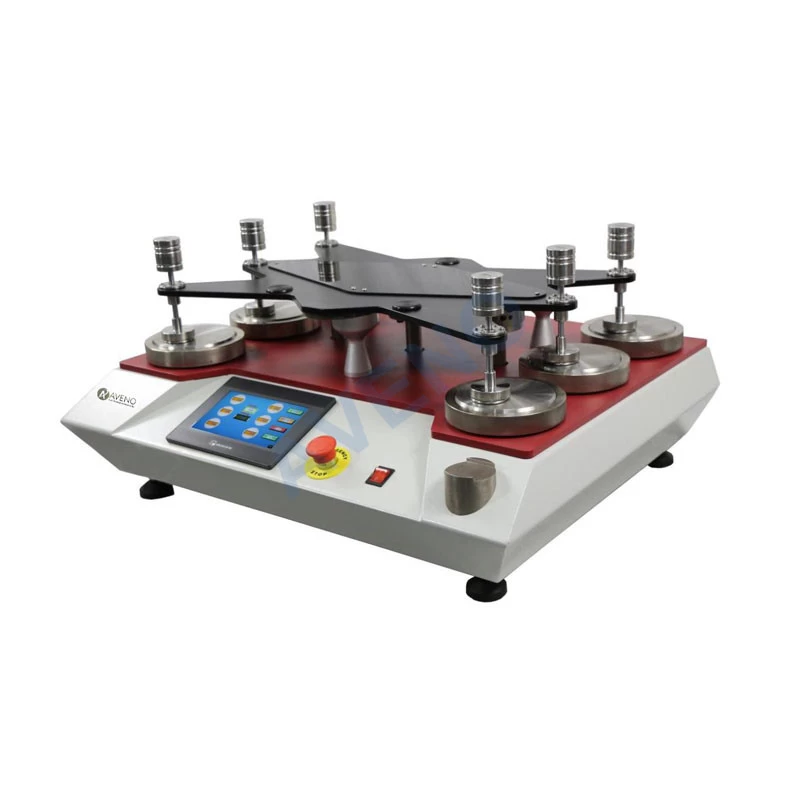

AG04- Martindale Abrasion and Pilling Tester
Application Of Martindale
Abrasion and Pilling Tester
Martindale Abrasion and Pilling Tester is used to determin the abrasion resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.
Feature Of Martindale Abrasion and Pilling Tester
-

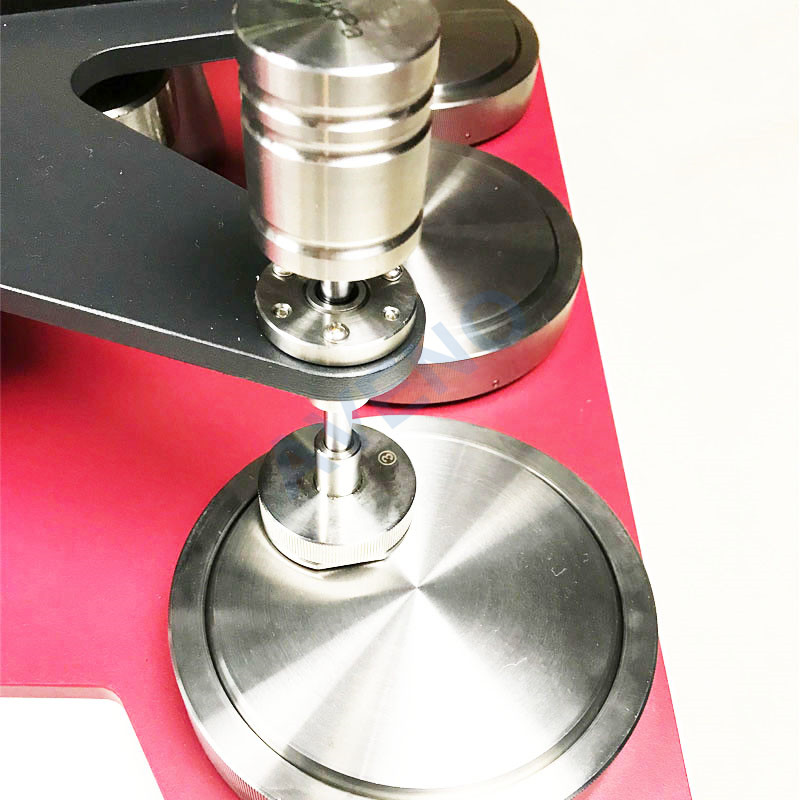

The heavy hammer and key components are made of 304 stainless steel, which is beautiful in appearance and durable.
-
The pressure plate is made of special aluminum alloy to ensure long-term use without deformation.
-
Needle roller bearing connection drive to ensure no error in each workbench test.
-
Multiple sets of running programs and multiple counting methods can be preset.
Standards Of Martindale Abrasion and Pilling Tester
ASTM D4966,4970, ISO12945.2, 12947.1, ISO
5470.2, DIN 53863, JIS L 1096, IWS TM 196,112, GB/T 480 2.2, 19089, GB/T 13775,
FZ/T 20020, BS3424/5690, EN 388.
Key Specification Of Martindale
Abrasion and Pilling Tester
|
Model
|
AG04
Martindale Abrasion and Pilling Tester
|
|
Test position
|
4
|
6
|
8
|
9
|
|
Control mode
|

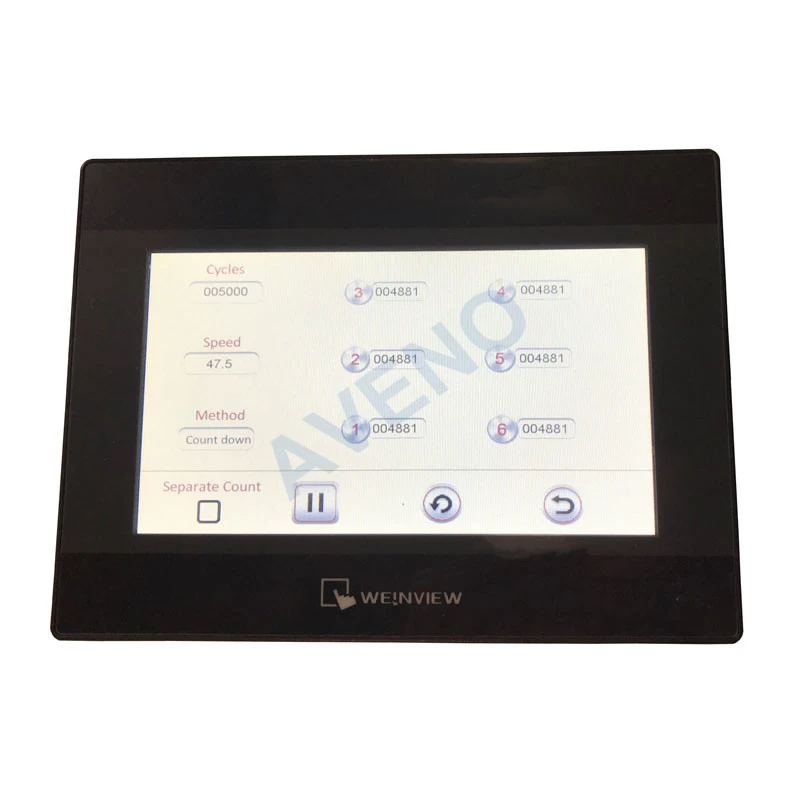

PLC control with touch screen display
|
|
Counter range
|
0~999999 times
|
|
The maximum dynamic range
|

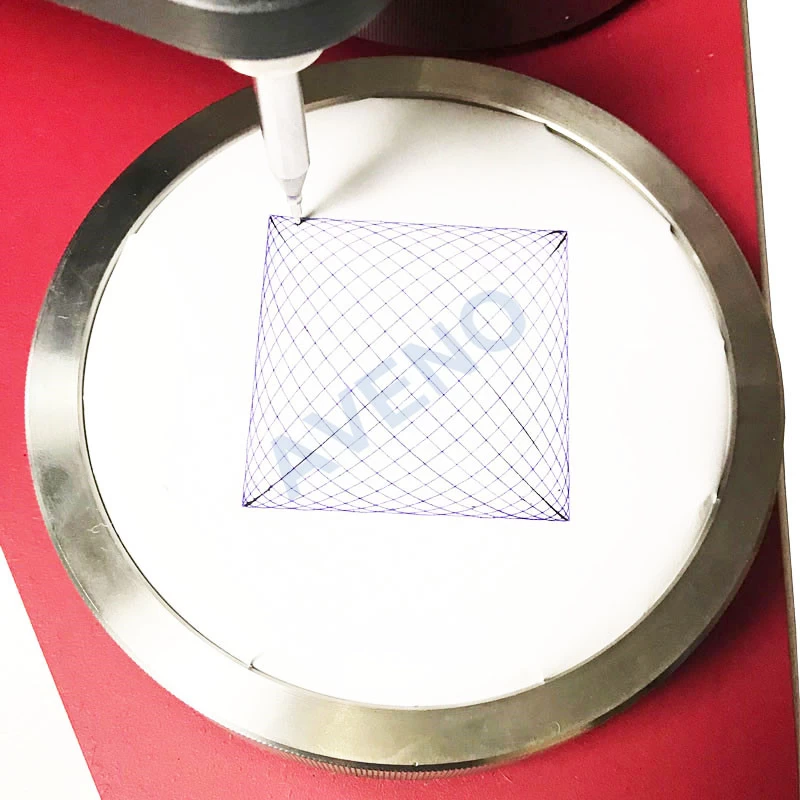

Cross range 60.5±0.5mm
Direction 24±0.5mm
|
|
Pressure Weight
a Holder
b Cloth sample weight
c Furniture parts sample
weight
d B type clamp
e Stainless steel
butterfly
|
198 ±2g
395 +/-2g
594 +/-2g
155 ± 1 g
260 +/-1g
|
|
Rubbing Diameter
a Rubbing Head
b Rubbing Head
|
A: 198g
friction head Φ28.65±0.05mm,
Pressurized gravity 12Kpa
B: 155g friction head Φ90±0.10mm, Pressurized gravity 9Kpa
|
|
Friction relative speed
|
50±2r/min, can be adjust
|
|
sample pressing hammer weight
|
2385±10g
|
|
Power Supply
|
AC220V, 50/60HZ
|
|
Dimension
|
60*55*41cm
|
88*61*41cm
|
90*62*41cm
|
90*62*41cm
|
|
Weight
|
75kg
|
130kg
|
145kg
|
155kg
|
Accessories Of Martindale
Abrasion and Pilling Tester
|

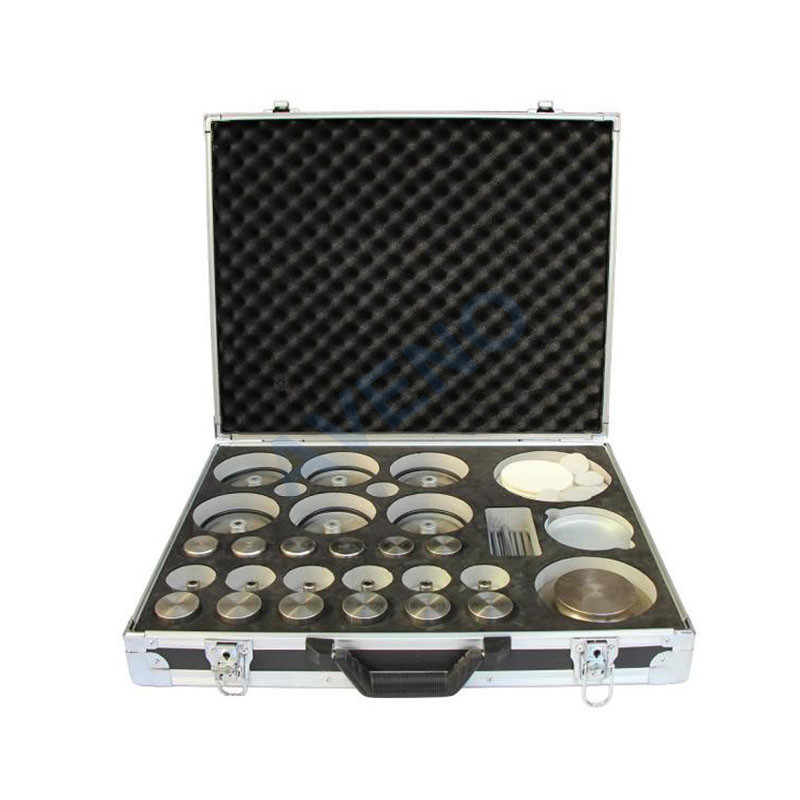

Standard Accessories
|
Abrasion Weight and Holder
|
1 Set
|
|
Pilling Weight and Holder
|
1 Set
|
|
Standard Abradents Fabric
|
2 pcs/ head
|
|
Standard Backing Foam
|
2
pcs/head
|
|
Standard Woven Felt Discs 140mm
|
2
pcs/ head
|
|
Standard Woven Felt Discs 90mm
|
2
pcs/ head
|
|
Sample cutting template
(Φ38/90/140mm)
|
each of 1pc
|
|
Pressing Weight
|
1pc
|
|
Bowl shape sample loader
|
1pc
|
|
Steel ball
|
3pcs
|
|
Power line
|
1pc
|
|
English manual
|
1pc
|
|
Certificate of quality
|
1pc
|
Related products

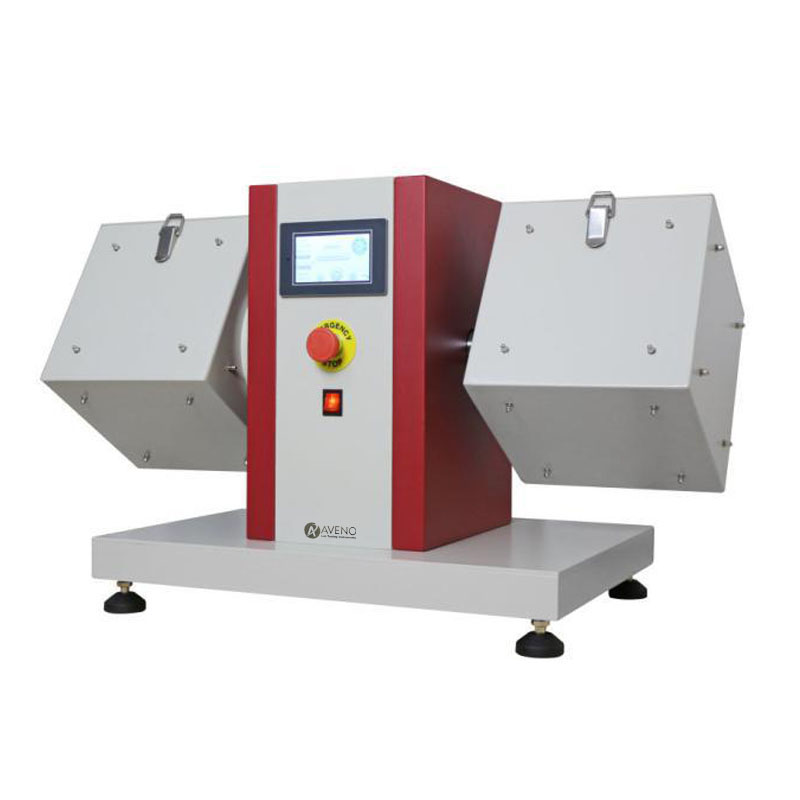

ICI Pilling and Snagging Tester Electroic Crockmeter Random Tumble Pilling Tester
