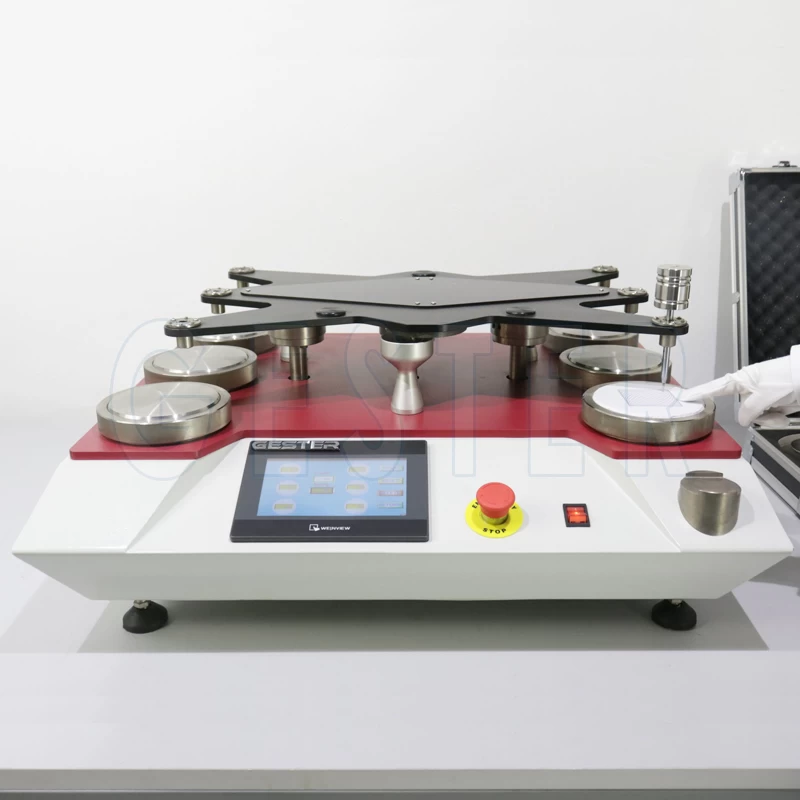

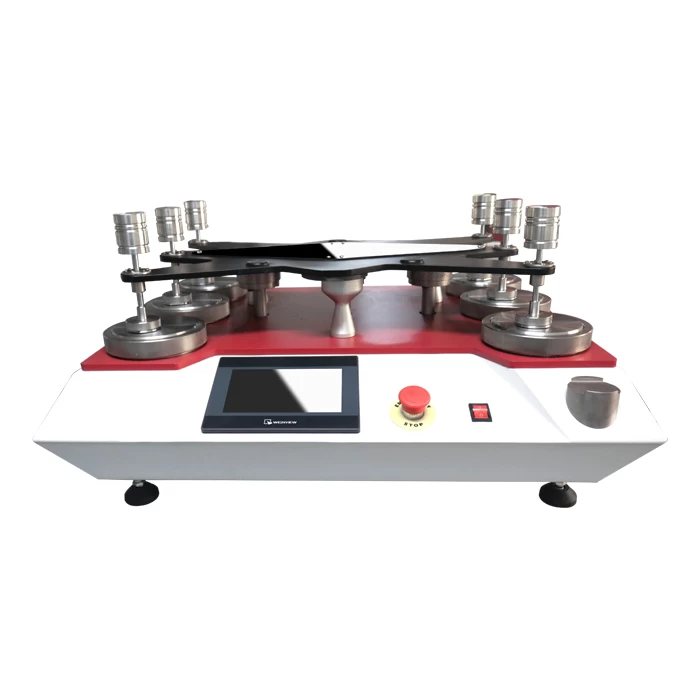

Martindale Abrasion and Pilling Tester GT-C13B

Martindale Abrasion and Pilling Tester used to determine the abrasion and pilling resistance of all kinds of textile structures.



Martindale Abrasion and Pilling Tester GT-C13B



Product Introduction of martindale machine

Application of martindale abrasion tester:

The martindale abrasion and pilling tester is used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.


Standards of martindale abrasion tester:

Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525

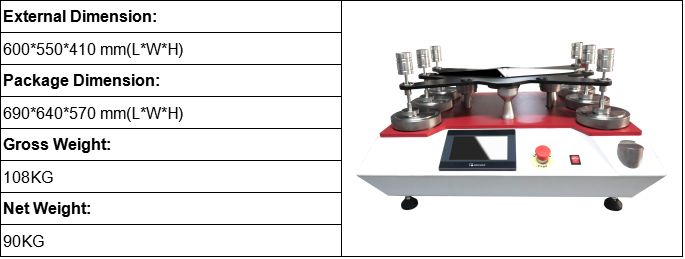

Dimensions of martindale machine



Martindale Abrasion and Pilling Tester

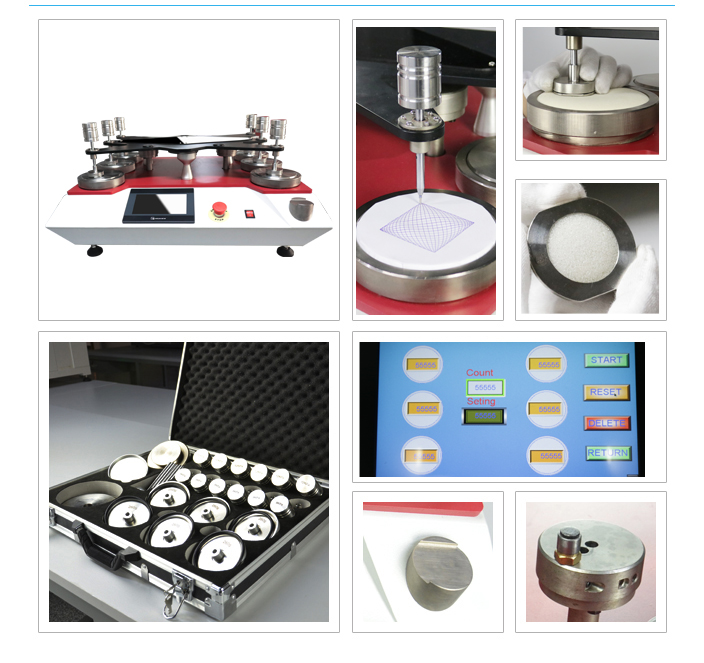

Feature of martindale



1.Test Standard: Lissajous figure.

2.Working positions: 4, 6, 8, 9 optional.
3.Counting Method: 1) count up. 2) count down.

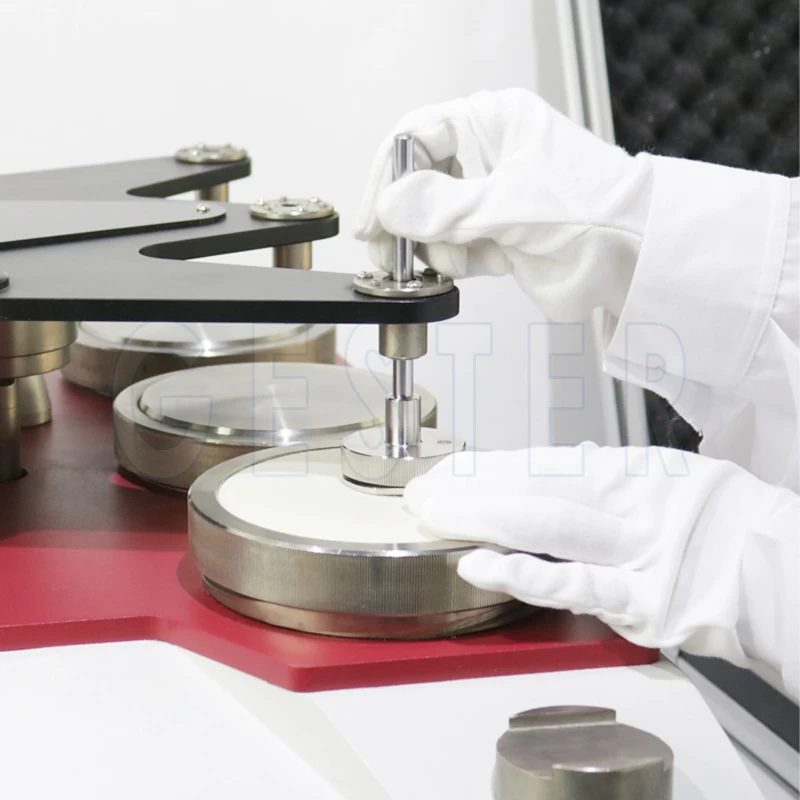

4.The unique design allows removal of individual sample holders 5.for examination without lifting the top motion plate.

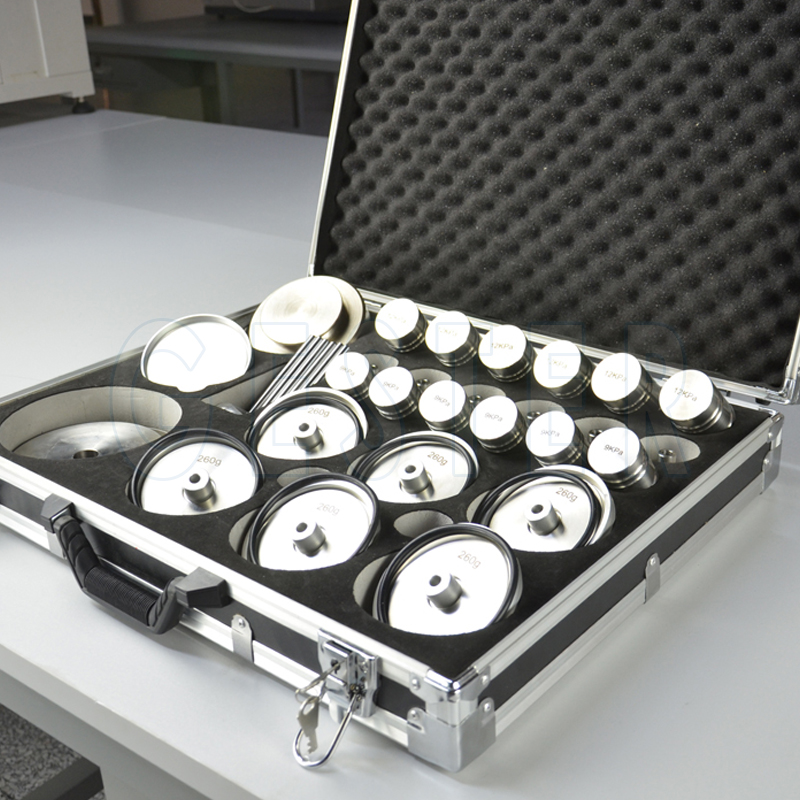

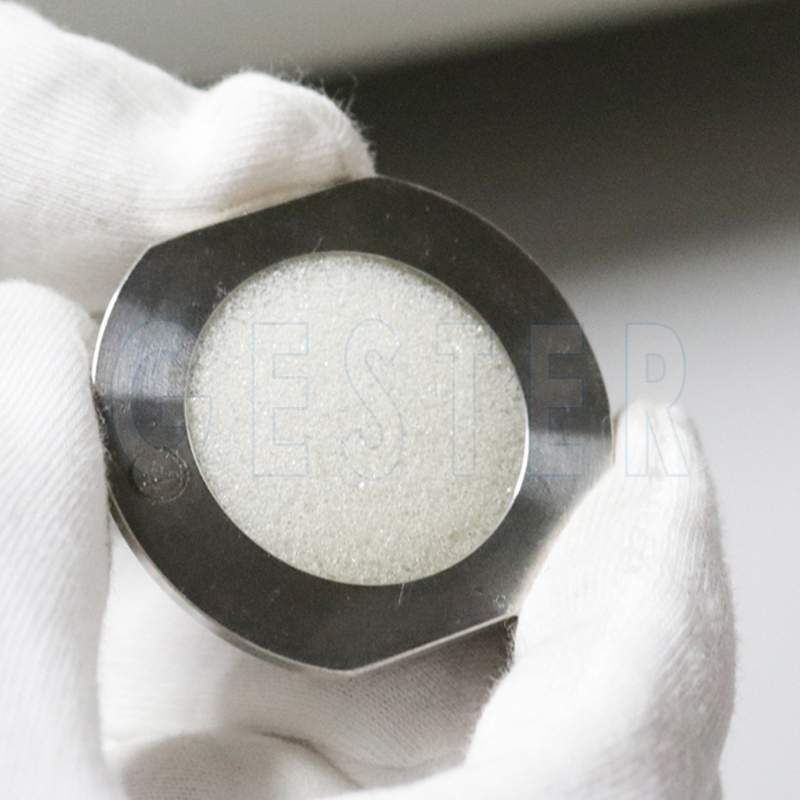

6.Standard sample holders with 9 and 12kpa weights included.
7.PLC, 7 inches color touch screen, Chinese and English operation interface.
8.Weights and key components are made up by 316 stainless steel 9.which is well-formed and durable in use.

10. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.



Martindale abrasion and pilling tester

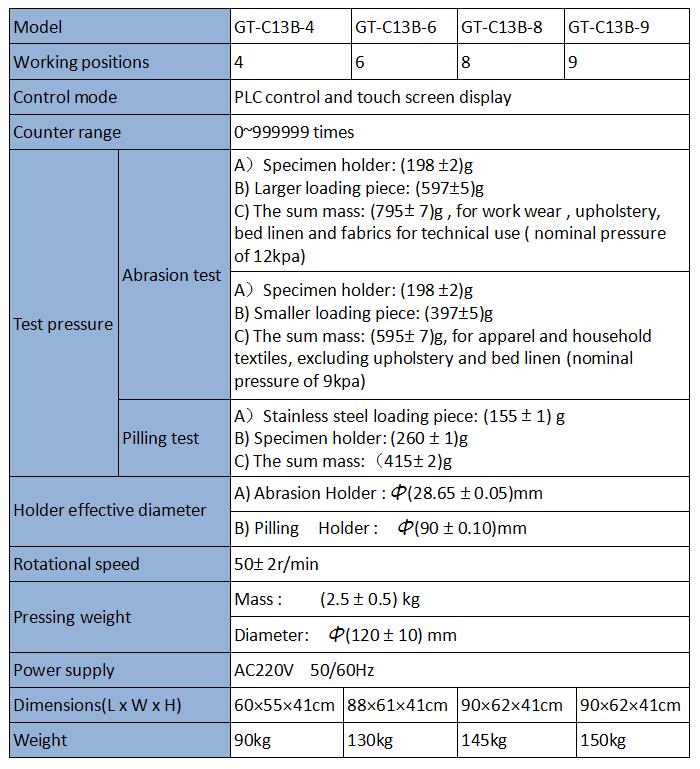

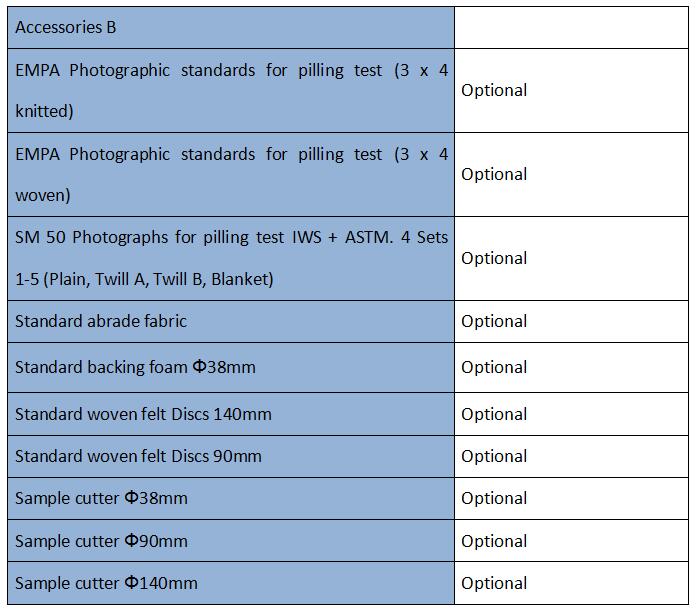

Key Specifications of martindale machine

Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester

Application Industry of martindale machine

All kinds of materials can be tested on the Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester
