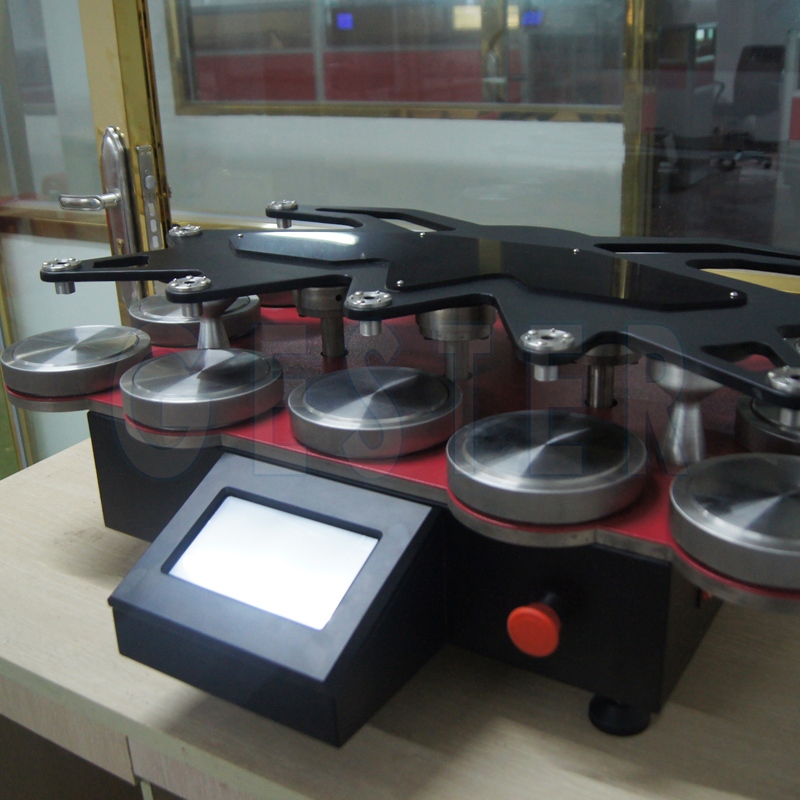

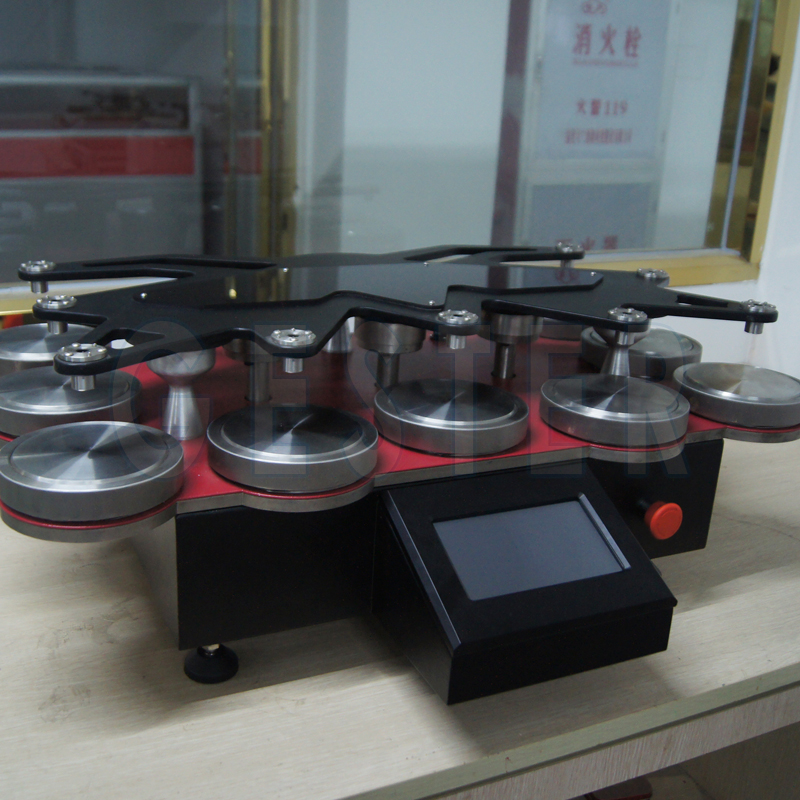

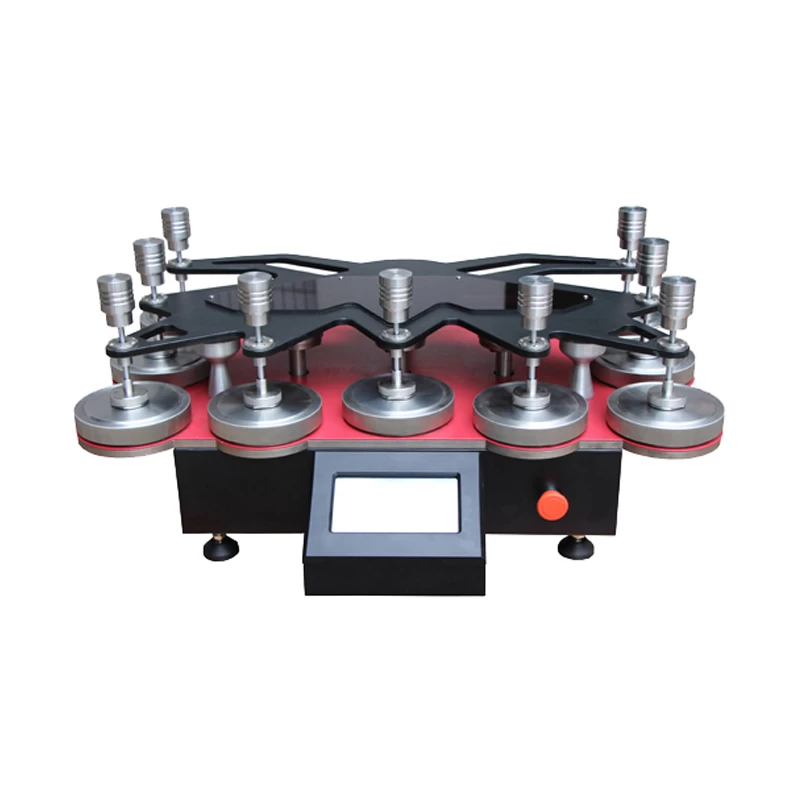

Martindale Fabric Abrasion Tester GT-C13C

Martindale Fabric Abrasion Tester used to determine the abrasion and pilling resistance of all kinds of textile structures.



Martindale Abrasion and Pilling Tester GT-C13C


Product Introduction

Application:

Martindale Fabric Abrasion Tester is used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Standards:
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, MS P19, Next 18, SN 198529, TWC 112, JIS L1096

Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, MS P17, Next TM26, SN 198525

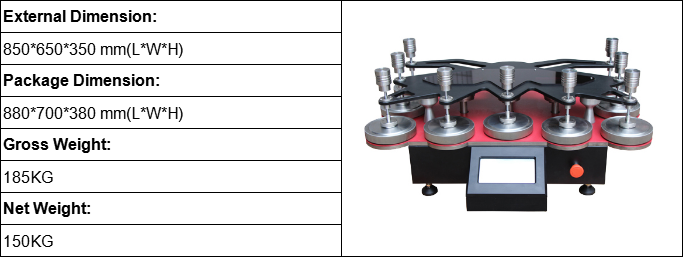

Dimensions



Martindale Abrasion and Pilling Tester

Feature

Standard: Lissajous figure

 abrasion curve                pilling curve

Testing model: Lissajous figure:24X24mm,24X60mm,60X60mm

Linear:60mm,24mm

New design, attractive appearance, durable in use;

Counting Method: 1) count up   2) count down;

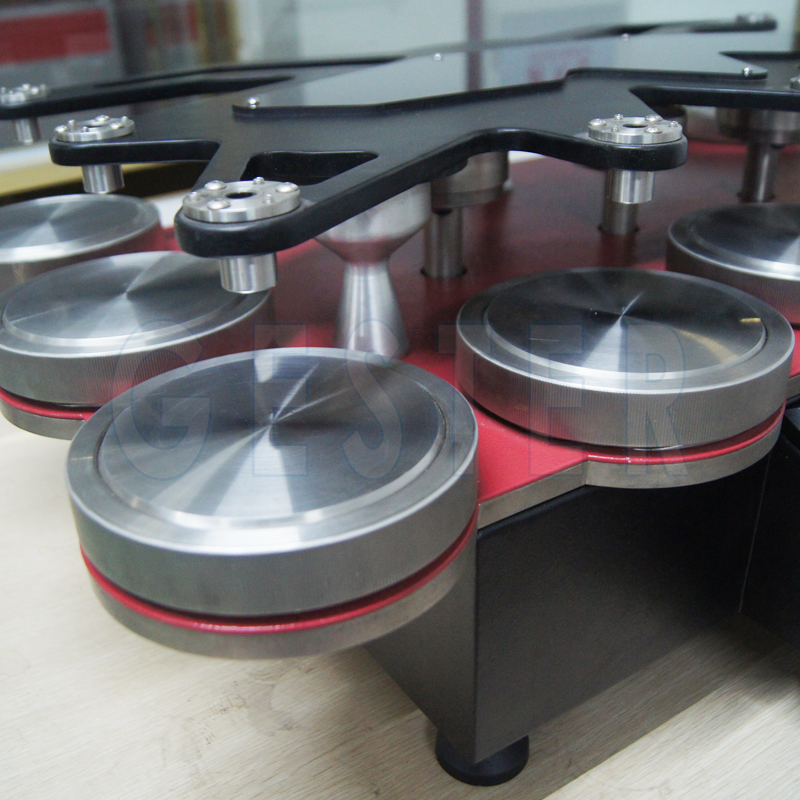

The unique design allows removal of individual sample holders for examination without lifting the top motion plate

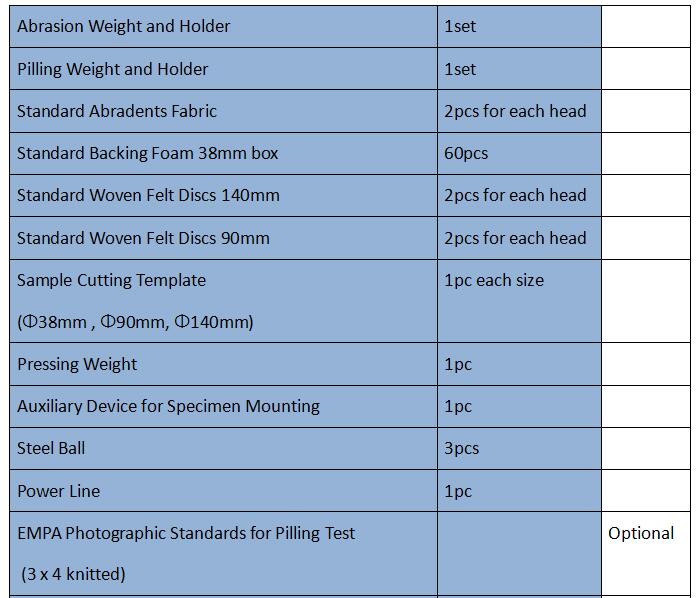

Standard sample holders and 9 and 12kpa weights are included;

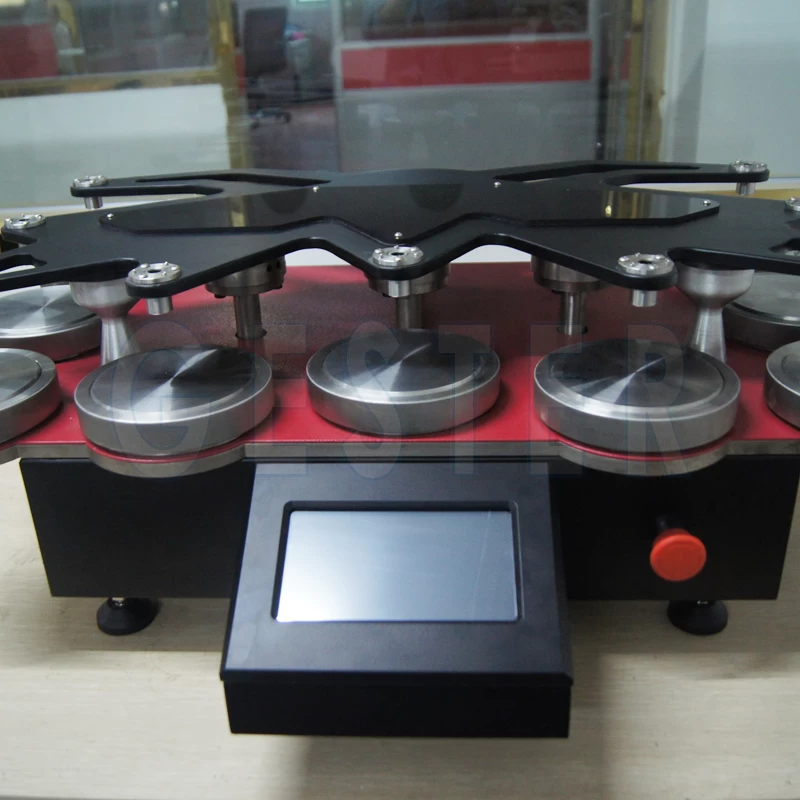

PLC, 7 inches color touch screen, Chinese and English operation interface;

Weight and key component are made up by 316 stainless steel which is wellformed and durable in use;

To prevent distortion, the top motion plate was special made up by aluminum alloy;

Control of brushless DC motor, operate smooth and steady without noise;

Import bearing, reduce the friction during operating.

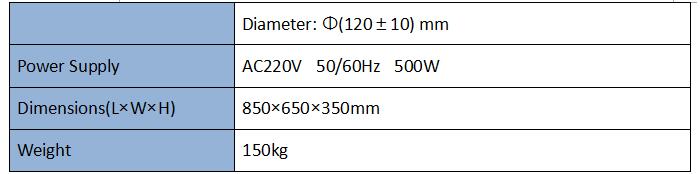

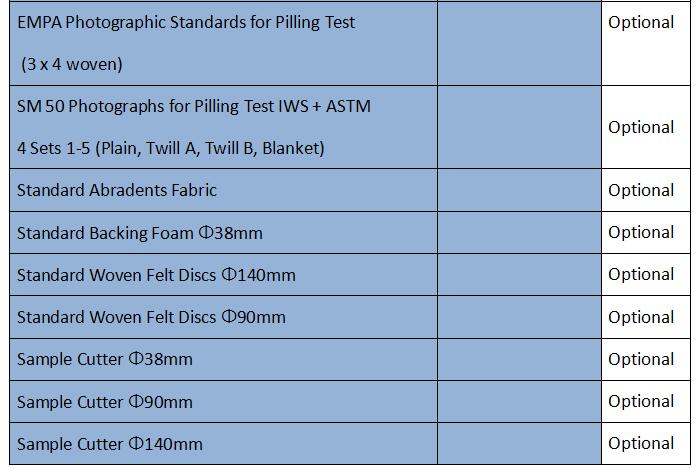

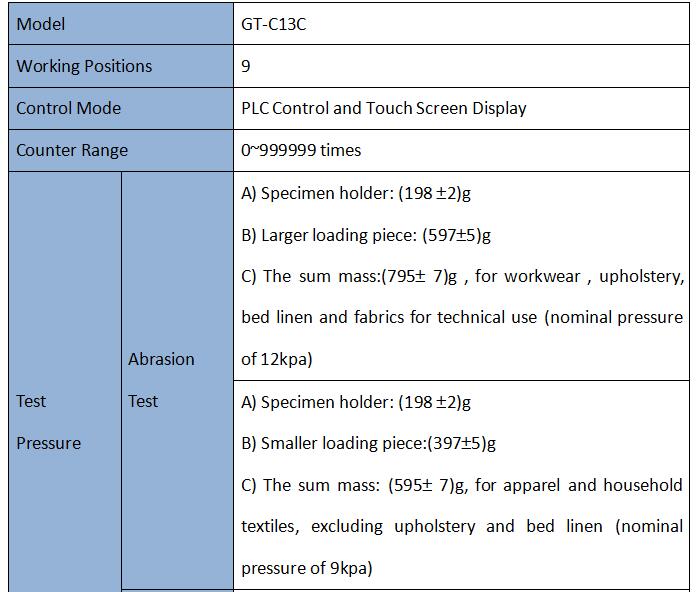

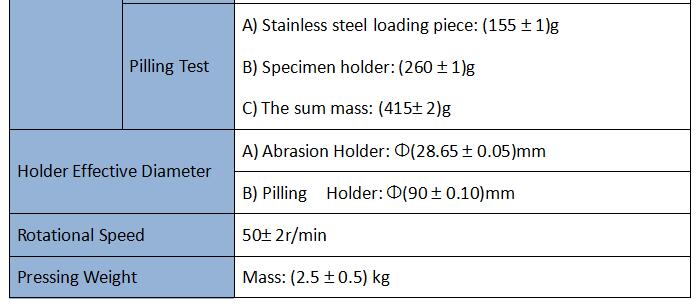

Key Specifications





Application Industry

All kinds of materials can be tested on the Martindale Fabric Abrasion Tester

Martindale Abrasion and Pilling Tester
