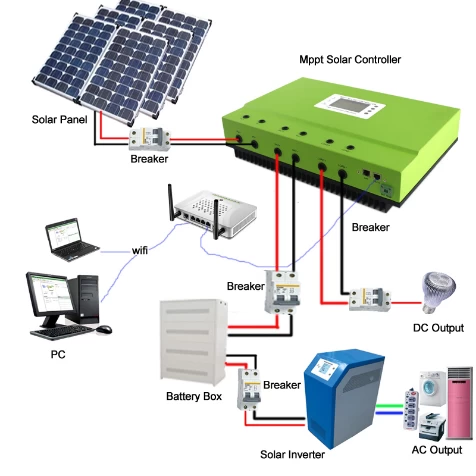

Feature:
1.MPPT charge mode,conversion efficiency up to 99%
2.12V/24V/48V system auto recognize，convenient customer use.
3.Wide range of PV input with max. is DC150V .
4.Unlimited parallel connection
5.Memory function , Save function set ,Date ,time ,Generating capacity and so on .
6.Charge mode: three stages (fast charge ,constant charge ,floating charge) .
7.Discharge mode: ON/OFF mode, double time control mode,PV voltage control mode ,PV voltage+time delay mode and so on .
8. Recommended battery types: sealed lead acid, vented, gel, NiCd battery.
9.Most information could be provide by LCD and LED like: model no.,PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on.
10.RS232 and LAN communication port. IP and Gate address could be user define it satisfy global area.
11.Provide professional upper computer software, it could show work status and set parameters of the discharge system.
12.With intelligent design,the device can be upgraded online lifelong.
13.Adopting the well-known brand components,the devices can suffer the temperature not less than 105℃.
14.Compliance with the 2002/95/EC environment protecting demand, doesn't include the Cadmium, hydride and fluoride etc material
15.CE,ROHS,FCC certifications approved solar controller, other certification will base on client requirement.
Parameter
|
MPPT controller Model: Master-80A/100A series
|
80A
|
100A
|
|
Charge Mode
|
Maximum Power Point Tracking
|
|
Method
|
3 stages: fast charge(MPPT),constant voltage, floating charge
|
|
System Type
|
DC12V/24V/36V/48VSYS
|
Automatic recognition
|
|
Soft Start Time
|
DC12V/24V/36V/48VSYS
|
≤10S
|
|
Conversion Efficiency
|
DC12V/24V/36V/48VSYS
|
≥96.5%,≤99%
|
|
PV Modules Utilization Rate
|
DC12V/24V/36V/48VSYS
|
≥99%
|
|
12V system recognize batteries Voltage Range
|
DC9V~15V
|
|
24V system recognize batteries Voltage Range
|
DC18V~28V
|
|
36V system recognize batteries Voltage Range
|
DC32V~40V
|
|
48V system recognize batteries Voltage Range
|
DC42V~60V
|
|
Error system
|
Battery voltage not in above range when controller boot
|
|
PV Input Characteristics
|
|
MPPT Working Voltage and Range
|
12V system
|
DC16V~DC150V
|
|
24V system
|
DC30V~DC150V
|
|
36V system
|
DC45V~DC150V
|
|
48V system
|
DC60V~DC150V
|
|
Low Voltage Input Protection Point
|
12V system
|
DC22V
|
|
24V system
|
DC34V
|
|
36V system
|
DC50V
|
|
48V system
|
DC65V
|
|
Input Overvoltage Protection Point
|
DC12V/24V/36V/48VSYS
|
DC150V
|
|
Low Voltage Input Recovery Point
|
DC12V/24V/36V/48VSYS
|
DC145V
|
|
Max. PV Power
|
12V system
|
1136W
|
1420W
|
|
24V system
|
2272W
|
2840W
|
|
36V system
|
3408W
|
4260W
|
|
48V system
|
4544W
|
5680W
|
|
Discharge characteristic
|
|
Selectable Battery
|
DC12V/24V/36V/48VSYS
|
Sealed lead acid, vented
|
|
Types (Default
|
Gel, NiCd battery
|
|
type is GEL battery)
|
(Other types of the batteries also can be defined)
|
|
Charge mode
|
DC12V/24V/36V/48VSYS
|
constant current-constant voltage-floating charge
|
|
Constant Voltage
|
DC12V/24V/36V/48VSYS
|
Please check the charge voltage according to the battery type form.
|
|
Floating Charge Voltage
|
DC12V/24V/36V/48VSYS
|
|
Rate charge current
|
DC12V/24V/36V/48VSYS
|
80A
|
100A
|
|
Current-limiting Protection
|
DC12V/24V/36V/48VSYS
|
85A
|
105A
|
|
Temperature Factor
|
DC12V/24V/36V/48VSYS
|
±0.02%/℃
|
|
Temperature Compensation
|
DC12V/24V/36V/48VSYS
|
14.2V-（The highest temperature-25℃）*0.3
|
|
Output Ripples(peak)
|
DC12V/24V/36V/48VSYS
|
200mV
|
|
Charger voltage accuracy
|
DC12V/24V/36V/48VSYS
|
≤±1.5%
|
|
Discharge characteristic
|
|
Setting Control
|
Controller or PC software
|
|
Max discharge current
|
DC12V/24V/36V/48VSYS
|
100A
|
|
Discharge protection
|
DC12V/24V/36V/48VSYS
|
fuse
|
|
Double-time control
|
DC12V/24V/36V/48VSYS
|
On in morning ,off in morning / On in night ,off in night
|
|
ON / OFF mode
|
DC12V/24V/36V/48VSYS
|
ON / OFF
|
|
PV voltage control
|
DC12V/24V/36V/48VSYS
|
PV voltage on, PV voltage off
|
|
PV voltage / time delay control
|
DC12V/24V/36V/48VSYS
|
PV voltage on, time delay off
|
|
Control ON/OFF mode
|
|
Discharge voltage protection
|
DC12V/24V/36V/48VSYS
|
Set by user
Output off when it under (exceed) setting voltage;
|
|
Communication Features
|
|
RS232 communication
|
DC12V/24V/36V/48VSYS
|
Chose COM communication port
|
|
LAN communication
|
DC12V/24V/36V/48VSYS
|
Set IP and Gate address for controller and solar eagle ;
|
|
Then chose TCP communication
|
|
Protection Function
|
|
Input Low Voltage Protection
|
Check the input characteristics
|
|
Input Overvoltage Protection
|
Check the input characteristics
|
|
Temperature Protection
|
95℃
|
|
Temperature rise protection
|
Above 85℃,decrease the output power, decrease 3A per degree.
|
|
Other Parameters
|
|
Thermal methods
|
Self-cooling
|
|
Components
|
World brand raw materials. Compliance with EU standards. All rated temperature of electrolytic capacitors not less than 105℃
|
|
Smell
|
No peculiar smell and toxic substances.
|
|
Environment Protection
|
Meet the 2002/95/EC,
|
|
no cadmium hydride and fluoride
|
|
Physical
|
|
Measurement DxWxH (mm)
|
|
|
N.G(kg)
|
|
|
G.N(kg)
|
|
|
Color
|

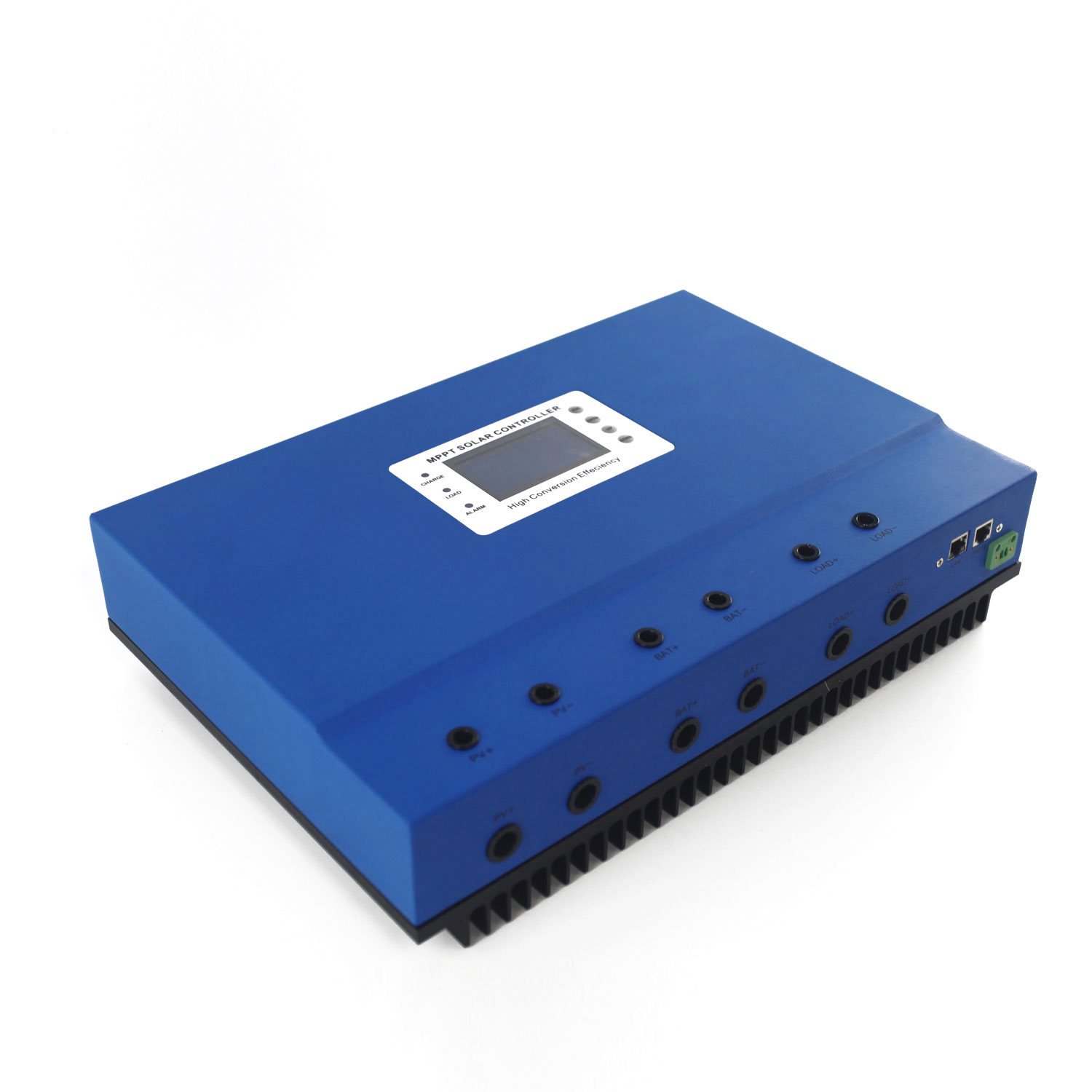

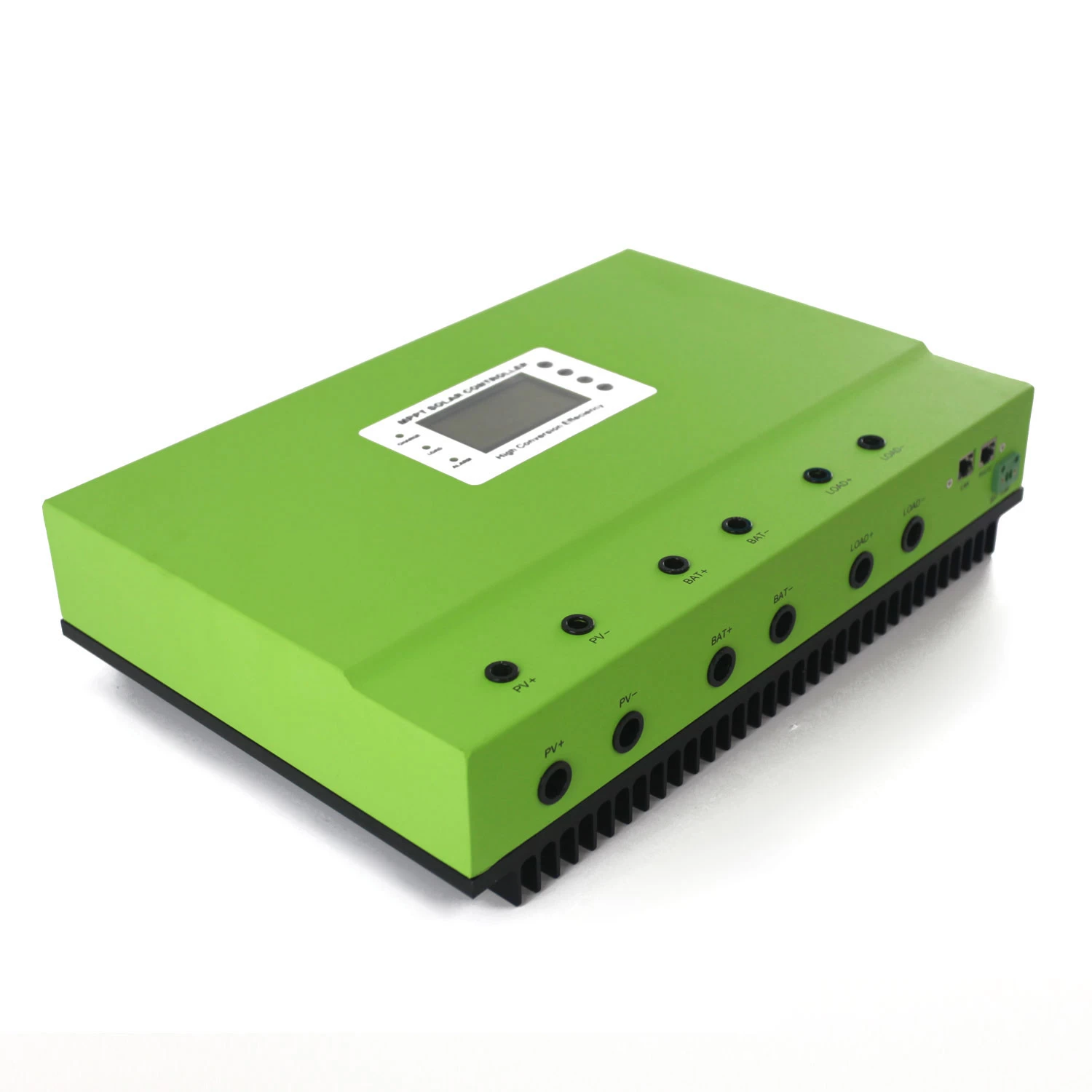

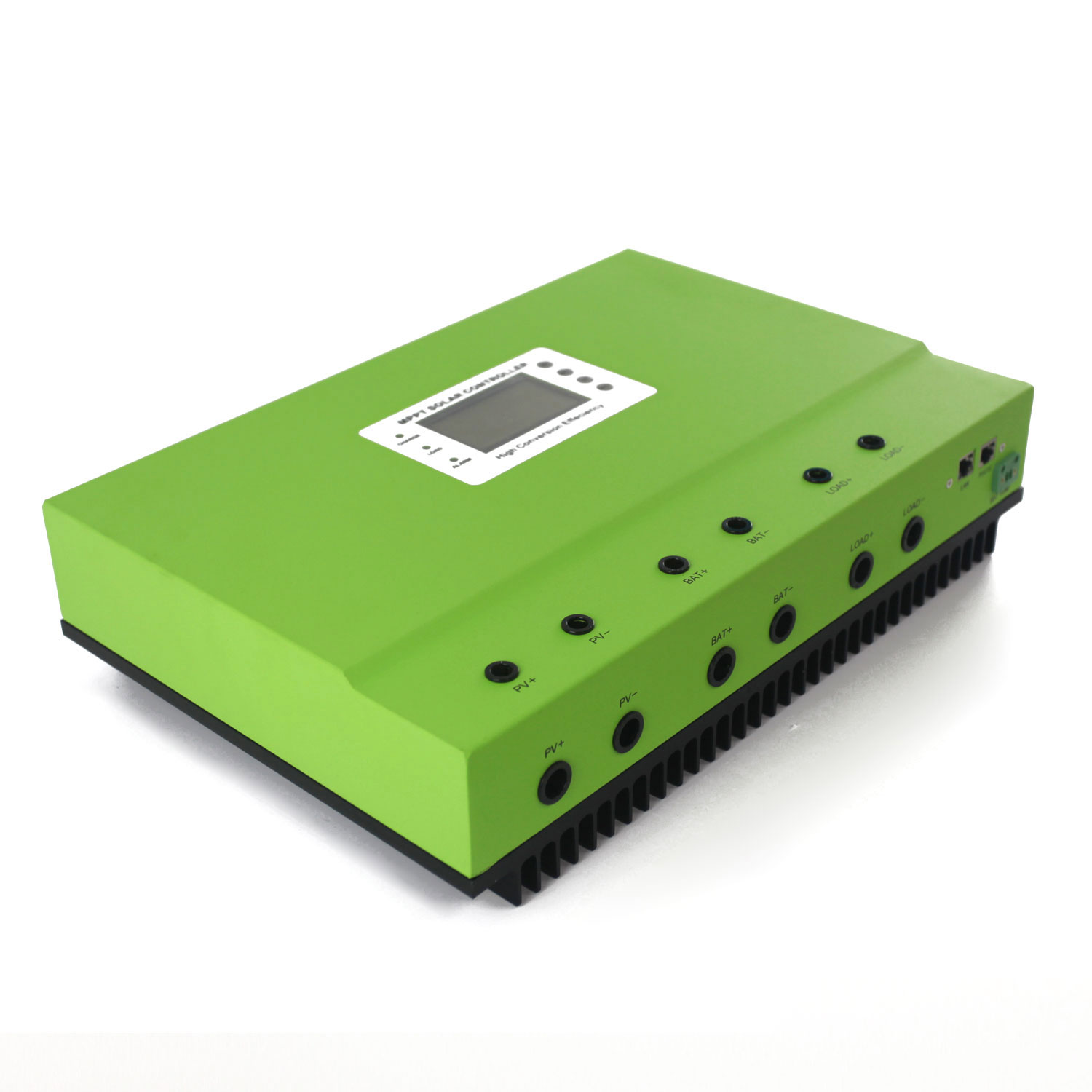

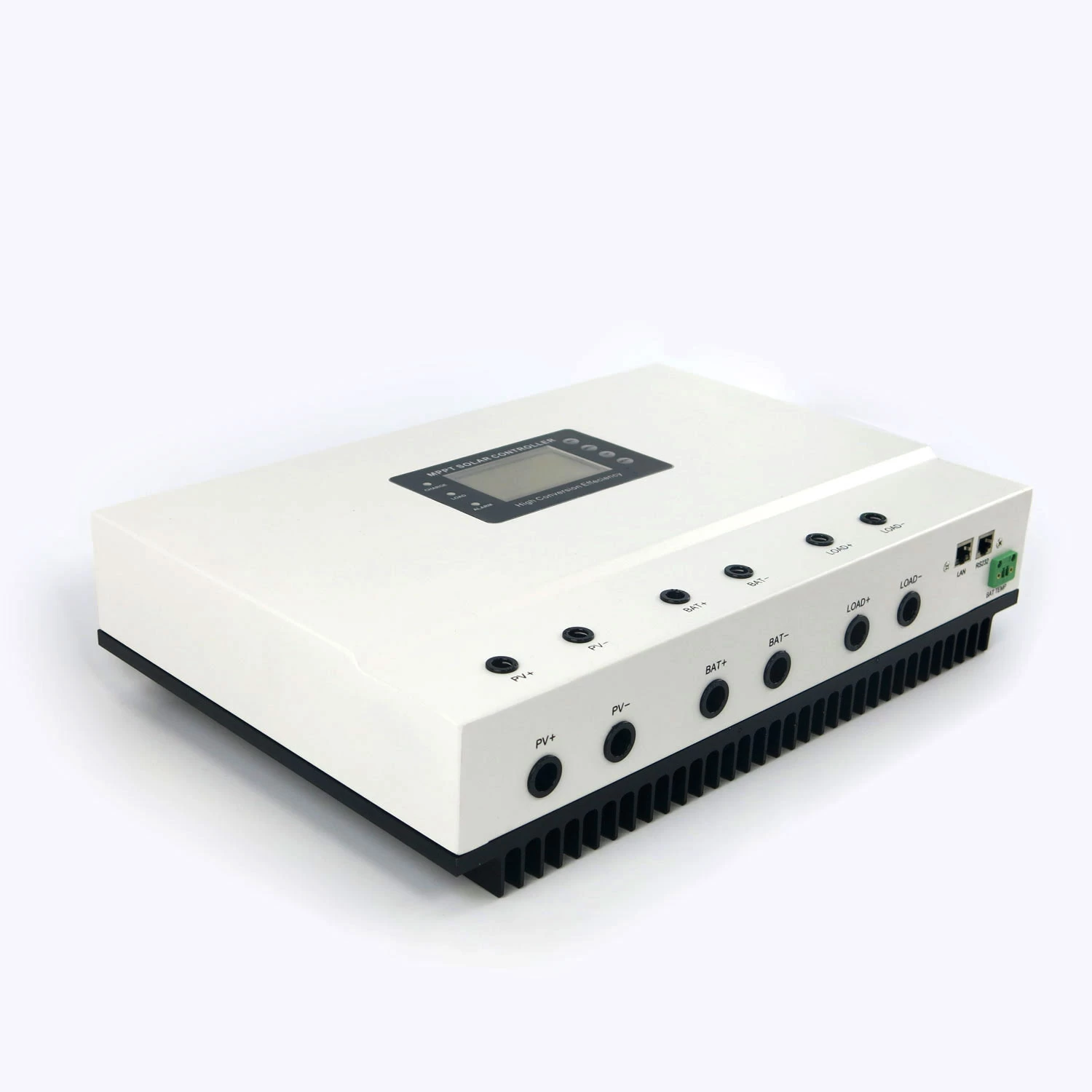

Blue, Green, White (or OEM) (optional)
|
|
Safety
|
CE, PSE, FCC, EMC
|
|
EMC
|
EN61000
|
|
Type of Mechanical Protection
|
IP21
|
|
Environment
|
|
Humidity
|
0~90%RH ( no condense)
|
|
Altitude
|
0~3000m
|
|
Operating Temperature
|
-20℃ ~ +40℃
|
|
Storage Temperature
|
-40℃ ~ +75℃
|
|
Atmospheric Pressure
|
70~106kPa
|
