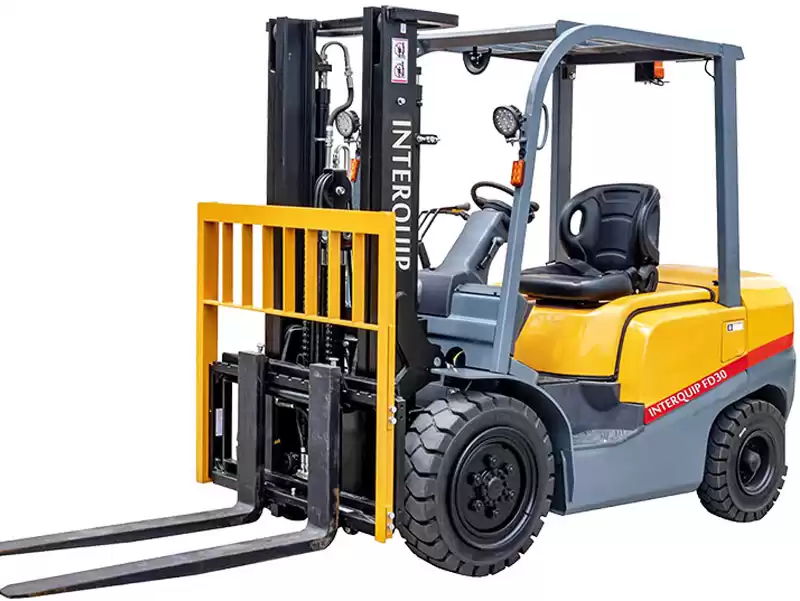

Counterbalance 3 Ton Diesel Forklift Truck
Features:
1.Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort
2.Maintenance free radiators adopt Germany technology. (linder water tank).
3.Fully-enclosed Instrument platform enlarge the working space。
4.New suspension adjustable seat makes the long time operating more comfortable。
5.New designed overhead guard protective device prevent the sudden accidents.
6.Refueling cover makes more beautiful and safer
7.Step area is 1.5 times larger with lower step height than other brand forklifts.
8.Thicker reinforcing plate ensure the safety and efficiency
9.Linde-Technology Single Chain with reinforced load backrest-----makes an excellent and wider field of vision for operator.
10.Change plastic slider to ally copper slider, reduce the abrasion and narrow the gap between masts.
11.Equipped with electronic hydraulic transmission, operation is more comfortable and durable.
12.LED work lights and warning lights make it safer and more efficient even in poor lighting conditions.
13.Our production with the durable Japanese fuel sensor.
Specifications:
|
Model
|
|
|
UNIT
|
FD30T
|
|
Specifications
|
Power Unit
|
|
Diesel
|
|
Operator Type
|
|
Driver/seat
|
|
Transmission Box Type
|
|
Electronic hydraulic transmission
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Max.Lifting Height
|
mm
|
3000
|
|
Tire Type
|
|
Pneumatic Tyre
|
|
Tire Number
|
Front
|
|
2
|
|
Rear
|
2
|
|
Tire Size
|
Front
|
|
28×9-15-14PR
|
|
Rear
|
|
6.5-10-10PR
|
|
Performance
|
Lifting Speed
|
Loaded
|
mm/s
|
500
|
|
Unloaded
|
550
|
|
Lowering Speed
|
Loaded
|
mm/s
|
480
|
|
Unloaded
|
450
|
|
Travelling Speed
|
Loaded
|
km/h
|
19
|
|
Unloaded
|
20
|
|
Max.Gradeability (Loaded)
|
%
|
21
|
|
Max.Drawbar Pull (Loaded)
|
|
kg
|
18
|
|
Mast Tilting Angle (Fwd/Bwd)
|
|
deg
|
6/12
|
|
Free Lifting Height
|
mm
|
150
|
|
Turning Radius
|
|
mm
|
2400
|
|
Dimensions
|
Overall Length (with fork)
|
mm
|
2705
|
|
Overall Width
|
mm
|
1240
|
|
Overhead Guard Height
|
mm
|
2130
|
|
Fork Size (LxWxT)
|
mm
|
1220×125×45
|
|
Mast Height (Fork lowered)
|
mm
|
2140
|
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
4380
|
|
Fuel Tank Capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
XINCHAI
|
MITSUBISH
|
ISUZU
|
|
Model
|
|
C490
|
S4S
|
C240
|
|
Rated Power
|
kw/rpm
|
40/2650
|
35.3/2250
|
35.4/2500
|
|
Rated torque
|
n-m/rpm
|
160/1600-2000
|
169/1700
|
137.7/1800
|
|
Number Of Cylinder
|
|
4
|
4
|
4
|
|
Displacement
|
|
2.67
|
2.49
|
2.37
|
