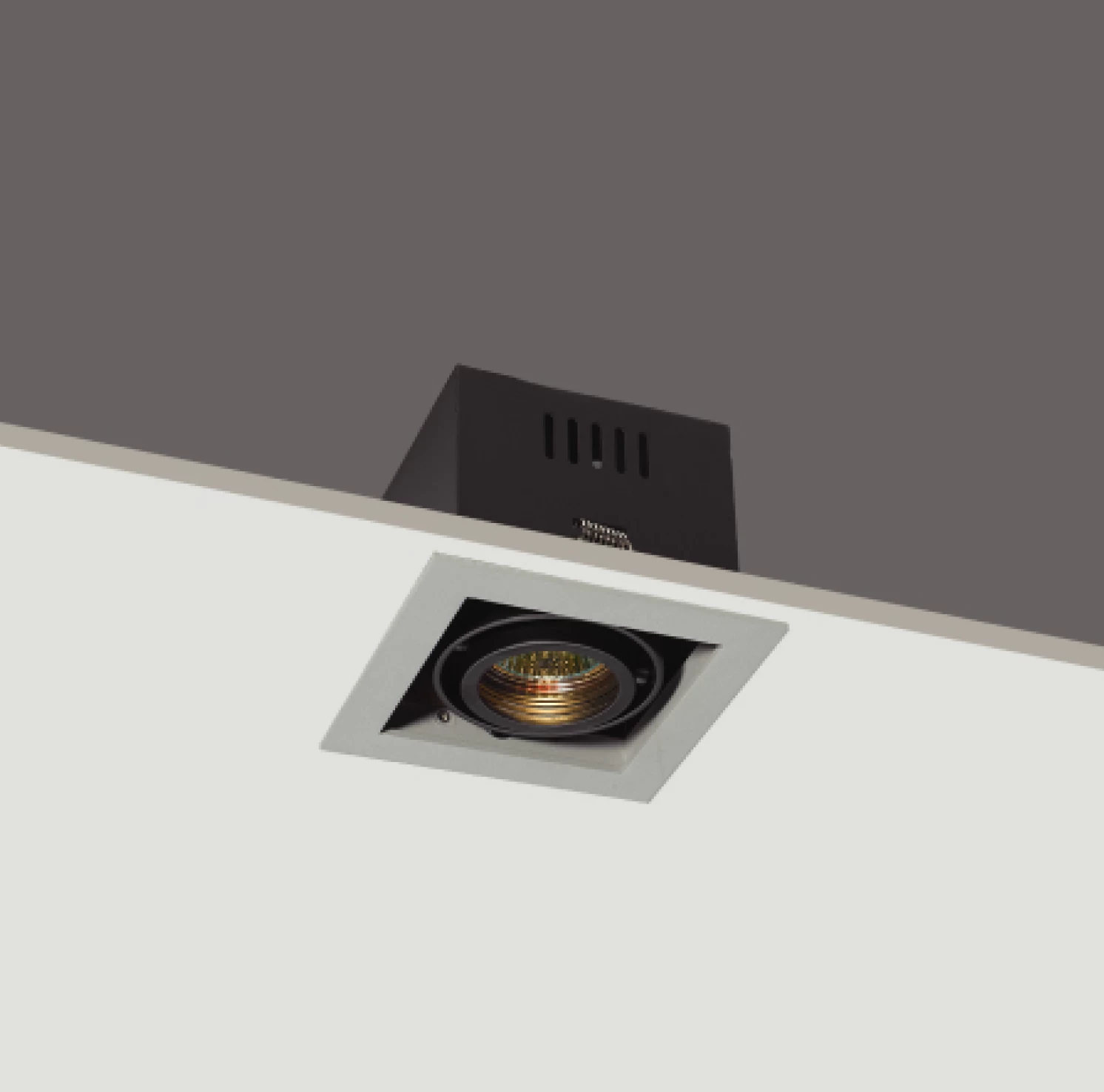

Max.50 W China product led lights GU 10 square trim downlight

  • the face cover, inner ring and outer ring are made of aluminium alloy and shaped by extrusion; the main body is made of cold rolled sheet; the surface is treated by dusting;
  • three optionalparts, honeycomb net,fully toughened frosted glass and clear glass, are available, and users can choose differen parts to form differernt combinations;
  • QR-CB51 or LED QR-CB51light source is used; the radiation ahgle is adjustable and electric appliances are installed externally;


  • IP RateIP 20
  • Cutout106*106mm

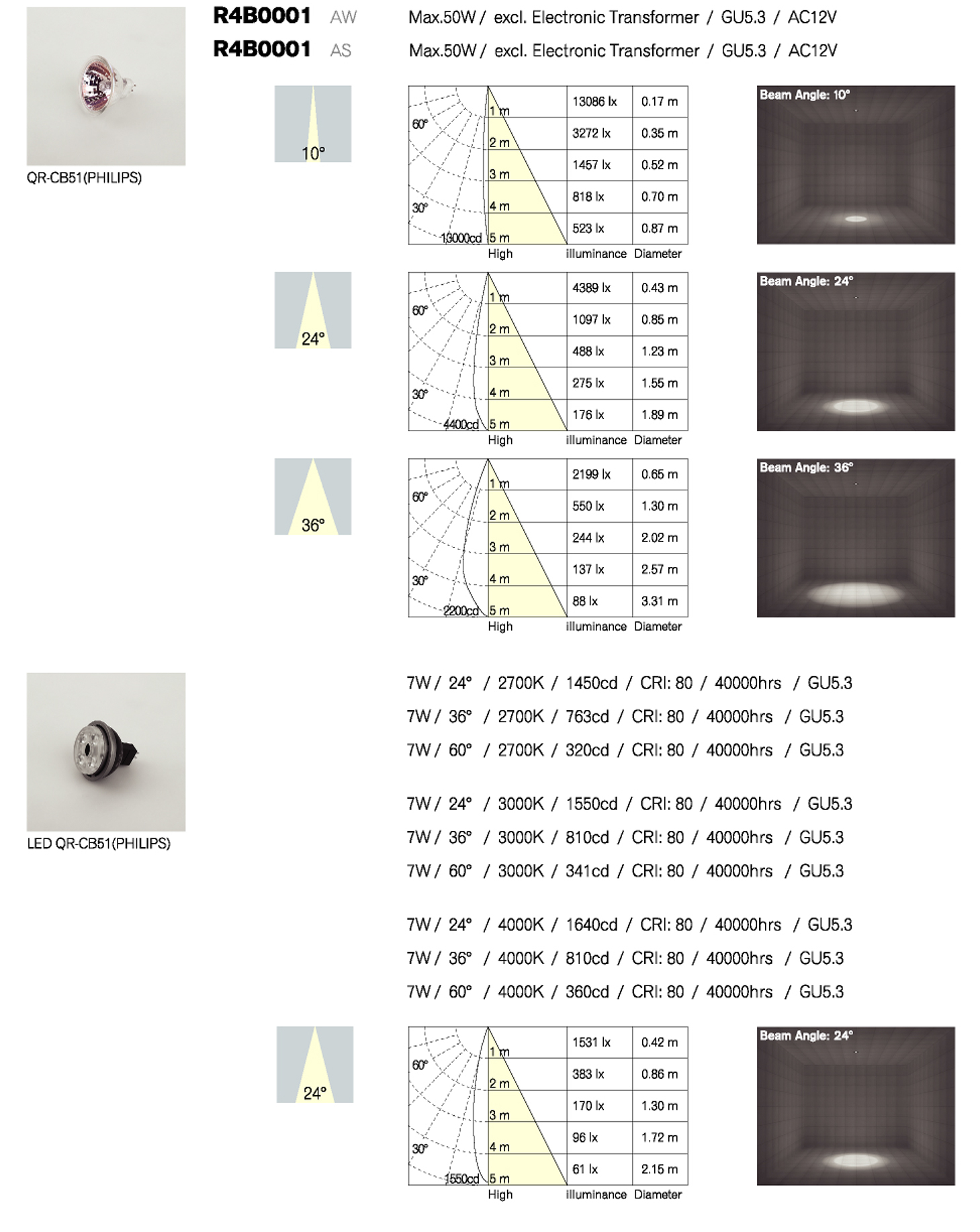

  • Beam angle24°
  • CCT3000K
  • Lamp PowerMAX. 50W
  • Light sourceQR-CB51

Model number

 R4B0001

Installation

 Recessed light

Power

max.50W

Light source

 QR-CB51

Lumen

/

Material

Aluminum

Beam Angle

10° 24° 36°

Electric Data

AC 12V

CCT

 3000K

Finish

Texture:White、Black、Silver

IP

IP20

Certification

 CE、STD、RoHS

CRIRa>)

>90

Cutout shape/size

  106*106mm

Class

Class III

Requirements

 1-10V/SCR/DALI


GU10 lamp housing


  Application


lighting application cafe  lighting application club  lighting application hotel  lighting application office area  lighting application residence  lighting application restaurant  lighting application shopping mall  lighting application showroom  lighting application stroe  lighting application Villa


Traditional lighting has many styles, simple operation, low cost and high performance-to-price ratio.



Product Tags traditional light          and tradition lighting          traditional lighting          traditional light fixtures          traditional outdoor lighting          traditional street lights          traditional track lighting          traditional light switches          marble light and tradition
