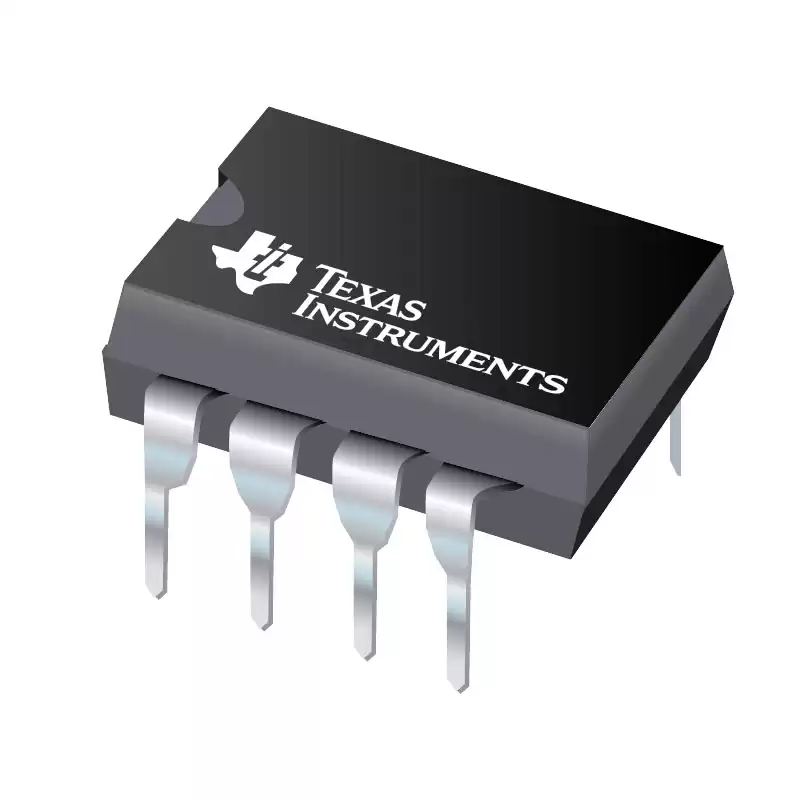

MAX3221IDB TI RS-232 Interface IC
Parameter
| Manufacturer |
Texas Instruments |
| Product Category |
RS-232 Interface IC |
| Mounting Style |
SMD/SMT |
| Package / Case |
SSOP-16 |
Supply Voltage - Min
|
3 V |
Supply Voltage - Max
|
5.5 V |
| Series |
MAX3221 |
Minimum Operating Temperature
|
- 40 C
|
Maximum Operating Temperature
|
+ 85 C
|
Packaging
|
Tube
|
Factory Pack Quantity
|
80 |
Introduction
The MAX3221IDB is an integrated circuit (IC) chip developed by Maxim Integrated. It is a low-power, RS-232 transceiver designed for serial communication applications.
The MAX3221IDB features a 3.0V to 5.5V supply voltage range, making it suitable for a wide range of systems and devices. It supports data rates up to 1Mbps, allowing for high-speed serial communication.
The chip incorporates a dual charge pump that generates the RS-232 voltage levels from a single supply voltage. This eliminates the need for external voltage level translators and simplifies system design.
The MAX3221IDB includes a receiver that can handle RS-232 input voltage swings as low as ±5V, making it compatible with a variety of RS-232 devices. It also includes a transmitter with adjustable output swing, enabling communication with different RS-232 receivers.
Application
The MAX3221IDB chip is widely used in various industries for its reliable and efficient RS-232 serial communication capabilities. It is commonly employed in applications such as industrial automation, instrumentation, point-of-sale terminals, and embedded systems. With its wide supply voltage range, high-speed data rates, and integrated voltage level translation, the MAX3221IDB enables seamless and robust serial communication in diverse industry settings. The chip's low-power operation enhances energy efficiency and extends battery life in portable devices. Its compatibility with a range of RS-232 devices makes it a versatile choice for industry applications that require reliable and high-performance serial communication.
