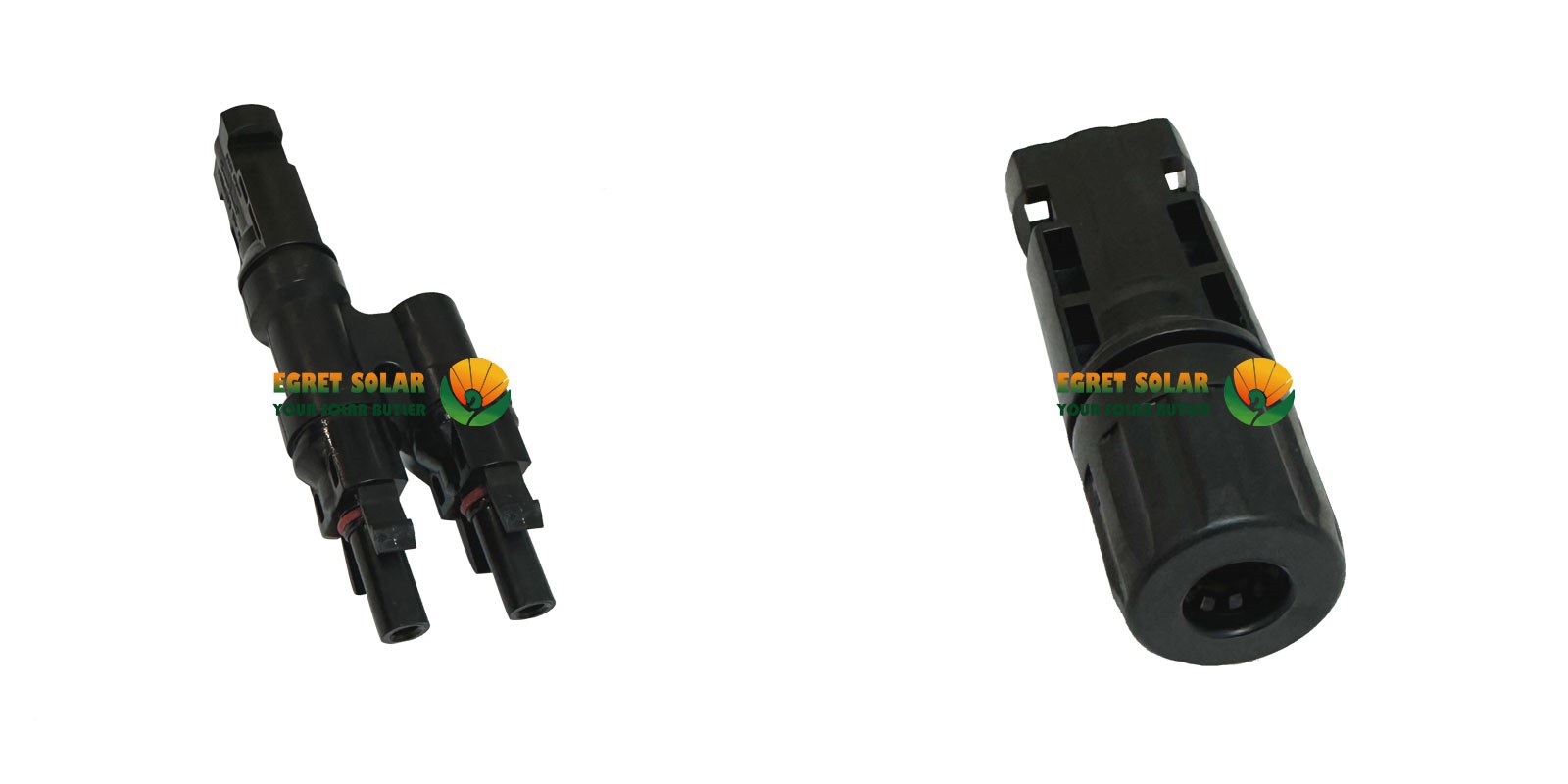

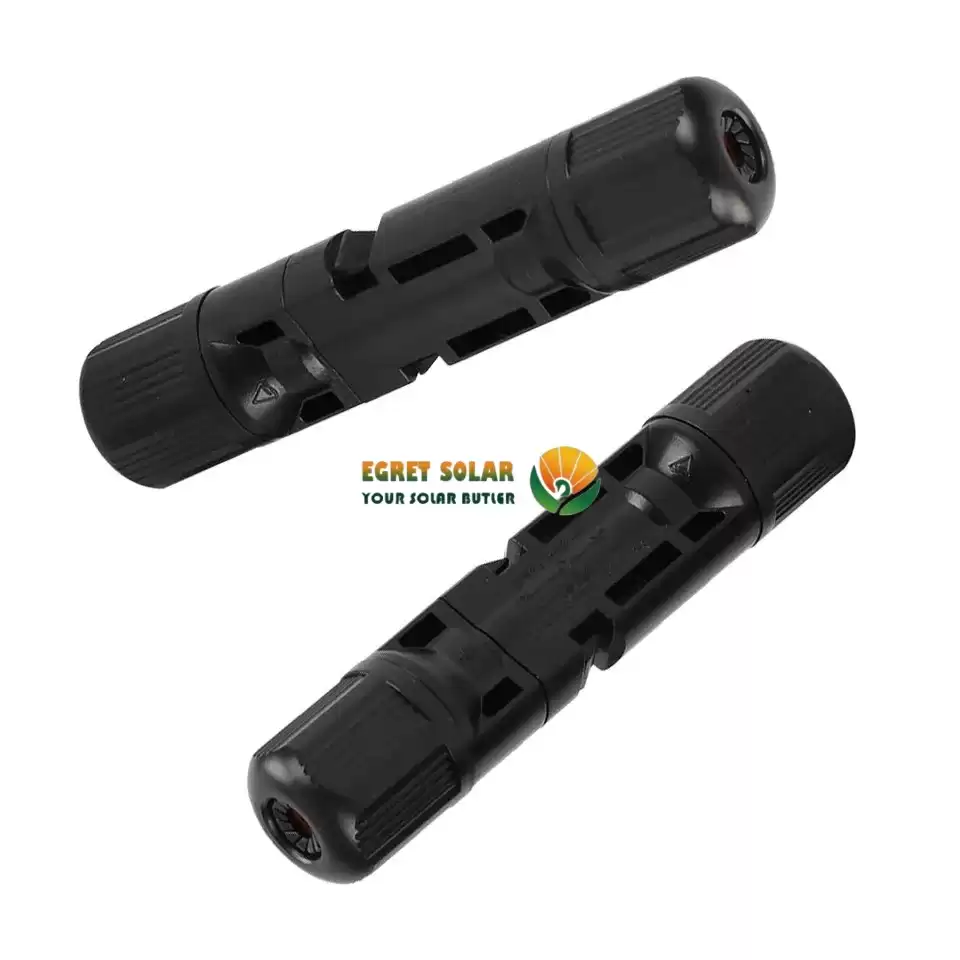

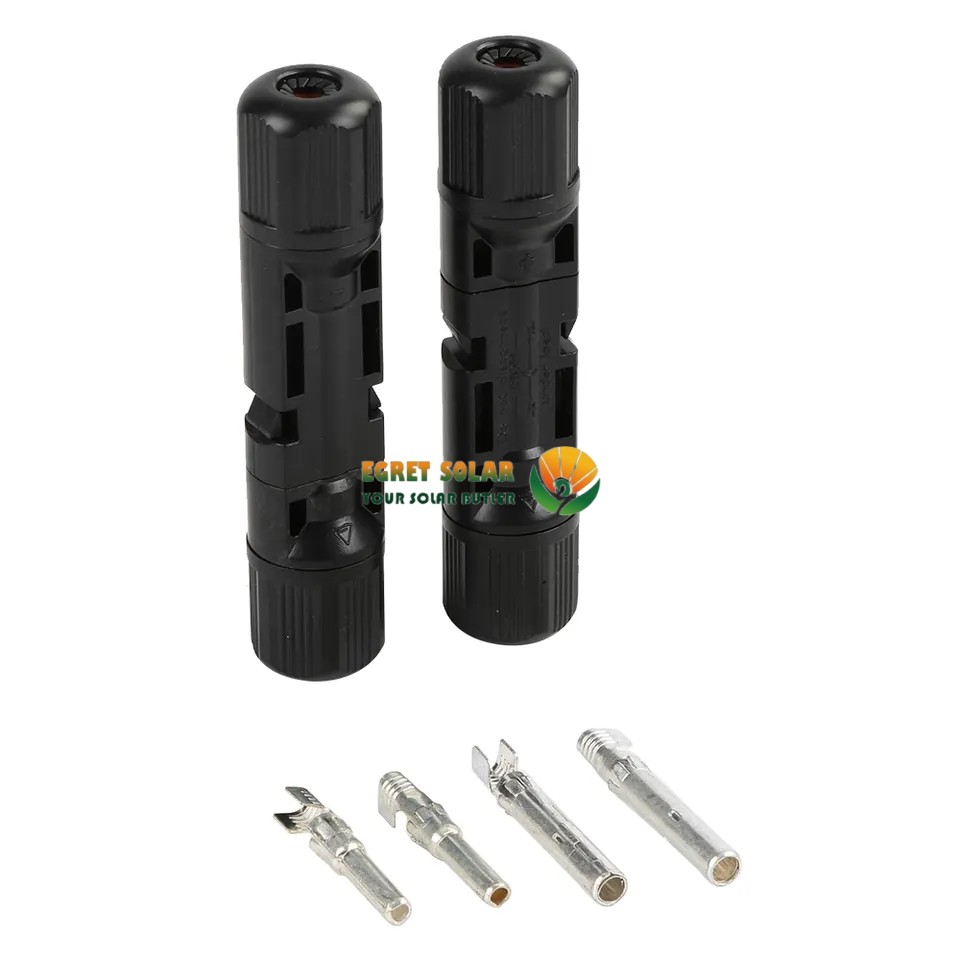

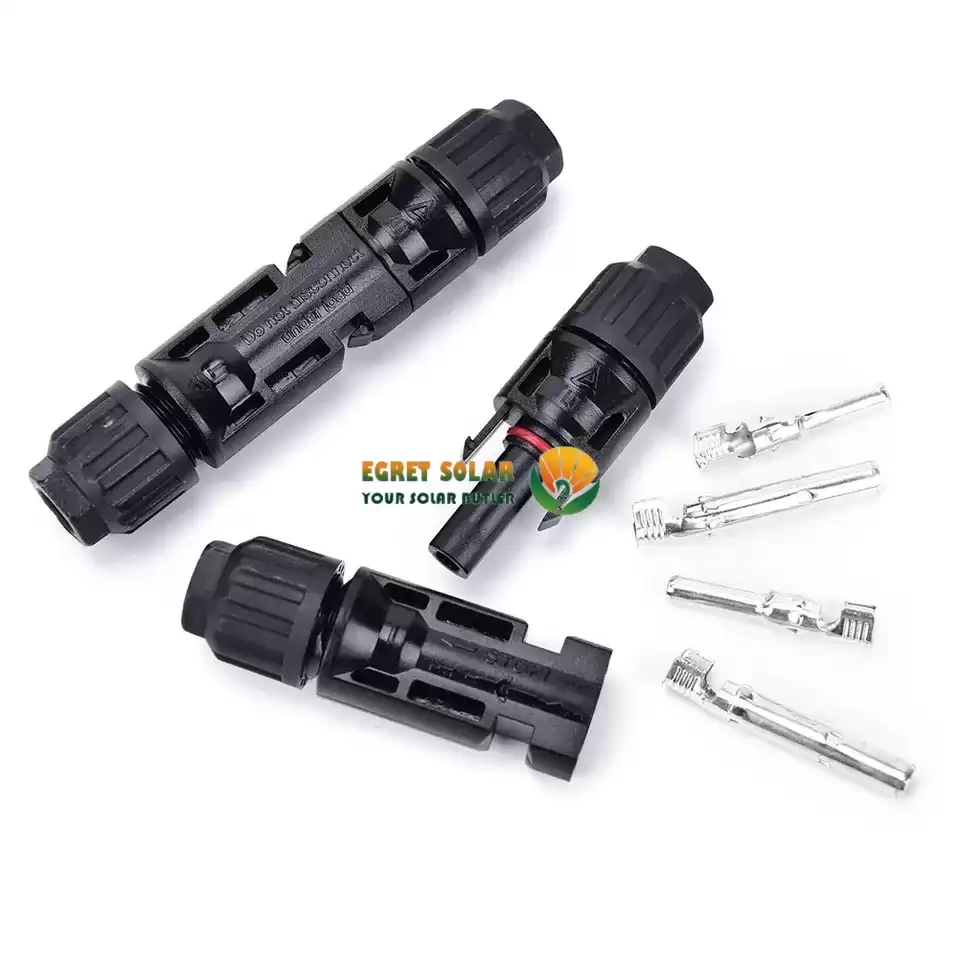

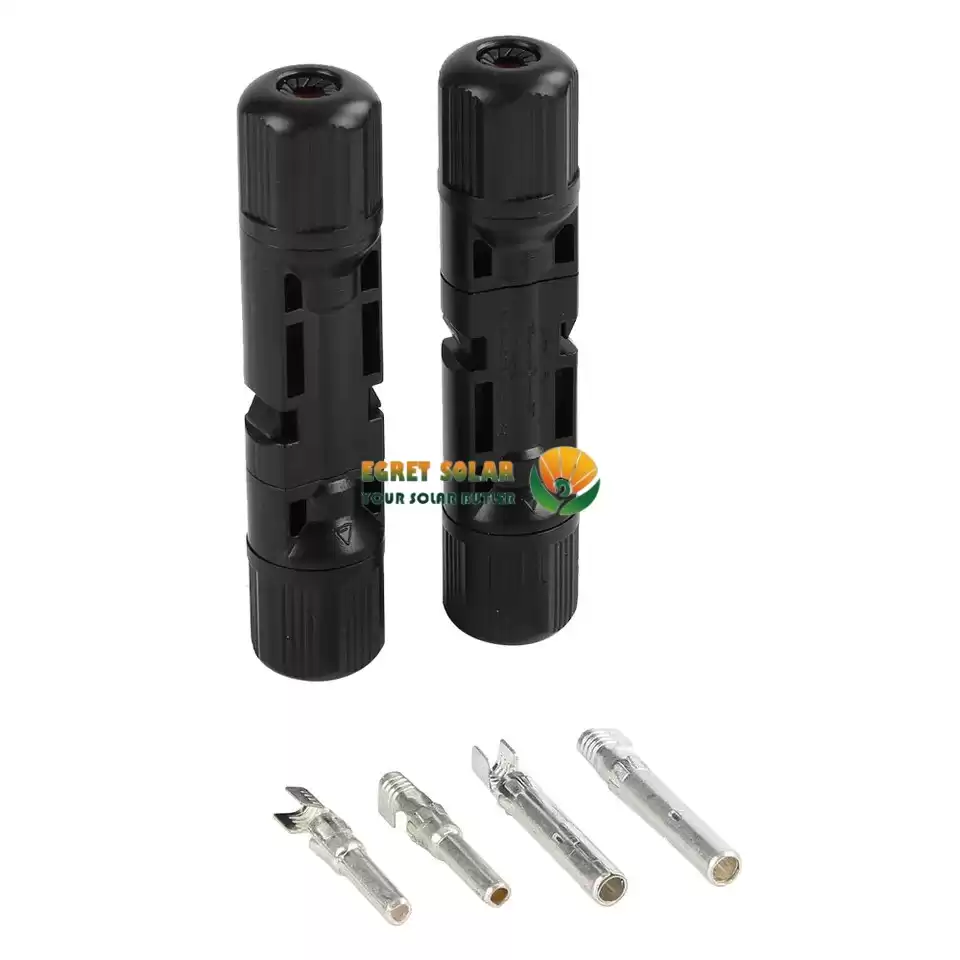

Egretsolar Male Female PV Waterproof Solar Panel Cable Connector Wire Solar Connector for PV Energy System
1. Waterproof IP68 , Safety water/dust proof
2. Make your installation quick and easy
3. High quality PPO insulation: high density, heat resistant, flame retardant, wear resistant
4. High density rubber ring：water/dust proof, high quality silicon material
5. High density silicon material.
6. Thick copper terminal: tin-plate copper, 0.4mm thickness, open size design
7. CE&TUV approved.
8. Competitive prices.
|
Insulation Material:
|
PC
|
Contact material:
|
Copper,Tin plated
|
|
Rated current:
|
30A
|
Insertion force:
|
Max. 50N
|
|
Rated Voltage:
|
1000V DC
|
Withdrawal force:
|
Min. 50N
|
|
Test voltage:
|
DC6000V
|
Ambient temperature range:
|
-40℃~+125℃
|
|
Contact resistance:
|
1mmΩ
|
Flame class:
|
UL94-V0
|
|
Waterproof protection:
|
IP67
|
Connecting system:
|
Crimping connection
|
|
Overvoltage degree:
|
CATIII/2
|
Suitable cable cross section:
|
2.5/4mm2
|
Packing
