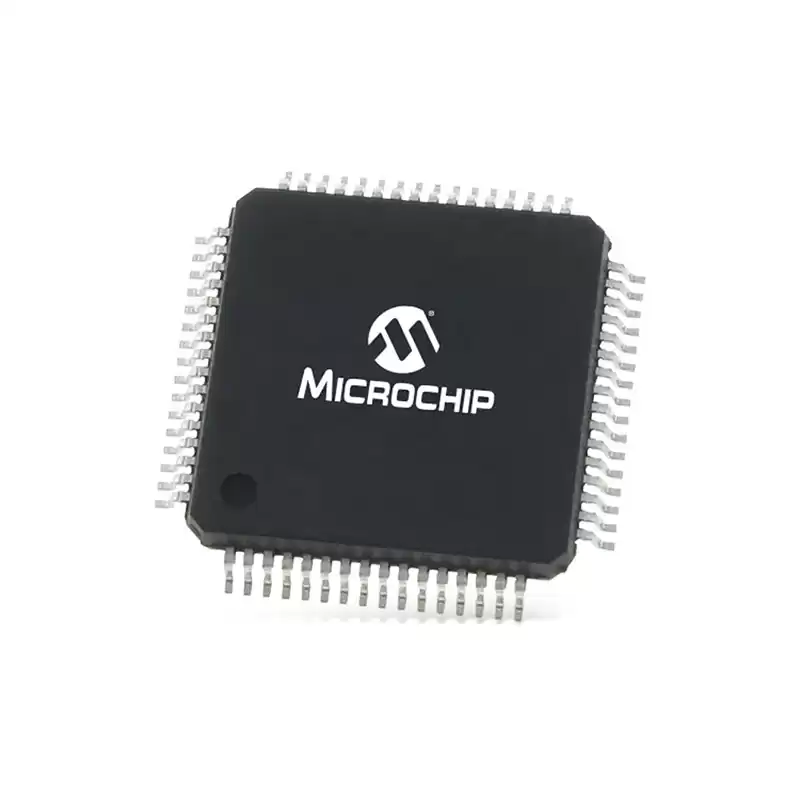

MCP2561-E/SN Microchip CAN Interface IC
Parameter
|
Manufacturer
|
Microchip |
| Product Category |
CAN Interface IC |
| Mounting Style |
SMD/SMT |
| Package / Case |
SOIC-8 |
Supply Voltage - Min
|
1.8 V |
Supply Voltage - Max
|
5.5 V
|
Minimum Operating Temperature
|
-40 C
|
Maximum Operating Temperature
|
+ 125 C
|
| Operating Supply Current |
70 uA |
| Packaging |
Tube |
Factory Pack Quantity
|
100 |
Introduction
The MCP2561-E/SN chip provides a robust interface between a microcontroller and the CAN bus, enabling the transmission and reception of messages in accordance with the CAN 2.0B protocol. It supports data rates of up to 1 Mbps, making it suitable for high-speed CAN applications.
This chip features a differential receiver with low input offset voltage, ensuring accurate reception of CAN signals even in noisy environments. It incorporates a transmitter with a dominant time-out function, which automatically switches to a recessive state to avoid bus contention and ensure smooth communication.
The MCP2561-E/SN chip offers various protection mechanisms, including thermal shutdown, short-circuit protection, and voltage fault protection, enhancing system reliability and durability.
It operates with a wide supply voltage range, typically from 4.5V to 5.5V, and has low standby current, making it suitable for battery-powered applications and energy-efficient designs.
Application
The MCP2561-E/SN chip is widely used in various industries for reliable and efficient data communication over the Controller Area Network (CAN) bus. It finds applications in automotive systems, industrial automation, and other sectors requiring robust communication protocols. With its high-speed capabilities and support for the CAN 2.0B protocol, the chip enables seamless and accurate data transmission at rates up to 1 Mbps. Its advanced features, including thermal shutdown, short-circuit protection, and voltage fault protection, ensure system reliability and durability. The MCP2561-E/SN operates with a wide supply voltage range and low standby current, making it suitable for battery-powered applications and energy-efficient designs. With its compact size and easy integration, the MCP2561-E/SN simplifies the implementation of CAN communication in diverse industrial systems. It is a trusted solution for industries seeking reliable and high-performance CAN bus communication in demanding environments.
