MCT85F5 Potain Top Slewing 5t Load Tower Cranes
Potain, the world leader of the tower crane now sells a range of models perfectly adapted to each type of construction. These products are based on the latest technologies and are associated with a complete set of equipment.

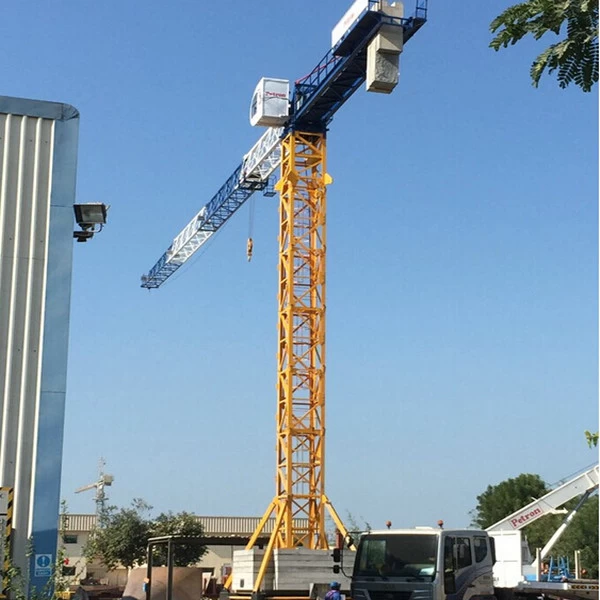

The MCT 85 F5 is the new topless tower crane model that replaces the MCi 85A/B. It has a longer working radius of 52m and is able to reach a maximum free standing hook height of 47.6m. All mechanisms (hoisting, slewing and trolleying) are available in variable frequency drive as option.
Potain top slewing tower crane main features:
- Easier and faster to erect than the previous hammerhead model.
- Better for overlapping operations.
- Better maximum working radius, than previous model, at 52m.
- Better maximum free standing hook height, than previous model, at 47.6m.
- Option available for full variable frequency for all mechanisms (hoisting, slewing and trolleying) for smooth and accurate operation.
- Option for internal floor climbing is available.
| Model |
Max Capacity |
Maximum Radius |
Maximum Tip Capacity |
Hook Height per Base |
|---|
MCT 85 F2.5
|
2.5 t
(2.8 USt) |
52 m
(170.6 ft) |
1.15 t
(1.3 USt) |
35.2 m
(115.5 ft) |
MCT 85 F5
|
5 t
(5.5 USt) |
52 m
(170.6 ft) |
1.1 t
(1.2 USt) |
35.2
(115.5 ft) |
MC 175C
|
8 t
(8.8 USt) |
60 m
(196.9 ft) |
1.5 t
(1.7 USt) |
63.9 m
(209.6 ft) |
MCT 205
|
10 t
(11 USt) |
65 m
(213.3 ft) |
1.75 t
(1.9 USt) |
64.4 m
(211.3 ft) |
MC 235C
|
10 t
(11 USt) |
65 m
(213.3 ft) |
2.2 t
(2.4 USt) |
64.7 m
(212.3 ft) |
MC 310 K12
|
12 t
(13.2 USt) |
70 m
(229.7 ft) |
3.2 t
(3.5 USt) |
62.6 m
(205.4 ft) |
MC 310 K16
|
16 t
(17.6 USt) |
70 m
(229.7 ft) |
2.7 t
(3 USt) |
61.9 m
(203.1 ft) |
MCT 385 L14
|
14 t
(15.4 USt) |
75 m
(246.1 ft) |
3.2 t
(3.5 USt) |
63.7 m
(209 ft) |
MC 465
|
25 t
(27.6 USt) |
80 m
(262.5 ft) |
3 t
(3.3 USt) |
50.4 m
(165.4 ft) |
MC 475
|
25 t
(27.6 USt) |
80 m
(262.5 ft) |
3 t
(3.3 USt) |
76.11 m
(249.7 ft) |
MCR 160
|
10 t
(11 USt) |
50 m
(164 ft) |
2.4 t
(2.6 USt) |
49.4 m
(162.1 ft) |
MCR 225A
|
14 t
(15.4 USt) |
55 m
(180.4 ft) |
2.15 t
(2.4 USt) |
52.4 m
(171.9 ft) |
MR 295 P22A
|
20 t
(22 USt) |
60 m
(196.9 ft) |
2.7 t
(3 USt) |
47.6 m
(156.2 ft)
|
