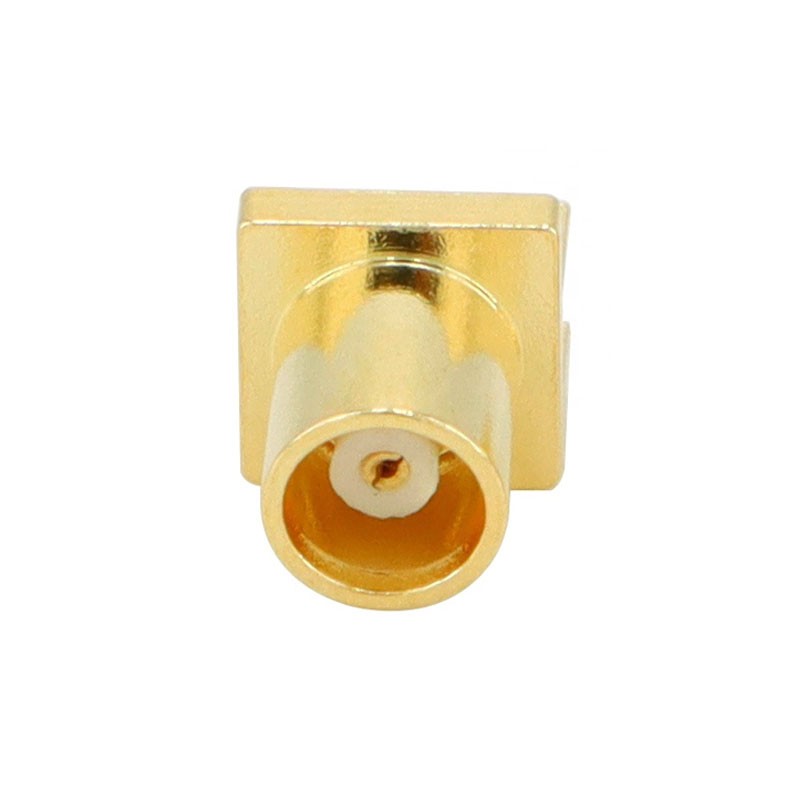

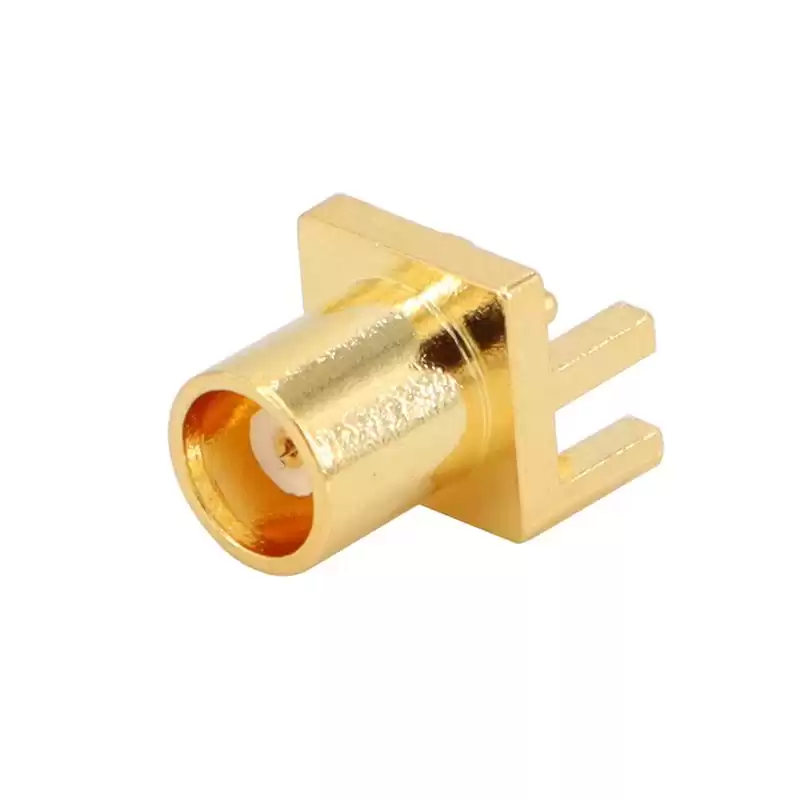

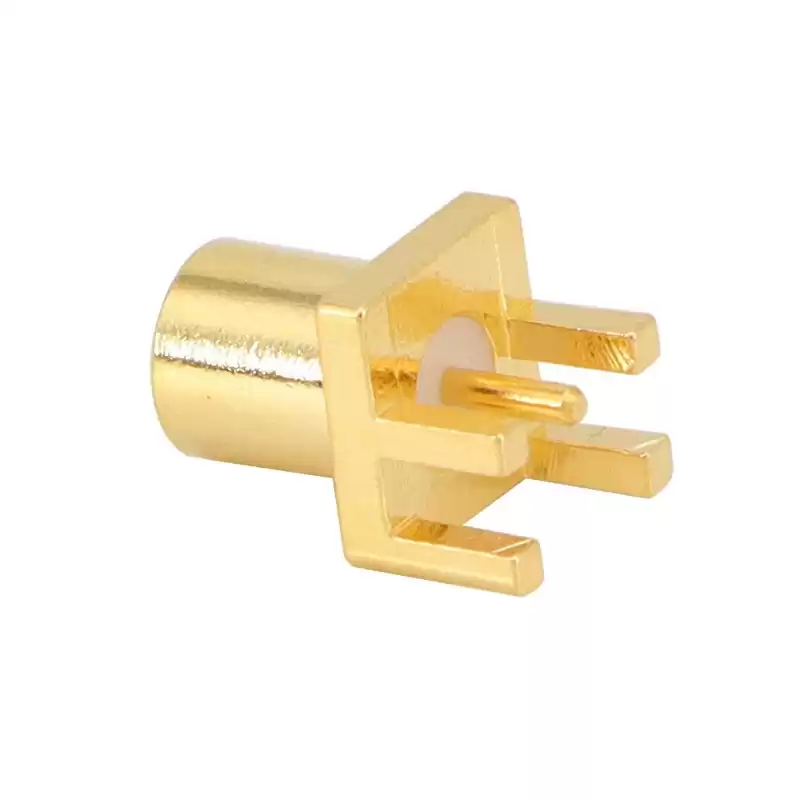

MCX Jack Female Straight 4 Legs Connector Solder Attachment End Launch for PCB
The MCX (Micro Coaxial) connector is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling;A robust range of connectors are available, including printed circuit board and cable connectors, as well as 12G optimized products; this MCX female PCB connector has an interface type of end launch and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with gold plating.
Specifications
50 OHM
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency range |
6GHz |
| Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
| Working voltage |
≥225Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance |
≥ 10000 mΩ |
| Contact resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(measured at 1GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| MECHANICAL DATA |
|
| Engagement force |
≤25Nm /5.6lbs |
| Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation |
≥10N / 2.3 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
−40°C to +90°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plated |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
75 OHM
| ELECTRICAL DATA |
|
| Impedance |
75Ω |
| Frequency range |
DC - 6 GHz (0 - 18 GHz on 12G Products) |
| Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
| Working voltage |
≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance |
≥ 10000 mΩ |
| Contact resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(measured at 1GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| MECHANICAL DATA |
|
| Engagement force |
≤25Nm /5.6lbs |
| Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation |
≥10N / 2.3 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
−65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plated |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
Applications
- Global Positioning System (GPS)
- WLAN
- PC/LAN
- Base Station
- Radios
- Head End Equipment
- Instrumentation
- Automotive
