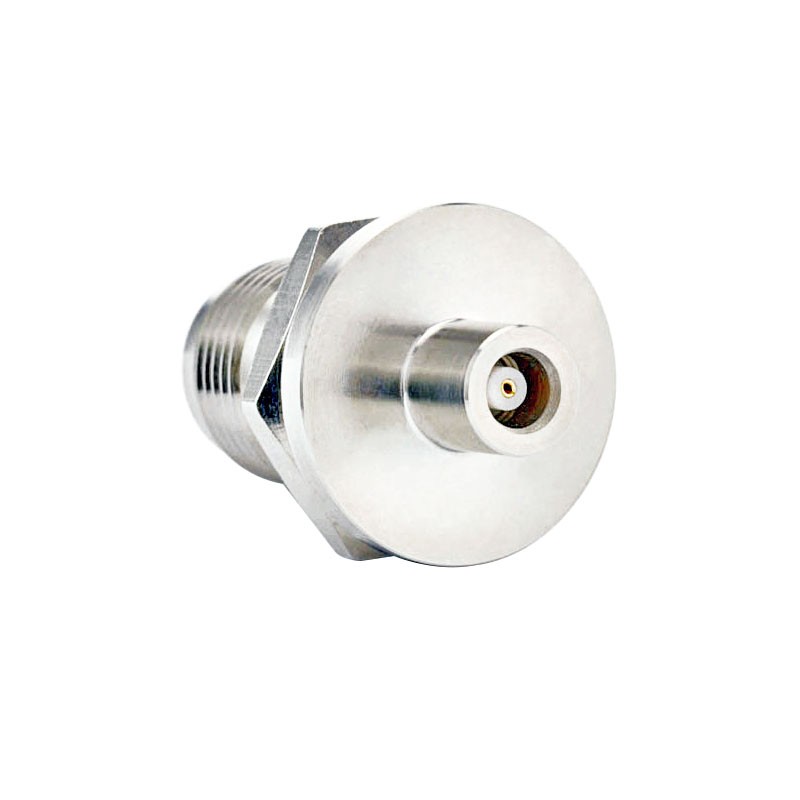

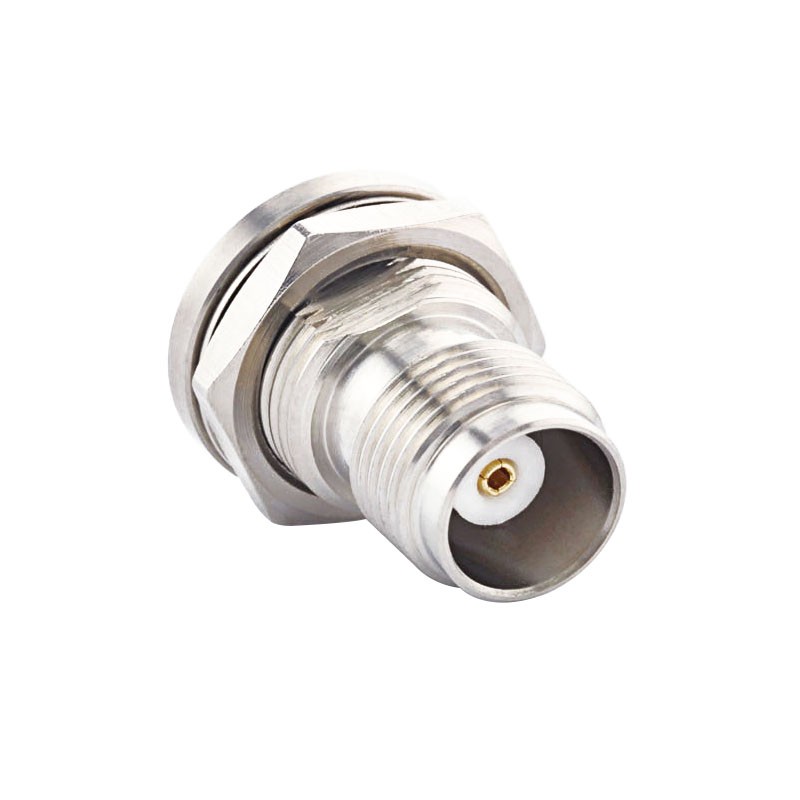

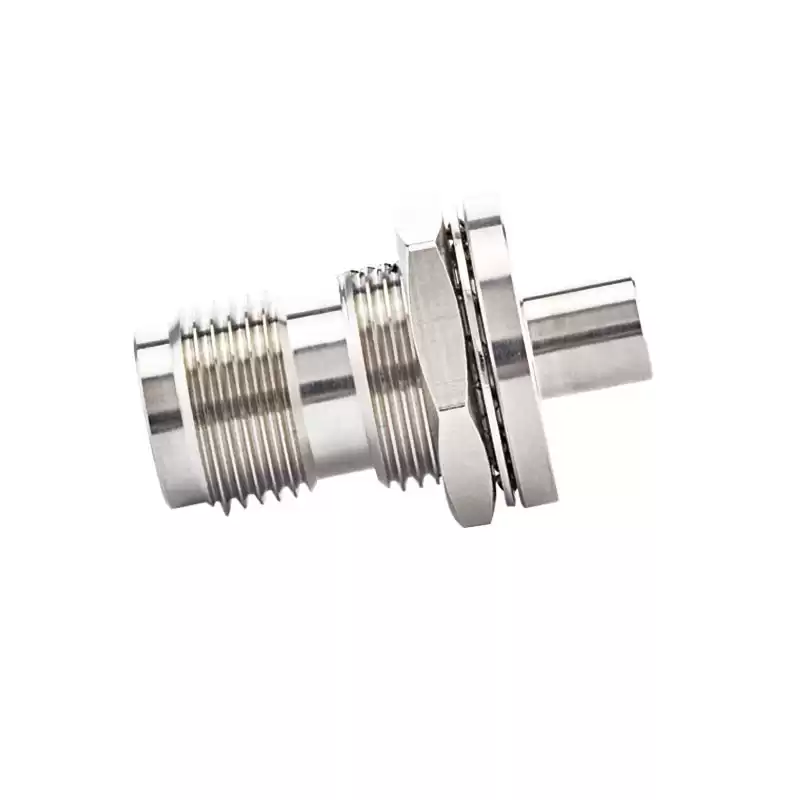

MCX Jack Female to TNC Female Bulkhead Mount 6GHz RF Connector Adapter
The MCX Adapter has different MCX to TNC adapter gender, that is a connectivity of two series adapters, The MCX to TNC adapters has jack to female, jack to male, plug to female, or plug to male gender varieties, and has bulkhead or mountless configurations. ROHO's MCX to TNC adapters offers standard polarity or reverse polarity options. This MCX jack to TNC female adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
MCX |
| Adapter Side 1 Style |
Jack |
| Adapter Side 2 Series |
TNC |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- FPV Drone, Extension Cable
- Signal Booster, Repeaters
- Audio, Video, Car Aerial
- Networks, Wifi router
- Wifi antenna, GPS
- Radio scanners, Wlan
- Radio, Telecom
