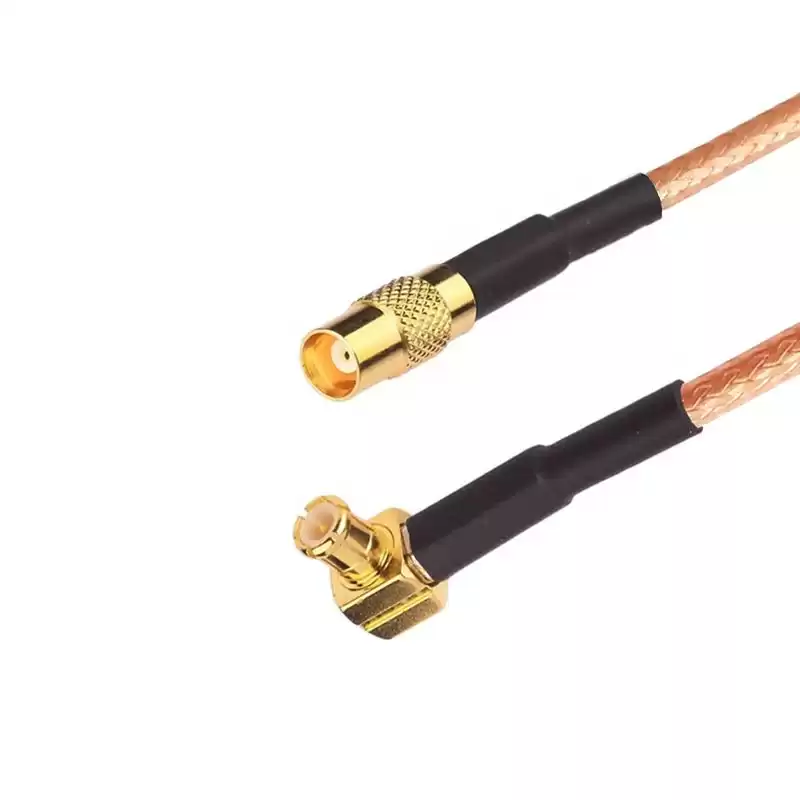

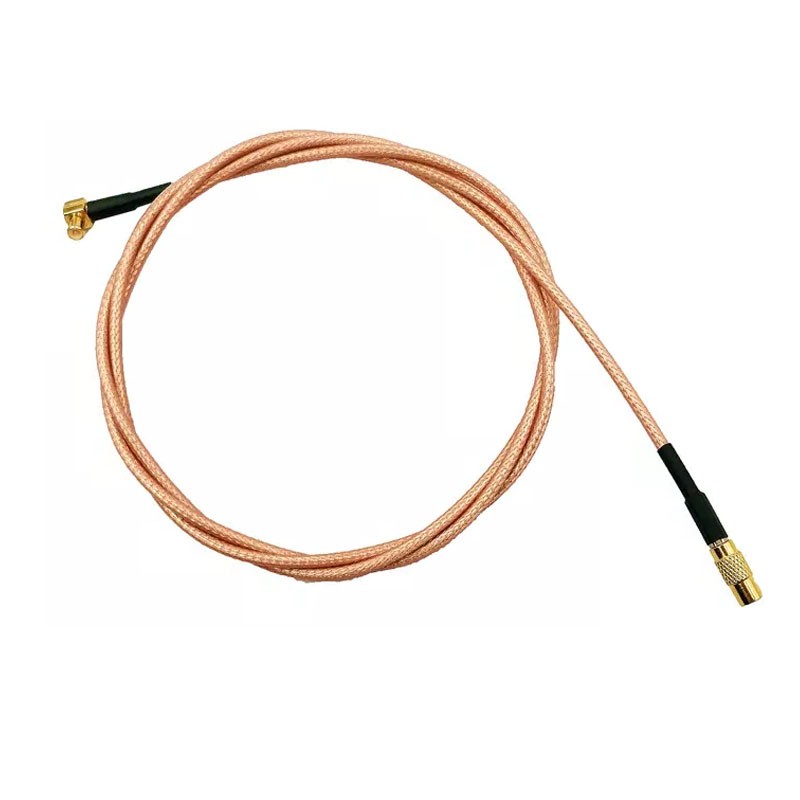

MCX Male Plug Right Angle to MCX Female Jack Connector Cable Assembly with RG316 Cable
The MCX cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as RG174, RG178, RG188, RG196, RG316 or RG400 cable; the body of MCX to MCX cable assembly is right angle or straight connectors which is plug to plug or plug to jack gender. This MCX plug to MCX jack cable assembly uses a 50ohm right angle MCX for connector 1 and a 50ohm straight MCX for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
MCX |
| Connector 1 Style |
RA Plug |
| Cable Type |
RG316 |
| Connector 2 Series |
MCX |
| Connector 2 Style |
Str Jack |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
3GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Aerospace,Defense
- Telecom,Broadcast
- Industrial,Medical
- Instrumentation
