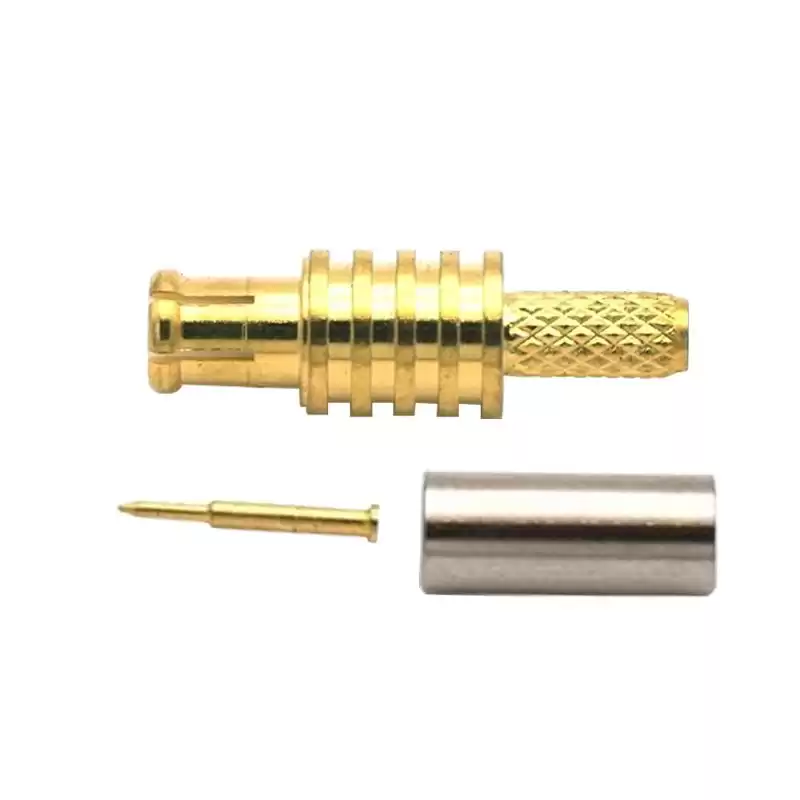

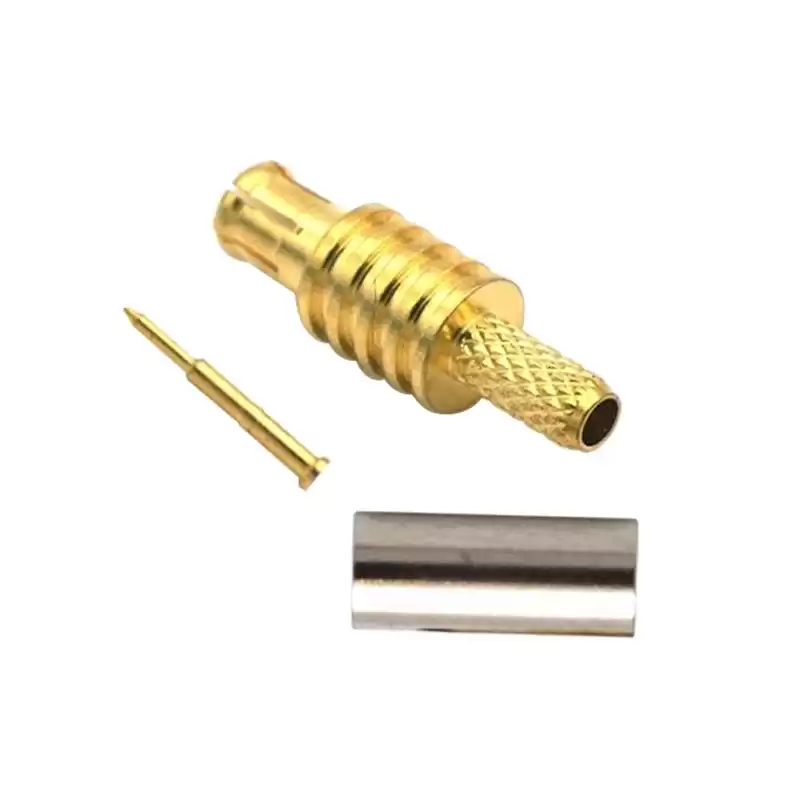

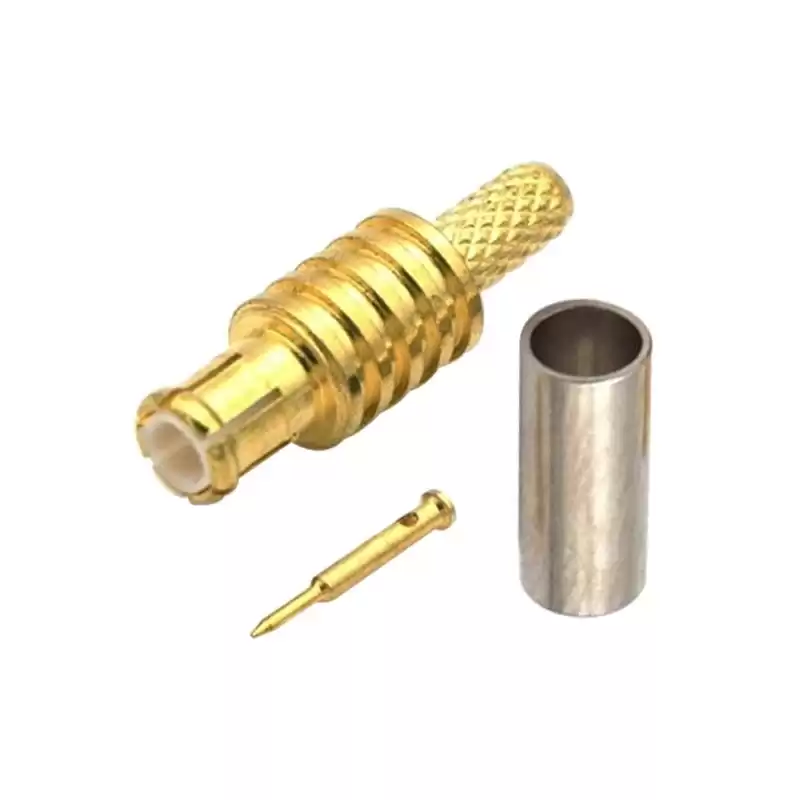

MCX Plug Male Straight Connector Crimp Solder Attachment for RG316 RG174 RG188 LMR100 Cable
The MCX (Micro Coaxial) connector is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy snap-on/ snap-off coupling;A robust range of connectors are available, including printed circuit board and cable connectors, as well as 12G optimized products; this MCX male coaxial connector has an interface type of RG316 RG174 RG188 LMR100 cable and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with gold plating.
Specifications
50 OHM
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency range |
6GHz |
| Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
| Working voltage |
≥225Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance |
≥ 10000 mΩ |
| Contact resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(measured at 1GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| MECHANICAL DATA |
|
| Engagement force |
≤25Nm /5.6lbs |
| Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation |
≥10N / 2.3 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
−40°C to +90°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plated |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
75 OHM
| ELECTRICAL DATA |
|
| Impedance |
75Ω |
| Frequency range |
DC - 6 GHz (0 - 18 GHz on 12G Products) |
| Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
| Working voltage |
≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance |
≥ 10000 mΩ |
| Contact resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(measured at 1GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| MECHANICAL DATA |
|
| Engagement force |
≤25Nm /5.6lbs |
| Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation |
≥10N / 2.3 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
−65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plated |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
Applications
- Global Positioning System (GPS)
- WLAN
- PC/LAN
- Base Station
- Radios
- Head End Equipment
- Instrumentation
- Automotive
