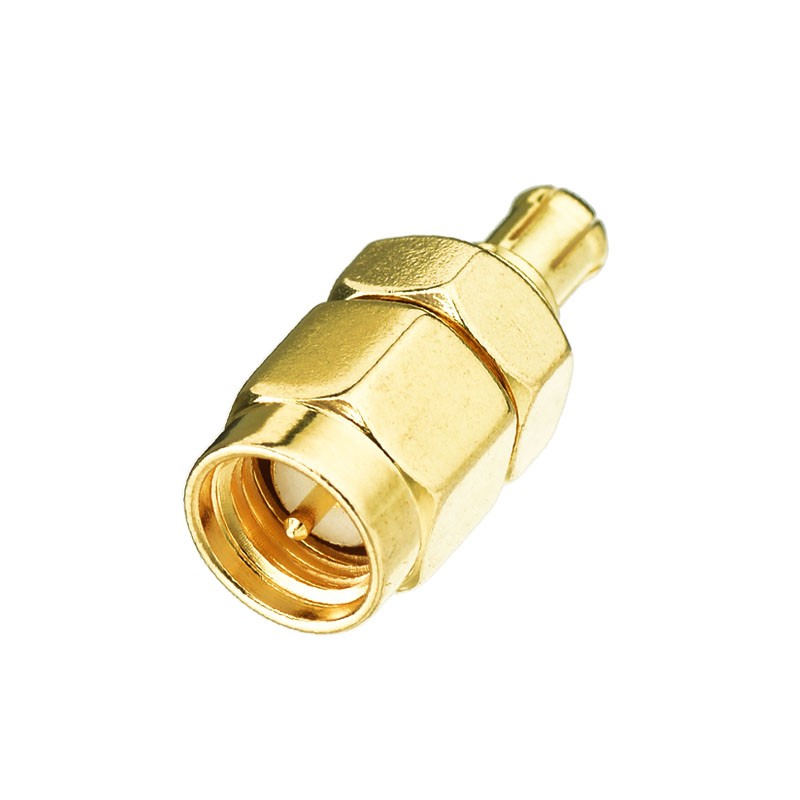

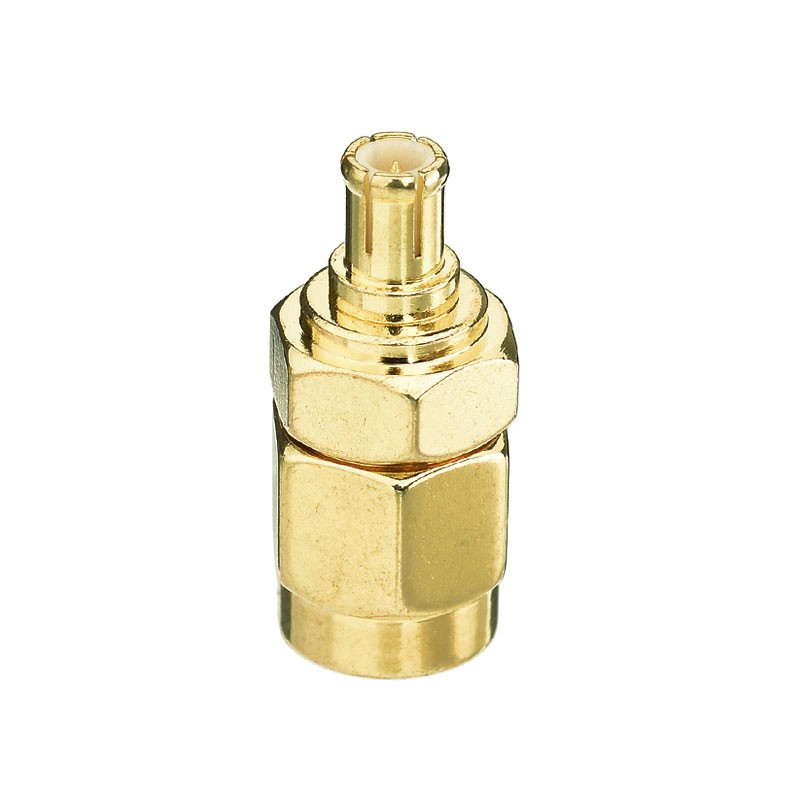

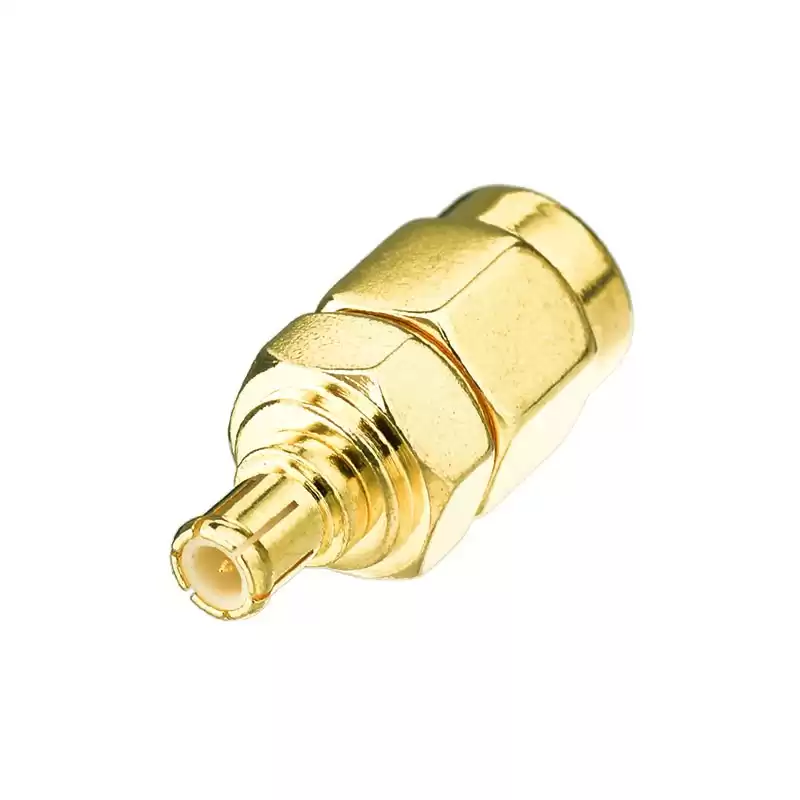

MCX Plug Male to SMA Male RF Coaxial Connector Adapter
The MCX Adapter has different MCX to SMA adapter gender, that is a connectivity of two series adapters, The MCX to SMA adapters has jack to female, jack to male, plug to female, or plug to male gender varieties. ROHO's MCX to SMA adapters offers standard polarity or reverse polarity options. This MCX plug to SMA male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
MCX or RP MCX |
| Adapter Side 1 Style |
Plug |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- FPV Drone, Extension Cable
- Signal Booster, Repeaters
- Audio, Video, Car Aerial
- Networks, Wifi router
- Wifi antenna, GPS
- Radio scanners, Wlan
- Radio, Telecom
