Our commitment
YUGUAN gives you a 2 year warranty on Panasonic series we sell.
1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.
2.Shipping cost &repair cost by us within 1 year warranty.
3.Shipping cost by buyer, repair cost by us within 2 year warranty.
Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.
Each item has been checked and in good condition before shipping.
Description

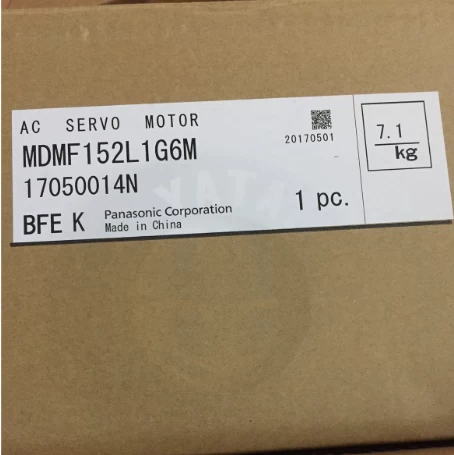

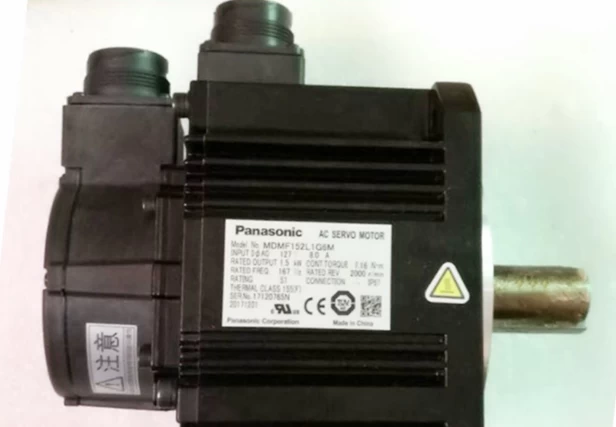

Model Number: MDMF152L1G6M
-
MATSUSHITA ELECTRIC
-
PANASONIC
-
MDMF152L1G6M
-
SERVO MOTOR
-
REBUILT SURPLUS
-
NEVER USED SURPLUS
-
2 YEAR RADWELL WARRANTY
|
Item
|
Specifications
|
|
Part Number
|
MDMF152L1G6M
|
|
Details
|
Middle inertia, Connector type
|
|
Family Name
|
MINAS A6
|
|
Series
|
MDMF Series
|
|
Type
|
Middle inertia
|
|
Special Order Product
|
Special Order Product
|
|
Cautions for Special ordering product
|
Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
|
|
Enclosure
|
IP67
|
|
About Enclosure
|
Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
|
|
For more details
|
Please contact us
|
|
Flange sq. dimension
|
130 mm sq.
|
|
Flange sq. dimension (Unit:mm)
|
130
|
|
Motor lead-out configuration
|
Connector
|
|
Motor encoder connector
|
Motor connector: JL10,
Encoder connector: Large size JL10
|
|
About Motor encoder connector
|
Connector JL10 (Large size): Also applicable to screwed type
|
|
Power supply capacity (kVA)
|
2.9
|
|
Voltage specifications
|
200 V
|
|
Rated output
|
1500 W
|
|
Rated current (A (rms))
|
8.0
|
|
Holding brake
|
without
|
|
Mass (kg)
|
5.7
|
|
Oil seal
|
with
|
|
Shaft
|
Key-way
|
|
Rated torque (N ⋅ m)
|
7.16
|
|
Continuous stall torque (N ⋅ m)
|
7.52
|
|
Momentary Max. peak torque (N ⋅ m)
|
21.5
|
|
Max. current (A (o-p))
|
34
|
|
Regenerative brake frequency (times/min)
|
Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4284
|
|
About regenerative brake frequency
|
Please refer to the details
|
|
Rated rotational speed (r/min)
|
2000
|
|
Rated rotational Max. speed (r/min)
|
3000
|
|
Moment of inertia of rotor ( x10-4 kg ⋅ m²)
|
9.16
|
|
Recommended moment of inertia ratio of the load and the rotor
|
10 times or less
|
|
About recommended moment of inertia ratio of the load and the rotor
|
Please refer to the details
|
|
Rotary encoder: specifications
|
23-bit Absolute/Incremental system
|
|
Notice
|
When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
|
|
Rotary encoder: Resolution
|
8388608
|
Why choose us?
1) Brand-New, Unused, Unopened, Undamaged product with reasonable price.
2) 100% full New! – Original Factory Seal !
3) Package: Original packing with cartons.
4) Delivery time: Shipped in 3 days after payment.
5) We are control system parts Industrial products supplier and Your Best Business partner.
Our main products as follows:
Allen Bradley SLC 500 1746,1747,1756 series MODULE,
Allen Bradley 2098 series, Ultra 3000 Servo Drive
ARO Diaphragm Pump Repair Kit
WILDEN Diaphragm Pump Repair Kit
Mitsubishi PLC for FX1S, FX1N, FX2N, FX3U, FX3G, A series and Q series, function modules;
Mitsubishi Inverter for FR-A740, A720, F740, F720, E740, E720, E720S, D740,D720S series;
Mitsubishi HMI for GOT1000, GT15, F900 A900 series;
Mitsubishi Servo for MR-E, MR-J2S, MR-J3 series;
Mitsubishi parts such as battery, connectors, cables, CCLINK Module, resistor.
GE IC693 series, IC694 series,IC695 series,IC697 series,IC200 series,
Kollmorgen Servo driver
Beckhoff servo driver
Panasonic PLC for FP0, FPX, FP2 series;
Panasonic Inverter for VF0, VF100 series;
Panasonic Servo for A4, A5 series.
KEYENCE→ Sensors, Bar Code Readers, PLC, Vision System, Microscopes, Ionisers, Measuring Instruments
Yaskawa SERVO MOTOR, SERVO DRIVE
Schneide PLC MODULE
Siemens Contactor, Circuit breaker, Thermal relay, Overload protection relay, Temperature controller, Disconnect switch max, Siemens I/O Module.
REXROTH Hydraulic Pumps & Motors, Hydraulic Valves, Pump Parts.
THANK YOU SO MUCH!
