Overview
Brand Name: Huawei
Product Number: 03030PYN
Model Number: ME0D0EFGFE7H

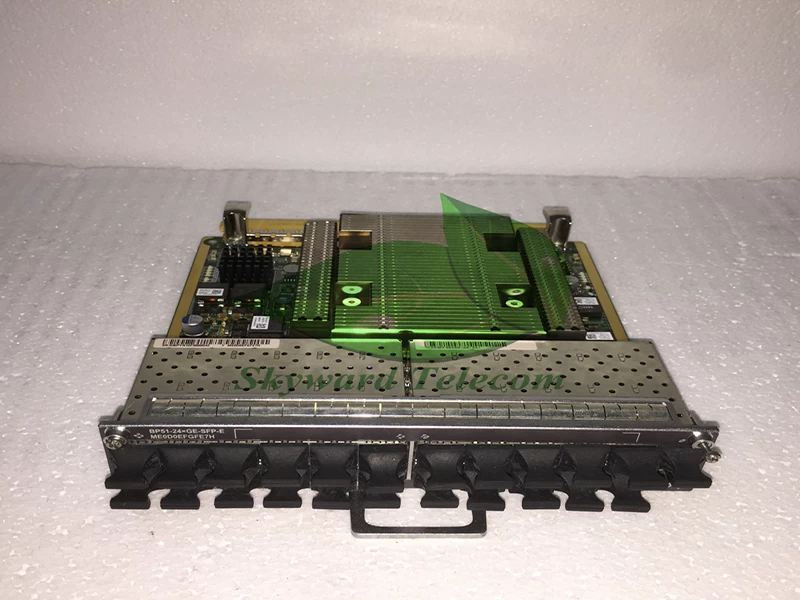

Discription: Huawei ME60 Series Multi-Service Control Gateways ME0D0EFGFE7H 24-Port 1000Base-X-SFP Flexible Card E(BP51-E).
Product Series: ME60-X8
Power Supply: AC/DC
Introduction of ME60
The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes.
The ME60 series includes the following models, which can meet the requirements of networks of various scales: ME60-X16A, ME60-X8A, ME60-X16, ME60-X8, and ME60-X3.
|
Attribute
|
ME60-X16A
|
ME60-X8A
|
ME60-X16
|
ME60-X8
|
ME60-X3
|
|
Switching Capacity
|
50.32 Tbit/s
|
25.16 Tbit/s
|
12.58 Tbit/s
|
7.08 Tbit/s
|
1.08 Tbit/s
|
|
Forwarding Performance
|
11,520 Mpps
|
5,760 Mpps
|
5,760 Mpps
|
2,880 Mpps
|
360 Mpps
|
|
Number of Slots
|
22 slots, including 16 LPUs, 2 SRUs, and
4 SFUs
|
12 slots, including 8 LPUs, 2 SRUs, and 2
SFUs
|
22 slots, including 16 LPUs, 2 SRUs, and
4 SFUs
|
11 slots, including 8 LPUs, 2 SRUs, and 1
SFU
|
5 slots, including 3 LPUs and 2 SRUs
|
|
Dimensions
(H x W x D)
|
1,778 mm x 442 mm x 650 mm (40U)
|
934 mm x 442 mm x 650 mm (21U)
|
1,420 mm x 442 mm x 650 mm (32U)
|
620 mm x 442 mm x 650 mm (14U)
|
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U)
|
|
Maximum Power Consumption
|
7,220W (BSUF-240)
9,040W (BSUF-480)
|
4,110W (BSUF-240)
4,770W (BSUF-480)
|
4,610W (BSUF-100)
6,210W (BSUF-240)
|
2,340W (BSUF-100)
3,220W (BSUF-240)
|
920W (BSUF-100)
|
|
Full Configuration Weight
|
356 kg
|
190 kg
|
279 kg
|
136 kg
|
DC: 42 kg (100G)
AC: 52 kg (100G)
|
|
Operating Environment
|
Long-term operating temperature: 0°C to
45°C
|
|
Short-term operating temperature: –5°C to
55°C
|
|
Long-term operating humidity: 5% to 85%
|
|
Short-term operating humidity: 0% to 100%
|
|
Operating altitude: Equal to or below
4,000m
|
