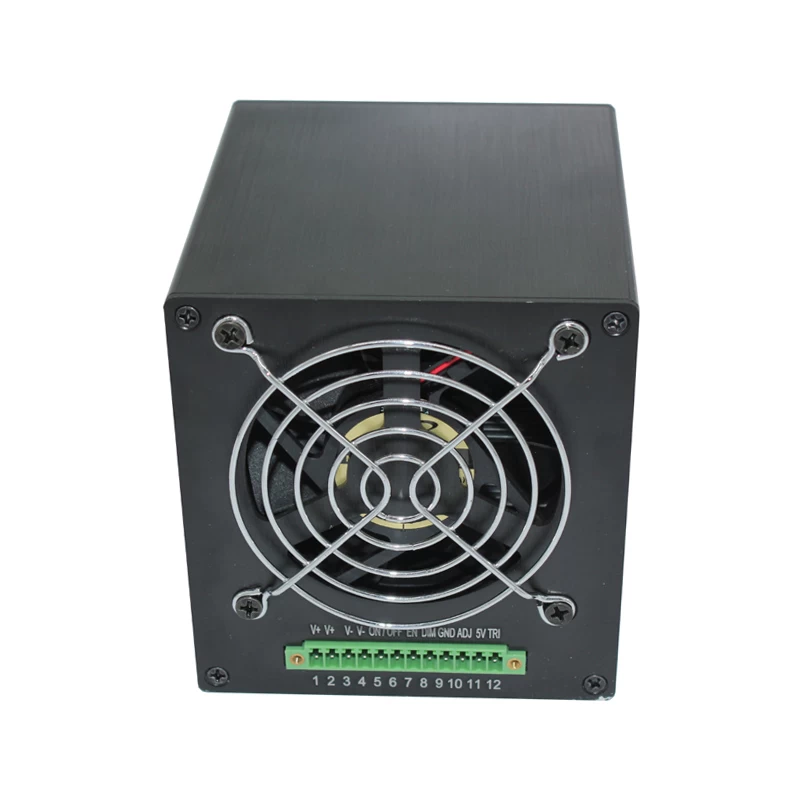

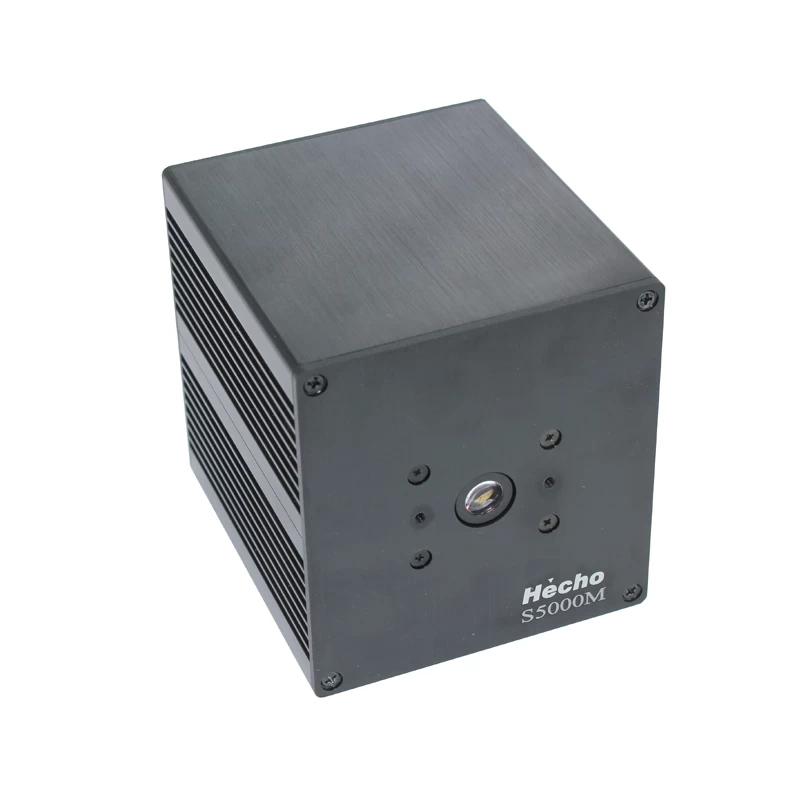

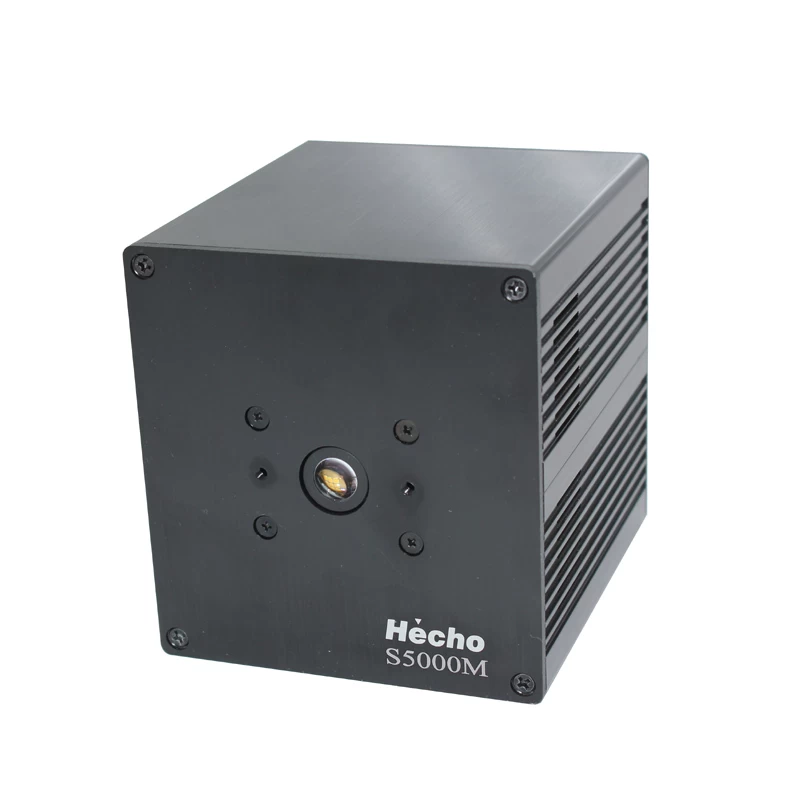

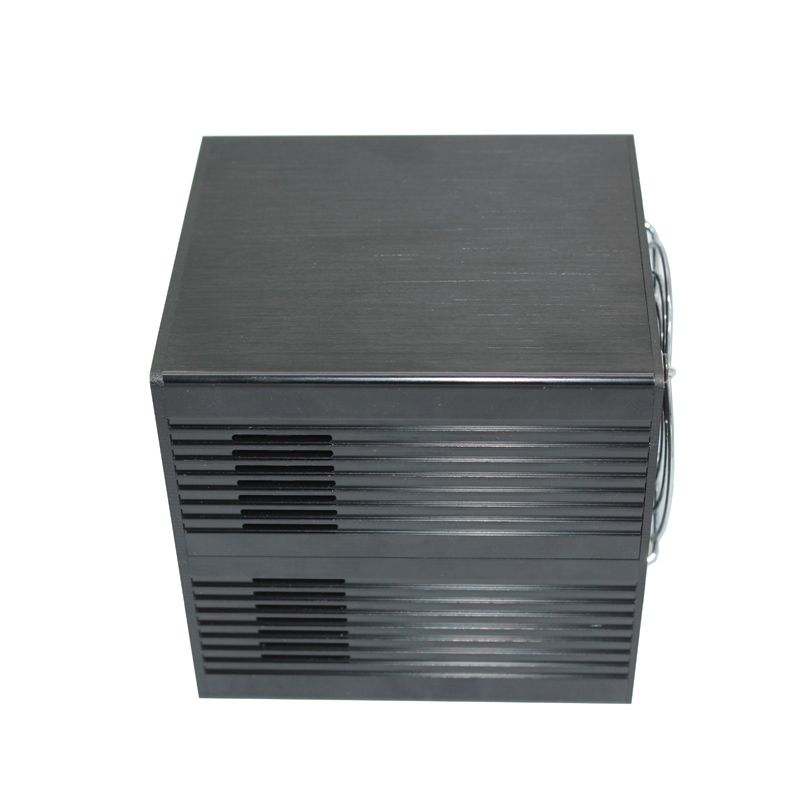

Medical Fiber Optic Light Module S5000M

Item

High Power LED light source Module

Model

S5000M

Drive model

Constant-current system

Power supply

AC90-250V power adapter（DC24V/5A）

OR 24VDC electrical source

Power consumption

65W Max (Not including AC-DC)

Brightness control

Potentiometer Manually adjusted / Analog control DC 0-5V / PWM 200Hz-100KHz 5V

Center luminance *

320,000lx

Color temperature

6500K

Color Rendering Index

Ra90

LED life

Normal life > 20,000h

Cooling

The heat pipe radiator + Silent Fan

Working Temperature

-20~ +50°C/20%-80%RH (No condensation)

Installation

Fine Screw Locking

Net weight

1.2kg

Dimension

107(H)*100(W)*114(L)mm
