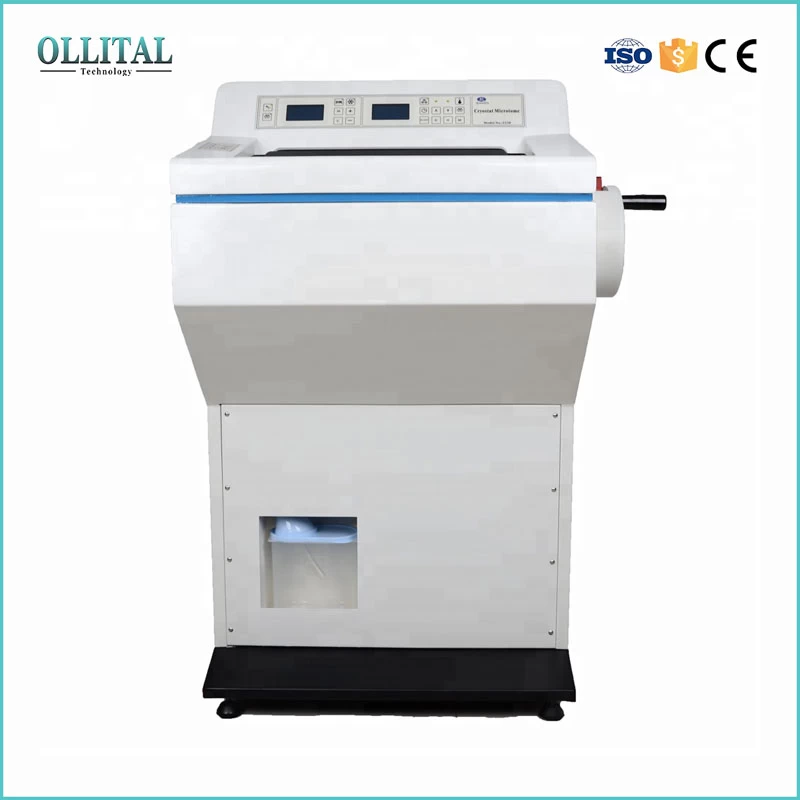

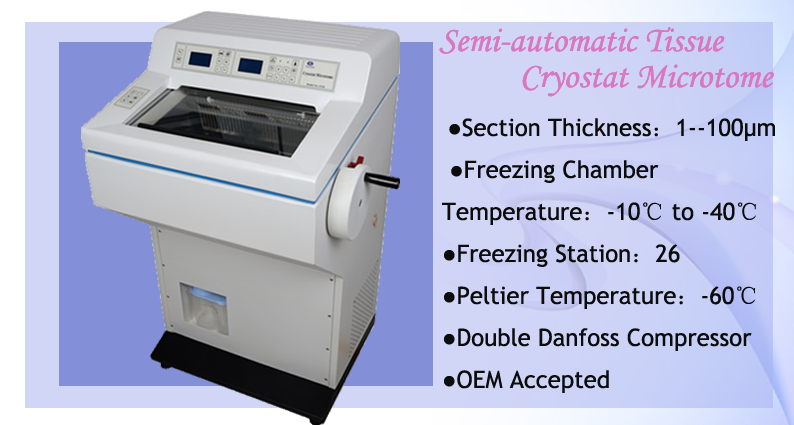

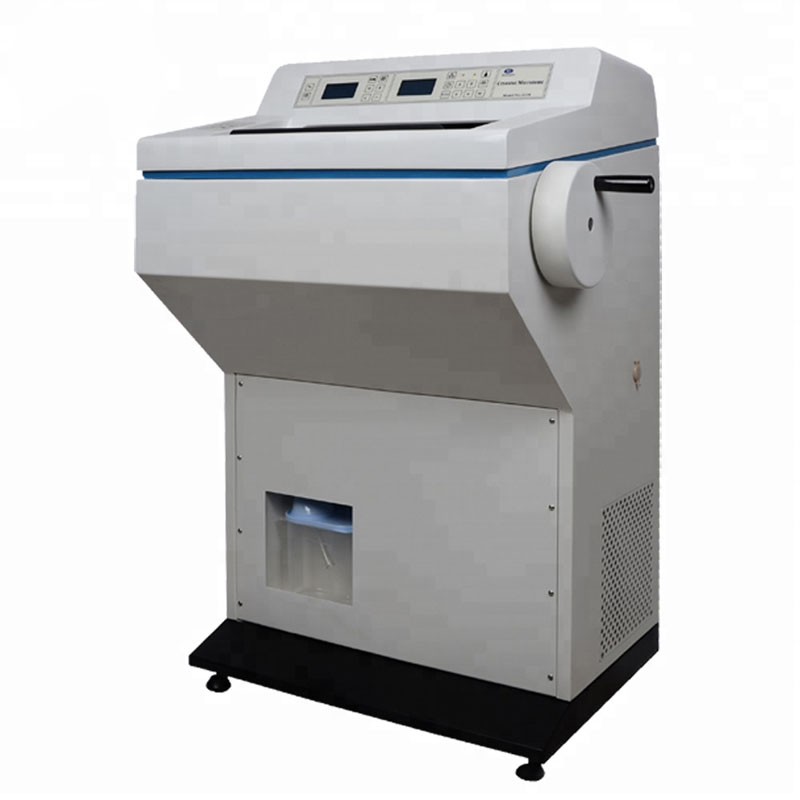

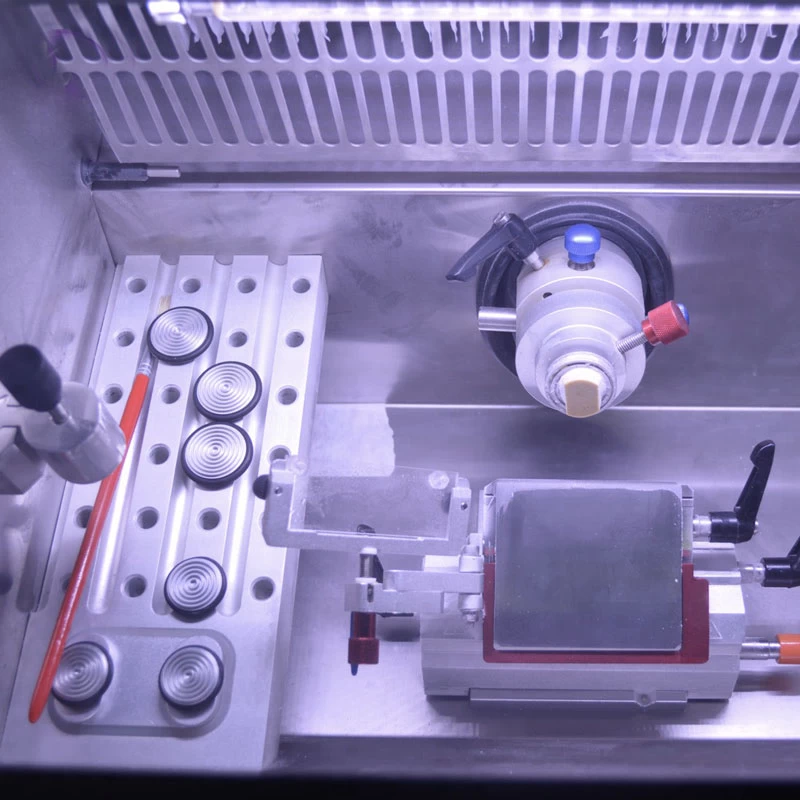

Medical Pathology Equipment Freezing Tissue Microtome
This machine is a rapid pathological section instrument to human and animal body tissues.It can be widely used for pathological diagnosis,analysis and research in hospitals,medical colleges,legal medical experts and propagation institutes.
Model No:RD-2230 Specification List
|
|
|
Section thickness range
|
1-100 um adjustable
1-20 um increment : 1 um
20-40 um increment :2 um
10-100 um increment :5 um
|
|
Trimming thickness range
|
10-400 um adjustable
10-50 um increment : 5 um
20-100 um increment :10 um
100-400 um increment :50 um
|
|
Specimen retraction
|
0-80 um adjustable , increment :5 um
|
|
Maximum specimens size
|
40*50 mm
|
|
Horizontal strocke
|
20mm
|
|
Vertical stroke
|
60mm
|
|
Freezing chamber temperature
|
-10 ℃ to -40 ℃ adjustable
|
|
Specimen head temperature
|
-10 ℃ to -40 ℃ adjustable
|
|

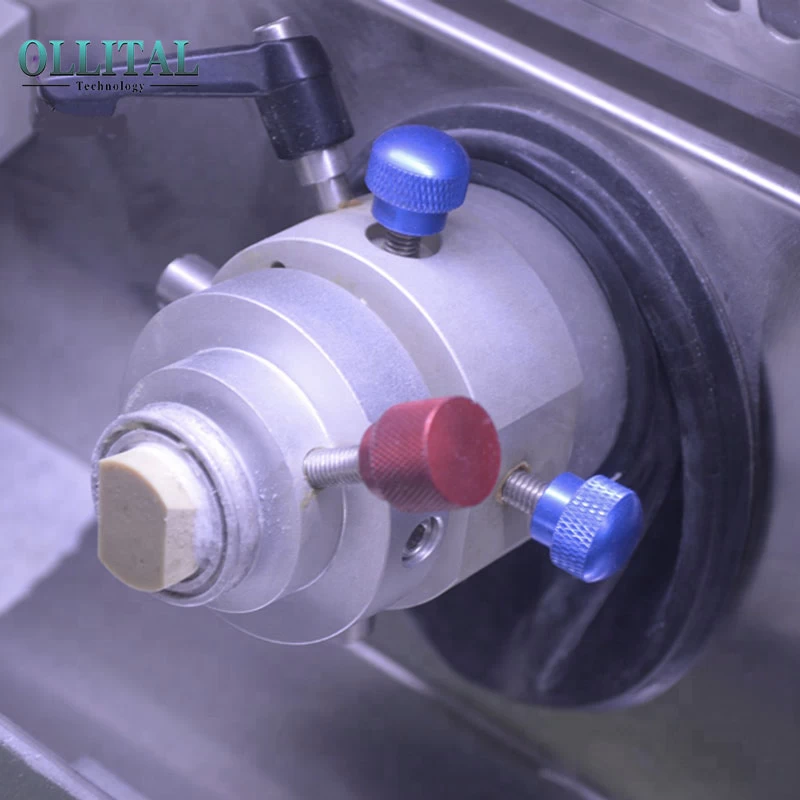

Specimen head rotary angle
|
X- axis , Y-axis :12 ° Z-axis :360 °
|
|
|
|
Minimum freezing shelf temperature :- 45 ℃
|
|
Number of freezing station :26
|
|
Peltier
|
Minimum Peltier shelf temperature :- 60 ℃
|
|
Number of freezing station :2
|
|
Working time to reach -60 ℃ : 15 min
|
|

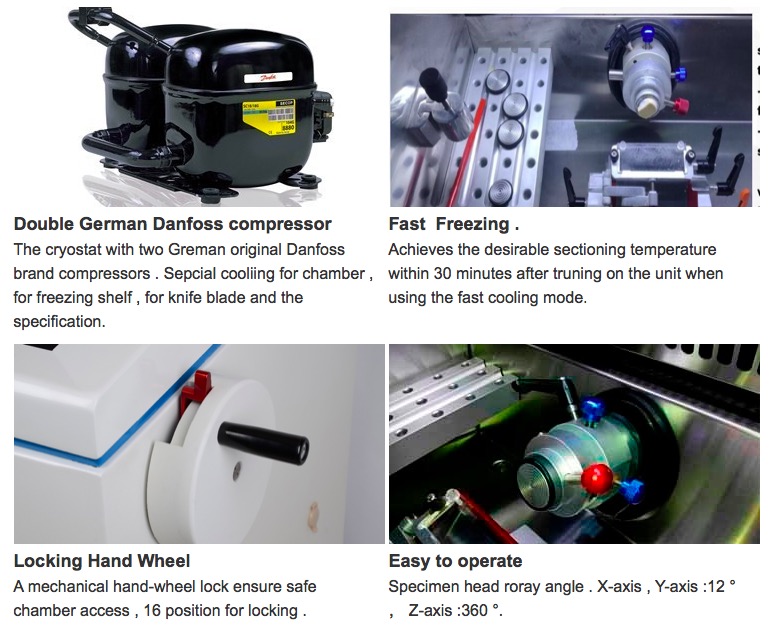

Compressor type
|
Double Danfoss compressor
|
|
|
Net weight
|
160 kg
|
|
Size
|
660*640*1150 mm
|
|
Gross weight
|
207 kg
|
|
Packing size
|
790*810*1336 mm
|
|
|
Voltage and frequency
|
220V/50Hz or 110V,60Hz
|
|
Power
|
600W
|
|
Noise
|
52DB(A）
|
|
Refrigerany
|
R404A
|
|
|
Type for blade holder
|
yes
|
|

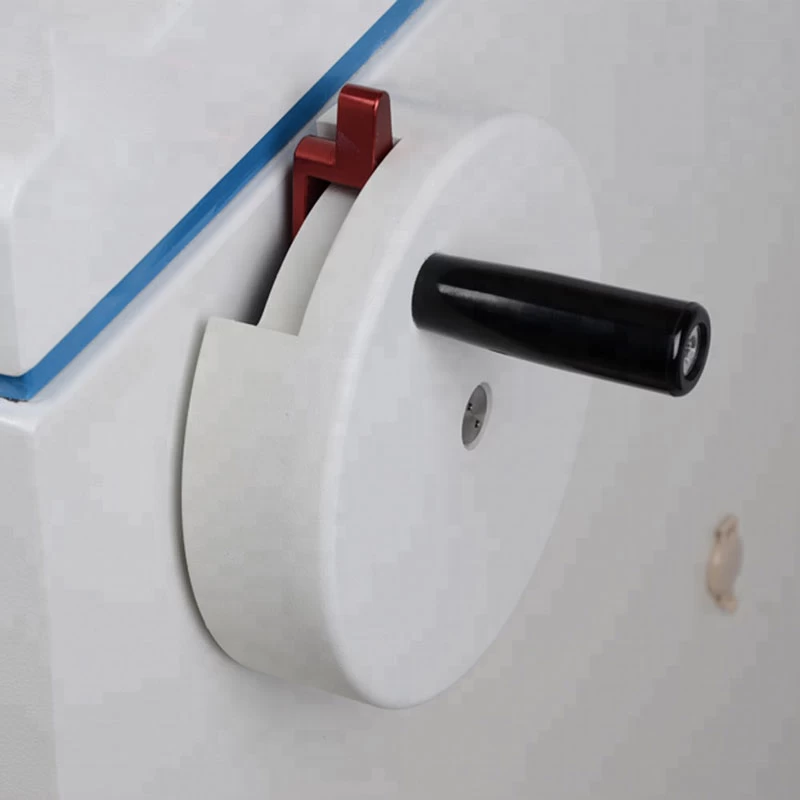

Handwheel lock
|
16 positions locked
|
|
|
Certification
|
CE
|
|
Other remarks
|
OEM/custom-made accepted
|
|
Waste Cleaner
|
YES
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
