Overview of Static Synchronous Compensator STATCOM
Static Synchronous Compensator STATCOM gives customers the ability to solve power quality issues, maximize productivity
and increase profitability.
A STATCOM is a voltage
regulating device. It is based on a power electronics voltage source converter
(VSC) and can act as either a source or sink of reactive AC power. It is a
member of the flexible AC transmission systems (FACTS) family which detects and
instantly compensates for voltage fluctuations or flicker, as well as controls
power factor.
As a fully controllable power electronic
device, the STATCOM is capable of providing dynamically both capacitive and
inductive VArs.
Compared to a SVC (static VAr
compensator), a STATCOM has faster response time and better reactive power
capability. STATCOM delivers maximum output current even at low system
voltages, reducing the need for harmonic filter.

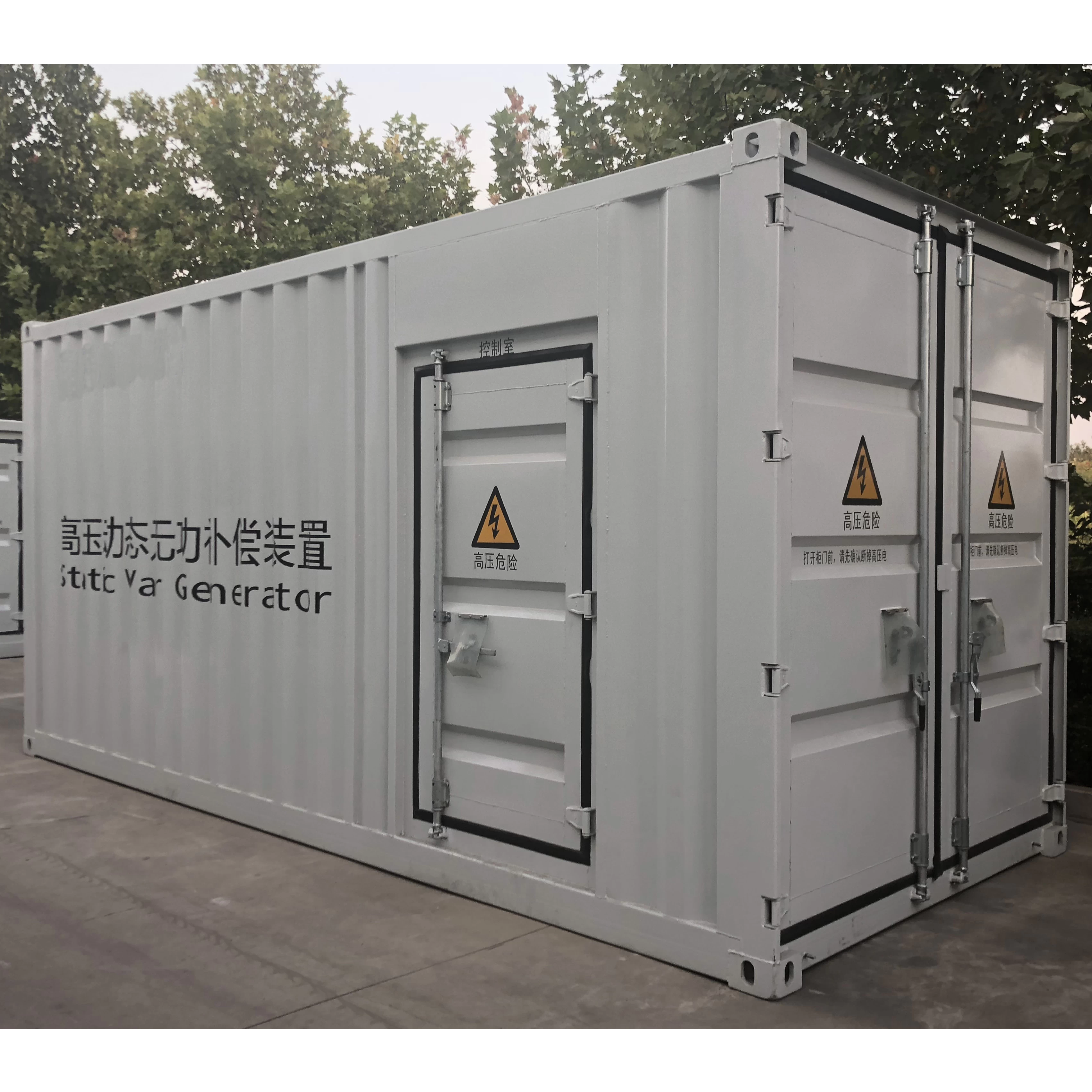

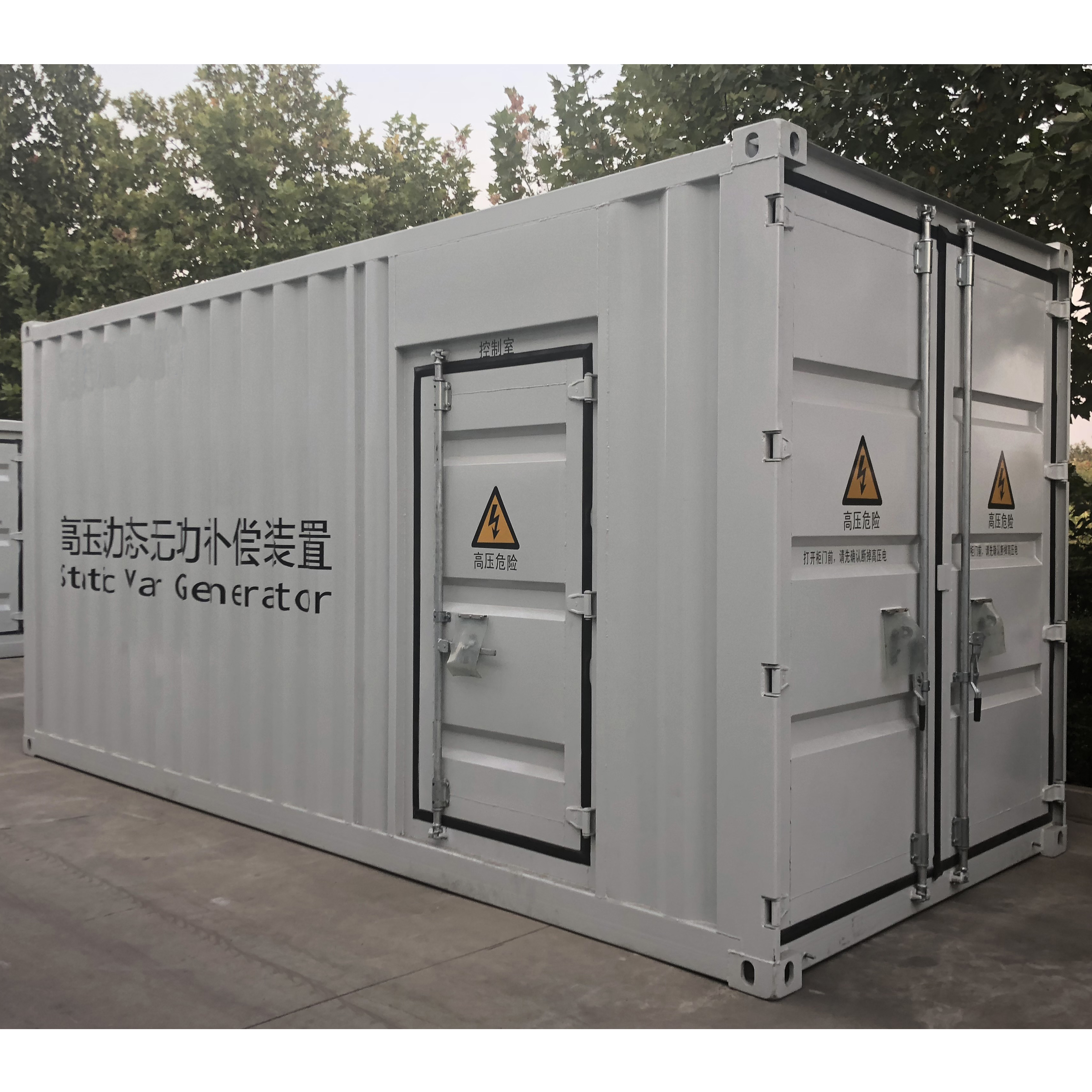

Outoor container HV STATCOM air cooiling Outoor container HV STATCOM
Outdoor STATCOM Specifications
◆Rated
capacity
|
±1~±42Mvar
|
◆Rated work voltage
|
6kV~35kV
|
◆Rate frequency
|
50/60HZ
|
◆Over-load capacity
|
More
than 1.2 times overload
|
◆Response time
|
≤5ms
|
◆Active power loss
|
≤0.8%
|
◆Total harmonic distortion
|
≤3%
|
◆Control power
|
380VAC,
220VAC, or 220VDC
|
◆Reactive power regulation
|
Compensate
inductive and capacitive Vars continuously and smoothly.
|
◆The start regulated reactive power
|
5kvar
|
◆The resolution of compensate current
|
0.5A
|
◆Communication interface
|
Ethernet,
RS485, CAN, high-speed optical communication interface
|
◆Communication protocol
|
MODBUS_RTU,
ProfiBUS, CDT91, IEC61850-103/104, CANOPEN, User-defined,can be set on HMI.
|
●Storage temperature
|
-30℃~+70℃
|
●Operating temperature
|
-10℃~+40℃
|
●Relative humidity
|
month
average value no more than 90% , no frost
|
●Altitude
|
<2000m(more
than 2000m need to customize)
|
●Seismic intensity
|
8
degree
|
Main Feartures of STATCOM
Static Synchronous Compensator STATCOM with high performance, high reliability is designed to meet users’
demands of improving power factor of power transmission, compensating harmonic
and the negative sequence of current. It is easy to operate. Its features are
as follows,
POWER CELL OF HV STATCOM POWER CELL OF HV STATCOM
■Better control for power grids, better load compensation, better power factor improvement
SVG/STATCOM increase system stability and power quality by providing voltage control and support, reactive power control, power oscillation damping, and increased power transfer capacity. STATCOM enables electro-intensive industrial processes to obtain a grid connection by controlling flicker level, harmonic voltage distortion, and voltage unbalance. STATCOM also allows renewables to be connected to the grid in compliance with grid code requirements by providing fault ride through support and voltage control.
■Optimal stability and quality
SVG/STATCOM is geared to quickly inject significant inductive or capacitive power. Thus the STATCOM provides improved dynamic stability of transmission systems to reduce the risk of voltage collapse and blackout while avoiding deterioration of the power quality due to its multilevel configuration: generating unwanted harmonics is widely avoided.
■In harmony with harmonics – and best flicker reduction
Harmonics generation is low due to the use of MMC technology, resulting also in low noise emissions.
The extremely fast control of SVG/STATCOM allows in industrial applications highly efficient flicker reduction and even active reduction of the lower harmonics caused by a nonlinear load such as an electric arc furnace.
■Fastest response – efficient solution
The standardized component design allows minimized engineering efforts and provides an overall fast, efficient, modular, and cost-effective solution.
ZDDQ SVG/STATCOM control with its most advanced concept offers unsurpassed speed in controlling the IGBT semiconductors to precisely generate the desired flow of energy between the converter and the feeding network
Internal of HV SVG Reactors
Outdoor 6KV STATCOM
Model
|
Rated voltage
(kV)
|
Rated capacity
(Mvar)
|
Dimension
|
Remark
|
Weight
|
Width
|
Height
|
Depth
|
(mm)
|
(mm)
|
(mm)
|
HV SVG-C1.0/6-O
|
6
|
1
|
5200
|
2560
|
2438
|
Iron core Reactors
|
4450
|
HV SVG-C1.5/6-O
|
1.5
|
HV SVG-C2.0/6-O
|
2
|
4850
|
HV SVG-C3.0/6-O
|
3
|
HV SVG-C4.0/6-O
|
4
|
5450
|
HV SVG-C5.0/6-O
|
5
|
HV SVG-C6.0/6-O
|
6
|
5750
|
HV SVG-C7.0/6-O
|
7
|
6700
|
Hollow Reactors
|
6450
|
HV SVG-C8.0/6-O
|
8
|
6600
|
HV SVG-C9.0/6-O
|
9
|
6700
|
HV SVG-C10.0/6-O
|
10
|
6800
|
HV SVG-C11.0/6-O
|
11
|
6900
|
HV SVG-C12.0/6-O
|
12
|
7000
|
Typical application fileds of Static Synchronous Compensator STATCOM
■Electric Arc Furnaces – voltage stabilisation reduces tap-to-tap time and electrode consumption.
■Rolling Mills – elimination of voltage and harmonic distortions reduces reactive power demand and increases electrical system capacity.
■Mining and heavy industry – dynamic reactive power compensation stabilise the power system, especially on large motor start up, ensuring reliability of the power system.
■Wind and solar farms – meeting strict grid connection criteria by providing dynamic voltage control and voltage stability at the common coupling point (PCC).
■Renewables markets – including solar farms, wind farms, solar panel installations.
