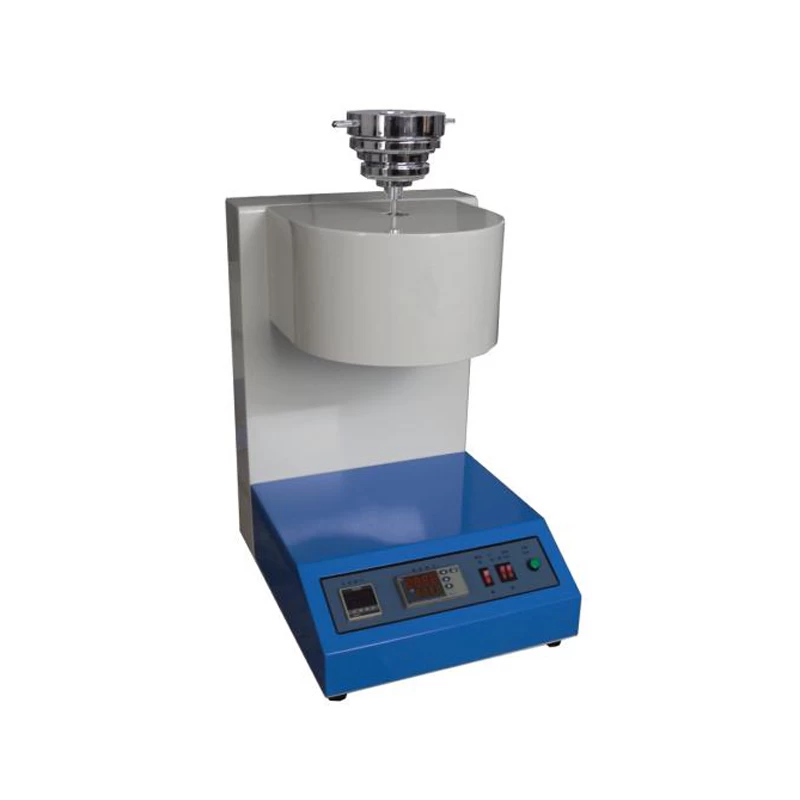

Melt Flow Tester GT-KC67

Melt Flow Tester, Melt Flow Tester for plastic material, Foowear testing machine



Melt Flow Tester GT-KC67


Product Introduction

Application:

This Melt Flow Index Tester adopts new generational manual smart instrument and on-off time relay output control, the period of constant temperature of instrument is short and overshoot is minimum. The part of temperature control adopts molding temperature control unit table to make the precision of temperature control and the stability of product get the effective guarantee. To make it be convenient for user, this instrument integrates the two cropping methods of time controlled and manual operation as one(cropping interval and the cropping time can be set randomly).

This instrument is the Taiwan model, with high product intelligence and high degree automatic, broad applicable range, fast raising temperature speed, high product precision,reliable and stable performance, it is the ideal test and teaching instrument for the plastic raw materials and plastic products manufacturing enterprises, quality supervision, inspection and institutes, universities and colleges, etc.

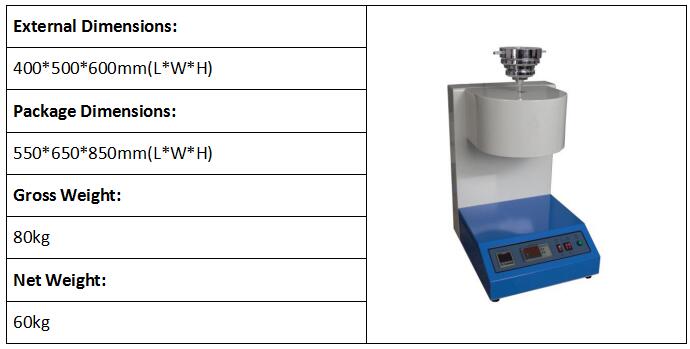

Dimensions
Melt Flow Tester

Key Specifications



Model

GT-KC67

Testing range

0.1-400.00g/10min (MFR)

Temp. range

Room temp. -450℃

Temp. Control precision

±0.2℃

Timing precision

1S or 0.01S, can be adjusted

Timing range

1-9999S or 0.01-99.99S, can be adjusted

Load

Full load

Cut material method

Manual, time control

The inner diameter of the barrel

9.550mm±0.025mm

Barrel length

160mm

Die

Tungsten carbide material

length: 8.000mm±0.025mm

inner diameter: 2.095mm±0.005mm

Power Supply

1∮AC 220V 50/60HZ

Dimensions( L x W x H )

400mm×500mm×600mm

Weight

60Kg
