METAL BOND GRINDING DISC FOR GRANITE
DESCRIPTION:

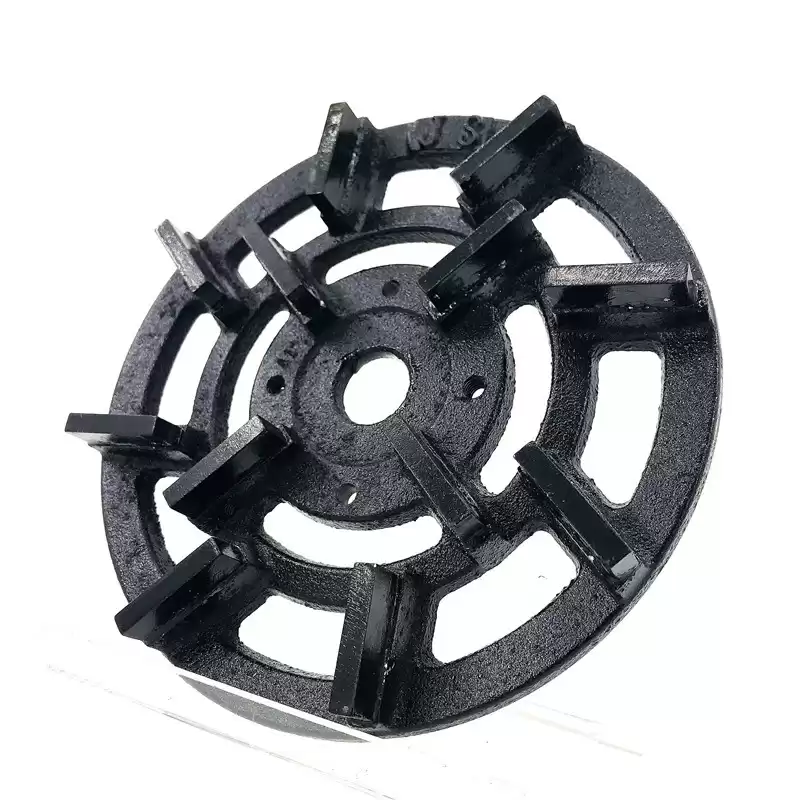

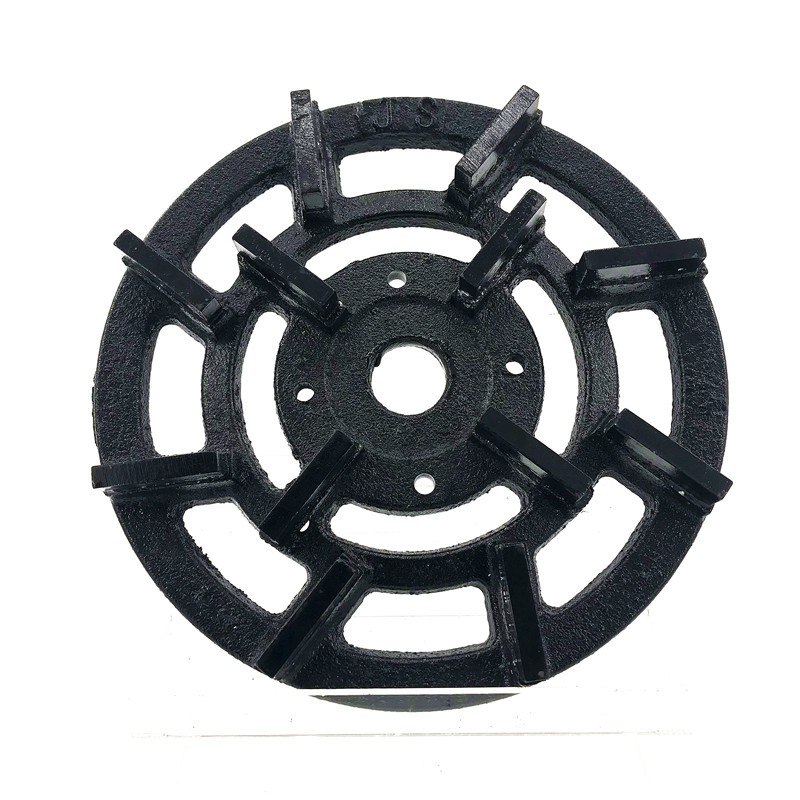

JINSHAN metal bond grinding disc (plate) is used for coarse grinding granite slabs on automatic polishing lines or manual polishing machine. The complete disc includes strong round steel base and fast aggressive diamond segment which can be strongly installed on polishing head for grinding and calibrating purpose.
SPECIFICATIONS:
Diameter: 8”(190mm) 10”(220mm)
Segment quantity: 12pcs each grinding disc
Segment sizes:
|
size
|
size of segments
|
no of segments
|
|
190mm
|
30x6x13/9mm
40x7x13/9mm
|
4pcs
8pcs
|
|
220mm
|
40x7x13/9mm
|
12pcs
|
Available grits: 50 # 100# 200# 400#
PACKING DETAILS:
1.16pcs in one carton
2.Around 30kgs each carton
3.Carton size: 30x26x26mm
Above are the packing details of 10” grinding disc, for other size please contact us.
FEATURES:
1.Different formulas of segment will be offered according to the hardness of granite slabs.
2.Other grits can be customized upon your request.
3.Using high quality silver solder tab to weld diamond segment on round iron base for stable grinding performance and good welding strength.
4.Common design same as other suppliers. Easy to be accepted and handled by workers.
