Composite floor deck slab features
☆ Comparied with opening type floor deck sheet, this floor deck with better performance of bearing capacity & shearing resistance;
☆ As for the special design, the fireproof performance is better, according to the fire test, it can rate 120 minutes when borning;
☆ Easy to install, it doesn't need any plug when installation, so it reduce the cost and process time;
☆ Steel floor bearing sheet is passed the ISO 9002 Quality Management Systems.
Steel bondeck applications
☆ It is widely used in steel structure factory buildings, cement storehouse, steel structure offices, airport terminal buildings, railway stations, stadiums, concert halls, grand theatres, large supermarkets, logistics centers, gymnasiums, power plants, ect.

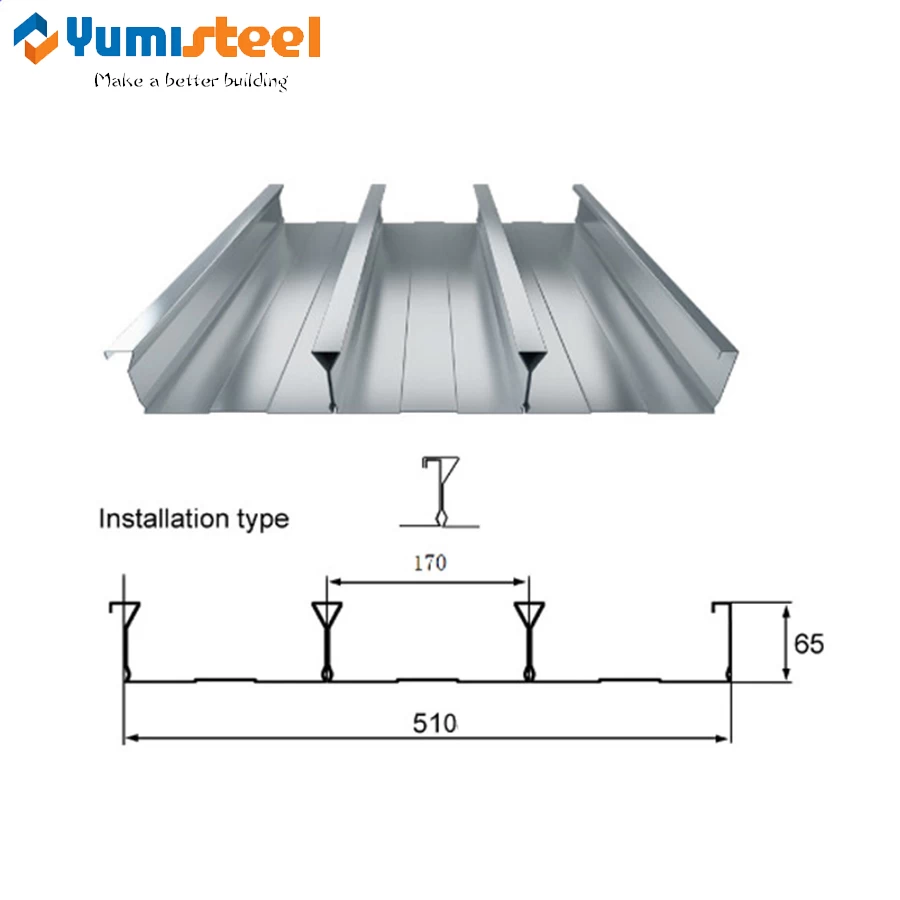

Corrugated floor bearing sheets specifications
|
Model NO.
|
YXB65-170-510
|
|
Rib height
|
65 mm
|
|
Rib distance
|
170 mm
|
|
Modular width
|
510 mm
|
|
Feeding width
|
1000 mm
|
|
Material
|
Galvanized / Galvalume steel
|
|
Thickness
|
0.75 ~ 1.50 mm
|
|
Steel material
|
High strength galvanized steel sheets
|
|
Material standards
|
Q235, Q345, Q355, G550
|
|
Zinc coating
|
120 ~ 275 g/m²
|
|
Length
|
Max 5.95 meters for 20FT container;
|
|
|
Max 11.95 meters for 40FT container.
|
Concrete slab steel plate standards
☆ Span tables:
|
Deflection Limited = L/130
|
|
Span type
|
Single spans(mm)
|
Two spans(mm)
|
Three spans(mm)
|
|
Slab THK
(mm)
|
Bondek THK(mm)
|
0.8
|
0.9
|
1.0
|
1.2
|
0.8
|
0.9
|
1.0
|
1.2
|
0.8
|
0.9
|
1.0
|
1.2
|
|
110
|
2570
|
2730
|
2870
|
3080
|
2570
|
2730
|
2870
|
3130
|
2660
|
2820
|
2960
|
3240
|
|
120
|
2510
|
2650
|
2790
|
3030
|
2510
|
2650
|
2790
|
3030
|
2590
|
2740
|
2890
|
3150
|
|
130
|
2450
|
2590
|
2730
|
2980
|
2450
|
2590
|
2730
|
2980
|
2530
|
2680
|
2820
|
3080
|
|
140
|
2390
|
2530
|
3660
|
2190
|
2390
|
2530
|
3660
|
2910
|
2470
|
2610
|
2750
|
3000
|
|
150
|
2330
|
2470
|
3600
|
2840
|
2330
|
2470
|
3600
|
2840
|
2410
|
2560
|
2690
|
2940
|
|
160
|
2280
|
2420
|
2550
|
2780
|
2280
|
2420
|
2550
|
2780
|
2360
|
2500
|
2630
|
2880
|
Note:This is calculated by standards Q235,we can also calculated by other standards.
For more technical data,you can download our catalog.Thank you.

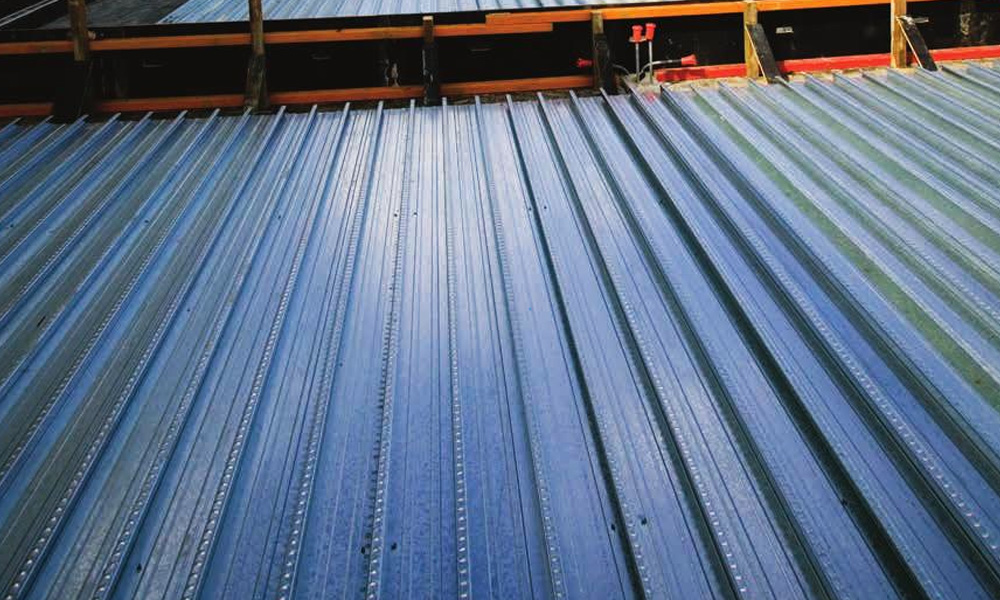

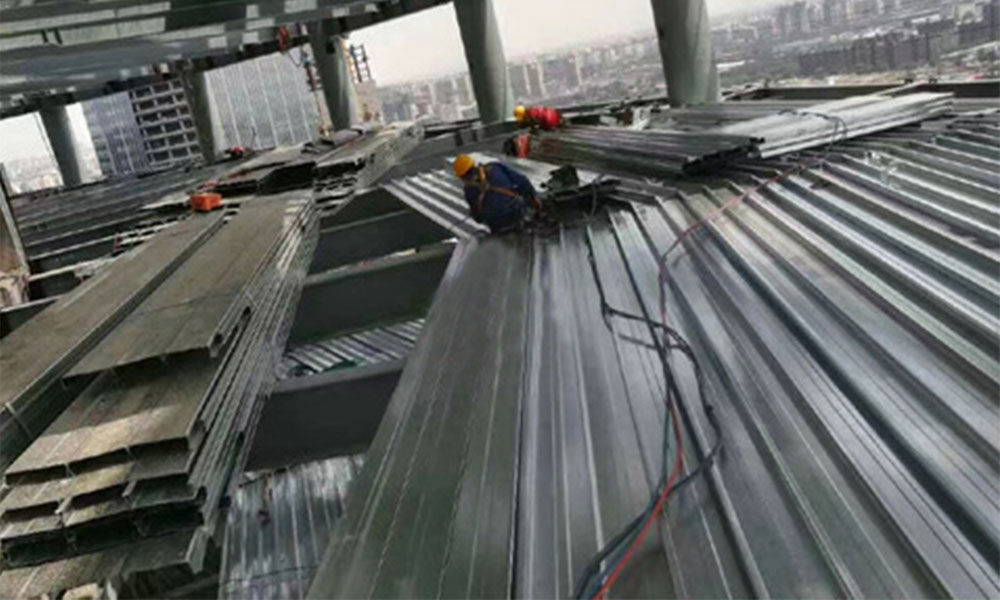

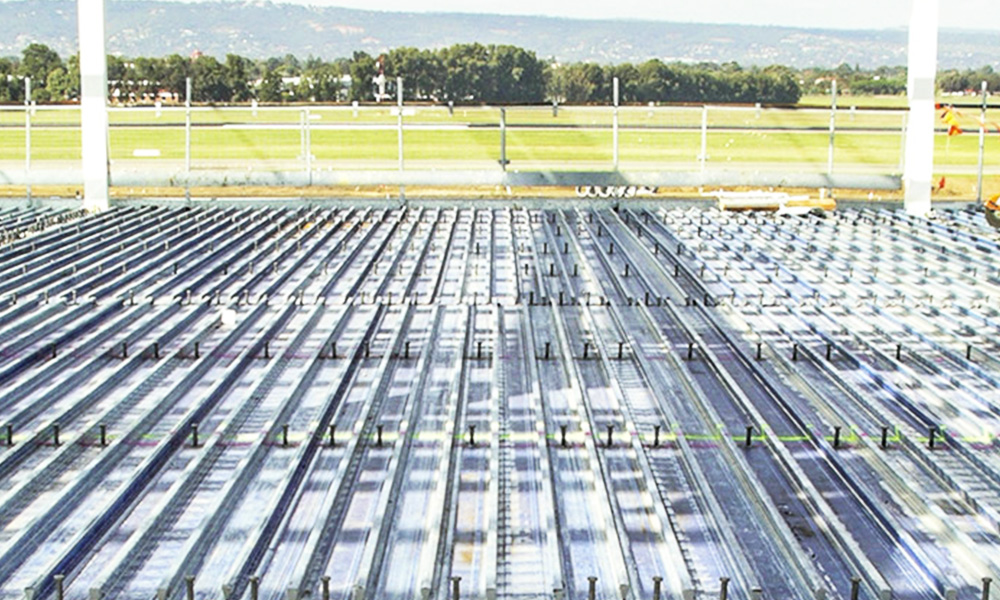

Composite decking products renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
Packed with moisture-proof kraft paper.
☆ Delivery:
Delivery time for small order with stock material: 7-10 days ;
Delivery time for special requirement,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
