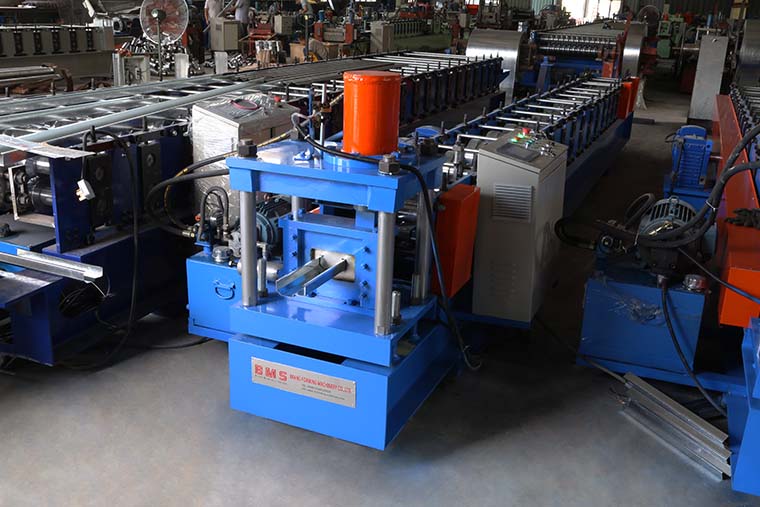

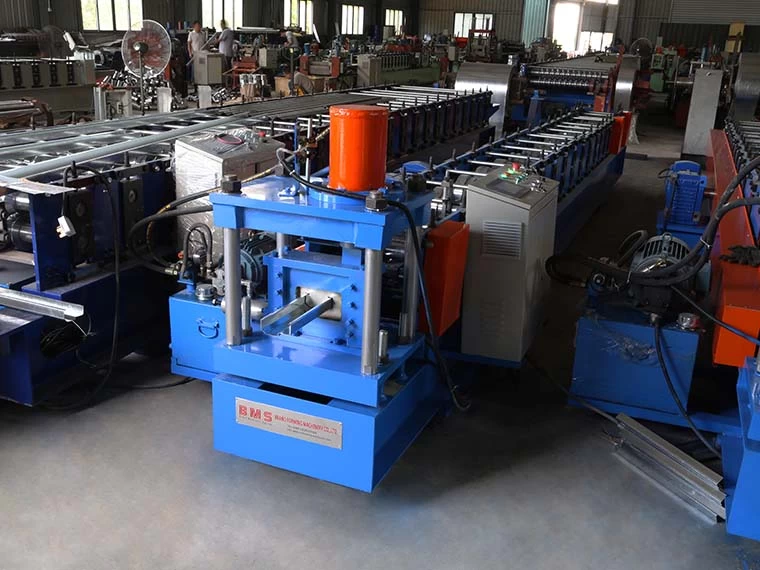

Metal Door Frame Roll Forming Machine

Steel Door Frame Roll Forming Machine





                 Metal Door Frame Roll Forming Machine



Steel Door Frame Roll Forming Machine


Door Frame Roll Forming Machine



Click here to check the video:  steel door frame roll forming machine


1.Main features of metal door frame roll forming machine



    The advantages of metal door frame roll forming machine are as follows:

    1.Accuracy Profile

    2.Stable

    3.Easy operation, low maintenance cost

    4.Beautiful appearance.

    5.Customorized for any size you want



2.Detailed Images of metal door frame roll forming machine


    Machine Parts

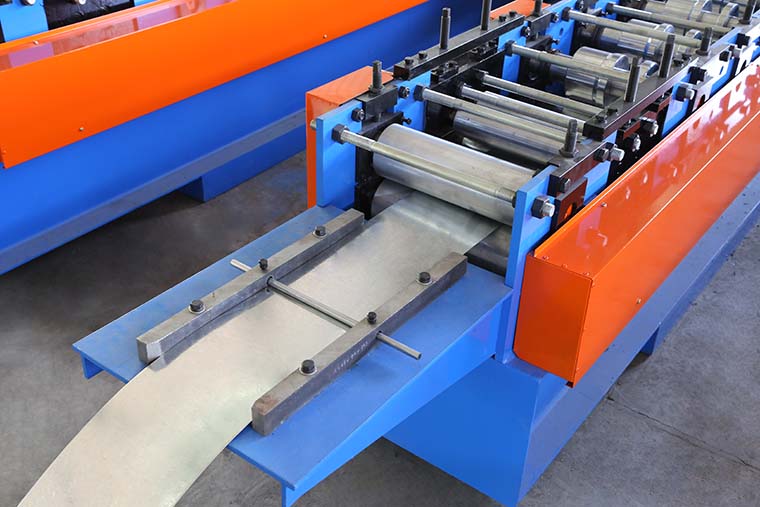

        1) Metal door frame roll forming machine feeding guide

        Brand: BMS    Original: China


Door Frame Roll Forming Machine

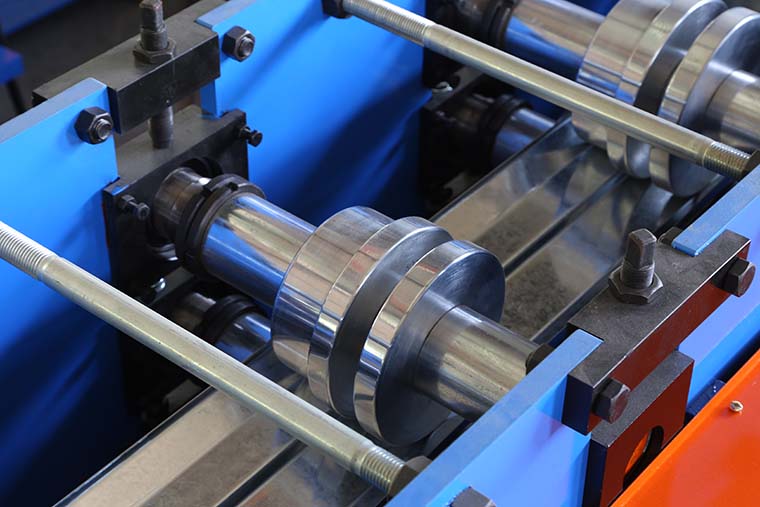

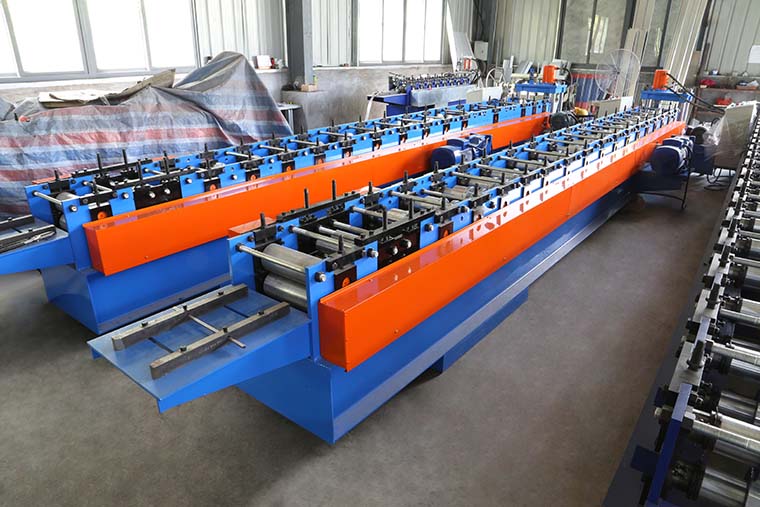

        2)  Metal door frame roll forming machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


Door Frame Roll Forming Machine

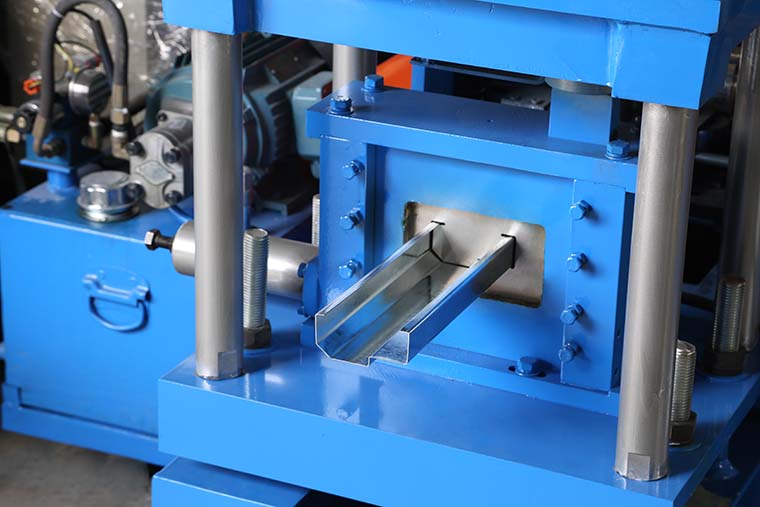

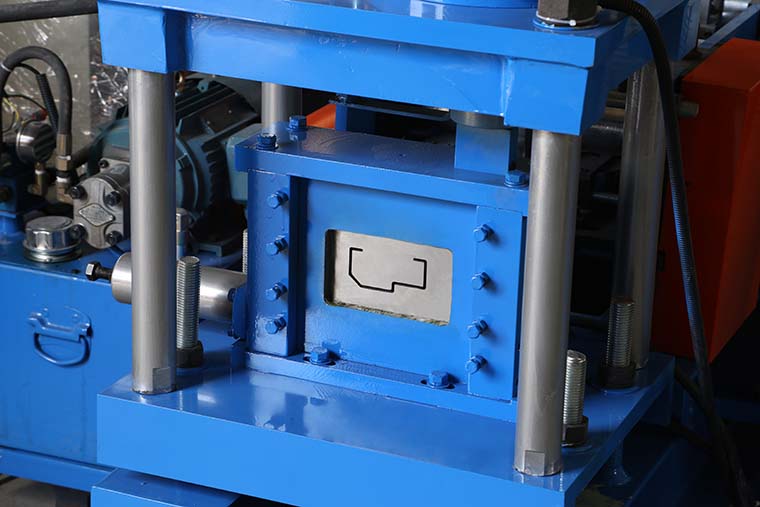

        3) Metal door frame roll forming machine post cutter


Door Frame Roll Forming Machine


Door Frame Roll Forming Machine

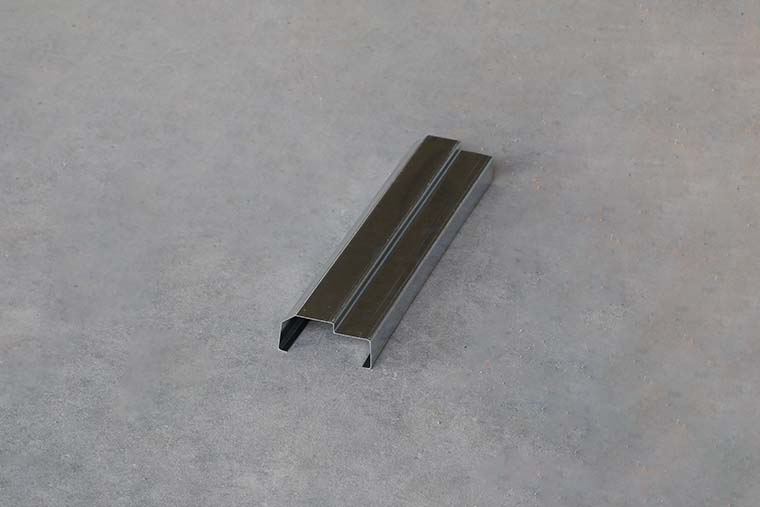

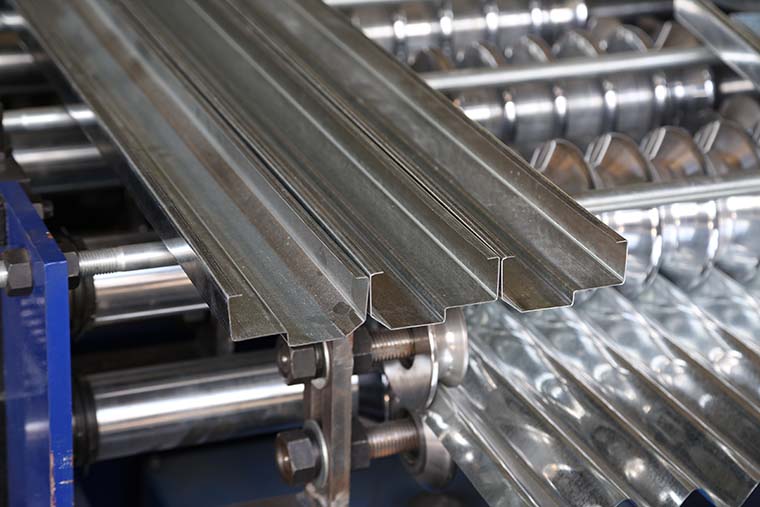

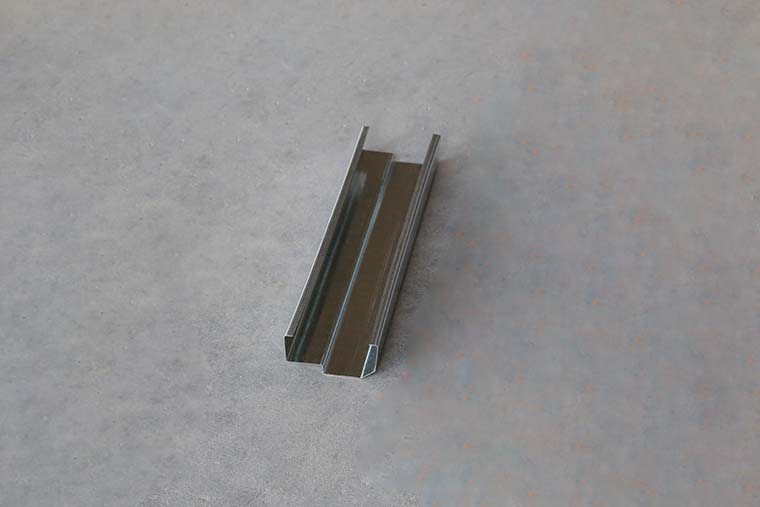

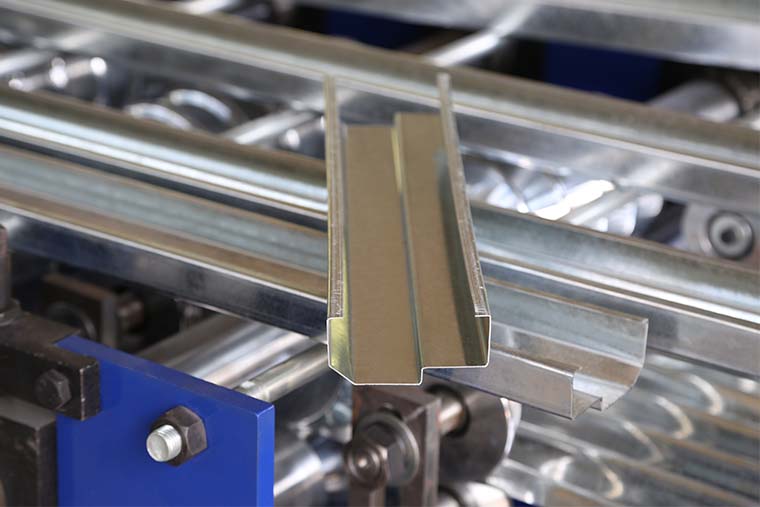

        4) Metal door frame roll forming machine product show



 Door Frame Roll Forming Machine


Door Frame Roll Forming Machine


Door Frame Roll Forming Machine


Door Frame Roll Forming Machine


        5) Metal door frame roll forming machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton

 roll forming machine decoiler



        With 3 tons hydraulic decoiler for option


roll forming machine decoiler



        6) Metal door frame roll forming machine exit rack

        Un-powered,3 meters long ,one unit


Door Frame Roll Forming Machine





Other detailes of metal door frame roll forming machine



Suitable for material with thickness 0.8-1.5 mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 20 rollers to form.

Main motor=11KW , Frequency speed control. Forming speed approx.12-15m/min


PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of metal door frame roll forming machine



1. The warranty of metal door frame roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
