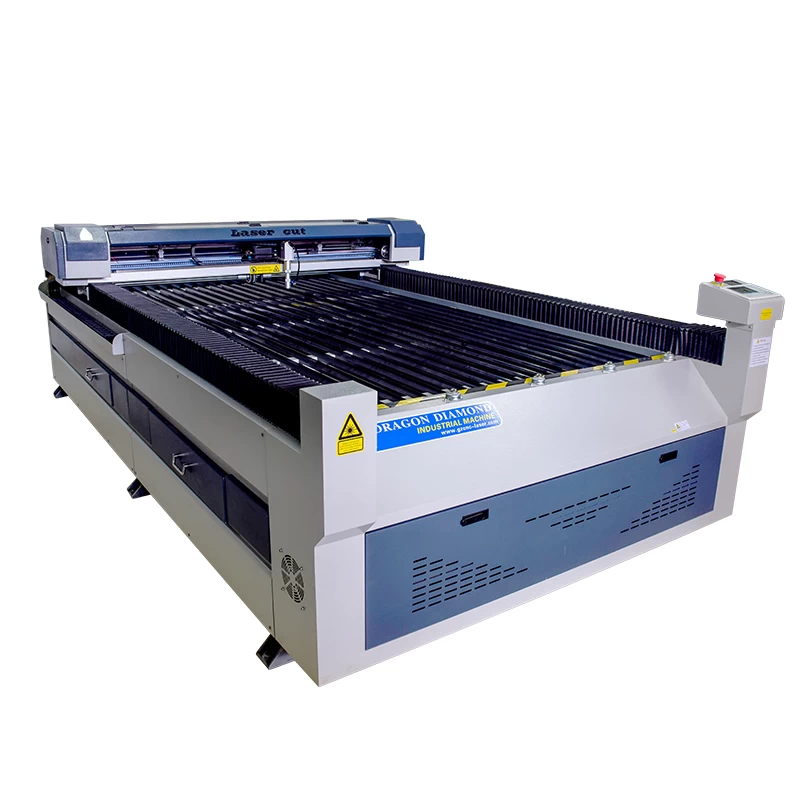

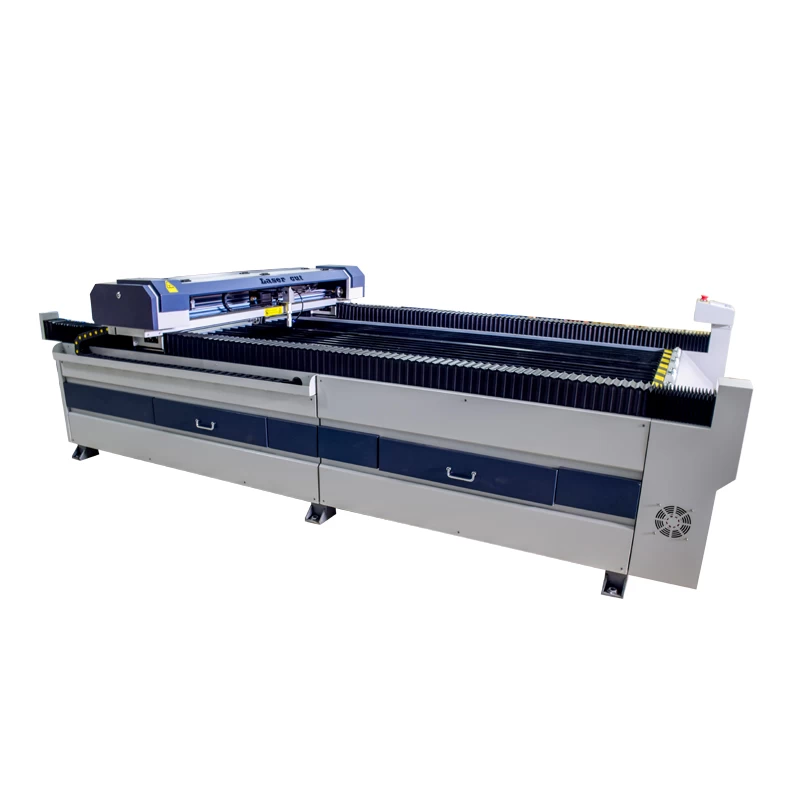

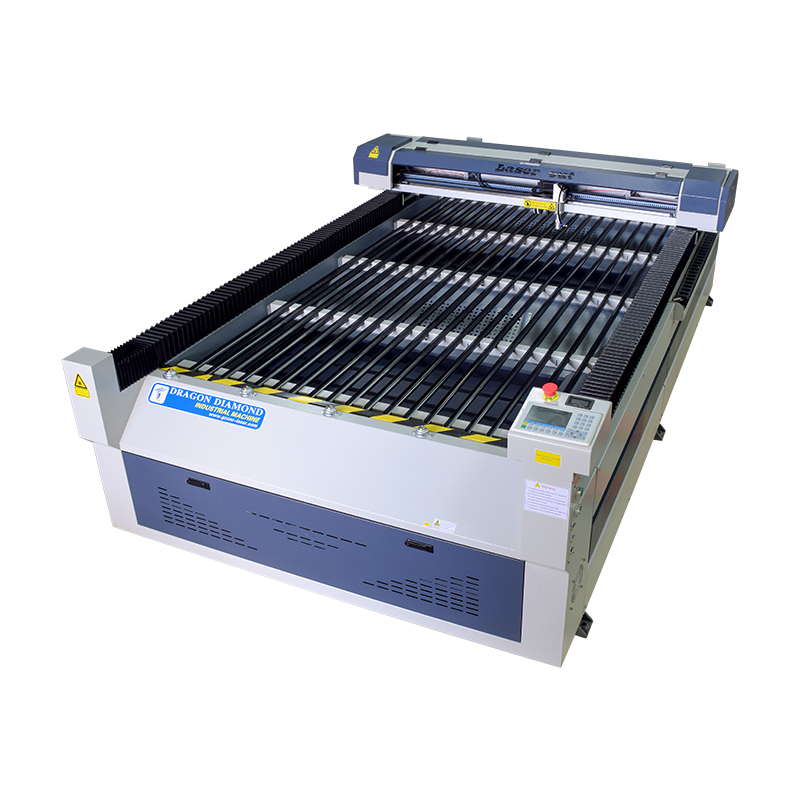

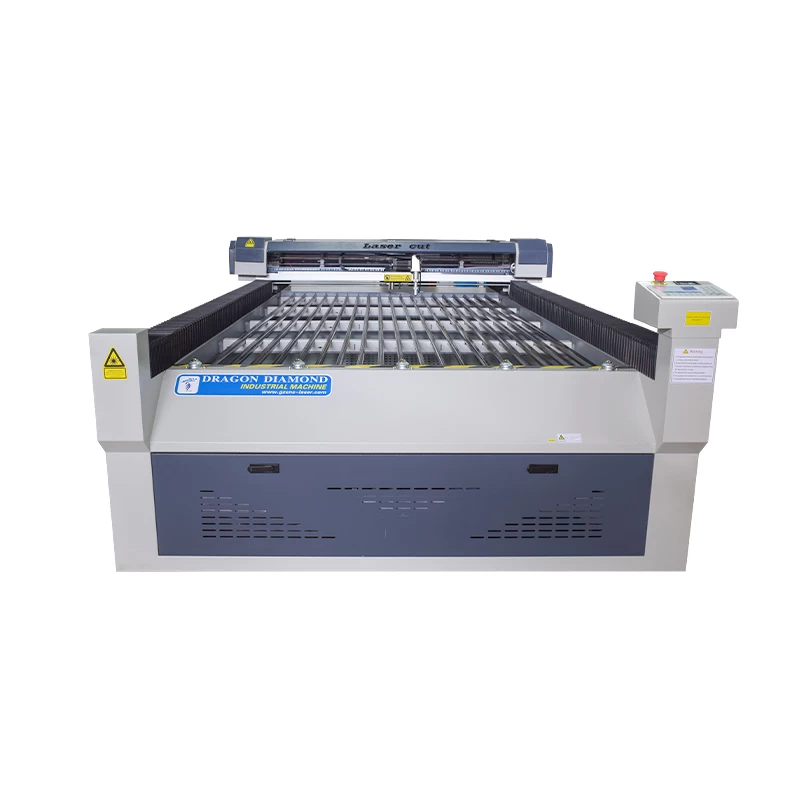

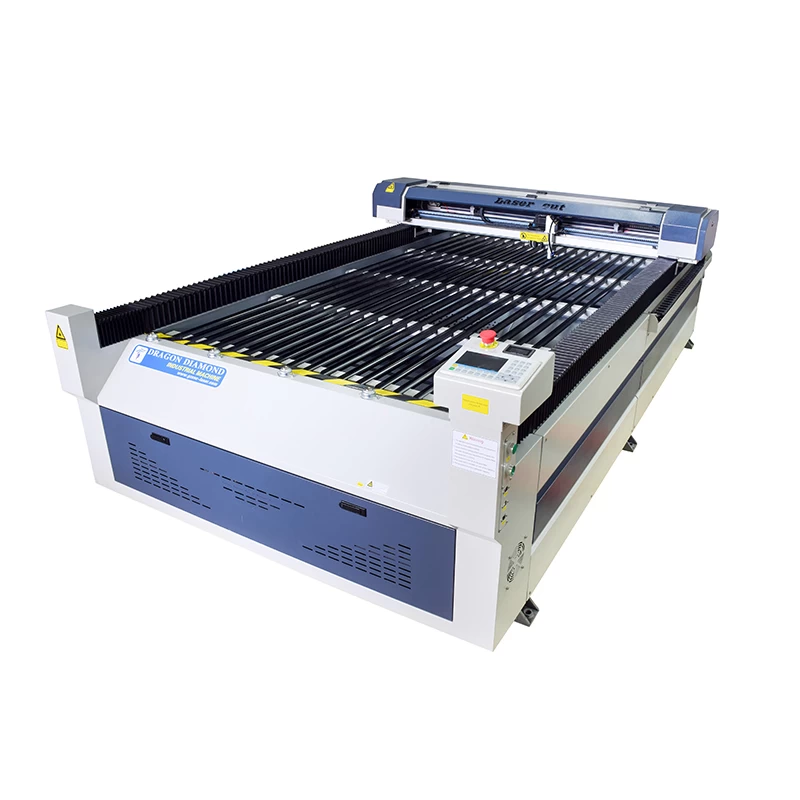

Metal Non Metal Co2 Laser Metal Cutting Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1325Mix Laser Cutting
|
|
1
|

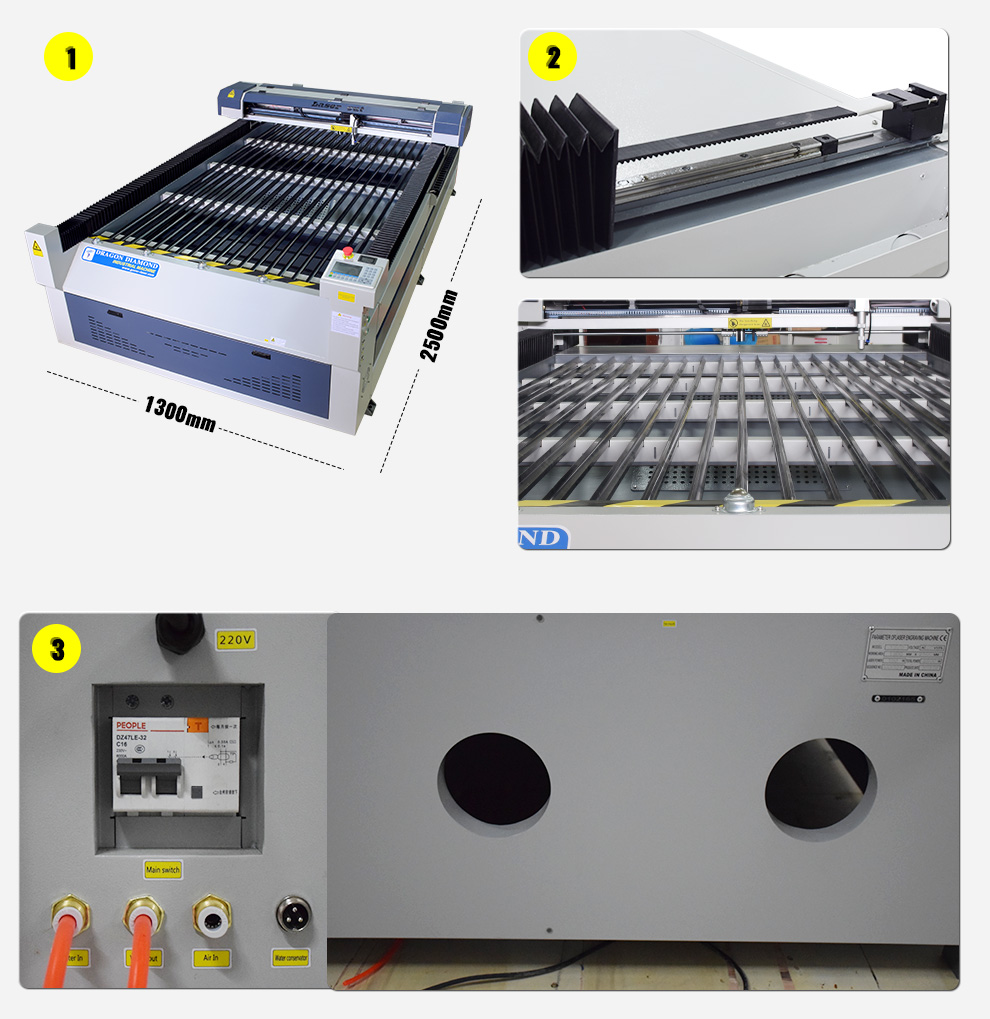

Working Area
|
1300x2500mm
|
|
2
|
Machine Size
|
3080x2000x1120mm
|
|
3
|
Working Table
|
Blade Sheet Table
|
|
4
|

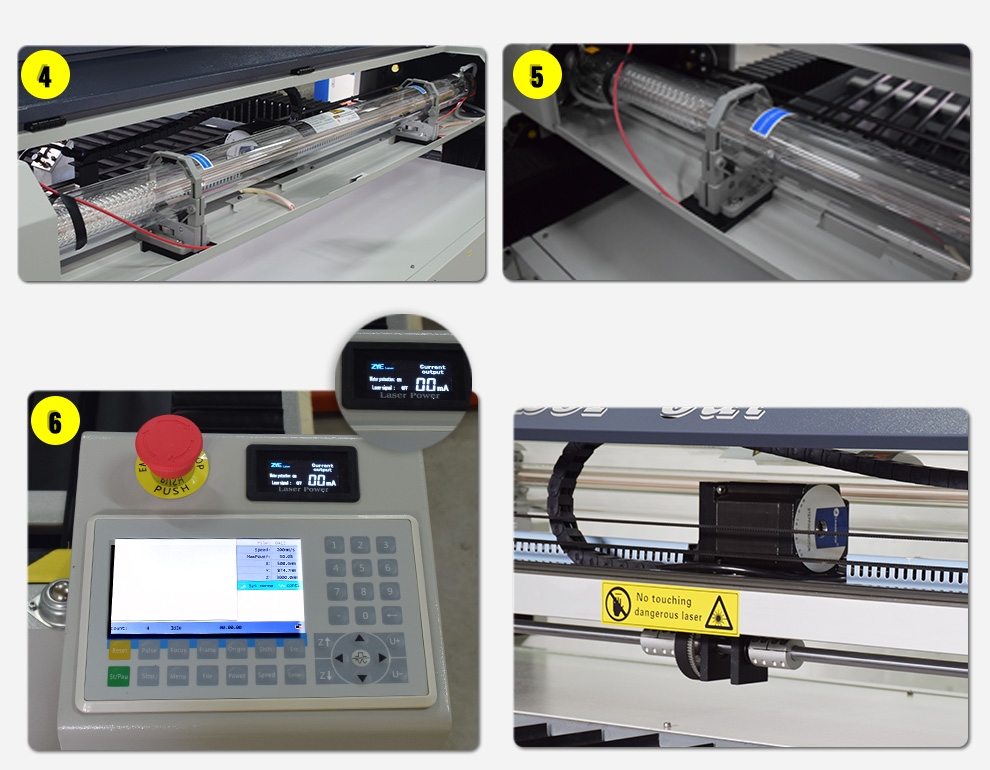

Laser tube type
|
CO2 sealed laser tube
|
|
5
|
Cooling System
|
Water Chiller CW5200
|
|
6
|
Control System
|
RUIDA6332M
|
|
7
|
Software
|
Metal Cut
|
|
8
|
Software supported
|
CorelDraw,Photoshop,AutoCAD,TAJIMA
|
|
9
|
Position System
|
Red Light Pointer
|
|
10
|
Laser power
|
RECI 150W
|
|
11
|
Motor
|
Stepper motor
|
|
12
|
Resolution
|
1,000--10,000 dpi
|
|
13
|
Machine Power
|
<3,000W
|
|
14
|
Minimum Character Size
|
English:1mm ; Arabic numbers:1mm
|
|
15
|
Engraving speed
|
0-60000mm/min
|
|
16
|
Cutting speed
|
0-50000mm/min
|
|
17
|
Reposition Accuracy
|
0.01mm
|
|
18
|
Graphic format supported
|
PLT, DXF, BMP, AI, DST
|
|
19
|
Voltage
|
AC220V/110V,50HZ/60HZ
|
Laser mixed cutting machine Metal and non-metal mixed laser cutting machine adopts steel structure bed, which is more scientific in design and more stable in bed. The machine's hybrid cutting capacity: It can cut stainless steel, carbon steel, acrylic and wood. High cutting accuracy and good stability. Metal and non-metal mixed cutting machine is widely used in advertising production, metal processing, laser die and other industries; suitable for carbon steel, stainless steel, acrylic, MDF and other large-format metal and non-metal plates.
