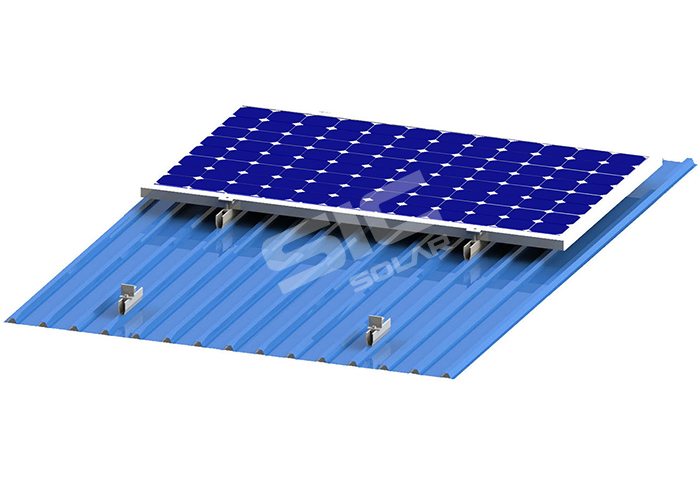

Metal roof aluminum short rail mounting system

Aluminum short rail solar mounting system is suitable for many type metal roof.


  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • FunctionFrame support for solar panel
  • Warranty10 years and 25 years service time
  • MaterialAL6005-T5

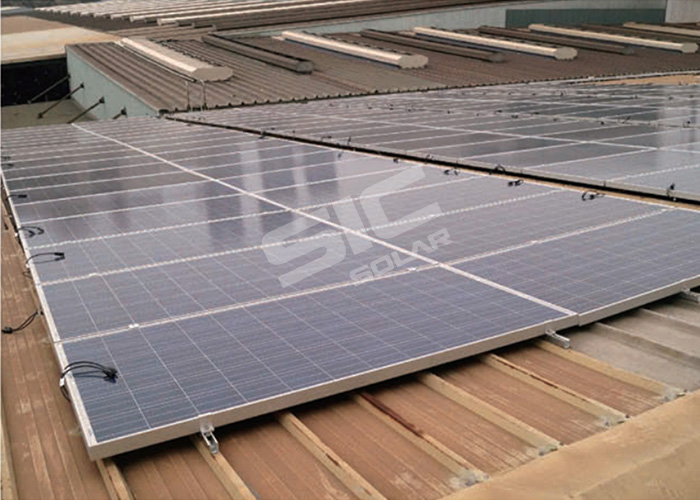

  • Installation SiteMetal roof

Metal roof aluminum short rail mounting system

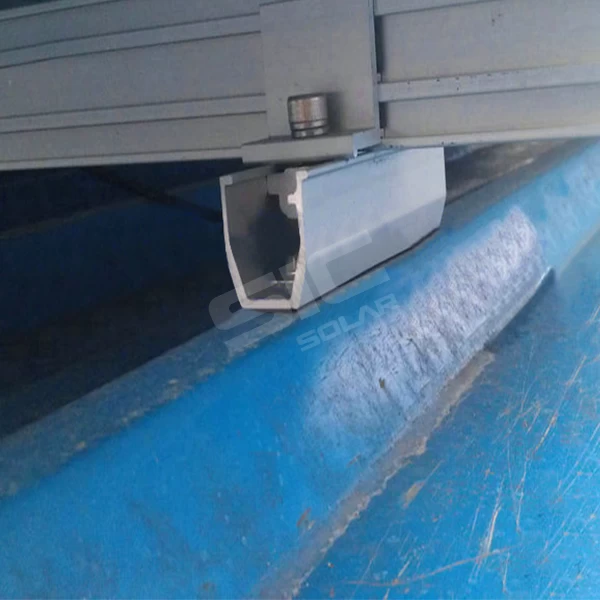

Diverse Aluminum short rails are suitable for most metal roof, which can help customers save more cost and to simplify the installation. Aluminum short rail is popular in Asia, Europe, etc.



Metal roof pv mounting systems made in china


Minirail system for solar panel mount

    Mini rail mounting kit



Category: Solar components


Installation Site

Metal Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time



Advantages as follow:

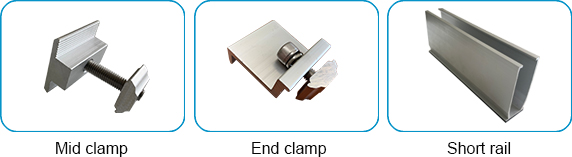

☆ Easy to use - Only 3 components, Save labor cost at the installation site.
☆ Short rail arraycould be customized according to your roof size.
☆EPDM rubber can be effective waterproofing.

☆ Best aluminum profile Ensure 10 years warranty and 25 years service time.


Related Certificate

Our SGS Certificate for screw material -- SUS304

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



Package for mini rail solar mount
