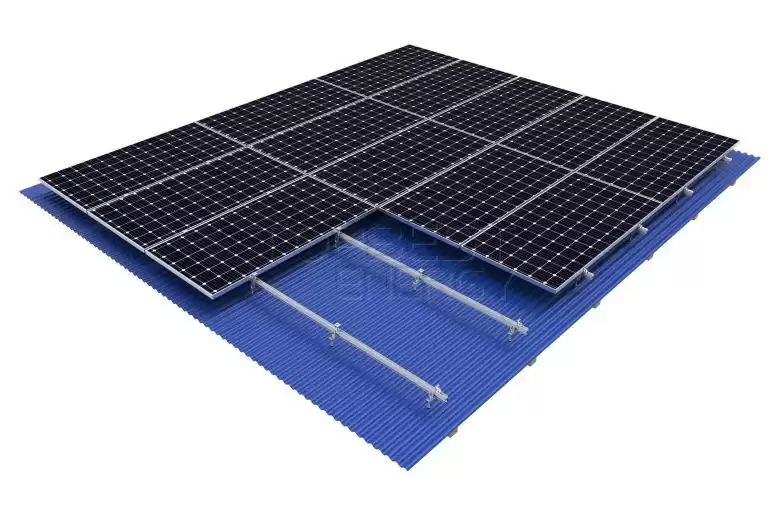

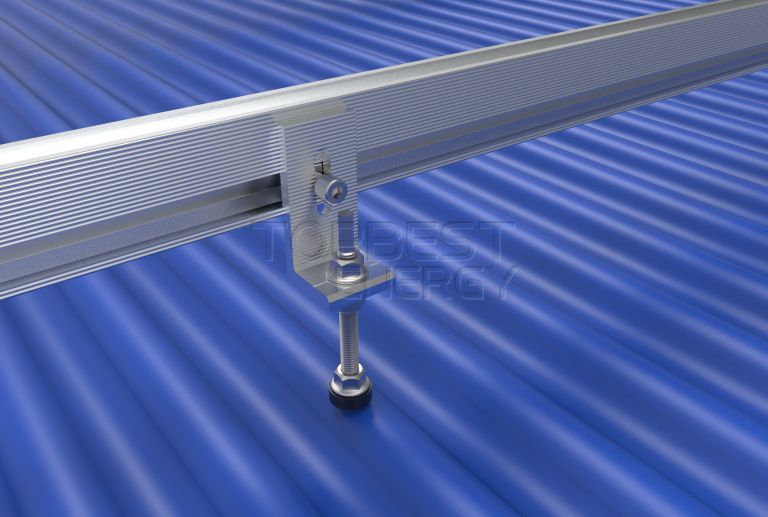

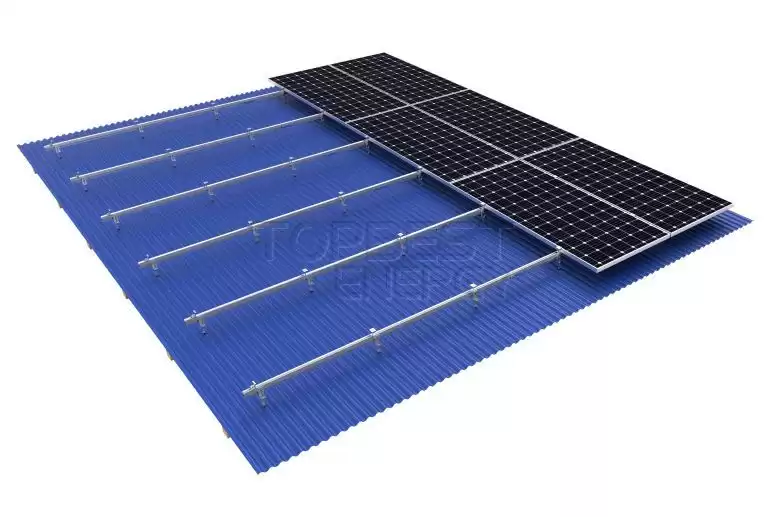

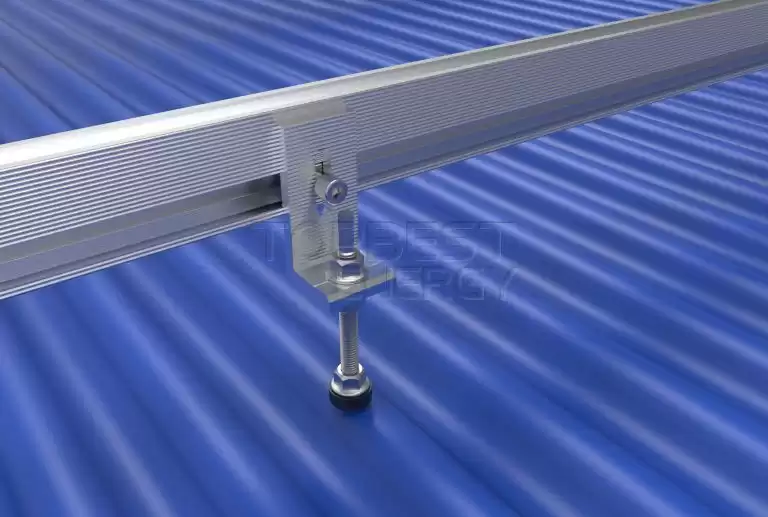

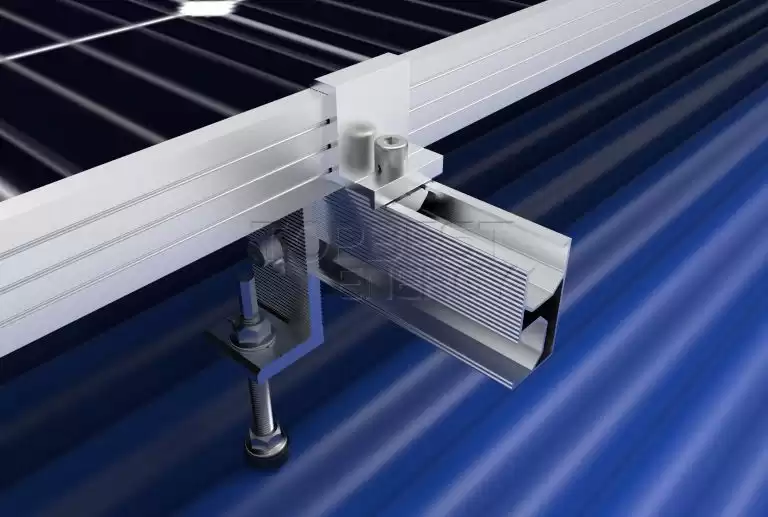

Metal Roof L Foot Solar Mounting System
Solar Metal roof L foot mounting solution is suitable for mostly metal roofs. It provides a simple and cost-effective solution for mounting framed or unframed solar panels currently on the market.The simple yet strong rack structure enables it to make the best of the existing metal rooftop, Effective and densely populated modules greatly increase the installed capacity.
☆ Safety and Good Stability
Used the high quality aluminum alloy with high strength performance. The surface of the product is anodized to effectively prevent corrosion and prolong its service life
☆ Easy installation
Quick and easy to install, Standardized design and unified parts
☆ Various Solutions
Customized deign solutions for different roof solar projects.
Technical Parameters
|
Installation Site:
|
Metal Sheet Roof
|
|
Material：
|
SUS304, AL6063-T5/6005-T5
|
|
Tit Angle:
|
Flushed with roof,up to 60 deg
|
|
PV Modules：
|
Framed, Frameless
|
|
Module Layourt：
|
As Designed Portrait and Landscape
|
|
Wind load：
|
60m/s
|
|
Snow Load：
|
1.4KN/m2
|
|
Building height：
|
up to 20m
|
|
Standards：
|
AS/NZS 1170& DIN 1055
|
|
Warranty：
|
10 years warranty
|

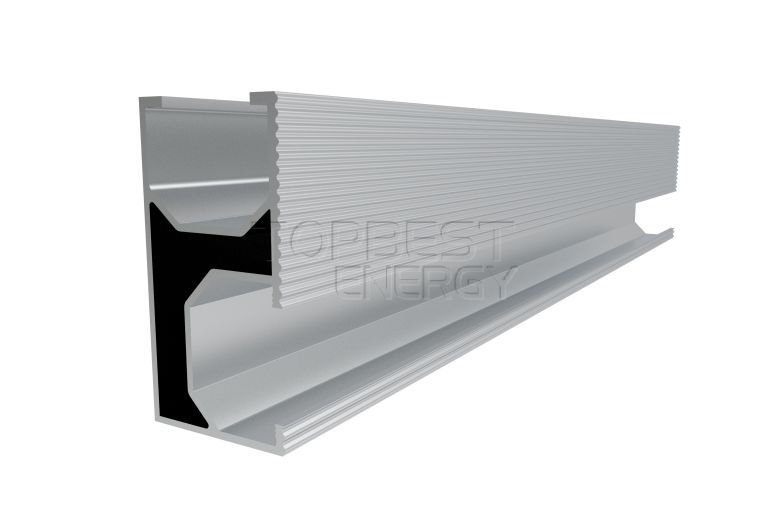

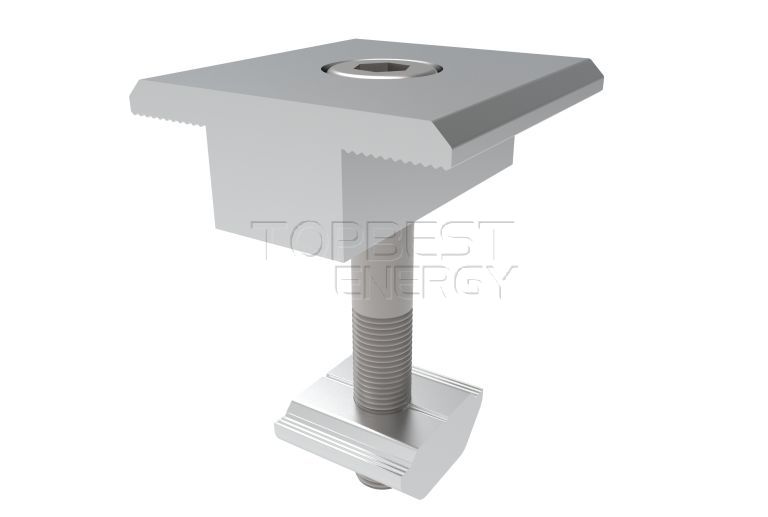

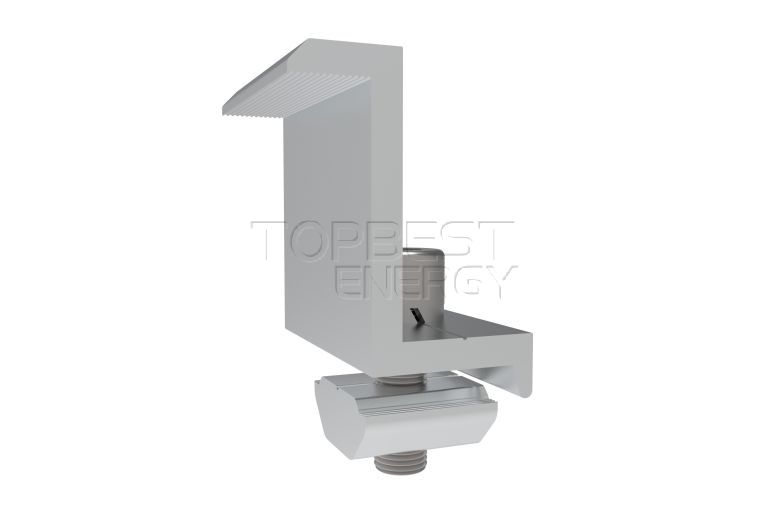

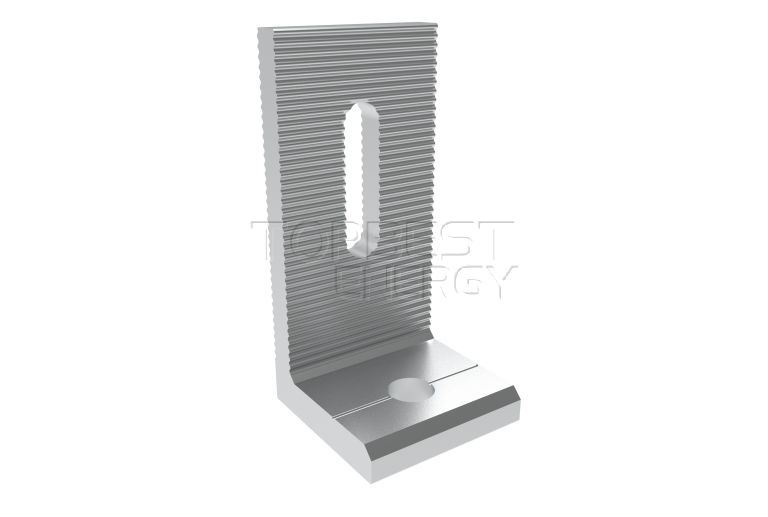

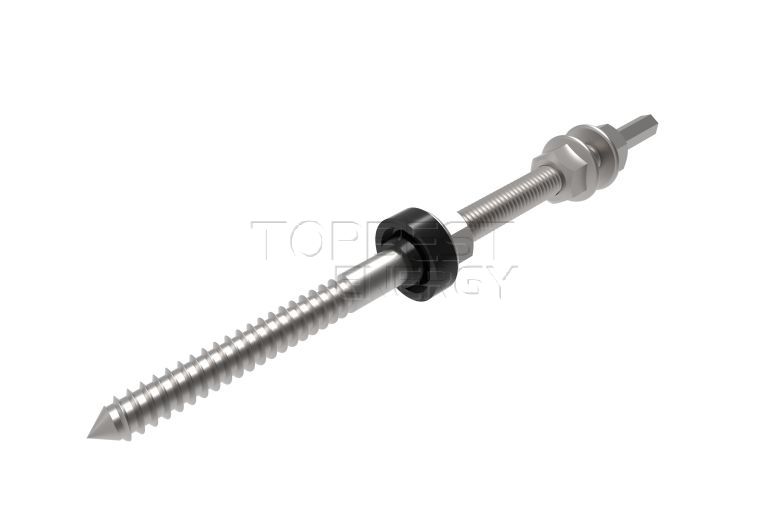

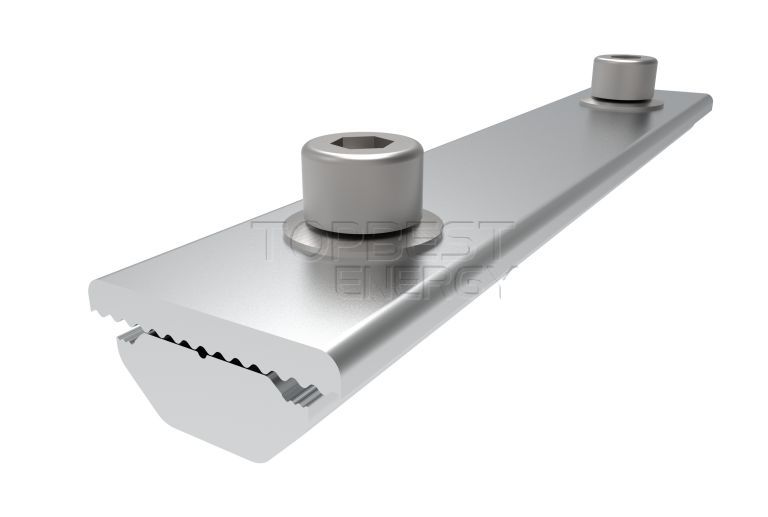

Components
