Solar PV Mounting System for Tin Roof
Solar First tin roof mounting system is designed with great flexibility
for both commercial and residential roof solar system. It is suitable for tin
roofs from 10 degrees to 60 degrees. To samplify the brackets mounting, We have
designed rails that can put into clamp fixture block easily.
Solar First Technical
Specification
|
Mount
type
|
Solar First Tin Roof Mounting Brackets
|
|
Installation site
|
Tin Roof
|
|
Structural materials
|
Aluminum alloy and stainless steel
|
|
Survival wind speed
|
60m/s
|
|
Design snow load
|
1.4KN/m2
|
|
System tilt angle
|
10-45°
|
|
Module orientation
|
Vertical or horizontal
|
|
Design standard
|
AS/NZS 170
|
|
Life
|
Design life is 25years, Qaultity
assurance for 10years
|
|
Delivery time
|
With 20-30 days
|
|
Package
|
Carton, wooden pallet for solar mounting
|
Advantages of Solar First Tin Roof Mounting Brackets
1.Easy Installation
The
innovative Solar First rail and D- modules have greatly simplified the installation
of PV modules.The System can be installed with a single Hexagon Key and
standard tool kits. Pre-assembled and pre-cut processes will highly prevent
corrosion and save your installation time and labor cost.
2.Great
Flexbilitity
Solar First Tin roof mounting brackets has mounting accessories designed for use on almost every roof
and ground with excellent compatibility. Designed as a universal racking
system,framed modules from all the popular manufacturers can be used.
3.High
Accuracy
Without
the need for onsite cutting, the use of Solar First unique rail extending allows the
system to be installed with millimeter accuracy.
4. Long Lifespan
All
components are made of quality extruded aluminium, C-steel and stainless
steel. The high corrosion resistance guarantees the maximum possible lifespan
and is also completely recyclable. Maximum lifespan - 10 years warranty, at least 20 years duration
5.Hight Quality
With ISO, AS/NZS1170, ASCE 7-05 and DIN1044 certificated, Solar First provides a guarantee of 10 years on the durability of all components used.
Details of Soar First Tin Roof Mounting Brackets
Component list of Soar First Tin Roof Mounting Brackets
We are a well-known solar panel roof rack manufacturer in China,
offering only the best Roof Racks including solar panel roof rack mounts
at low wholesale prices. Our rack is waterproof, no need to worry about
rusting, and the quality is passable.

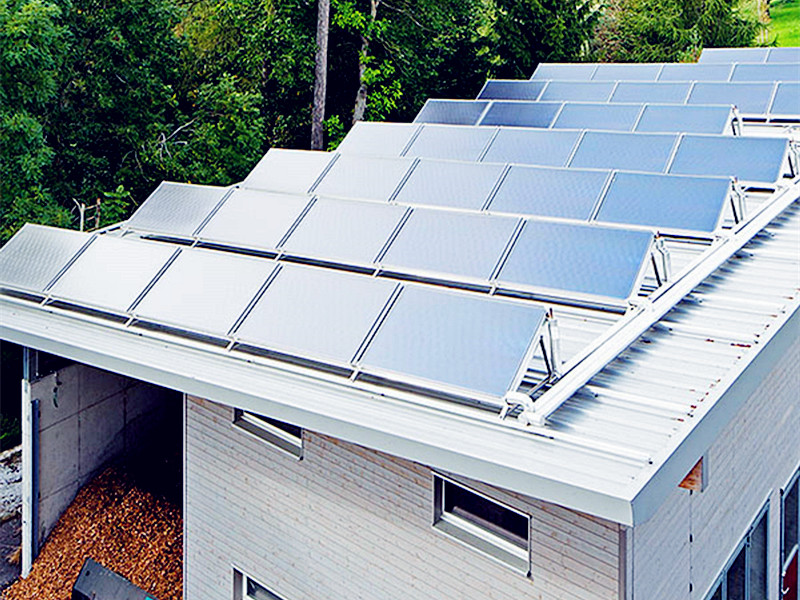

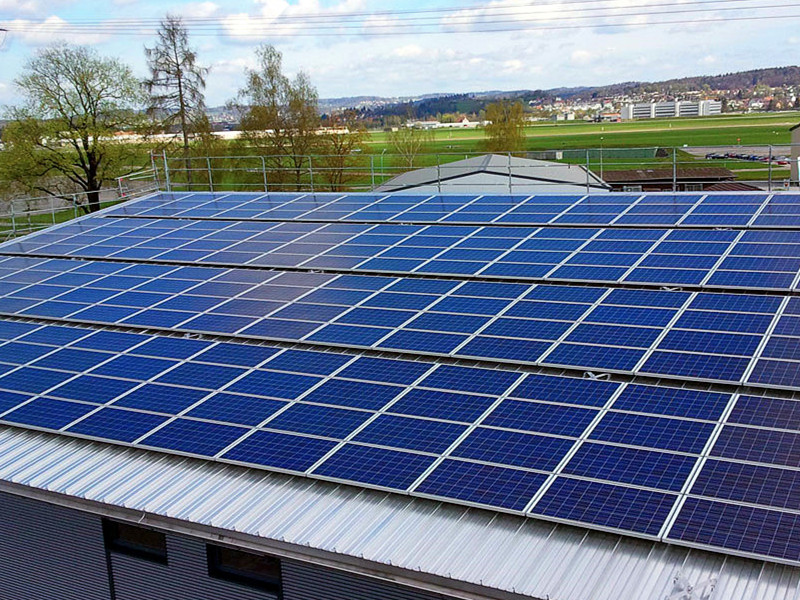

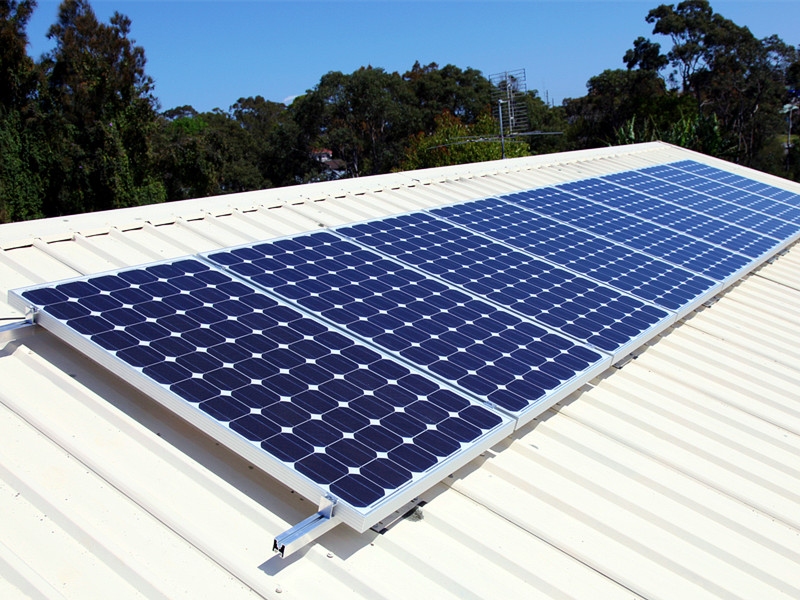

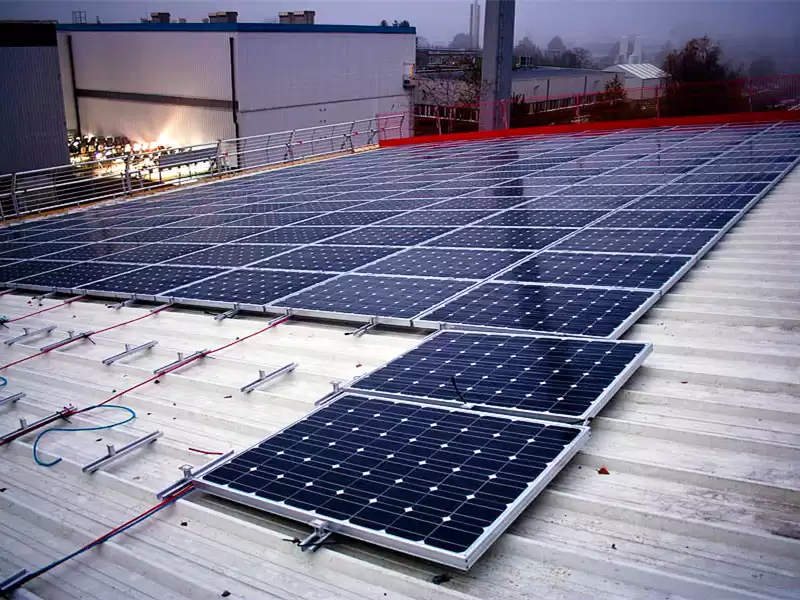

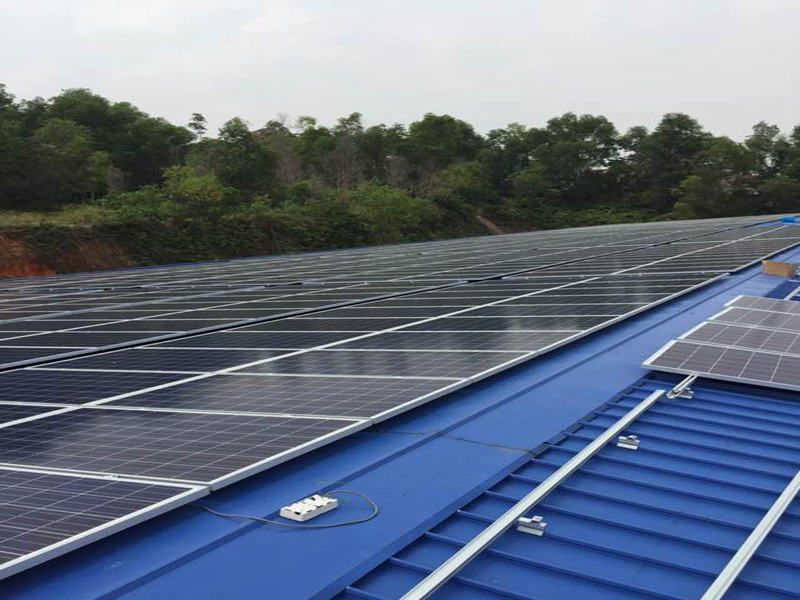

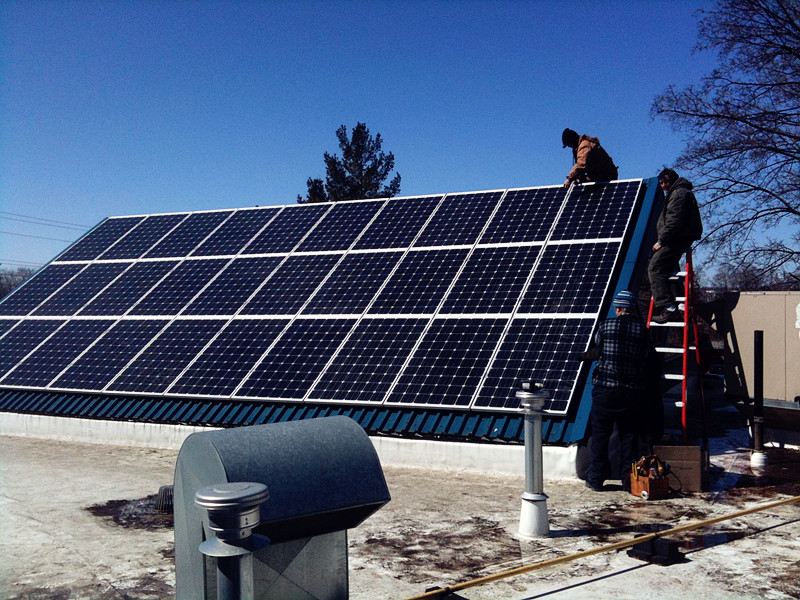

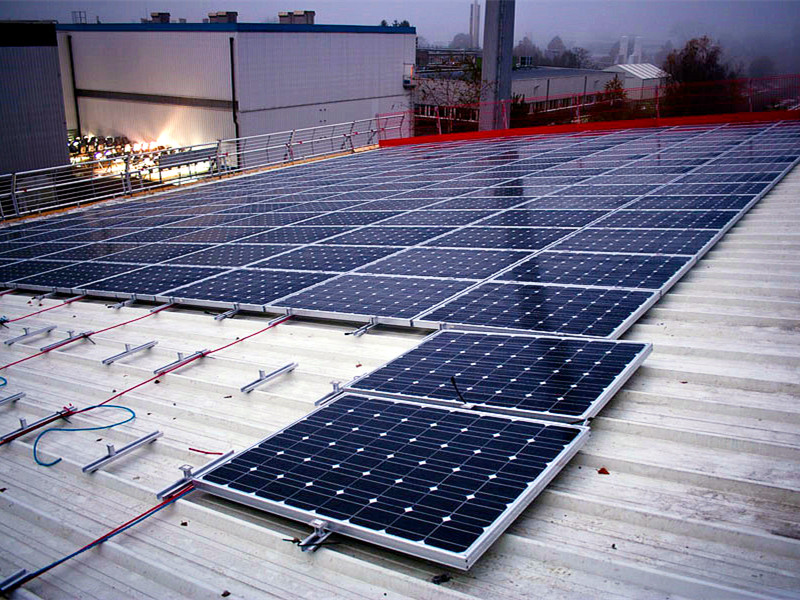

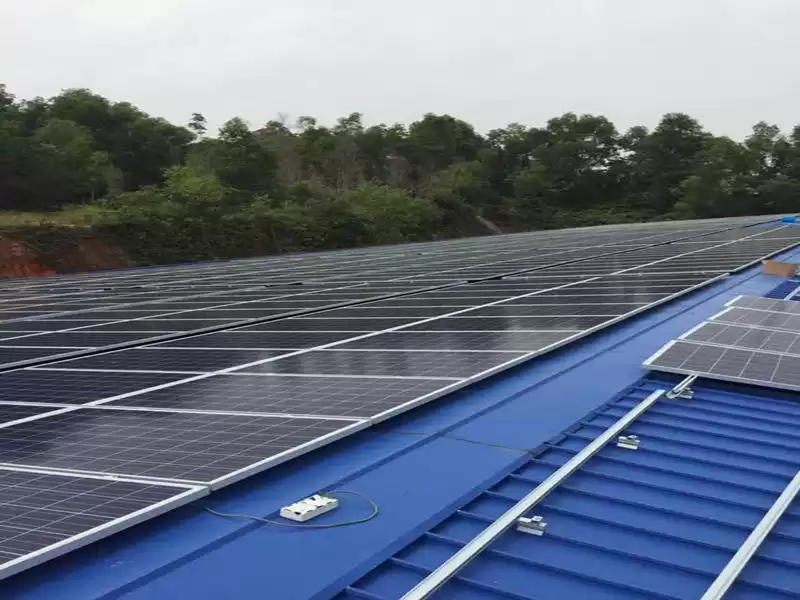

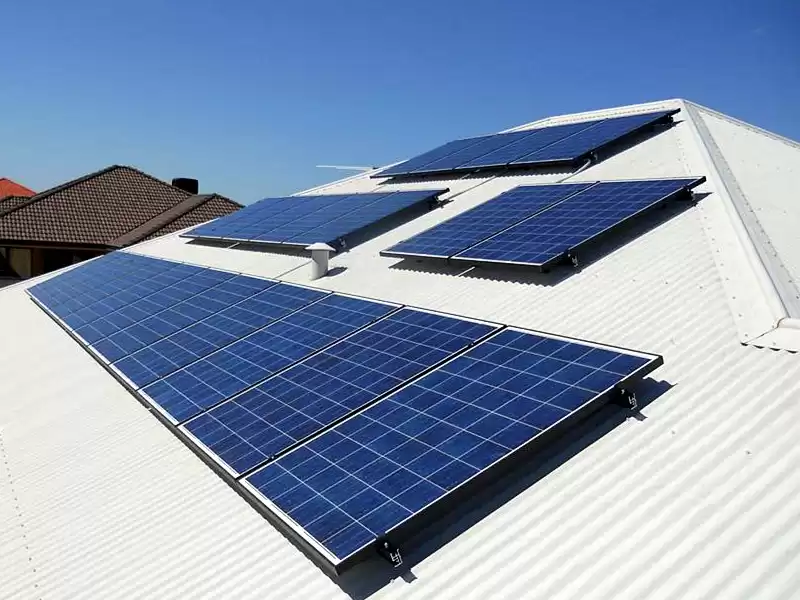

Product Show
Corrugated roofs can also be installed
with solar brackets, if the contractor tells you it can't be done or
can't be done without jeopardizing the integrity of the roof, please
talk to us. We offer complete solutions for corrugated roof mounting brackets.
