Metal Roof Mounting System

Metal Roof Mounting System brings installers a more economical solution with quicker installation and safer structure.

  • Tilt Angle0°~60°
  • FoundationClamp/Hook
  • Panel TypeFramed & Frameless
  • HS Code76109000
  • Installation SiteMetal Roof
Facebook Twitter Pinterest LinkedIn 分享

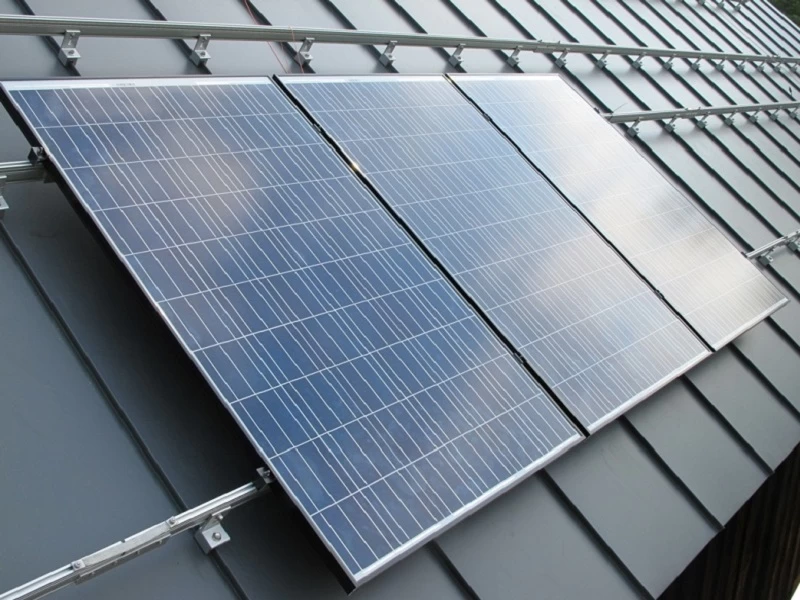

Metal Roof Mounting System

Metal Roof Mounting System is specially developed for both residential and commercial rooftop solar installations; With patented hooks and customzied solution, it brings installers a more economical solution with quicker installation and safer structure.



Solar Roof Mount Structures



Material
    AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
    1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~60°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty








standing seam clamp metal roof


System Overview



light but strong aluminum rails


tin roof mounting bracket parts

standing seam clips

non penetrating L feet




Highly pre-assembled before shipment ensure an quicker installation work


Check and test Structure strictly for the use in extreme weather condition


Simpler design and less components make the solution more competitive


15 years' warranty, 25 years' life span




stable standing seam clamp fixing
