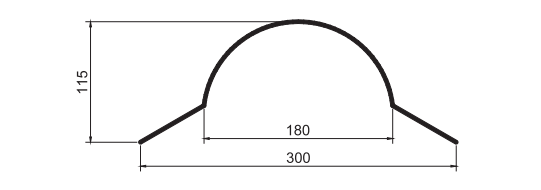

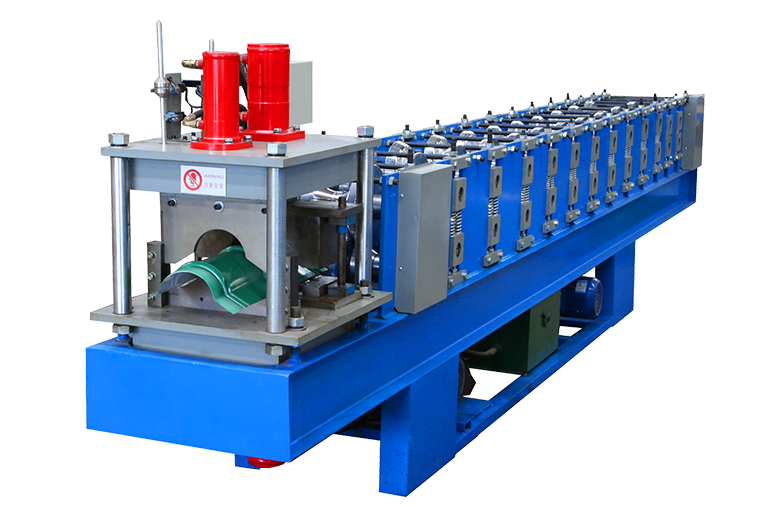

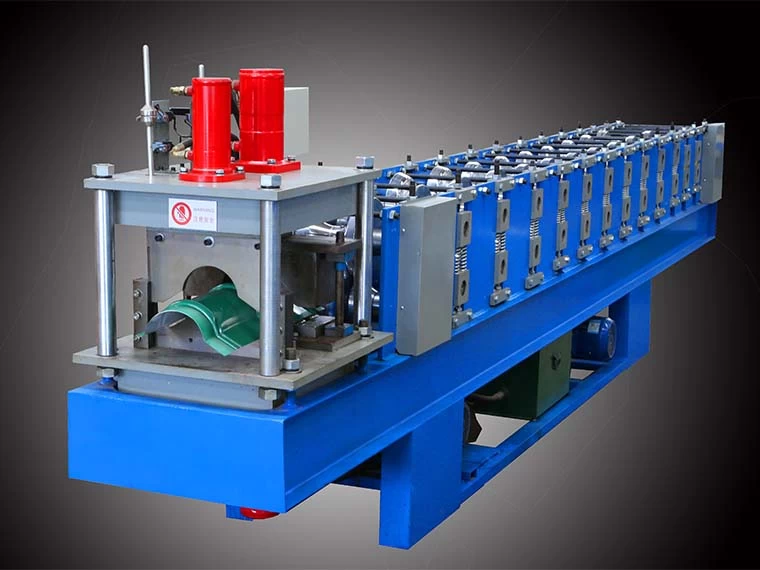

YX115-300 Ridge Cap Roll Forming Machine
1.Main features of YX115-300 ridge cap machine
The advantages of Ridge Cap machine are as follows:
1.Widely used in many kinds of industrial factory, civilian buildings
2. pretty appearance, durable using
3.Instead using bending machine to make angel tile
4.saving human resources, lower labor cost.
2.Detailed Images of YX115-300 ridge cap forming machine
Machine Parts

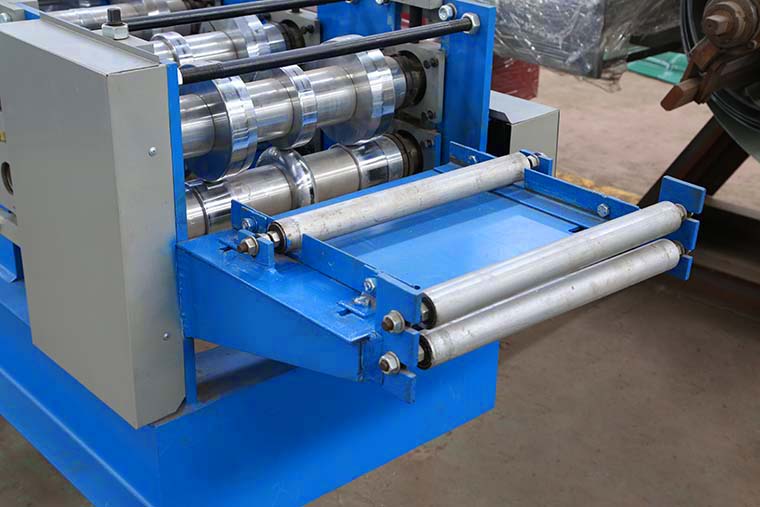

1) YX115-300 ridge cap machine feeding device
Brand: BMS Original: China

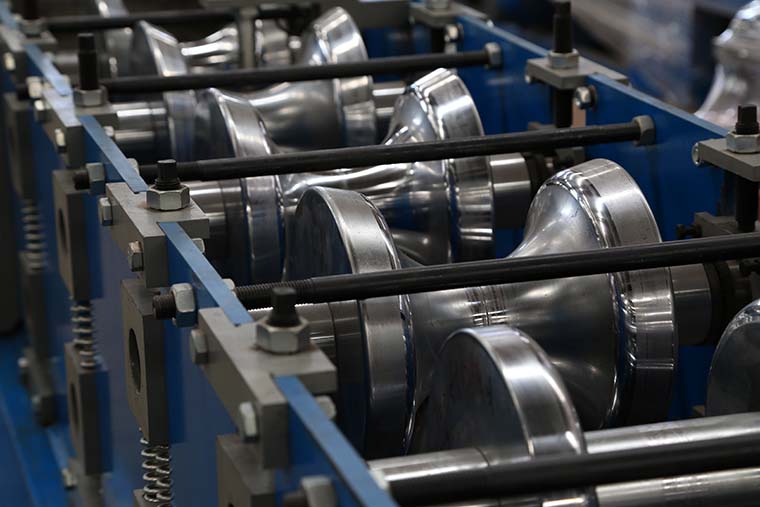

2) YX115-300 ridge cap machine rollers
Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

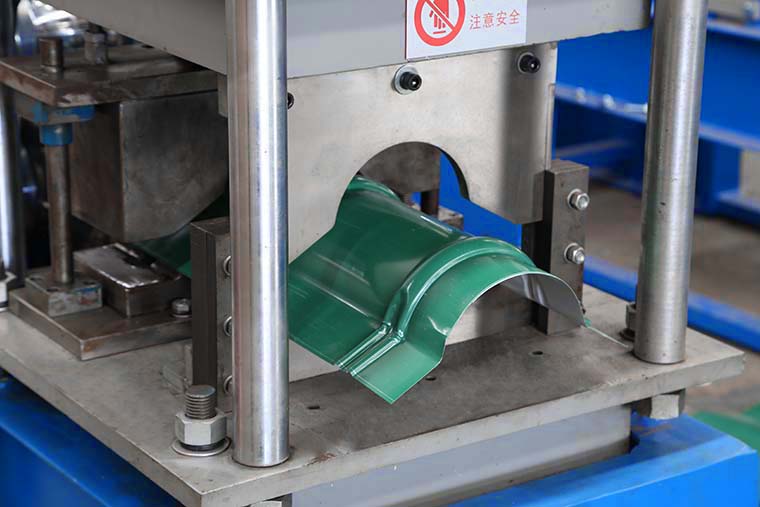

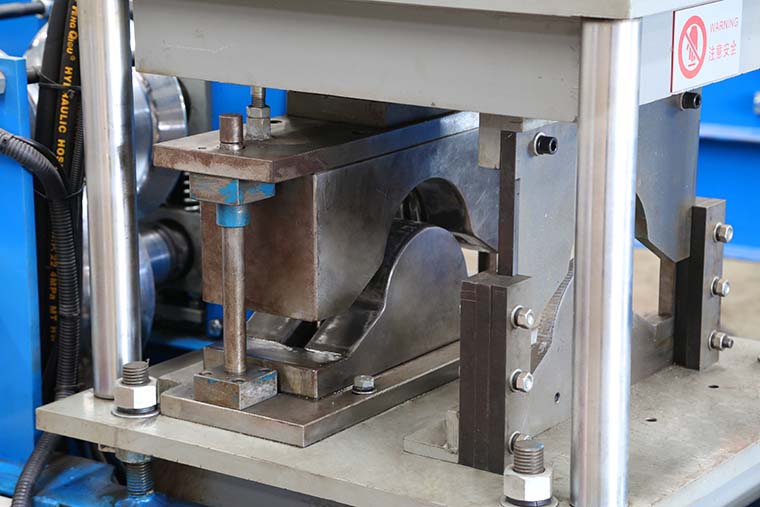

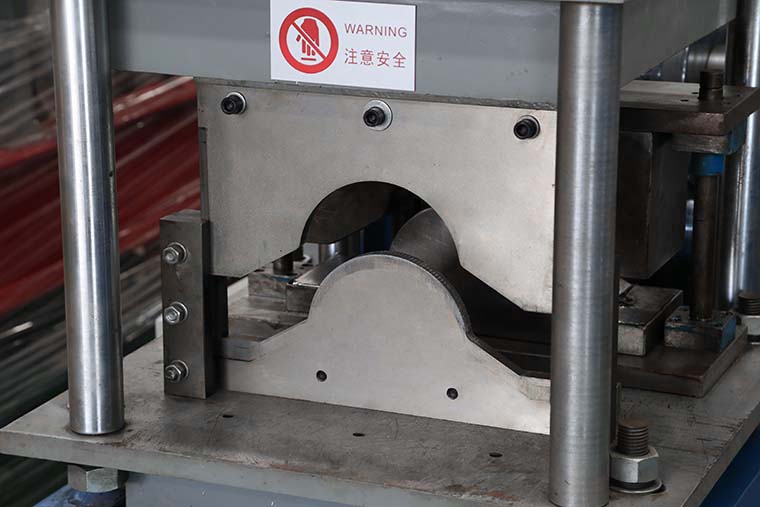

3) YX115-300 ridge cap machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa

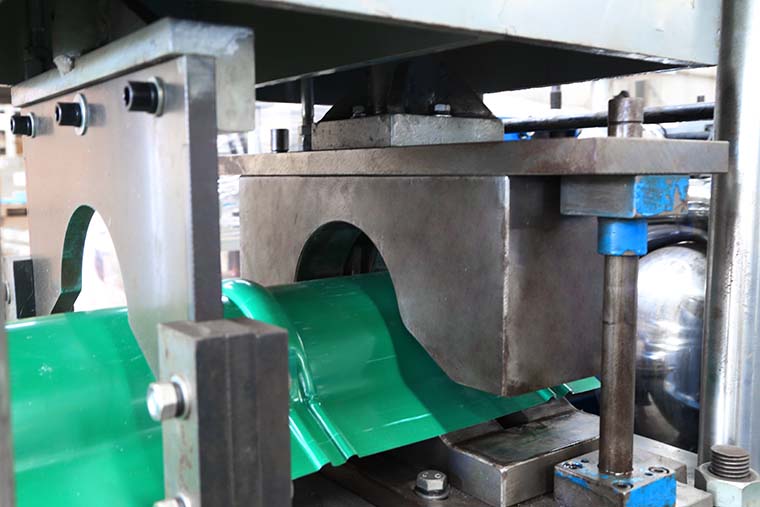

4) YX115-300 ridge cap machine punching mold

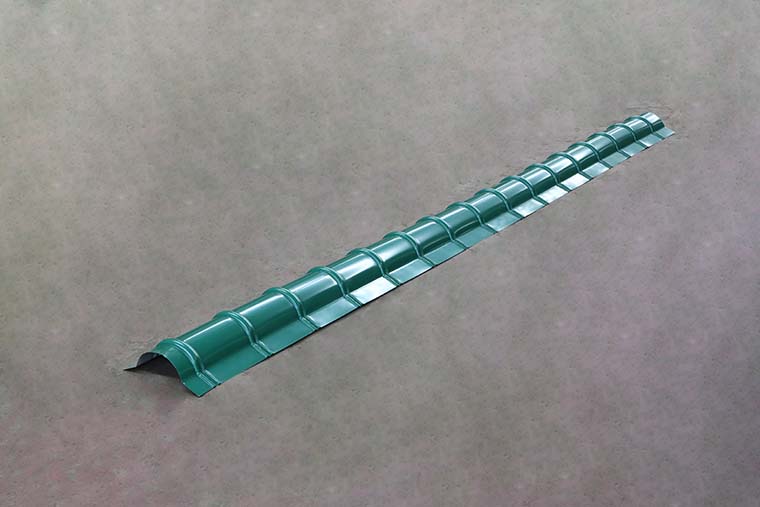

5) YX115-300 ridge cap machine product show
6) YX112-300 ridge cap machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton
With 6 tons hydraulic decoiler for option
6) YX112-300 ridge cap machine exit rack
Un-powered,one unit
Other detailes of YX115-300 ridge cap machine
Suitable for material with thickness 0.4-0.6mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 14 steps to form
Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
For the more detail click here to see the video:
http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26
After-sale service of ridge cap machine
1. The warranty of YX115-300 ridge cap machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
