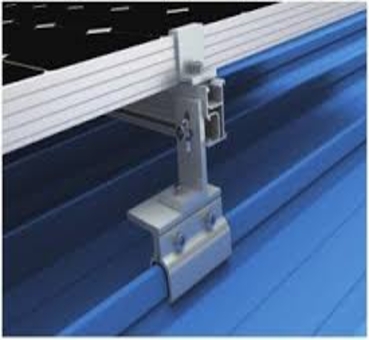

Metal Sheet Rooftop Solar Mounting System II

The photovoltaic mounting system is suitable for various types of metal sheet rooftops photovoltaic power stations. The system is developed and designed for different metal sheet rooftop structures without damaging the roof. Different structures correspond to different special fixtures, providing more convenient, safer and more economical solutions for photovoltaic projects.

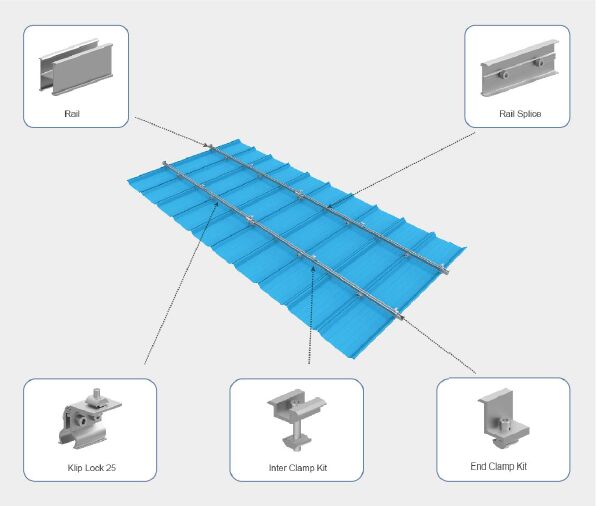

   Components List


Rooftop Solar Mounting System




                  Rail



                 Rail Splice



                 Klip Lock 25



                 Inter Clamp Kit



                 End Clamp Kit






   Technical Parameters


Product Name

Rooftop Solar Mounting System II

Installation Sites

Mental Sheet Roofs

Support Material

AL6005-T5Surface Treatment: Anodic Oxidation

Fastener Material

SUS304

Sparepart Material

AL6005-T5Surface Treatment: Anodic Oxidation

Applicable Component Types

Framed\Unframed

Foundation

Mental Sheet Clamp

Standards

DIN1055,  International Building Code IBC 2009

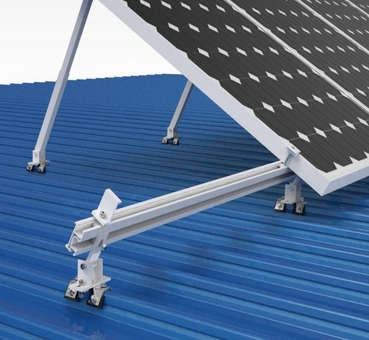

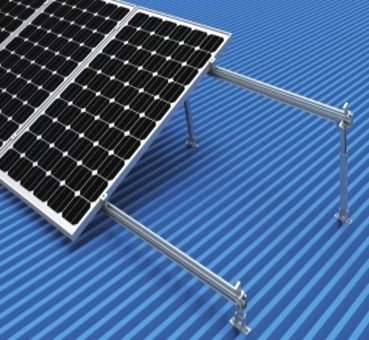

Tilt Angle

0-25°

Wind Load

60m/s

Snow Load

1.6KN/m2

Panel Orientation

Landscape\Portrait

Major Components

ClampRailRail Splice
