Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width

Customized different kinds of roll forming machines for aluminum sheet, color steel sheet, galvanized sheet and aluminum zinc coated steel coil, all these machine can be used as tile roof, floor deck, metal roof, shutter door, high way guard rail, door frame and other application.

Product Name: Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width

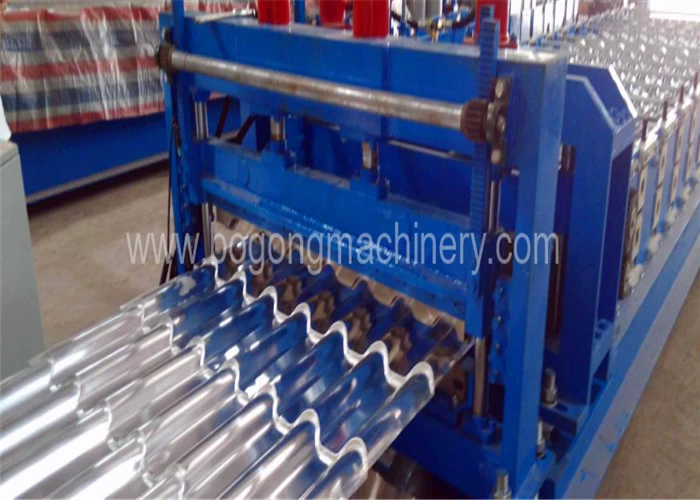

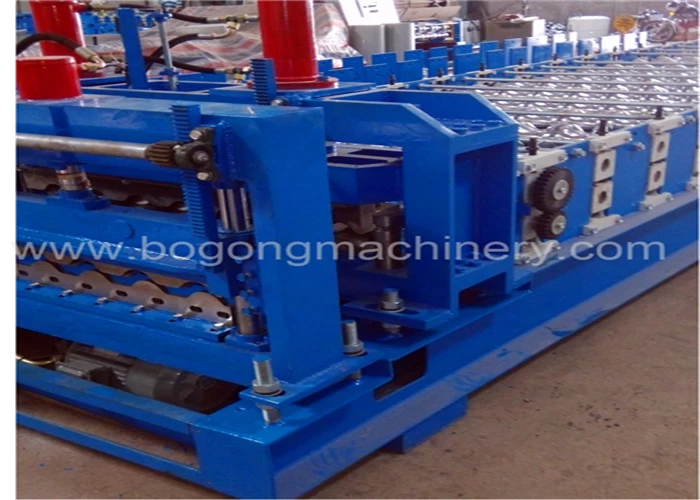

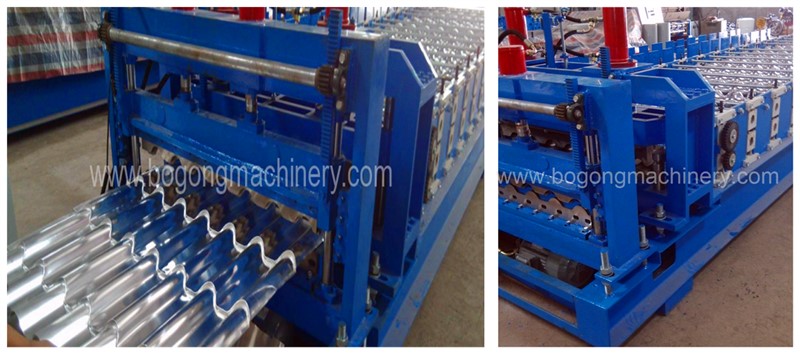

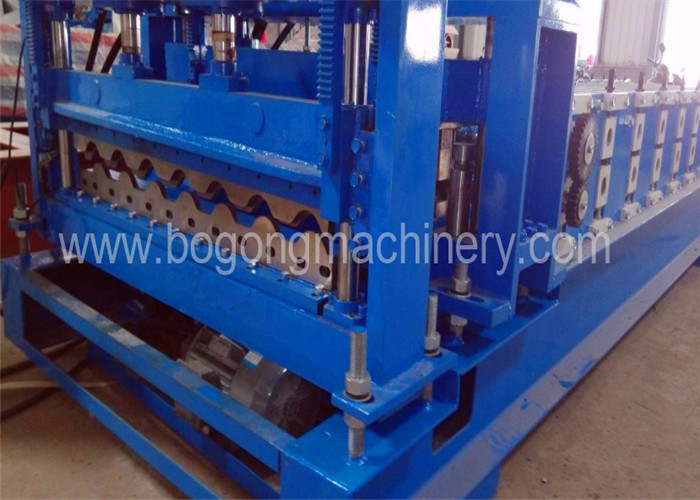

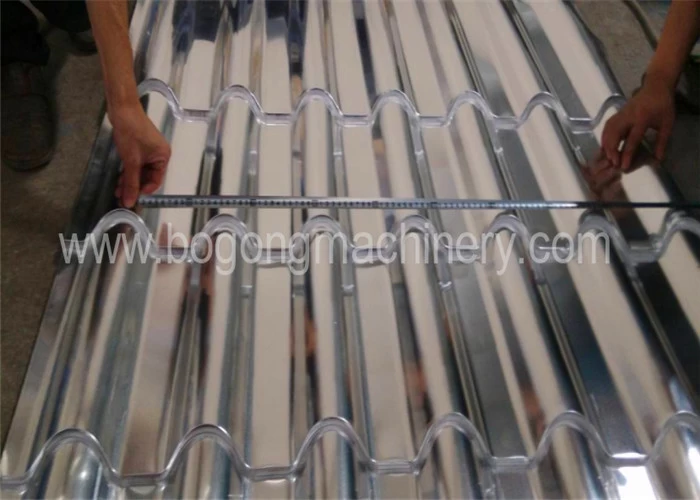

This metal steel wave roof tile roll forming machine 1200mm feeding wdith is special designed for aluminum sheet, due aluminum sheet is soft and easy broken, the tile mold should be manufactured specially also. See the roof tiles come out from step tile mold, the tile position is smooth, there is nothing wrinkle on it.

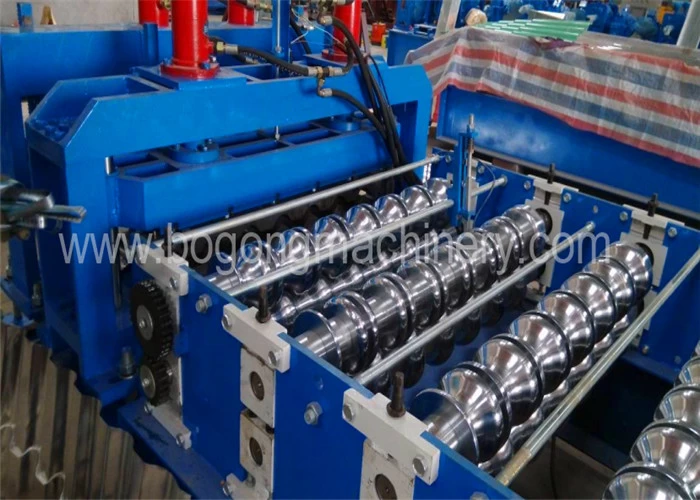

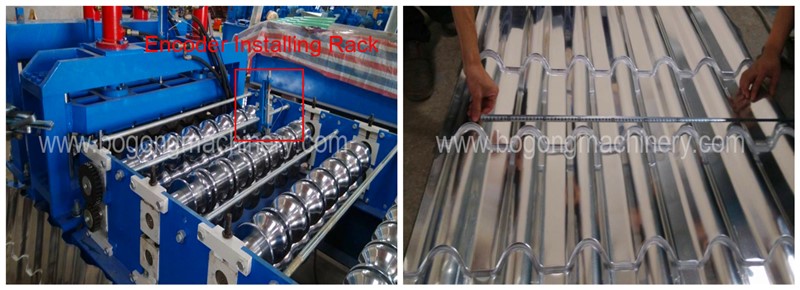

This Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width is with 16 station roll forming, and the covered width after roll forming is 921mm, raw material width is 1200mm aluminum sheet.  All the roll forming rollers are made  from 45# steel, coated by hard Chromed for enlarge the rollers hardness and can anti rust also. See the encoder supporting rack, it is for installing encoder to measure roof sheet length and running speed. This encoder should touch on roof sheet surface well when it works.

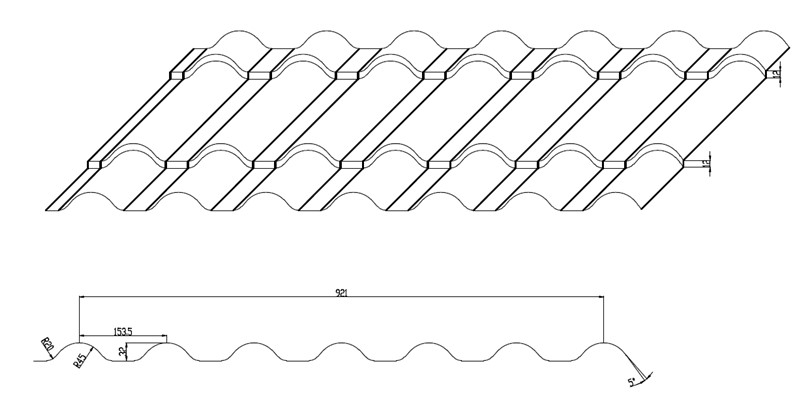

See the roof tile design drawing for this Metal Steel Wave Roof Tile Roll Forming Machine,  the raw material will be aluminum sheet in 1200mm width, the suitable material thickness is 0.3-0.7mm, six waves and the max tile depth is 14mm.

Technical Parameters

Contact to us if you need more information about our roll forming machines.
