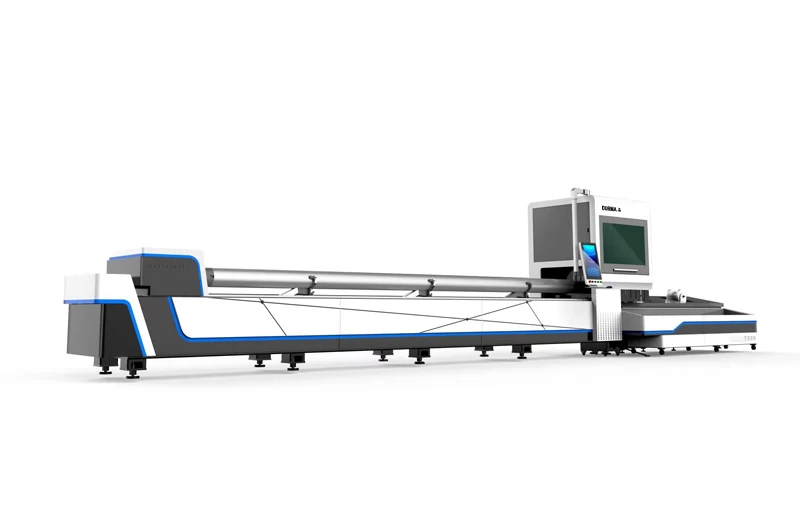

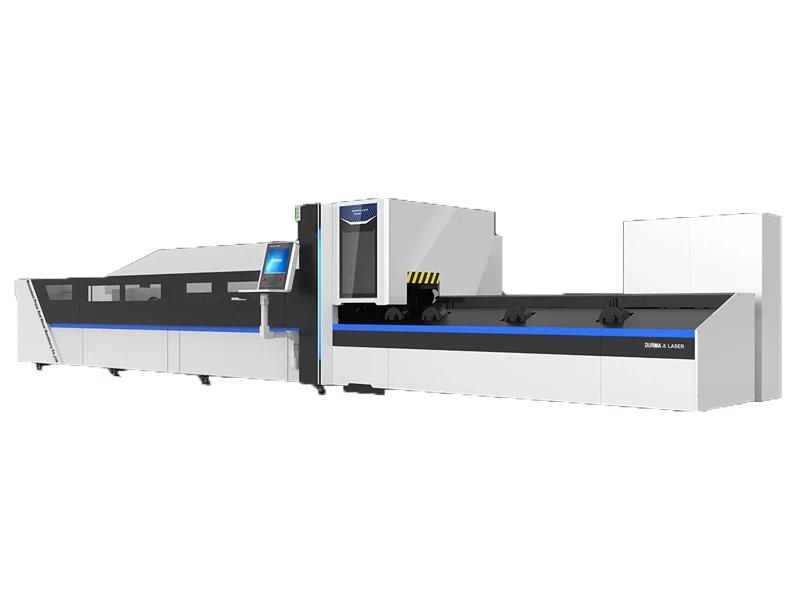

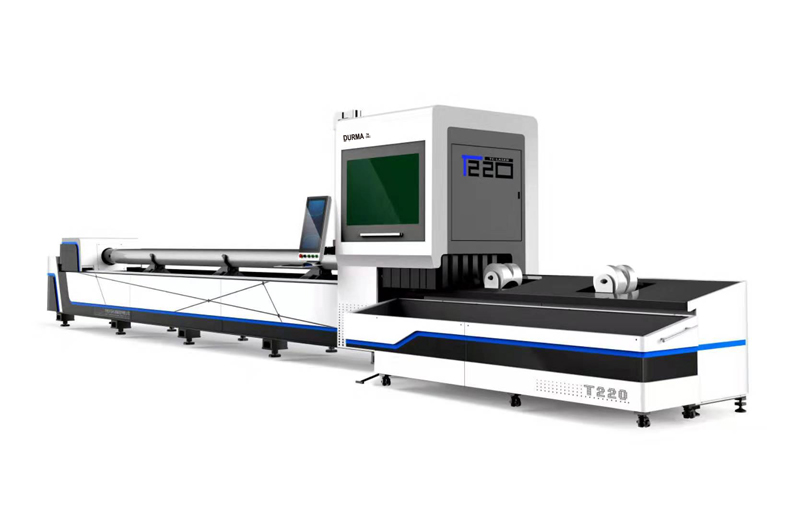

Product Item: Metal Tube CNC Fiber Laser Cutting Machine
Configuration List:
|
Fiber Laser Source
|
Raycus/IPG
|
|
Fiber Laser Cutting Head
|
Raytools
|
|
Servo Drive System
|
Schneider/ Delta
|
|
Liner Guider System
|
Lapping/THK
|
|
Transmit System
|
Dual Rack & Pinion type
|
|
Pneumatic Component
|
SMC/AirTac
|
|
ElectricSystem
|
Schneider
|
|
Motor Reducer
|
Motovario
|
|
Nesting Software
|
Cypcut
|
|
Exhaust Blower
|
Included
|
|
Water Chiller Unit
|
S&A
|
CNC Fiber Laser Tube Cutting Machine Pneumatic Chuck Clamping
1.Flexible and adjustable, improve efficiency
2.Suitable for various shapes of tube
3.Optional 3m or 6m tube cutting.

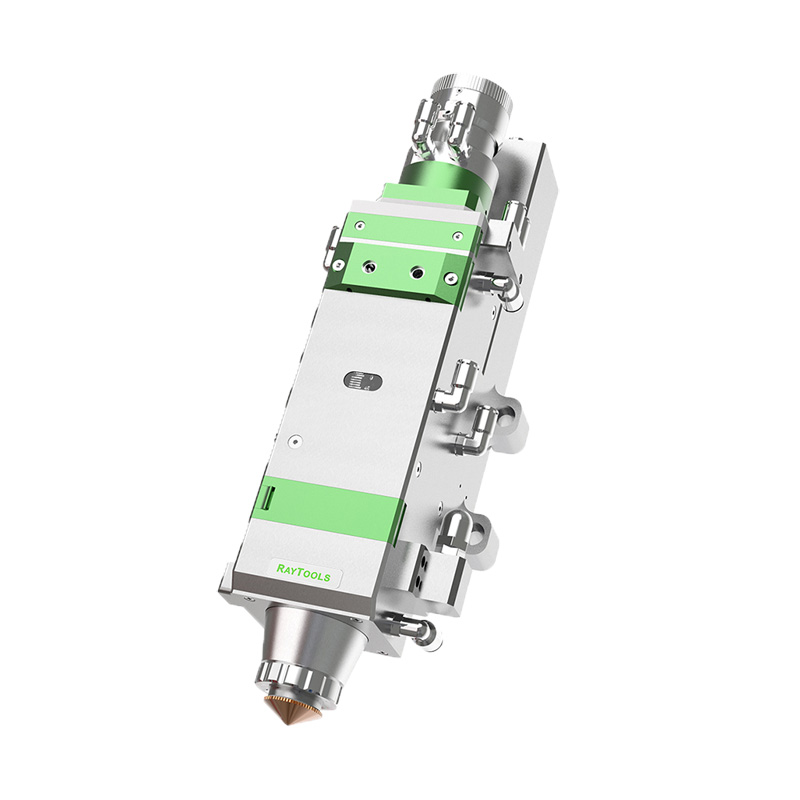

Fiber Laser Tube Cutting Fiber Laser Cutting Head
Laser head with Anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting quality and longer the life of lens.
Steel plate welding:
1. High precision CNC fixed working table.
2. Gantry welding machine tool with high temperature heat treatment and aging treatment to ensure a smooth and high-speed cutting equipment reliability.
Fiber Laser Source:
1. Fiber Laser Module
2. Low Energy Consumption: Save energy and protect environment
3. Photoelectric conversion rate is up to 25-30%
4. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine
5. Lifetime is more than 100,000 hours
6. Almost free maintenance.
Cutting Parameter:
Product Parameters:
|
Model
|
PS6020T
|
|
Working Area (L*W)
|
6000mm * φ20-220mm
|
|
Laser Output Power
|
4000w/3000w/2000w/1500w/1000w
|
|
X/Y-axis positioning accuracy
|
± 0.05 mm
|
|
X/Y-axis repositioning accuracy
|
± 0.02 mm
|
|
X/Y-axis Max. linkage speed
|
130 m/min
|

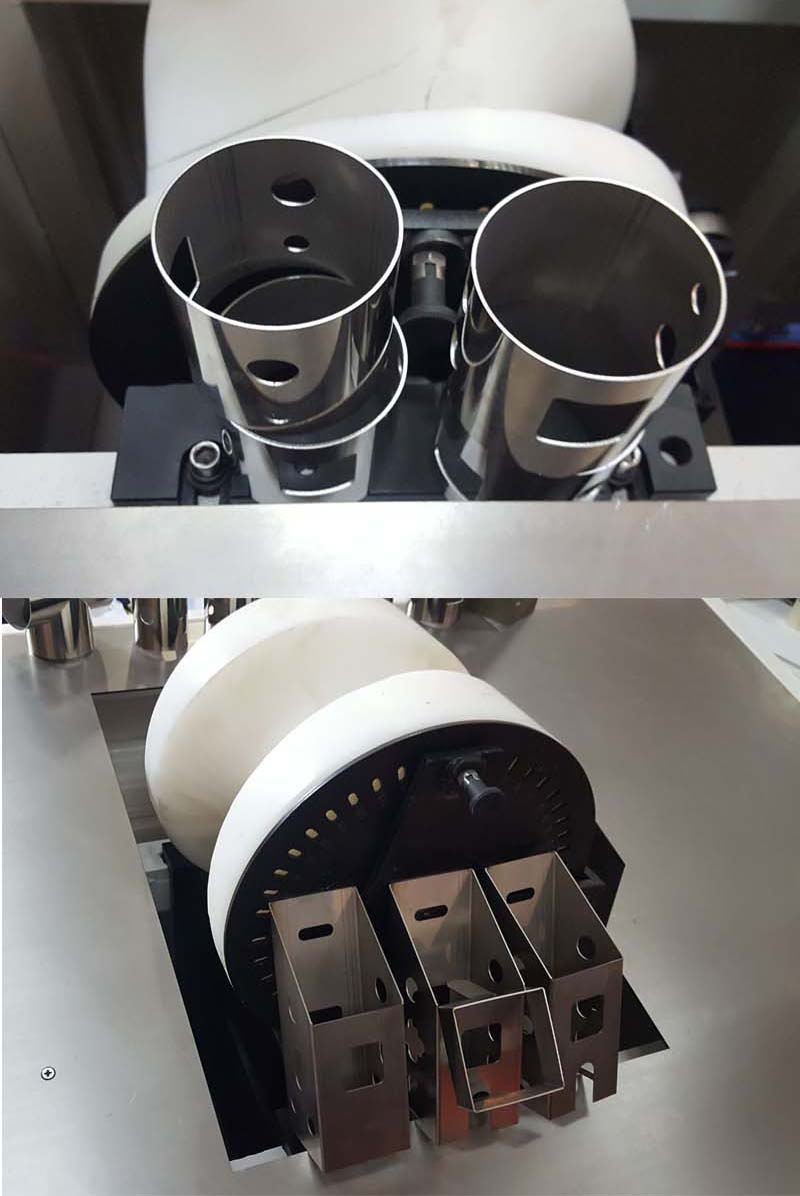

Cutting Samples:
