metal z brackets shape solar panel mounting

metal z bracketsz shape mounting bracket solar panel z brackets



pv solar car bracket abs plastic solar panels bracket

ABS Solar Plastic Panel Bracket Kits Solar Panel Caravan Mounts For RV Bus

PRODUCTS DETAIL

Product name: Panel Mounting Brackets Kit

Installation Site:used on bonded vehicles where the panels are small or low pressure
Standard:AS/NZS 1170/JIS4955:2011/ISO9001
Surface Treatment:Anodized
Function:Solar Brackets Components
Advantages:Simple install and low cost for mounting small solar panels
Components Parts:Pre-assembled with bolts and washers
PV modules:Small panel
OEM Service:Avaliable
Application:Home, Yacht, Caravan and Flat Roof


TECHNICAL INFORMATION

Place of Origin:CN;XIAMEN
Brand Name:EmperySolar
Model Number:EPR
Wind Load:60M/S
Snow Load:1.4KN/M2
Warranty:10 Years
solar panel z brackets




APPLICATION

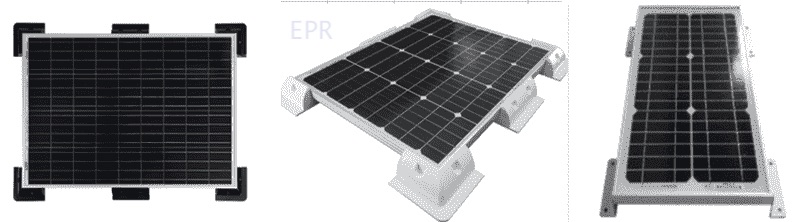

1 The ABS solar mounting brackets can be used with any sized aluminum framed solar panel to provide a secure fixing for vehicles, caravans, boats, outbuildings etc.

2 The ABS solar mounting brackets will support the solar panel at the optimum height above the surface to enable aeration from underneath, ensuring the solar panel functions as efficiently as possible.
3 The ABS solar mounting brackets can be safely bonded to the surface removing the need to drill holes. The mounts also act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck.
4 Compatible with 20W to 200W panels.

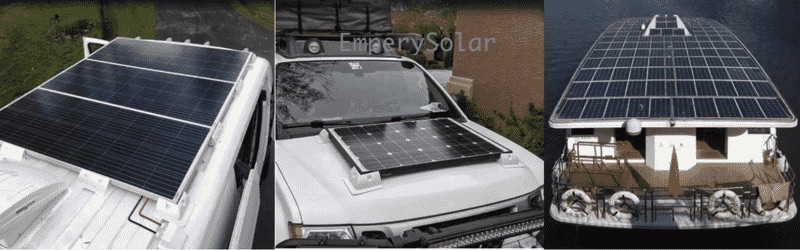

Caravan/Boat/RV solar panel mounting brackets kits

solar panel z brackets



PRODUCT DESCRIPTION

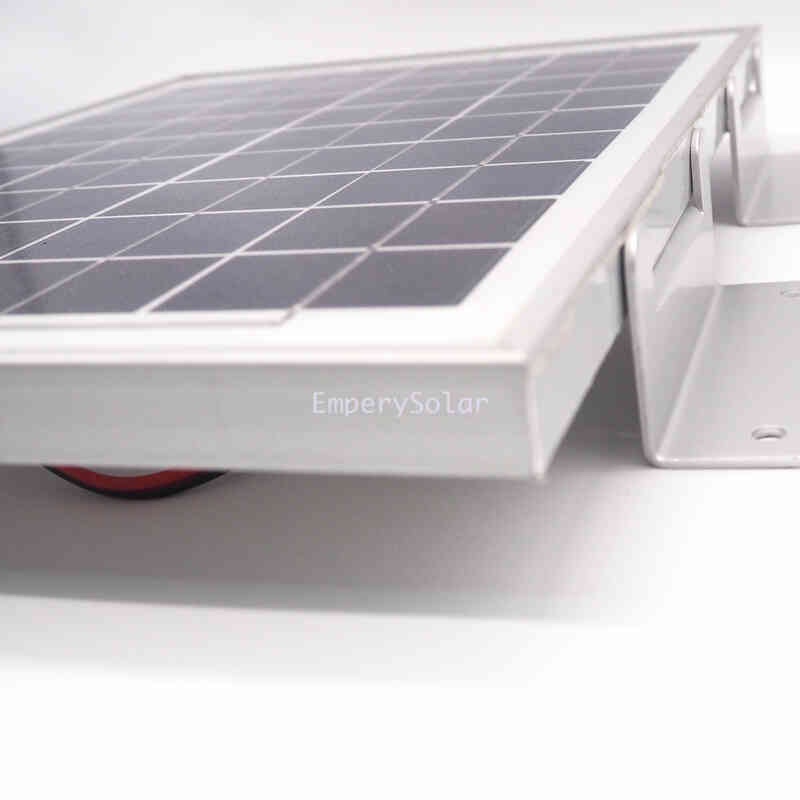

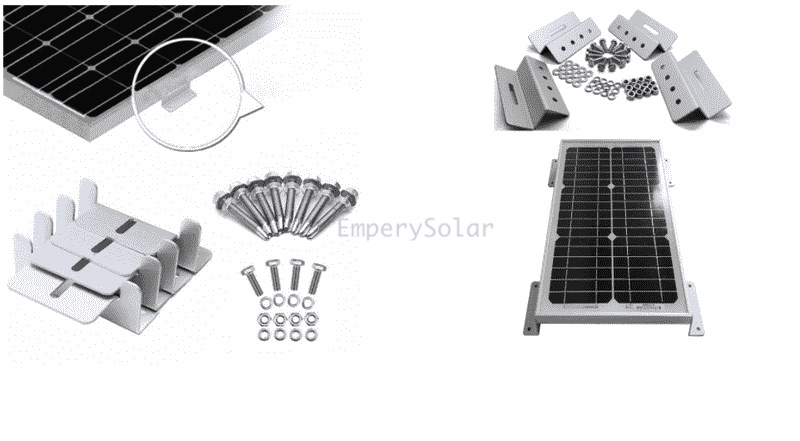

Description of Aluminum PV Solar Panel Z Bracket

The Z Mount Bracket are suitable for horizontal installation of PV modules to RVs, Boats, Marine, Flat roof or anywhere else where you need a simple and reliable method to mount solar panels.

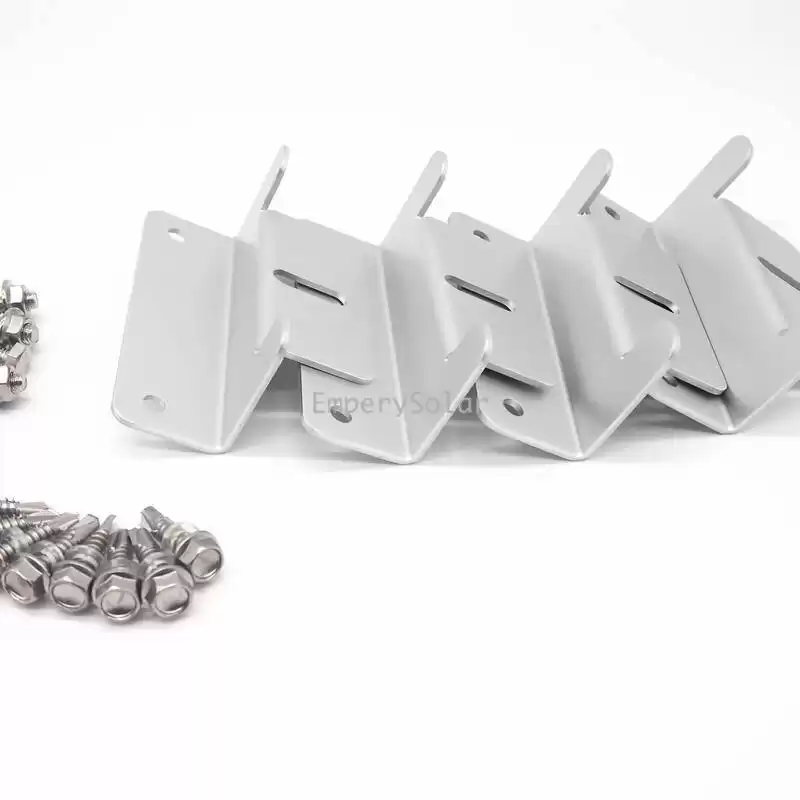

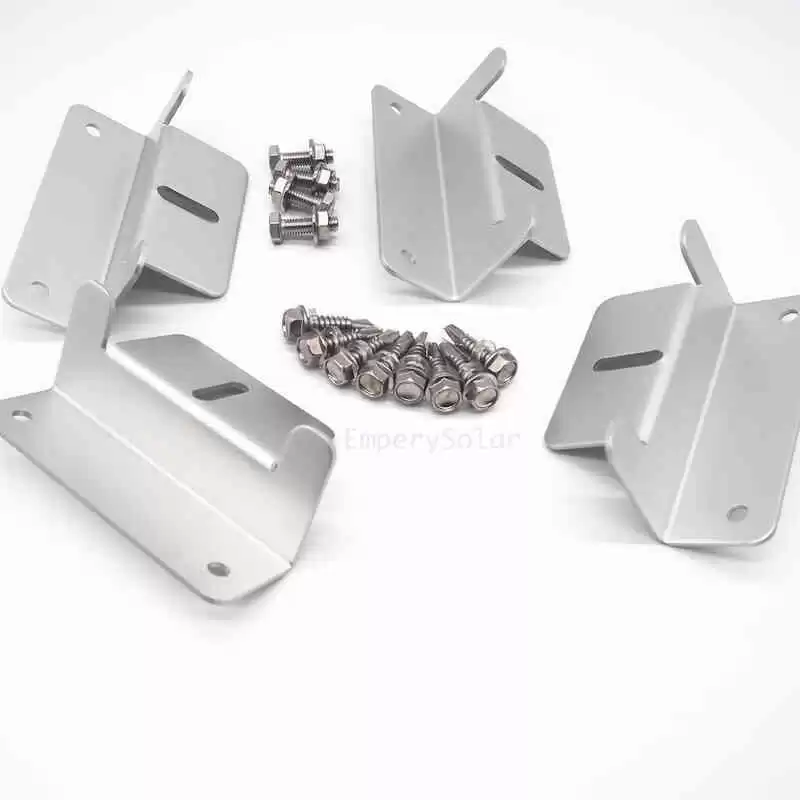

Specifications of solar panel Z-bracket mounting kit

The Z-bracket is made of rust-free anodized aluminum alloy. The screw bolts and nuts are made of stainless steel. All material are rust-resistant and durable.


PRODUCTS DETAIL

Material:Aluminum Alloy
Color:Natural Silver, Black
Thickness:0.5-15mm
Surface Treated:Anodized
Wind Load:130mph(60m/s)
Snow Load:(1.4n/m2)
Warranty:10 years
Application:RV, Vehicles, Caravan, Motorhome, Boat, Flat roof etc

solar panel z brackets

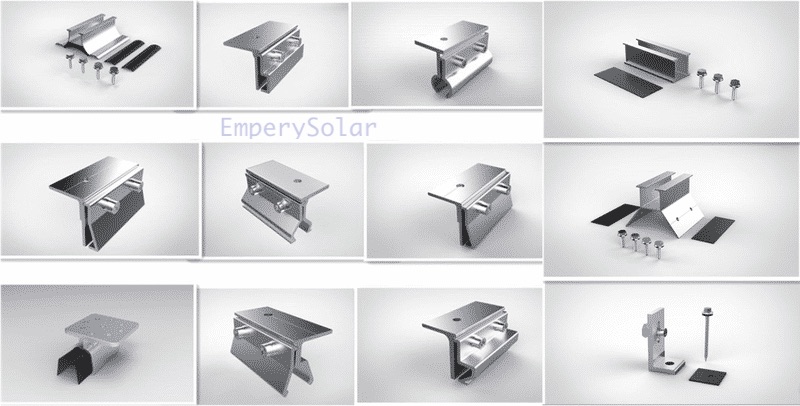

Solar system accessories

Solar system accessories

Solar system accessories

PACKING & DELIVERY

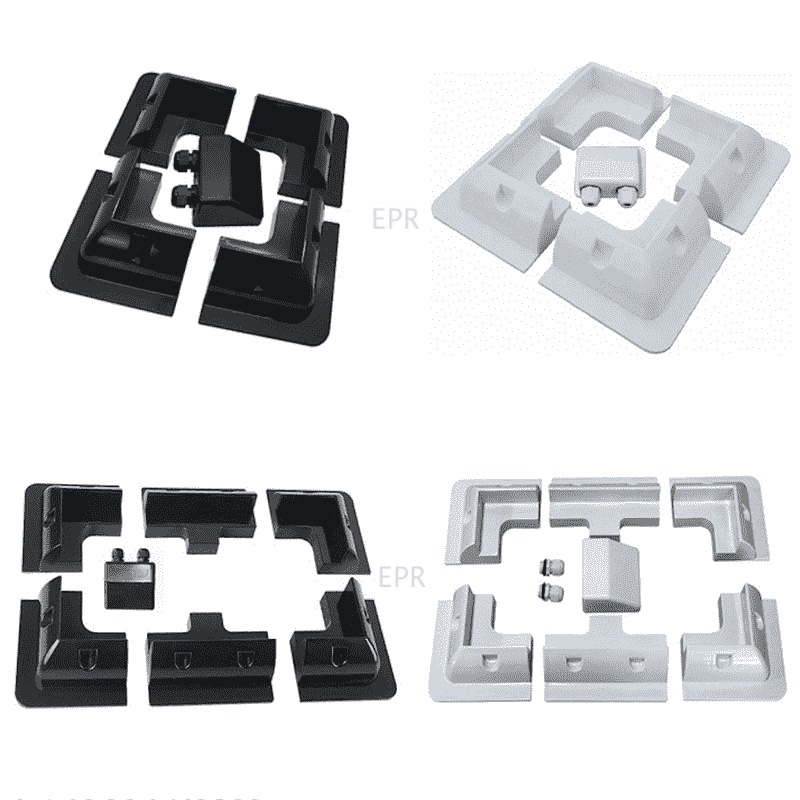

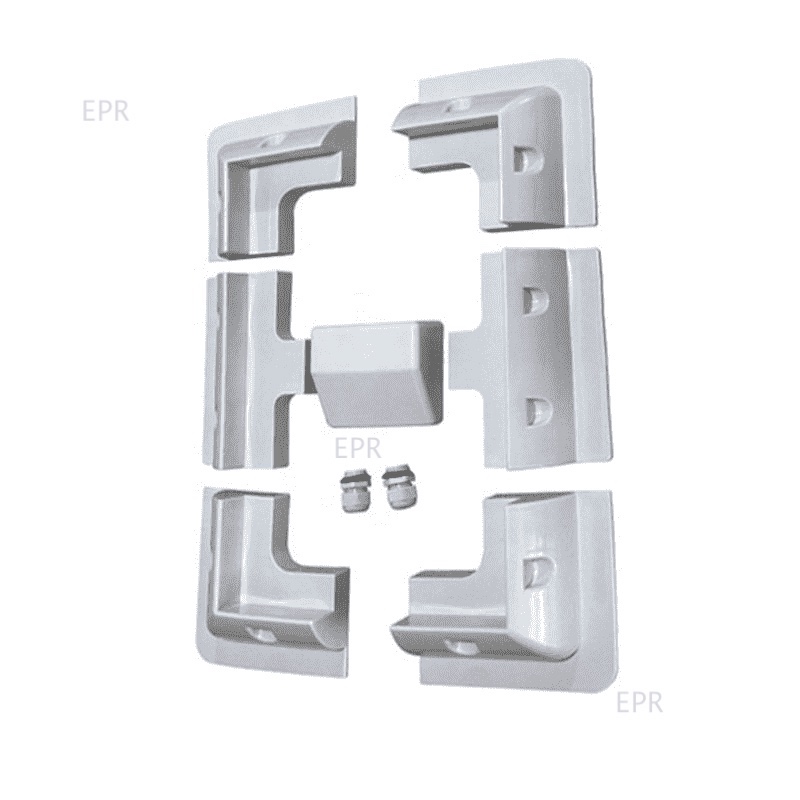

ABS Mounting Brackets Kit
