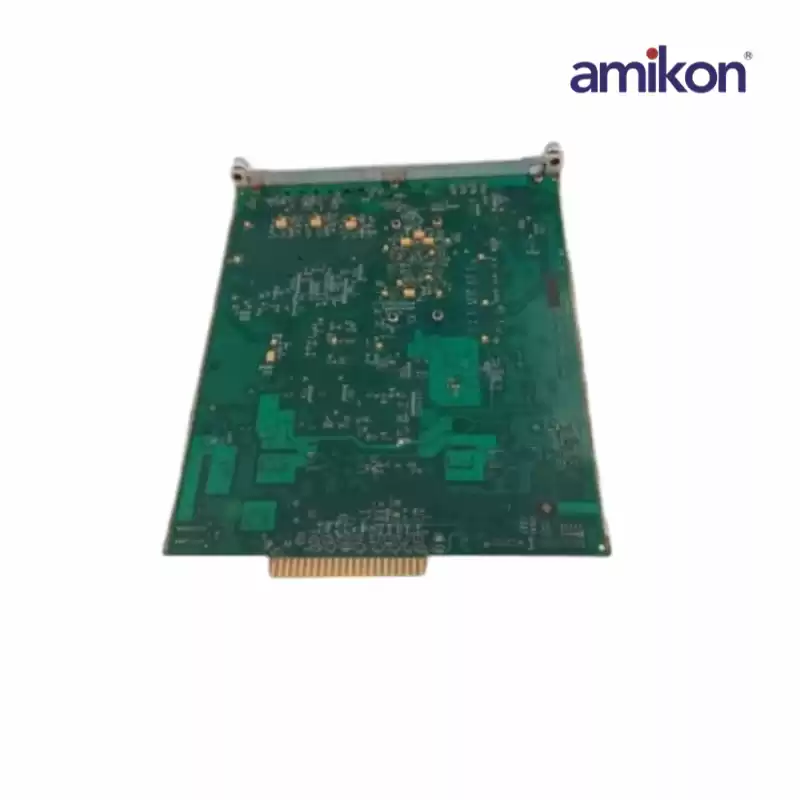

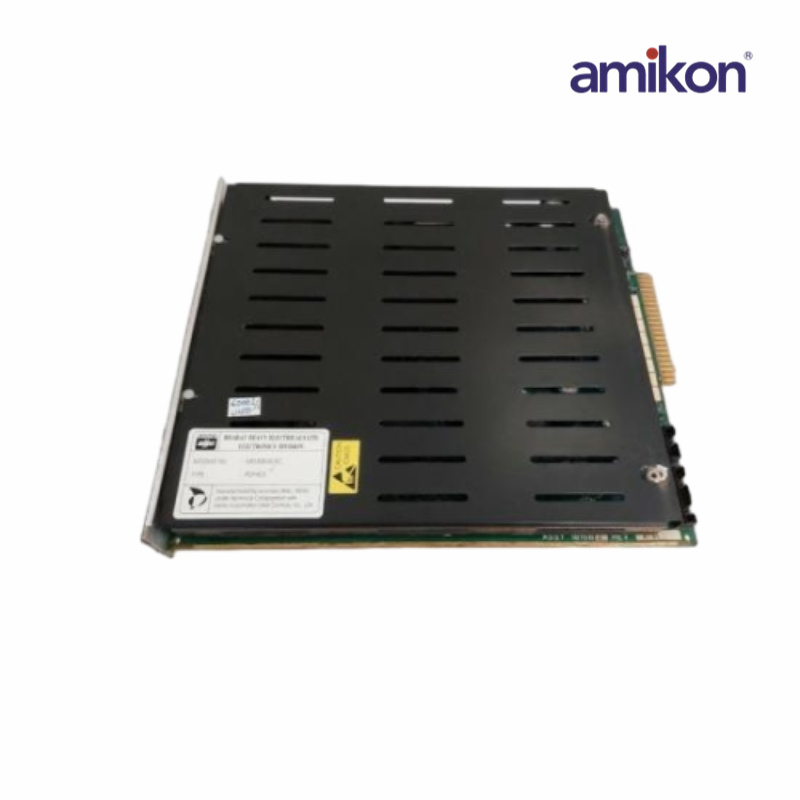

METSO PDP403 Processing Unit

Features

• 1-kV Isolation (operational): 1-second test

• Continuous voltage applied across isolation barrier: 60 VDC / 42.5 VAC

• UL1950 recognized component

• EN55022 class B EMC performance

• 7-Pin PDIP and 12-pin SOP packages

• Input voltage: 5 V, 12 V, 15 V, or 24 V

• Output voltage: 3.3 V, ±5 V, 7 V, 9 V, ±12 V, or ±15V

• Device-to-device synchronization

• Thermal protection

• Short-circuit protection

• High efficiency

Applications

• Signal path isolation

• Ground loop elimination

• Data acquisition

• Industrial control and instrumentatio

Description

The PDP403 is a family of 2-W, isolated,  unregulated DC/DC converter modules.

Requiring a  minimum of external components and including on chip device protection, the PDP403 series of devices  provide extra features such as output disable and  synchronization of switching frequencies.  This combination of features and small size makes  the PDP403 of devices suitable for a wide range  of applications, and is an easy-to-use solution in  applications requiring signal path isolation.
