Product features
The sensor chip adopts heat mass flow measurement without compensation of temperature and pressure, which ensures the high-precision measurement of the flowmeter;
Multiple sensor integration is implemented on a single chip with a range ratio of 100:1 or higher;
LED displays instantaneous flow rate and cumulative flow rate;
It has gas recognition function;
Ultra-low power consumption, internal lithium battery power supply can work for a long time;
The output mode is flexible, RS485 communication module, 4-20mA current and 0-5V voltage output module are optional.

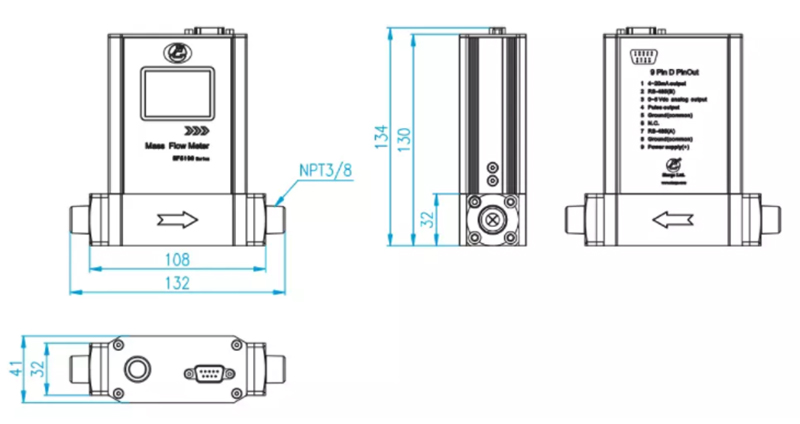

Mechanical dimensions
Technical parameters
|
Parameters
|
MF5106
|
MF5108
|
Unit
|
|
The maximum flow
|
30
|
50
|
SLPM
|
|
Precision
|
±1.5
|
%FS
|
|
Repetitive
|
±1.0
|
%
|
|
Resolution
|
0.01
|
SLPM
|
|
Working pressure
|
0.1~0.8
|
MPa
|
|
The max working pressure
|
≤1.0
|
MPa
|
|
Working temperature
|
-10~+55
|
℃
|
|
Humidity
|
<95%RH(no ice,no frost)
|
|
|
Storage temperature
|
-10~+65
|
℃
|
|
Long-term stability
|
<1.0
|
%
|
|
Working power
|
No.2 lithium battery LR26500(type C)
|
|
|
Battery life
|
2
|
Year
|
|
Output
|
LCD(display instantaneous and cumulative flow), 3V pulse
|
|
|
|
RS485 Modbus(Need power supply outside 12-24VDC)
|
|
|
|
4~20mA or 0~5VDC(Need power supply outside 12-24VDC)
|
|
|
Calibration conditions
|
Air(20°C,101.325kPa)
|
|
|
Mechanical interface
|
NPT 3/8”
|
|
|
Weight
|
<1.0
|
kg
|
Remark:The above parameters at 20 ° C, 101.325 kPa measured.
