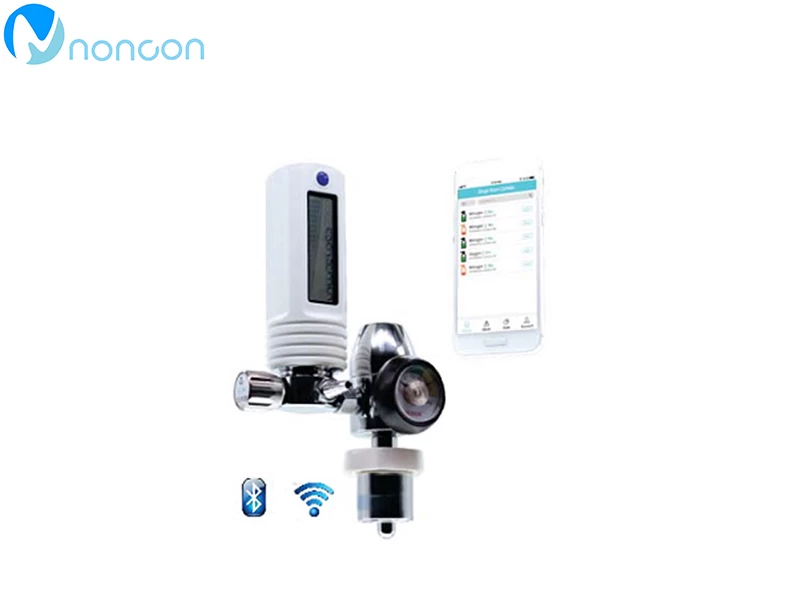

Product features
It is suitable for the measurement and control of cylinder gas flow, and can measure instantaneous flow rate, cumulative consumption, gas consumption time and bottle residue.
Battery working, bluetooth wireless data transmission.
Too high/too low gas flow alarm and too low gas bottle allowance alarm.
Friendly display interface and terminal application.
Based on the Internet of things technology, the intelligent management of cylinder filling, storage, transportation and use is realized.

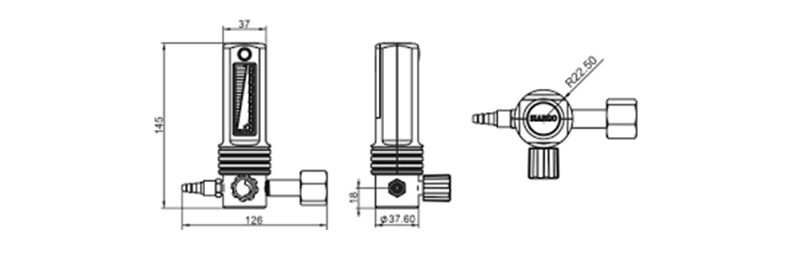

Mechanical dimensions
Remark:
1.Pressure reducing valve is not included
2.The specific mechanical interface can be customized according to the requirements.
Technical parameters
|
Parameters
|
MF5806-G
|
Unit
|
|
Measuring flow
|
0~20/50
|
L/min
|
|
Precision
|
±(2.0+0.5FS)
|
%
|
|
Repetitive
|
0.5
|
%
|
|
Respone time
|
≤2
|
s
|
|
Working power
|
2 AA batteries (NO. 5 battery LR6) or external adaptor 6~24VDC
|
|
|
Power consumption
|
≤5
|
mW
|
|
Output signal
|
Bluetooth 4.2, GPRS or Wifi
|
|
|
Display way
|
LCD
|
|
|
Display unit
|
Instantaneous flow rate:L/min;The cumulative flow:m³:Oxygen time:hhHmm(hour Hminute)
|
|
|
Display resolution
|
Instantaneous flow rate:0.01L/min;The cumulative flow:0.001m³:Oxygen time:00H01(1 minute)
|
L/min
|
|
Keyboard
|
A button
|
|
|
Major function
|
Password Settings;Set and reset the total amount;Alarm function,time setting and reset:Zero setting
|
|
|
Maximum working pressure
|
0.5
|
MPa
|
|
Working temperature
|
-10~+55
|
℃
|
|
The pressure loss
|
≤500
|
Pa
|
|
Continuous battery life
|
800hours(Bluetooth switched on)/2300hours(Bluetooth switched off)
|
Day
|
|
Standard calibration gas
|
Air(20°C,101.325kPa)
|
|
|
Lead
|
Special mini USB(optional)
|
|
|
Mechanical interface
|
Cylinder pressure reducing valve matching interface, can be customized according to the requirements
|
|
|
Weight
|
About350
|
g
|
Remark:The above parameters at 20 ° C, 101.325 kPa measured.
