Product features
With high sensitivity, the measurement range can be as low as 0.01Nm/ SEC and as high as 65Nm/ SEC through the independent integrated module.
Using the principle of thermal mass flowmeter, the sensor can directly measure the fluid mass.
Unique MEMS design makes for greater stability and durability.
Standard power supply voltage is 8~24VDC.
Industrial standard communication interface can easily realize network and remote control.

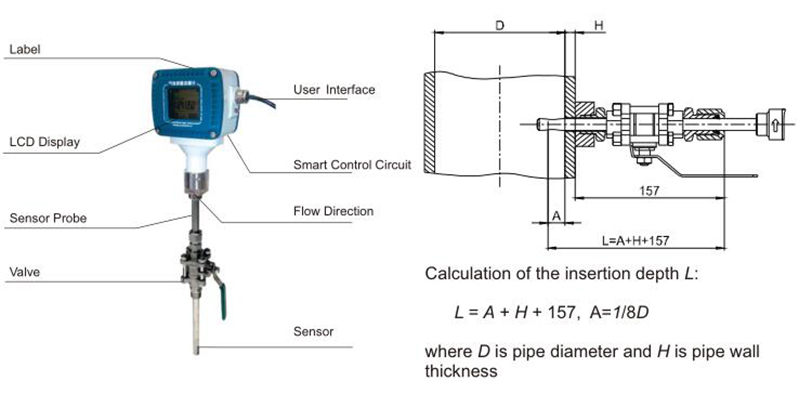

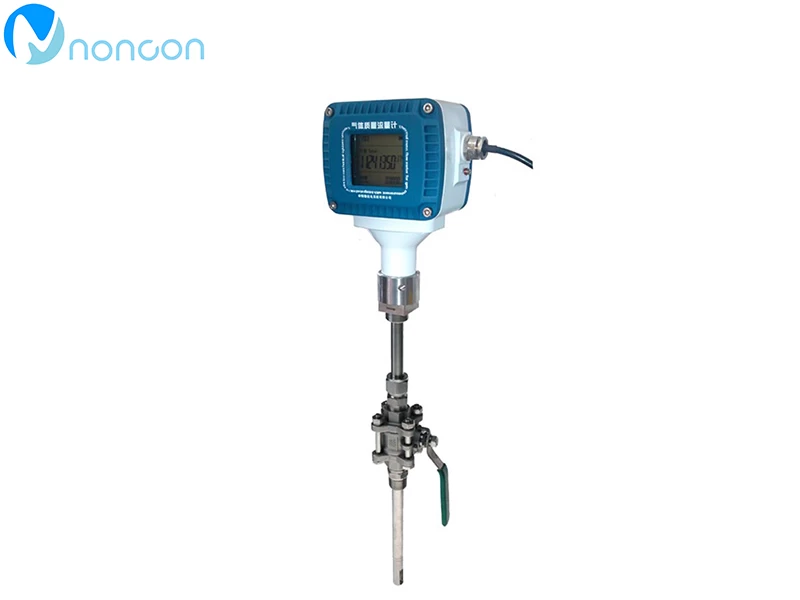

Product structure and mechanical dimensions
|
Model
|
Diameter(mm)
|
Depth (mm)
|
Probe rod minimum length requirement(mm,H=wall thickness)
|
Fixed length
|
The max flow(Nm³/h)
|
The mini flow(Nm³/h)
|
|
MFI-1
|
80
|
11
|
174+H
|
Length 250
Diameter14
Valve 15
|
1000
|
10
|
|
100
|
13
|
176+H
|
1500
|
15
|
|
125
|
16
|
179+H
|
2500
|
25
|
|
150
|
20
|
183+H
|
3500
|
35
|
|
200
|
26
|
189+H
|
6500
|
65
|
|
250
|
33
|
196+H
|
10000
|
100
|
|
300
|
40
|
203+H
|
15000
|
150
|
|
350
|
46
|
209+H
|
20000
|
200
|
|
400
|
53
|
216+H
|
25000
|
250
|
|
450
|
60
|
223+H
|
32000
|
320
|
|
500
|
66
|
229+H
|
40000
|
400
|
|
MFI-2
|
600
|
80
|
243+H
|
Length325
Diameter14
Valve 15
|
55000
|
550
|
|
700
|
93
|
256+H
|
75000
|
750
|
|
800
|
106
|
269+H
|
100000
|
1000
|
|
900
|
119
|
282+H
|
130000
|
1300
|
|
1000
|
132
|
295+H
|
160000
|
1600
|
|
1100
|
146
|
308+H
|
200000
|
2000
|
|
MFI-3
|
1200
|
159
|
335+H
|
Length 400
Diameter19
Valve 20
|
230000
|
2300
|
|
1300
|
172
|
349+H
|
270000
|
2700
|
|
1400
|
186
|
362+H
|
320000
|
3200
|
|
1500
|
199
|
375+H
|
360000
|
3600
|
|
1600
|
212
|
388+H
|
400000
|
4000
|
Technical parameters
|
Precision
|
±(1.5+0.5FS)%
|
|
Measuring range
|
0.01~65Nm/sec(for example:
DN150:0.6~3500Nm³/hr)
|
|
Measuring environment
|
Temperature：（-20~+60）℃
|
|
Humidity ：<95%RH(no ice,no frost)
|
|
Measuring diameter
|
80~1600mm
|
|
Content of display
|
Instantaneous flow rate, accumulative flow rate
|
|
Output way
|
4~20mA;RS485;5V pulse
|
|
Calibration conditions
|
Air ,20°C,101.325kPa
|
|
Protection grade
|
IP66
|
Remark:1.The above parameters at 20 ° C, 101.325 kPa measured.
2.For carbon dioxide, the maximum flow rate is 0.75 times as high as listed in the above table.

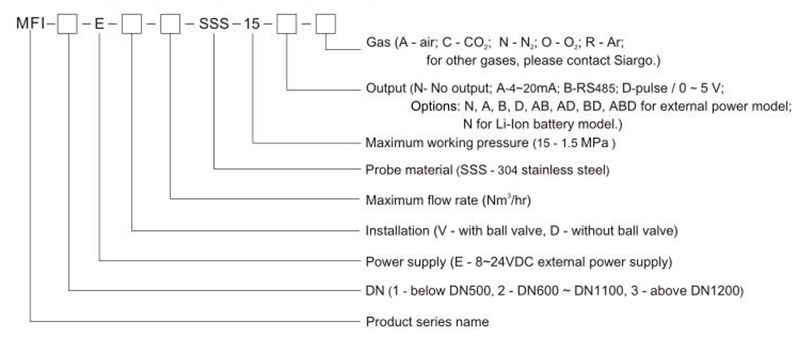

Product selection
In addition to the models listed in the model selection table, the company can also customize the products required by users according to special requirements (such as other installation methods).If need, please contact the manufacturer directly.Production license of this series of products:Chuan produce no.0000036.
Remark:1.The default unit of maximum flow and minimum flow is Nm³/h,Measured under the standard state (20 ℃) 101.325 kPa.
When selecting the default unit, write only Numbers;When selecting other units, You must write the Numbers and the units together.
2.The internal battery power supply type only has field display without any output signal.
